General Purpose Relays
PCB Relays
Power PCB Relay RT1 Inrush
n
n
n
n
n
n
n
SCHRACK

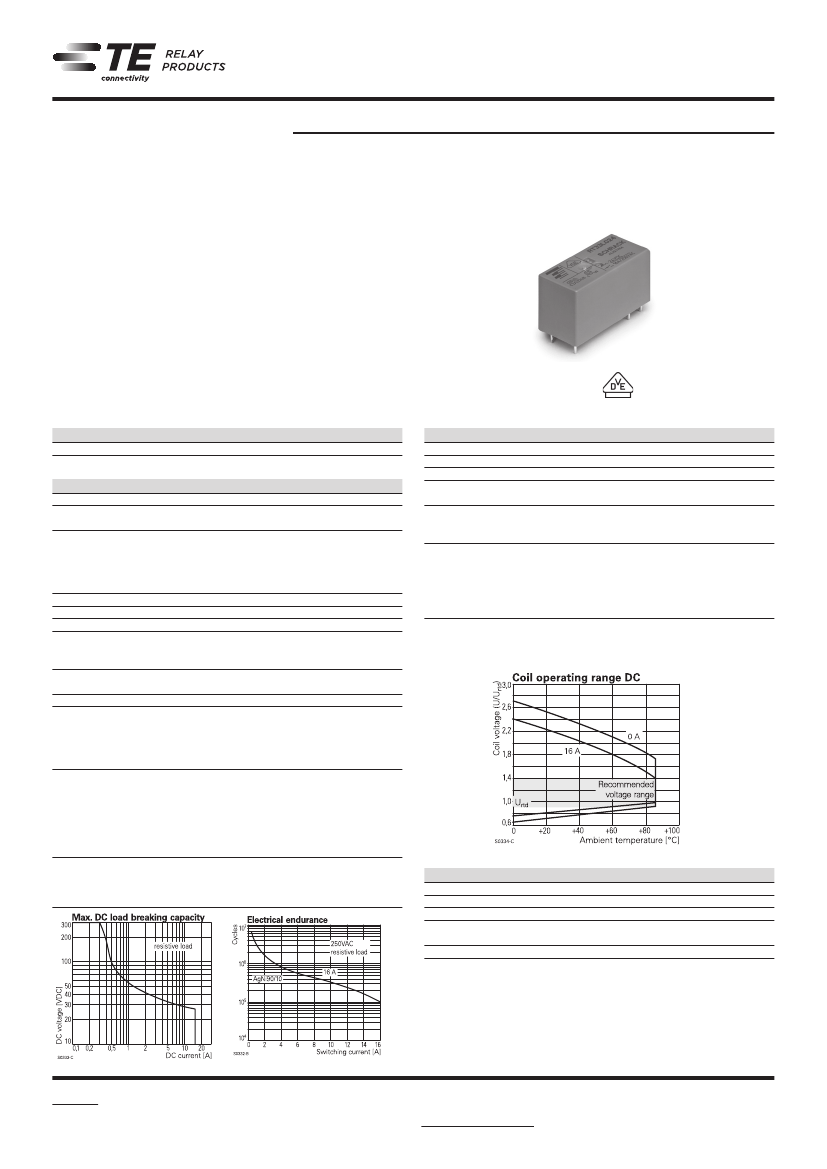

1 pole 16A, 1 form C (CO) or 1 form A (NO) contact
For inrush peak currents up to 80A
Mono- or bistable coil
5kV/10mm coil-contact
Reinforced insulation
Ambient temperature 85°C
WG version: product in accordance to IEC 60335-1
Typical applications
Domestic appliances, heating control, lighting control
F0177-C
Zb

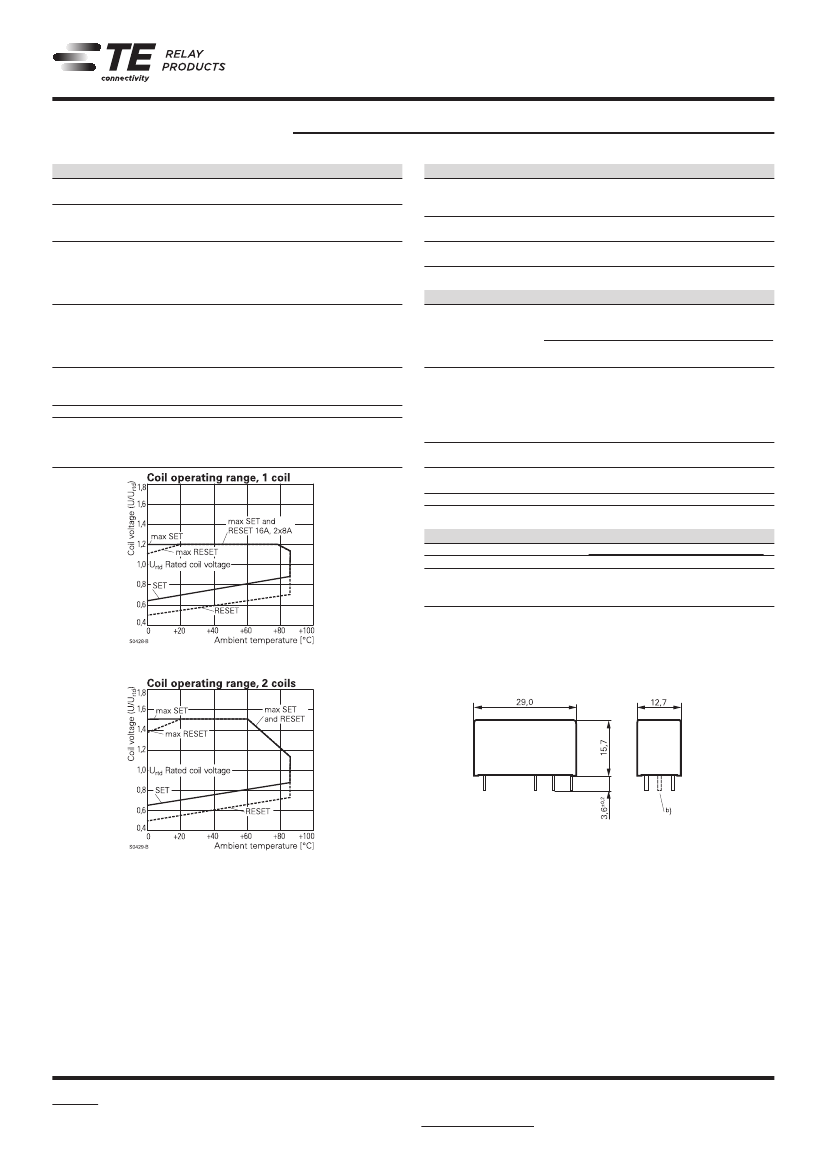

Coil Data, DC coil
Coil voltage range
Operative range, IEC 61810
Coil insulation system according UL
Coil versions, DC coil
Coil
Rated
Operate
code
voltage
voltage
VDC
VDC
005
5
3.5
006
6
4.2
012
12
8.4
024
24
16.8
048
48
33.6
060
60
42.0
Release
voltage
VDC
0.5
0.6
1.2
2.4
4.8
6.0
5 to 110VDC
2
class F
Coil
resistance
Ω±10%
1)
62
90
360
1440
5520
8570
1)
Rated coil
power
mW
403
400
400
400
417
420
Approvals
VDE Cert. No. 40007571, UL E214025, cCSAus 1142018
Technical data of approved types on request
Contact arrangement
1 form C (CO) or 1 form A (NO)
Rated voltage
250VAC
Max. switching voltage
400VAC
Rated current
16A
Limiting continuous current
16A, UL: 20A (K-version)
Limiting making current,
max. 4s, df 10%
30A
max. 20ms (incandescent lamps), RT33L version 80A
Breaking capacity max.
4000VA
Contact material
AgNi90/10, AgSnO
Frequency of operation, with/without load
360/72000h
-1
Operate/release time max., DC coil
9/6ms
Operate/Reset time max., bistable version
10/10ms
Bounce time max., form A/form B
3/6ms
Contact ratings
Type
Contact
IEC 61810
RT33L
A (NO)
RT33L
A (NO)
RT31
C (CO)
RT33K
A (NO)
UL 508
RT33K
A (NO)
RT33L
A (NO)
RT31
C (CO)
RT33L
A (NO)
RT33L
A (NO)
Mechanical endurance
monostable version
bistable version
Load
16A, 250VAC resistive, 85°C
10A, 400VAC resistive, 85°C
16A, 250VAC resistive, 85°C
16A, 250VAC resistive, 85°C
20A, 277VAC general purpose, 40°C
16A, 250VAC resistive, 85°C
16A, 250VAC resistive, 85°C
1000W Tungsten, 120VAC, 60 Hz, 40°C
1000W standard ballast,
120VAC, 60 Hz, 40°C
>30x106 operations
>5x106 operations
Cycles
50x10
3
10x10³
6x10³
30x10
3
10x10
3
50x10
3
6x10³
6x10
3
6x10
3
Contact Data
1) Coil resistance ±12%.
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Other coil voltages on request.
Coil Data, bistable coils
Magnetic system
polarized, bistable
Coil voltage range
5 to 24VDC
Operative range, IEC 61810
2
Limiting voltage, % of rated coil voltage 120%
150%
Min./Max. energization duration
30ms/1min at <10% duty factor
Coil insulation system according UL
class F
1 coil
2 coils
04-2015, Rev. 0415
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
General Purpose Relays
PCB Relays
Power PCB Relay RT1 Inrush
(Continued)
Coil Data
(continued)
Coil versions, bistable coil
Coil
Rated
Set
code
voltage
voltage
VDC
VDC
bistable, 1 coil
A05
5
3.5
A06
6
4.2
A12
12
8.4
A24
24
16.8
bistable, 2 coils
F05
5
3.5
F06
6
4.2
F12
12
8.4
F24
24
16.8
Reset
voltage
VDC
2.8
3.3
6.6
13.2
2.8
3.3
6.6
13.2
Coil
resistance
Ω±10%
62
90
360
1440
42
55
240
886
Rated coil
power
mW
403
400
400
400
595
655
600
650
SCHRACK
Insulation Data
Initial dielectric strength
between open contacts
between contact and coil
Clearance/creepage
between contact and coil
Material group of insulation parts
Tracking index of relay base
1000V
rms
5000V
rms
≥10/10mm
IIIa
PTI 250V
Other Data
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Other coil voltages on request.
Bistable coils - operation
Version
1 coil
Coil terminals
A1 A2
Operate
+
-
Reset
-
+
Contact position not defined at delivery
2 coils
A1 A3 A2
+
-
-
+
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Resistance to heat and fire
WG version
according EN60335-1
Ambient temperature
-40 to 85°C
Category of environmental protection
IEC 61810
RTII - flux proof
Vibration resistance (functional),
form A/form B contact, 30 to 500Hz
20/5g
Shock resistance (destructive)
100g
Terminal type
PCB-THT, plug-in
2)
Weight
14g
Resistance to soldering heat THT
IEC 60068-2-20
270°C/10s
Packaging/unit
tube/20 pcs., box/500 pcs.
2) socket available for 1 coil version only, see Accessories
Accessories
For details see datasheet
Accessories Industrial Power Relay RT
2)
Socket available for 1 coil version only.
NOTE: indicated contact ratings and electrical endurance data for direct
wiring of relays (according IEC 61810-1); for relays mounted on sockets
deratings may apply.
Dimensions
S0272-BC
2
04-2015, Rev. 0415
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
General Purpose Relays
PCB Relays
Power PCB Relay RT1 Inrush
(Continued)

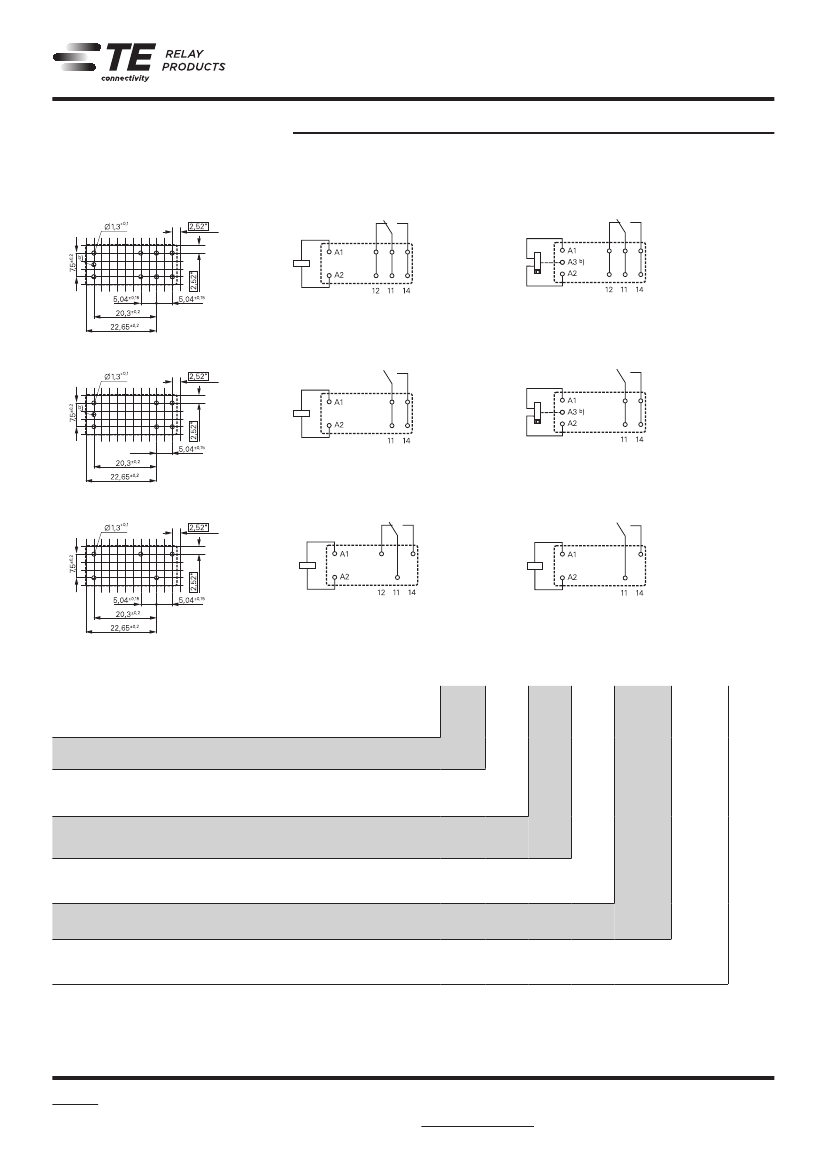

PCB layout / terminal assignment
Bottom view on solder pins
SCHRACK
16A, 1 form C (CO) contact, pinning 5mm
monostable version
bistable version
a)
S0163-BE
S0163-DI
S0418-CM
16A, 1 form A (NO) contact, pinning 5mm
monostable version
bistable version
a)
a) Indicated contact position
during or after coil
energization with reset
voltage.
b) for 2 coil version only
S0163-BF
S0163DPS
S0418-CV
12A, 1 form C (CO) contact, pinning 5mm
monostable version, 1 form C (CO)
monostable version, 1 form A (NO)
S0163-BC
S0163-BD
S0418-CN
*) With the recommended PCB hole sizes a grid
pattern from 2.5mm to 2.54mm can be used.
Product code structure
Typical product code
RT
3
3
L
012
Type
Power PCB Relay RT1 Inrush
Version
3
16A, pinning 5mm, flux proof
D
16A, pinning 5mm, sealed
Contact configuration
1
1 form C (CO) contact
3
1 form A (NO) contact
Contact material
K
AgNi 90/10
L
AgSnO
2
Coil
Coil code: please refer to coil versions table
Version
Blank
Standard version
WG
Product in accordance to IEC 60335-1
04-2015, Rev. 0415
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
3
General Purpose Relays
PCB Relays
Power PCB Relay RT1 Inrush
(Continued)
SCHRACK
Product code
RT31L012
RT31L024
RT31L048
RT33K012
RT33K024
RT33KF12
RT33L012
RT33L012WG
RT33L024
RT33LA12
RT33LA24
RT33LF12
RTD1L012
1 form C (CO)
16A, pinning 5mm
flux proof
1 form A (NO)
16A, pinning 5mm
flux proof
Version
Contact material
AgSnO
2
Monostable
Coil
AgNi 90/10
AgSnO
2
Bistable 2 coils
Monostable
Bistable 1 coil
Bistable 2 coils
12VDC
24VDC
48VDC
12VDC
24VDC
12VDC
24VDC
12VDC
24VDC
12VDC
12VDC
Coil
Part Number
7-1393239-3
7-1393239-5
7-1393239-6
2-1393240-3
2-1393240-4
1-1415540-1
3-1393240-3
2-1415538-2
3-1393240-5
2-1393240-7
3-1415379-1
2-1393240-8
5-1393238-6
1 form C (CO)
16a, pinning 5mm
sealed
AgSnO
2
Monostable
4
04-2015, Rev. 0415
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
