Application Specification
AUGAT* HOLTITE* Sockets
NOTE
14 MAR 11
114-- 13033
Rev B
i
All numerical values are in metric units [with U.S. customary units in brackets]. Dimensions are in millimeters [and
inches]. Unless otherwise specified, dimensions have a tolerance of +0.13 [+.005] and angles have a tolerance of +2_.
Figures and illustrations are for identification only and are not drawn to scale.
1. INTRODUCTION
This specification covers the requirements for application of AUGAT HOLTITE Sockets. These manually
applied or reel--mounted machine applied solderless spring sockets are designed to be contained within the
barrel of a plated--through hole. The design allows the socket and plated--through hole to form a zero--profile
component socket which provides an interconnect for a broad range of electronic parts and components. The
sockets are available in a variety of different series and sizes based on printed circuit (pc) board hole diameter.
They are also available normally on mylar strips which can be reeled on custom socket patterns for ease of
application.
When corresponding with TE Connectivity (TE) Personnel, use the terminology provided in this specification to
facilitate your inquiries for information. Basic terms and features of this product are provided in Figure 1.

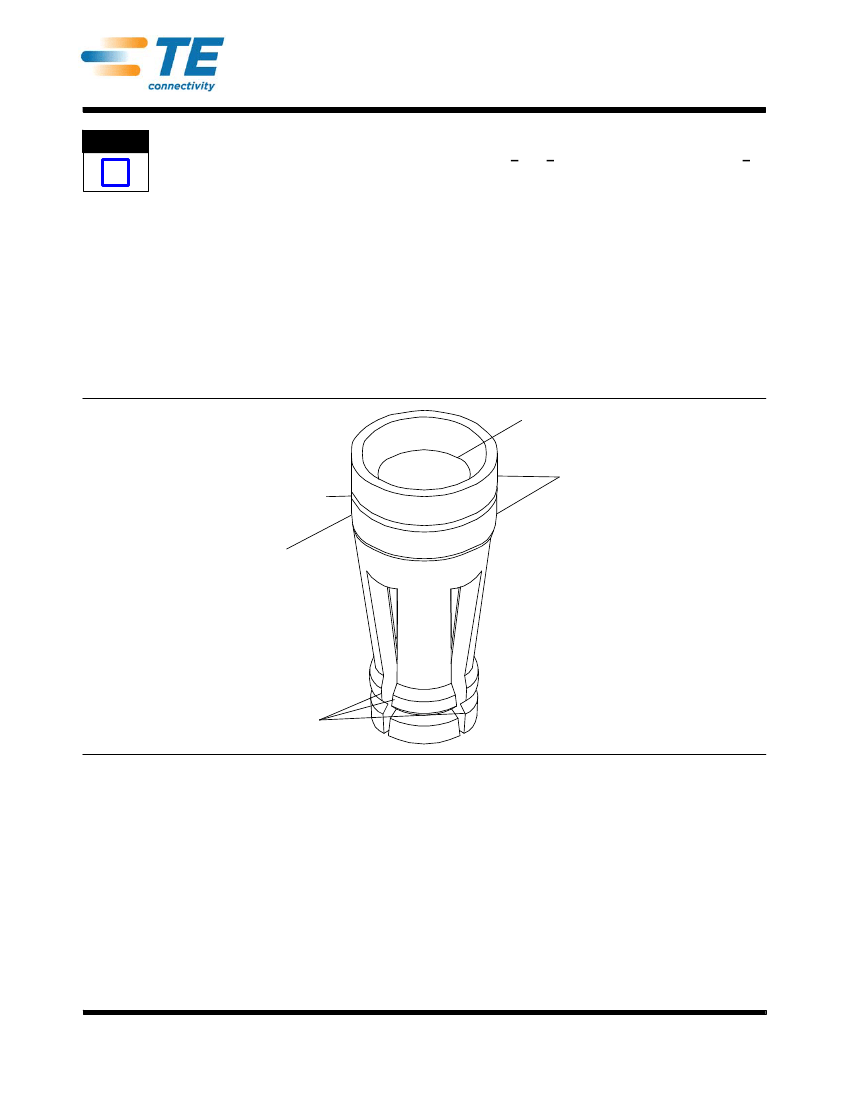

Entry Area
Locking Collar
Groove
Transition Region
Fingers
Figure 1
2. REFERENCE MATERIAL
2.1. Revision Summary
S
Updated document to corporate requirements
S
New logo
2.2. Customer Assistance
Reference Part Number 6--1437514--7 and Product Code E354 are representative numbers of AUGAT
HOLTITE Sockets. Use of these numbers will identify the product line and expedite your inquiries through a
service network established to help you obtain product and tooling information. Such information can be
obtained through a local TE Representative or, after purchase, by calling the Tooling Assistance Center or
Product Information number at the bottom of this page.
E2011
Tyco Electronics Corporation, a TE Connectivity Ltd. Company TOOLING ASSISTANCE CENTER 1--800--722--1111
All Rights Reserved
PRODUCT INFORMATION 1--800--522--6752
TE logo is a trademark.
*Trademark. Other product names, logos, or company names might be trademarks of their respective owners.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
www.te.com
1
of 7
LOC B
114- 13033
2.3. Drawings
Customer Drawings for specific products are available from the service network. The information contained in
Customer Drawings takes priority if there is a conflict with this specification or with any other technical
documentation supplied by TE.
2.4. Specifications
Product specification 108--1979 provides product performance requirements and test information.
2.5. Instructional Material
The following list includes available instruction sheets (408--series) that provide assembly procedures for
operation, maintenance and repair of tooling; and customer manuals (409--series) that provide setup,
operation, and maintenance of machines.
Document Number
408--3295
408--6732
408--6923
408--7777
408--9816
409--5626
Document Title
Preparing Reel of Contacts for Application Tooling
Pneumatic Auto--Cycle Unit 91112--3
Manual Arbor Frame Assembly 58024--1
Manual Arbor Frame Assembly 91085--2
Handling of Reeled Products
SM--3 Machine No. 814700--[ ]
3. REQUIREMENTS
3.1. Storage
A. Ultraviolet Light
Prolonged exposure to ultraviolet light may deteriorate the chemical composition used in the socket.
B. Shelf Life
The sockets should remain in the shipping containers until ready for use to prevent deformation to the
sockets. The sockets should be used on a first in, first out basis to avoid storage contamination that could
adversely affect signal transmissions.
C. Chemical Exposure
Do not store sockets near any chemicals listed below, as stress corrosion cracking in the sockets may
occur.
Alkalies
Amines
Ammonia
Carbonates
Citrates
Nitrites
Phosphates Citrates
Sulfur Nitrites
Sulfur Compounds
Tartrates
3.2. Material
All sockets are made of beryllium--copper with gold, tin/lead, or tin plating.
3.3. PC Boards
A. Material and Thickness
1. Board material will be glass epoxy (FR--4, G--10).
2. Board thickness shall be 0.75 mm [.030 in.] minimum for all socket sizes except for 12P which is used
in a 1.27 mm [.050 in.] minimum thick pc board.
Contact the Product Information number listed at the bottom of page 1 for suitability of other board
materials or thicknesses.
B. PC Board Hole Dimensions
The socket holes in the pc board must be precisely drilled to ensure proper placement and optimum
performance of the socket. The drilled holes must be on 2.54 mm [.100 in.] centerlines (minimum). The
dimensions provided in Figure 2 must be observed when preparing a pc board for AUGAT HOLTITE
Sockets.
2
of 7
Rev B
114- 13033
CAUTION
CAUTION
Holes should be drilled from the component insertion side of the pc board, whenever possible, to avoid creating
drill--exit burrs on the press--fit portion of the through--hole.
Finished hole tolerances should NOT be maintained by drilling over--sized holes and then plating down to the correct
size, because plating alone will not create the compressive forces necessary to retain the socket over time and
temperature ranges. Drilling undersized holes may introduce problems such as excessive socket insertion forces,
board warpage, and crazing around the hole.
TABLE “A”
PLATING
THICKNESS
0.008--0.015 [.0003--.0006]
0.0013--0.003 Over 0.0038--0.005
[.00005--.0001 Over .00015--.0002]
0.00010--0.0005 Over 0.0038--0.005
[.000004--.00002 Over .00015--.0002]
0.00010--0.0005 [.000004--.00002]
FR-- 4
Material
Diameter of
Finished Hole
After Plating
Tin--Lead
Immersion Tin
Over NickelG
Immersion Gold
Over NickelG
Immersion SilverG
PC Board
Thickness
Drilled Hole
Diameter
Copper Plating
0.025 [.0010] Min
Refer to Table “A”
GRoHS
Compliant Platings
SERIES
SIZE
5P
6P
8P
12P
14P
27P
SOCKET
DIAMETER
1.12 +0.01 [.0440 +.0005]
1.59 +0.01 [.0625 +.0005]
1.59 +0.01 [.0625 +.0005]
2.18 +0.01 [.0860 +.0005]
1.17 +0.01 [.0460 +.0005]
1.12 +0.01 [.0440 +.0005]
PC BOARD
THICKNESS (MIN)
0.75 [.030]
0.75 [.030]
0.75 [.030]
1.27 [.050]
0.75 [.030]
0.75 [.030]
DRILLED
HOLE DIAMETER
1.15 [.0453]
1.61 [.0635]
1.61 [.0635]
2.22 [.0875]
1.15 [.0453]
1.15 [.0453]
Figure 2
FINISHED
HOLE DIAMETER
1.04 +0.05 [.041 +.002]
1.47 +0.05 [.058 +.002]
1.47 +0.05 [.058 +.002]
2.08 +0.05 [.082 +.002]
1.09 +0.05 [.043 +.002]
1.04 +0.05 [.041 +.002]
VERTICAL PROFILE
DIMENSION (MAX)
2.54 [.100]
3.56 [.140]
3.56 [.140]
4.06 [.160]
2.54 [.100]
2.54 [.100]
3.4. Lead Size/Socket Selection
The appropriate AUGAT HOLTITE Socket is selected based on the cross--section size of the leads to be
inserted. The diameter of a round lead or the diagonal of a rectangular lead determines the appropriate socket.
The table in Figure 3 lists which socket should be used for certain common lead sizes.
RECOMMENDED LEAD SIZE (For Leads Being Inserted Into the AUGAT HOLTITE Sockets)
Type
ROUND
RECTANGULAR
5P
0.41--0.53
[.016--.021]
0.28 x 0.46 +0.05
[.011 x 0.18 +.002]
6P
0.51--0.76
[.020--.030]
------
8P
0.64--0.89
[.025--.035]
0.64 Sq.
[.025] Sq.
Figure 3
12P
0.89--1.14
[.035--.045]
------
14P
0.41--0.53
[.016--.021]
0.28 x 0.46 +0.05
[.011 x 0.18 +.002]
27P
0.41--0.53
[.016--.021]
0.28 x 0.46 +0.05
[.011 x 0.18 +.002]
Rev B
3
of 7
114- 13033
3.5. Socket Insertion
A. Hole Size Inspection
Using the red NO--GO gage, part number 5--1437514--1, end of the tool provided in the AUGAT HOLTITE
Printed Wiring Contact Kit, check to ensure the hole dimensions are correct. If not, rework may be
necessary or socket selection may need to be re--checked.
B. Insertion
Sockets are inserted into the pc board using a spring loaded hand tool, a pneumatic hand tool system,
flat--rock press--in tooling, or commercially available vibratory/vacuum systems using fully automatic
machines. Two different tips may be used for socket insertion into the pc board. The blue tip is used for
the 5P, 14P, and 27P series sockets. The other insertion tip is white and is used for the 6P, 8P, and 12P
series sockets. Refer to Section 5, TOOLING for specific related tooling part numbers.
3.6. Checking Installed Socket
Once the socket is installed, verification may be made to a correct installation according to the information and
dimensions provided in Figures 2 and 4.
A. Referee Test
Inspection may reveal that some of the hole diameters are at the high limit of the tolerance. If this marginal
condition occurs, a “referee test” should be performed to determine if the holes are suitable for 5P
AUGAT HOLTITE Socket insertion.
Selectively load the sockets into the suspect holes and perform a push--out test using an adequate axial
force gauge (e.g., a hand held CHATILLON Force Gauge). Force should be applied to the socket fingers
only in an axial direction. Socket retention forces will vary with each application due to differences in
socket population density, substrate materials, and number of PC layers. The minimum acceptable
push--out force for all 5P AUGAT HOLTITE Sockets is [4 lbs.] (conforming to MIL--S--83505/6).
B. Insertion Verification
TE suggests verifying that the sockets have been loaded into all of the desired locations. This procedure
could be accomplished visually or with any type of available automatic non--contacting inspection system.
For visual inspection, place a light source under the pc board an examine the holes form above. A small
point of light indicates the socket is present. A large point of light indicates the socket may be missing. The
light pattern may be compared to a chart showing socket locations.
Socket
Area Dia.
Vertical Profile
Dimension (Max)
Plated Through
Hole
CHATILLON is a trademark
Finished
Diameter
Hole

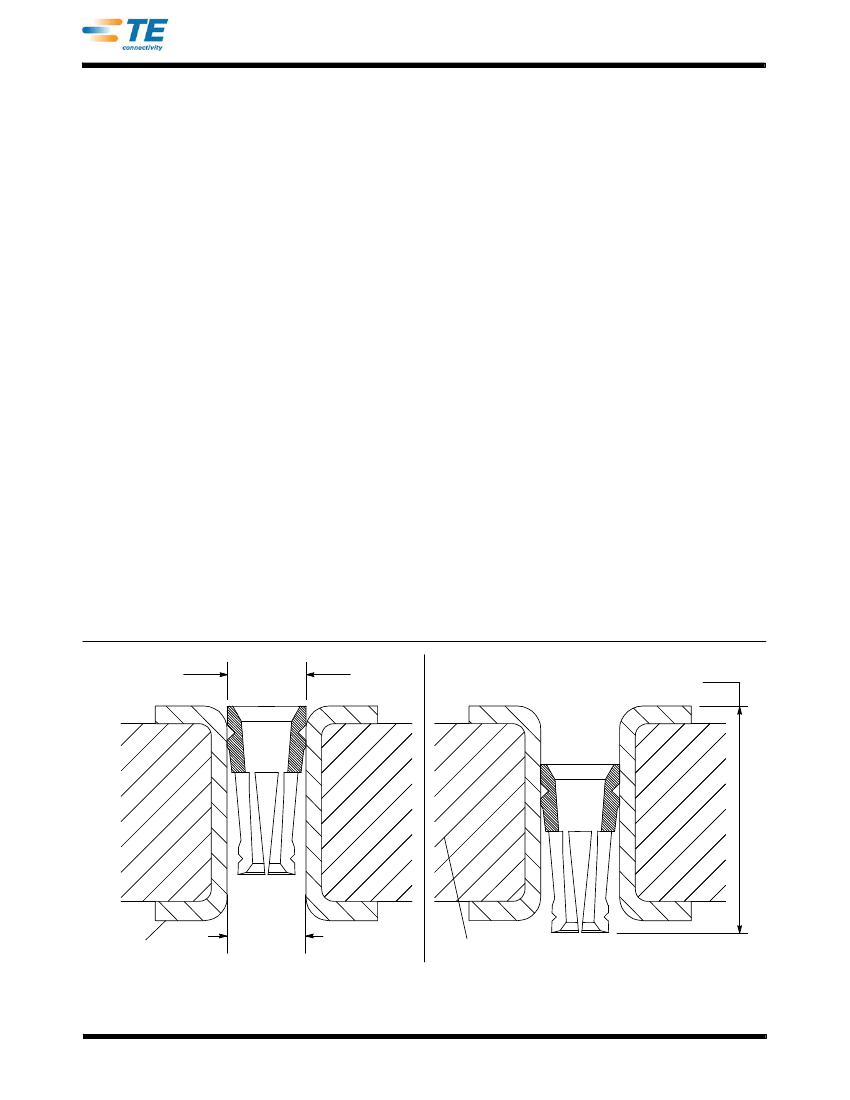

Figure 4
Glass Epoxy Substrate
4
of 7
Rev B
114- 13033
For the alternate method, use an opaque inspection template drilled in a pattern matching the socket
locations. There should be no large points of light with the template in place. A loading mask used in
conjunction with a mass loading machine will serve this purpose.
3.7. Wave Soldering Consideration
Both AUGAT HOLTITE Sockets and soldered components may be loaded on a pc board. However, either the
AUGAT HOLTITE Sockets or their respective plated through holes must be masked to avoid being filled with
solder during wave soldering. If the socket can be contained within the pc board, it may be loaded first, and
then masked with heat--resistant tape or liquid solder mask prior to soldering to other components. If the socket
would protrude through the pc board, the appropriate plated through holes should be masked and wave
soldering performed first. Then, the masking is to be removed, and the AUGAT HOLTITE Sockets may be
installed. See Figure 5.
SOCKET LENGTH
5P
2.39 [.094]
6P
3.45 [.136]
8P
3.45 [.136]
Figure 5
12P
3.96 [.156]
14P
2.39 [.094]
27P
2.39 [.094]
3.8. Repair/Replacement
If a socket has been damaged, it must be removed and replaced with a new one. In order to remove a
damaged socket, lay the circuit board flat, circuit fingers up on a suitable backing material such as a dense
foam board or pad. Place a drill blank on top of the socket fingers, making sure it is properly aligned, and tap it
gently with a small hammer until it releases from the pc board. See Figure 6.
TYPE
DRILL BLANK
5P, 14P, 27P
(No. 62) 0.97 [.038]
Figure 6
6P, 8P
(No. 54) 1.40 [.055]
12P
(No. 47) 1.99 [.078]
It may be necessary, if the socket fingers are damaged, to break off the individual finger elements before
removing the socket barrel using the previous technique. Installation of a single replacement socket can then
be accomplished.
4. QUALIFICATIONS
These sockets are Qualified to MIL--S--83505/6D. However, they are not required to be Recognized by
Underwriters Laboratories Inc. (UL); or Certified to CSA International.
5. TOOLING
TE has existing tooling and tooling concepts for applying these sockets. Part numbers of available tooling and
the applicable instructional material for each is provided in Figure 7.
S
PC Board Support
A pc board support must be used to prevent bowing of the pc board during insertion of the sockets. It
should have a flat surface with holes or a channel large enough to receive the sockets during installation.
S
Hand Tool
The insertion portion of the tool is designed to remove the sockets from their respective carrier cards
and selectively insert them into the plated--through hole on the pc board. Individual pressing and seating
is then accomplished using the correct insertion tip and hand tool.
S
Pneumatic Hand Tool System
The pneumatic tooling system is designed to individually seat the sockets after they have been inserted
into the plated--through hole on the pc board. The tip of the pneumatic hand tool is inserted into the
socket and the impact button is depressed. The socket is accurately seated into the plated--through
hole. Pressure adjustments and variable tip sizes on the pneumatic hand tool allow this system to work
with any size socket.
Rev B
5
of 7
