5543-2-16-3: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size159KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

5543-2-16-3 Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

5543-2-16-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.35 inch
subject depth	0.516 inch
body length	1.1 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	800VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
Manufacturer's serial number	5543
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

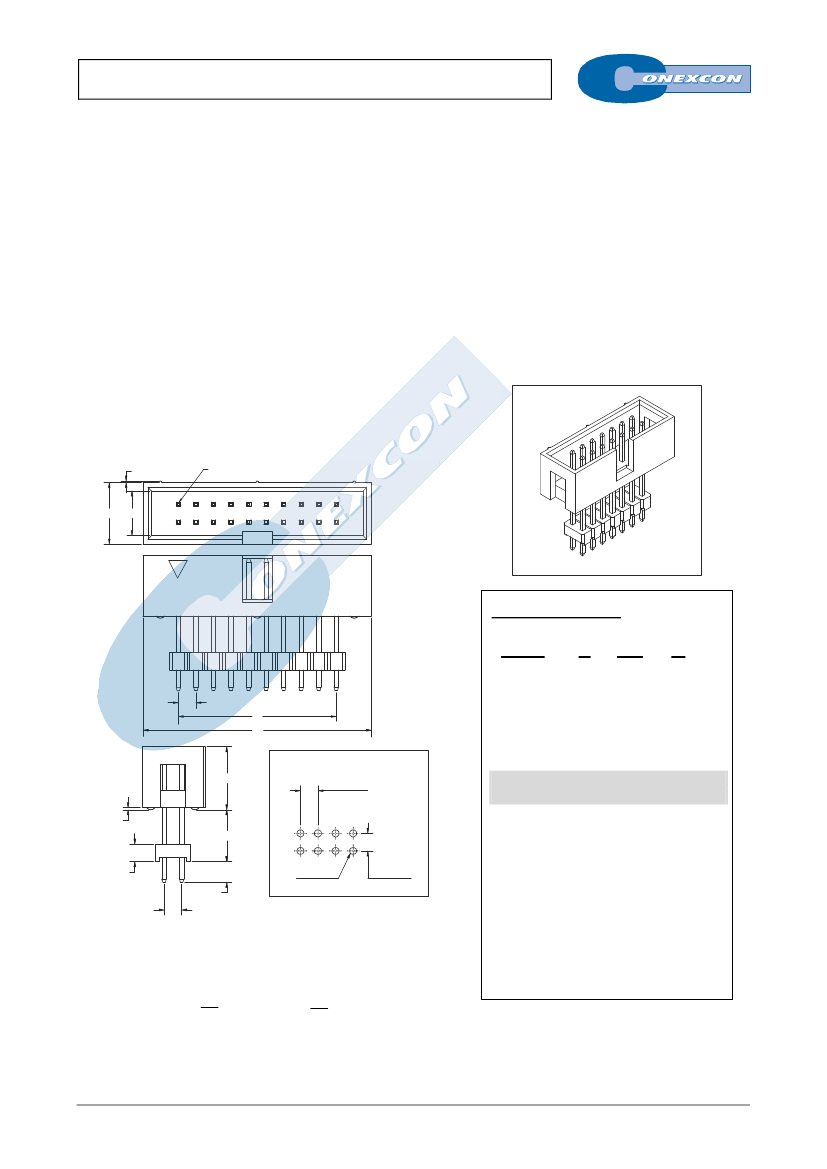

D/ ROW TOP ENTRY ELEVATED BOX HEADER

5543 SERIES.

2.54 x 2.54 mm. (0.100 x 0.100”) pitch.

General Features

Electrical Features



Available in 6, 8, 10, 12, 14, 16, 20, 24, 26, 30, 34, 40, 44,

50, 60 and 64 circuits

Mates with 2.54 mm crimp housing 2646 series, IDC

connectors 5435 and PCB 5458 and 5459 series

Gold plated 0.64 mm. square pin

Fully shrouded with polarized slot.

Different pin dimension optional



Voltage rating: < 250V

Current rating: < 2 A

Contact resistance: < 20 mΩ

Dielectric withstanding Voltage: 800 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Insulator: PBT glass reinforced UL 94 V-0

Terminal: gold plated brass

Operating temperature. -25ºC to +85ºC

RoHS compliant

Mechanical Features



Pin retention force to insulator: > 1.00 Kgf

Durability: 50 Cycles

Dimension Information

0.20

0.64 mm.

8.90 6.50

Ordering Information:

5543 -

2.54

T-

XX-

1. Connector Series

2. (T) Contact Plating

RECOMMENDED HOLE PATTERN

2.54±0.05

.100±.002



T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel

0.30

3. (XX) Number of circuits

2.54

1.02±0.05

.040±.002

2.54±0.05

.100±.002



Available in 6 through 64 circuits

3. (C) Pin dimensions (mm.)

C =

1. F

= 9.10;

= 7.50;

= 3.00 mm.

C =

2. F

= 9.10;

= 5.00;

= 3.00 mm.

C =

3. F

= 9.10;

= 4.00;

= 3.00 mm.

C =

4. F

= 9.10;

= 15.20;

= 3.00 mm.

Dimensions:

(In mm.)





2.54











(XX) = Number of circuits





2.54



 

7.62







A-XX
