BCM56513
®
24-PORT GbE MULTILAYER SWITCH WITH THREE 10 GbE/HiGig+™ PORTS
FEATURES
•
Fifth generation of StrataSwitch
®
and StrataXGS
®
product line
•
24 10/100/1000 Mbps Ethernet ports supporting SGMII and
SerDes interfaces for both copper and fiber connections
•
The BCM56513 device, is a powerful, highly-integrated member
of the scalable StrataXGS III product family
•
2.5 Gbps, 3 Gbps, 10 Gbps or 12 Gbps HiGig+ stacking ports
SUMMARY OF BENEFITS
•
Highly scalable BroadScale™ architecture evolved from five
•
•
•
•
•
•
•
generations of switching experience provides rich features,
scalability, and future proof solutions.
Optimized for secure-switching and convergence of wired and
wireless applications and services in networks
Virtual chassis support with industry-leading high performance
and feature rich stacking capabilities.
System vendors can build scalable high-performance, high-port
density GbE LAN switches in several form factors.
Multiple CoS and low latency enable the support of VoIP and
triple play services.
Built-in high-speed serial interfaces with Broadcom-unique
SerDes technology ease and accelerate system design, while
reducing cost and conserving board space.
Broadcom switch API compatibility enables software reuse and
faster time-to-market.
Small package and low power enables cost-effective and high-
performance system design.
•
•
•
•
•
Three 10-GbE switching ports with CX4 support
Line-rate switching for all packet sizes and conditions
On-chip data packet memory and table memory
IPv6 routing and tunneling
Advanced ContentAware™ classification Filtering Processors
(FP)
•
Advanced security features in hardware
•
Port-trunking and mirroring supported across stack
•
Advanced packet flow control:
•
Head-of-line blocking prevention
•
Back pressure support
•
Eight QoS queues per port with hierarchical minimum/
maximum shaping per Classes of Service (CoS) per queue
per port
•
Standard compliant 802.1ad provider bridging
•
Compatible with BCM5708S, the industry's first 2.5-Gbps
SerDes-based ToE solution.
24-Port Gigabit Ethernet Multilayer Switch
HiGig+/10 GbE
HiGig+/10 GbE
HiGig+/10 GbE
L2/IPv4/IPv6
Packet Buffer MMU
ContentAware FP
Security
PCI
10/100/1000 MACs
24 x GbE
OVERVIEW
BCM56513
BCM56513
BCM5836P
BCM56513
BCM56513
BCM5836P
BCM5464R
BCM5464R
BCM5464R
BCM5464R
BCM5464R
BCM5464R
BCM5464R
BCM5464R
BCM5464R
BCM5464R
BCM5464R
BCM5464R
BCM5464R
BCM5464R
BCM5464R
BCM5464R
BCM5464R
BCM5464R
BCM5464R
BCM5464R
BCM5464R
BCM5464R
BCM5464R
BCM5464R

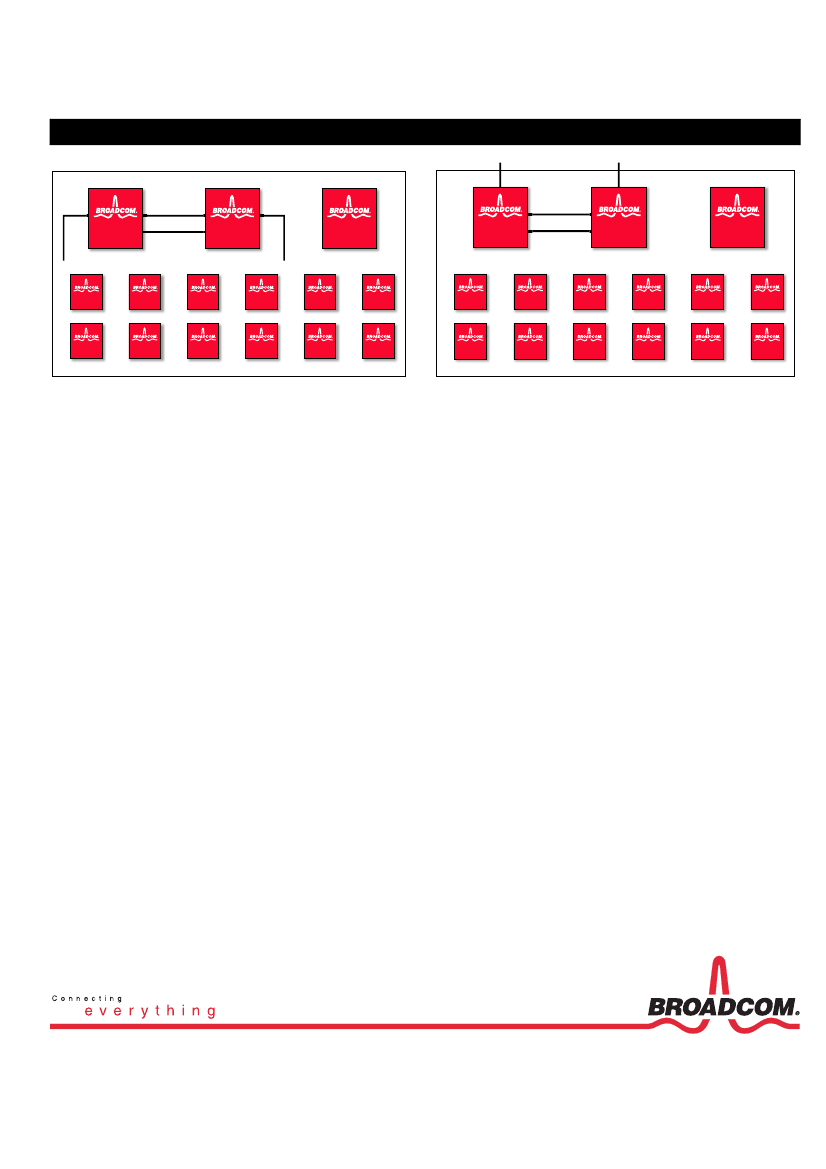

48 10/100/1000 + Two 10 GbE Standalone
48 10/100/1000 + Two HiGig+ Stackable
The BCM56513 is the fifth generation of the highly-integrated and cost-
effective StrataSwitch and StrataXGS product line. The BCM56513 is a
single-chip solution with 24-GbE ports and three 10-GbE/HiGig+ uplink
ports.
The BCM56513 incorporates 24-GbE ports that can operate at 10/100/
1000 Mbps. The uplink ports can operate in two modes: 10-GbE
switching mode and HiGig+ uplink mode. The integrated 10-GbE
switching ports are CX-4 compliant XAUI™ interfaces. The HiGig+
uplink interface is used to connect to other StrataXGS devices in a larger
stacking system or to the BCM56700/BCM5675 switch fabric via a
backplane in a multi-slot redundant chassis system.
With high-integration and high-port density, the BCM56513 family is
ideal for Enterprise applications in standalone, stackable, and chassis
configurations applicable in the edge, aggregation, and core areas of the
Enterprise. The BCM56513 is also ideal for embedded switch
applications like Blade Server Switch, ATCA chassis, IPDSLAM, 3G
Wireless Base Station, and others.
The BCM56513 integrates sophisticated advanced L3 switching features
for cost-effective highly manageable enterprise networks. The
BCM56513 performs IPv6 routing and transition services in hardware,
allowing IT managers to deploy L3 switches that are future-proof, highly
manageable L3 networks to enable cost-effective transition from IPv4 to
IPv6.
The ContentAware classification feature of the StrataSwitch and
StrataXGS has been further enhanced in the BCM56513 with unmatched
flexibility and programmability. The ContentAware engine can be used
for applications such as policy-based routing, access control list, and
dynamic adaptation to changes in virus threats. The BCM56513 has
dedicated ContentAware classification processors to provide both
classification and filtering.
The BCM56513 has built-in security functions for highly-secure
Enterprise networks including BroadShield
TM
. Utilizing hardware-based
identity management and authentication coupled with key management
software that directs and manages clients, BroadShield Security provides
exceptionally strong network security without impacting network
performance.
The BCM56513 integrates sophisticated metering, statistics, and traffic
management features, optimizing the QoS in the Enterprise networks for
voice, video, and data convergence. The BCM56514 also provides rate-
adjustable, hardware-based sFlow implementation and flexible multiple-
session remote port-mirroring functionality for efficient network
management.
The BCM56513 switch supports an I
2
C controller for communicating
with external devices such as serial EEPROM, flash PROM memories,
and parallel port devices. The BCM56513 also supports a serial interface
for the MII management of physical layer devices.
The BCM56513 switch interfaces to a host CPU via a 32-bit PCI bus
running at up to 66 MHz. Bus mastering and advanced DMA is
supported for efficient exchange of packet data between CPU memory
and the BCM56513 switch.
Broadcom
®
, the pulse logo,
Connecting everything
®
, StrataSwitch
®
, StrataXGS
®
, ContentAware
TM
,
BroadScale
TM
, HiGig+
TM
, and BroadSAFE
TM
are trademarks of Broadcom Corporation and/or its
affiliates in the United States, certain other countries and/or the EU. Any other trademarks or trade names
mentioned are the property of their respective owners.
®
BROADCOM CORPORATION
16215 Alton Parkway, P.O. Box 57013
Irvine, California 92619-7013
© 2006 by BROADCOM CORPORATION. All rights reserved.
56513-PB00-R
06/14/06
Phone: 949-450-8700
Fax: 949-450-8710
E-mail: info@broadcom.com
Web: www.broadcom.com
