MLDM33L-51-2GS-8J1-18L datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> MLDM33L-51-2GS-8J1-18L

MLDM33L-51-2GS-8J1-18L: DescriptionCable Assembly; CategoryThe connector Connector bracket; File Size209KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

MLDM33L-51-2GS-8J1-18L Overview

Cable Assembly

MLDM33L-51-2GS-8J1-18L Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-83513
Conductor surface treatment	SILVER
ConnectorSide1	SOCKET CONNECTOR
ConnectorSide2	SOCKET CONNECTOR
Connector bracket type	CABLE ASSEMBLY
insulator material	CROSSLINKED MODIFIED ETFE
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Rated current	3 A
Rated voltage	600 V
shield	NO
Wire gauge	28 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

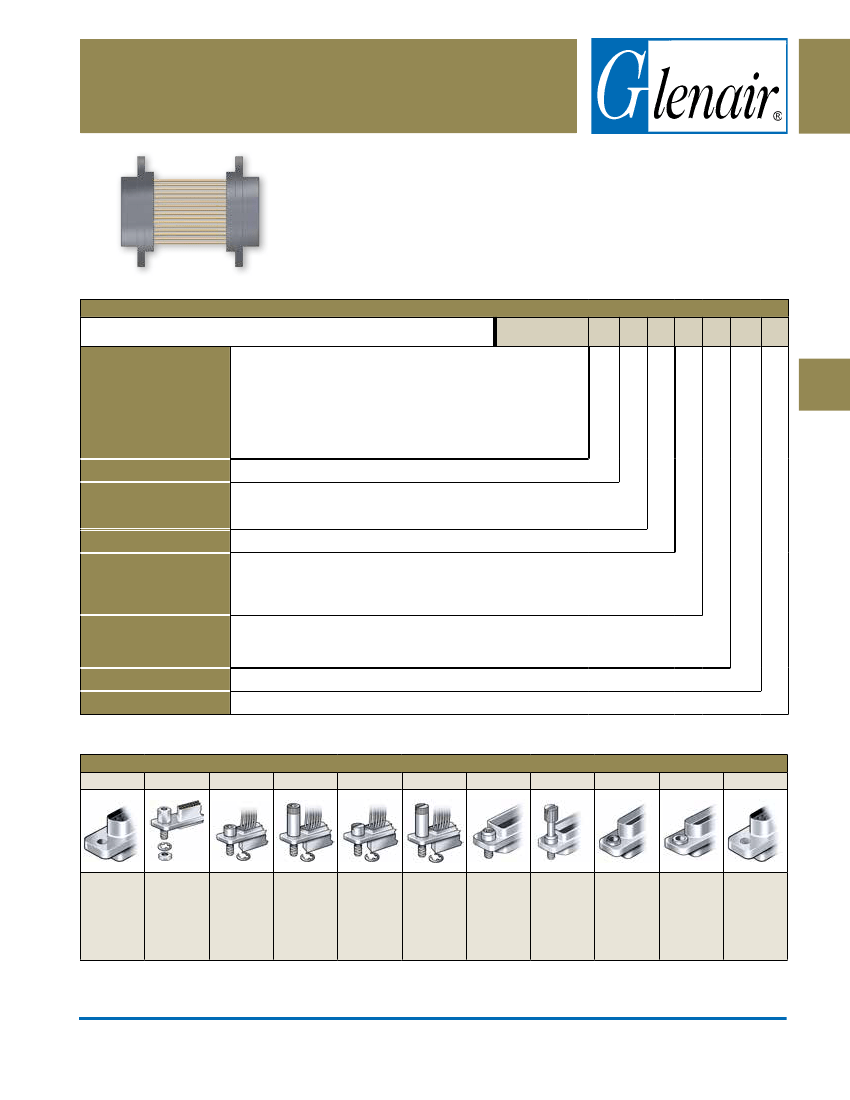

MLDM Low Profile Metal Shell Micro-D

Back-To-Back Cables

Factory terminated MLDM "back-to-back" jumper cables simplify ordering and reduce

assembly labor. Contacts are crimped to wire and potted with epoxy. Pin contacts are gold-

plated high performance TwistPin type and are recessed into insulator to prevent damage.

Socket contacts are gold plated, machined copper alloy. Aluminum alloy shell. Glass-filled

high temperature LCP thermoplastic insulator. M22759/11 standard wire, or M22959/33

lightweight, high strength space grade wire. Meets performance requirements of MIL-

DTL-83513. Available with 9 to 51 contacts. 3 A., 600 VAC, -55°C to +150°C.

How To order Back-to-Back Connector

Sample Part number

MLDM1L

Low Profile Metal Shell Micro-D With

Yellow Chromate Over Cadmium Finish

MLDM32L

Low Profile Metal Shell Micro-D With

Black Zinc Nickel Shell Finish

MLDM32L

MLDM2L

Low Profile Metal Shell Micro-D

With Electroless Nickel Shell

Finish

MLDM33L

Low Profile Metal Shell Micro-D

With Nickel-Fluorocarbon Shell

Finish

-37 GP

-6

-18

Series

Contact Layout

Contact Type

Wire Gage (AWG)

Wire Type

9, 15, 21, 25, 31, 37, 51, 51-2

(See Table II)

- Pin Connector Both Ends

- Socket Contacts Both Ends

- Pin Connector to Socket Connector

- #24

- #26

- #28

- #30 (J wire only)

- Standard Wire

Extruded PTFE per M22759/11, Silver-Plated Conductors

- Space Grade Wire

High Strength, Lightweight, Crosslinked Modified ETFE per M22759/33, Silver-Plated Conductors

- White

- Color-Coded per MIL-STD-681

- 10 color repreat wires are solid color per MIL-STD-681 color code system.

- 18 inches (2" minimum for 2 rows, 3" minimunm for 3 rows).

B, M, M1, S, S1, L, F, H, P, K, R

(See Table I)

Wire Color Code

Wire Length (inches)

Mounting Hardware

Table I: Mounting Hardware

INDEX

Thru-Hole

Jackpost

#2-56

Hex Head

Jackscrew

#2-56

Hex Head

Jackscrew,

Extended

#2-56

Slot Head

Jackscrew

#2-56

Slot Head

Jackscrew,

Extended

#2-56

Hex Head

Jackscrew

Non-

Removable

#2-56

Slot Head

Jackscrew

Non-

Removable

Extended

#2-56

Float

Mount

For Front

Panel

Mounting

Float

Mount

For Rear

Panel

Mounting

Threaded

Insert

#2-56

High Performance Micro-D Connectors and Cables

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-9
