3-1969540-6 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 3-1969540-6

Preview

3-1969540-6: DescriptionHOUSING, PLUG, DUAL ROW, EP2.5; CategoryThe connector; File Size289KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-1969540-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1969540-6	-	-	View	Buy Now

3-1969540-6 Overview

HOUSING, PLUG, DUAL ROW, EP2.5

3-1969540-6 Parametric

Parameter Name	Attribute value
Connector System	line to line
Line spacing	2.5 mm [ .09 in ]
Sealable	no
Connectors and terminals terminate to	Wires and cables
Glow Wire Ratings	Standard Parts - Non-Glow Wire
stress relief	Without
Connector type	jacket
Connector type	female end
Number of Positions	36
Rows	2
Operating Voltage	250 VAC
color	White
Terminal type	socket
Cable termination method	crimp
PCB installation and fixation	Without
Mating connector latch type	latch, latch
Panel mount features	Without
Engage connector latch	with
joint fixation	with
Joint fixation type	latch
Connector mounting type	Cable installation
joint alignment	with
Lock type	latch
Joint alignment type	polarization
Centerline (Pitch)	2.5 mm [ .098 in ]
Housing configuration	closed at both ends
Shell material	Nylon-GF
Shell color	White
length	46.04 mm [ 1.81 in ]
Cable size (AWG)	26 – 22
Cable size (mm²)	.13 – .33
high	8.3 mm [ .326 in ]
Working group temperature range	-55 – 105 °C [ -67 – 221 °F ]
Circuit Application	Power and Signal
Applicable to	Plug cover
UL flammability rating	UL 94V-0
Encapsulation method	bag
Package quantity	650

Preview

Download Datasheet

View All

4

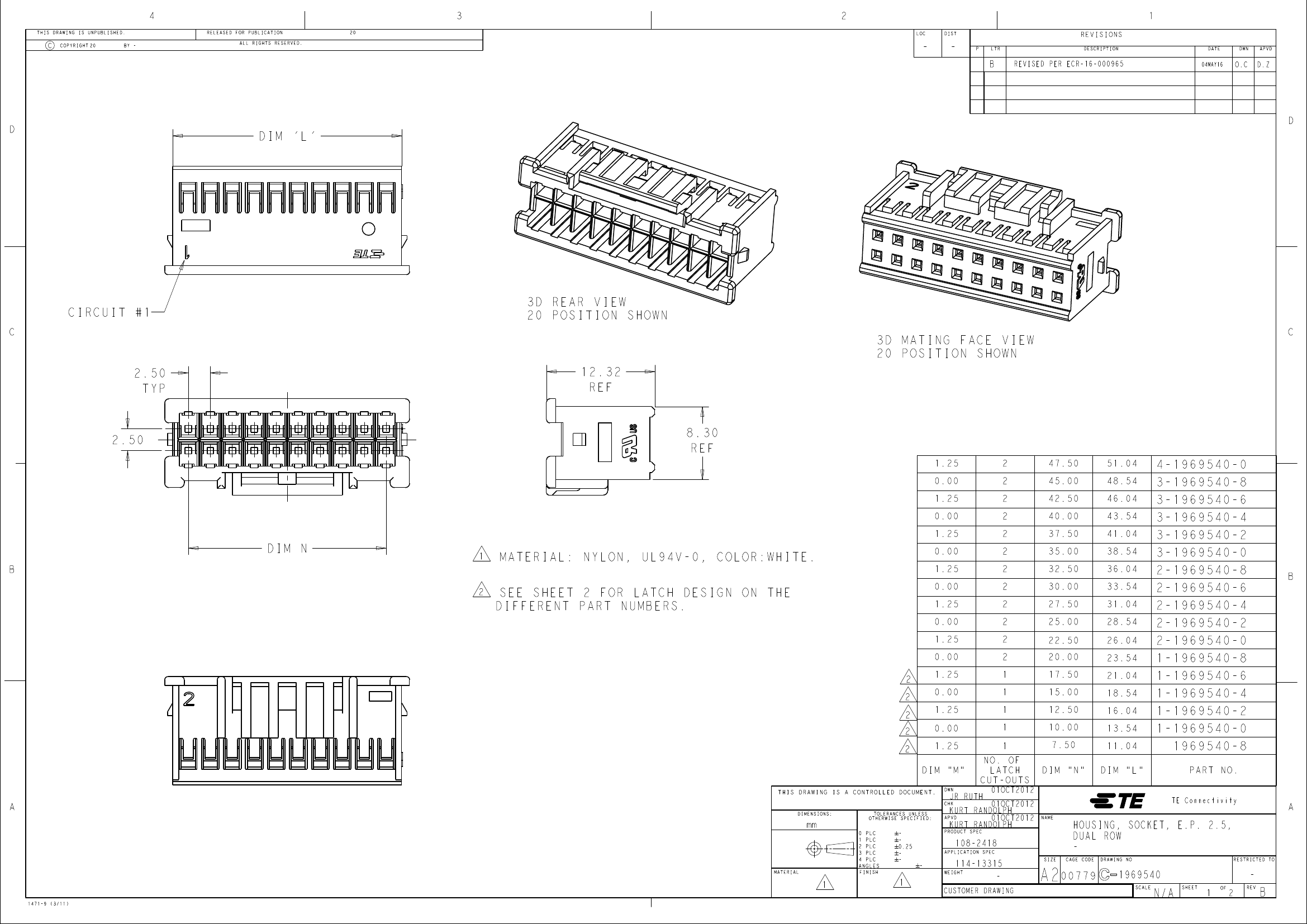

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

20

3

2

LOC

DIST

1

C

COPYRIGHT

20

-

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

B

REVISED PER ECR-16-000965

04MAY16

O.C

D.Z

D

DIM 'L'

D

CIRCUIT #1

C

3D REAR VIEW

20 POSITION SHOWN

3D MATING FACE VIEW

20 POSITION SHOWN

C

2.50

TYP

12.32

REF

8.30

REF

2.50

1.25

0.00

1.25

0.00

1.25

2

1

NO. OF

LATCH

CUT-OUTS

1

47.50

45.00

42.50

40.00

37.50

35.00

32.50

30.00

27.50

25.00

22.50

20.00

17.50

15.00

12.50

10.00

7.50

DIM "N"

51.04

48.54

46.04

43.54

41.04

38.54

36.04

33.54

31.04

28.54

26.04

23.54

21.04

18.54

16.04

13.54

11.04

DIM "L"

4-1969540-0

3-1969540-8

3-1969540-6

3-1969540-4

3-1969540-2

3-1969540-0

2-1969540-8

2-1969540-6

2-1969540-4

2-1969540-2

2-1969540-0

1-1969540-8

1-1969540-6

1-1969540-4

1-1969540-2

1-1969540-0

1969540-8

PART NO.

TE Connectivity

DIM N

B

1

2

MATERIAL: NYLON, UL94V-0, COLOR:WHITE.

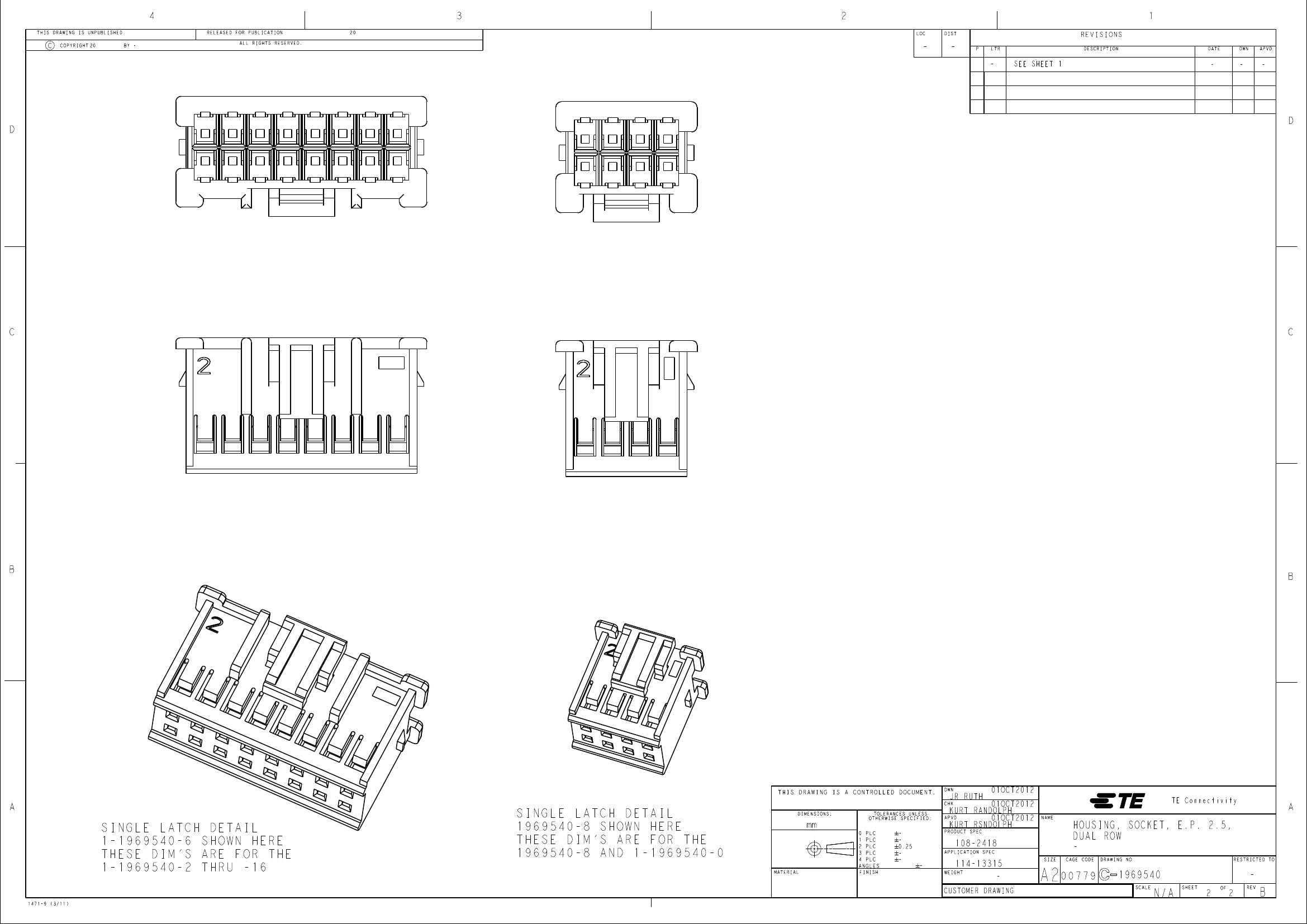

SEE SHEET 2 FOR LATCH DESIGN ON THE

DIFFERENT PART NUMBERS.

0.00

1.25

0.00

1.25

0.00

1.25

0.00

2

1.25

0.00

1.25

0.00

1.25

DIM "M"

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

B

A

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.25

-

01OCT2012

KURT RANDOLPH

APVD

01OCT2012

KURT RANDOLPH

PRODUCT SPEC

APPLICATION SPEC

JR RUTH

01OCT2012

NAME

A

108-2418

114-13315

SIZE

-

1

1471-9 (3/11)

1

WEIGHT

-

CUSTOMER DRAWING

A2

00779

CAGE CODE

HOUSING, SOCKET, E.P. 2.5,

DUAL ROW

-

DRAWING NO

RESTRICTED TO

1969540

SCALE

N/A

SHEET

1

OF

2

REV

-

B
