Part Number

Search

149159002132996

Description
Board Connector,
CategoryThe connector    The connector
File Size3MB,13 Pages
ManufacturerAVX
Environmental Compliance
Download Datasheet Parametric Compare View All

149159002132996 Online Shopping

Suppliers Part Number Price MOQ In stock
149159002132996 - - View Buy Now

149159002132996 Overview

Board Connector,

149159002132996 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAVX
Reach Compliance Codecompliant
body width0.153 inch
subject depth0.415 inch
body length0.315 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact styleCENTRONIC
Durability10 Cycles
Filter functionNO
insulator materialGLASS FILLED NYLON46
Match contact row spacing0.118 inch
Mixed contactsNO
Installation option 1LATCH
Installation option 2LOCKING
Installation typeCABLE
Number of connectorsONE
Number of rows loaded1
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
polarization keyPOLARIZED HOUSING
Rated current (signal)5 A
GuidelineUL
Terminal pitch3 mm
Termination typeIDC
Total number of contacts2
UL Flammability Code94V-0
Maximum wire diameter24 AWG
Base Number Matches1
IDC Plug: WTB
14-9159
INTER
CONNECT

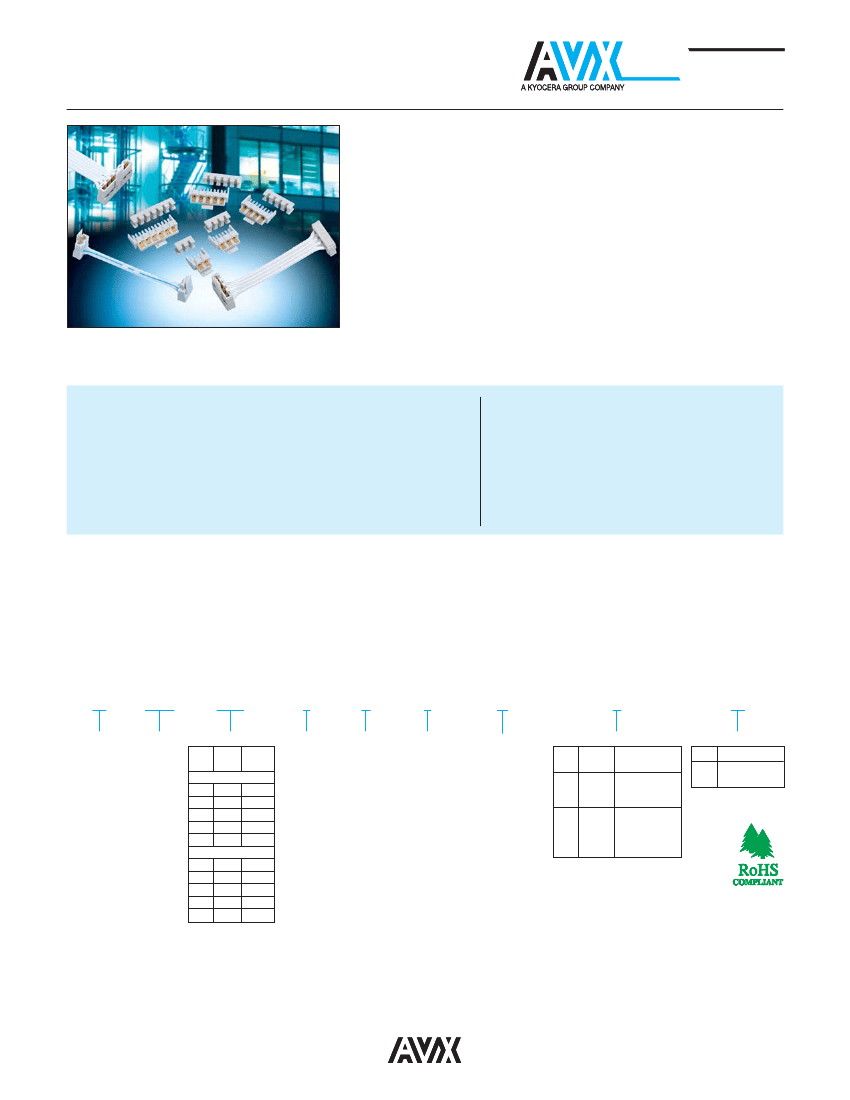

AVX developed the 9159 Series of SMT connectors for co-planar PCB
mating for the challenging Solid State Lighting (SSL) market. These
connectors needed to be small, low in height, carry up to 5 Amps/contact
and then function up to 125C for extended periods. This application has
been very unique to the SSL market where PCB’s are stacked end-to-end
to create linear strip lighting in everything from office to transportation
applications where products are exposed to harsh mechanical and
environmental environments.
The IDC cable plug connector allows for 22-24AWG discrete or cabled
wires to be easily and reliability terminated into a 9159 standard interface
socket connector. This will allow power and signals to be connectors onto
a PCB socket connector while providing positive latching. The wire
assembly support block allows for 2 through 6 wires to be terminated all in
one step with any standard bench top press. IDC covers provide both
through (daisy chain applications) and wire stop termination options.
APPLICATIONS
• Provides Wire-to-Board capabilities to standard
9159 2-Piece connector system
• In conjunction with the IDC socket WTB connector (24-9159),
these connectors provide maximum flexibility to bring power and
signal wires onto or off of any board level 9159 connector
• Reference application notes 201-01-123
• Reference Product Specification 201-01-119
FEATURES AND BENEFITS
• Mates with standard 9159 horizontal socket,
keeping same BTB connector system
• Economical and reliable IDC wire termination
• Gold plated BeCu contact system for high
reliability in harsh environments
• Integrally molded latch offers positive latching
after mating
ELECTRICAL
• Current Rating: 5 Amps / Contact
• Voltage Rating: 125 VAC
ENVIRONMENTAL
• Operating Temperature:
-40ºC to +125ºC
MECHANICAL
Insulator Material: Nylon: UL94VO
Contact Material: Phosphor Bronze
Plating: Gold / Tin over Nickel
Durability: 10 Cycles
HOW TO ORDER
14
Prefix
Right Angle
Wired Plug
IDC Terminations
9159
Series
00X
Number of Ways
No of
Code Ways Details
THROUGH WIRE CAP

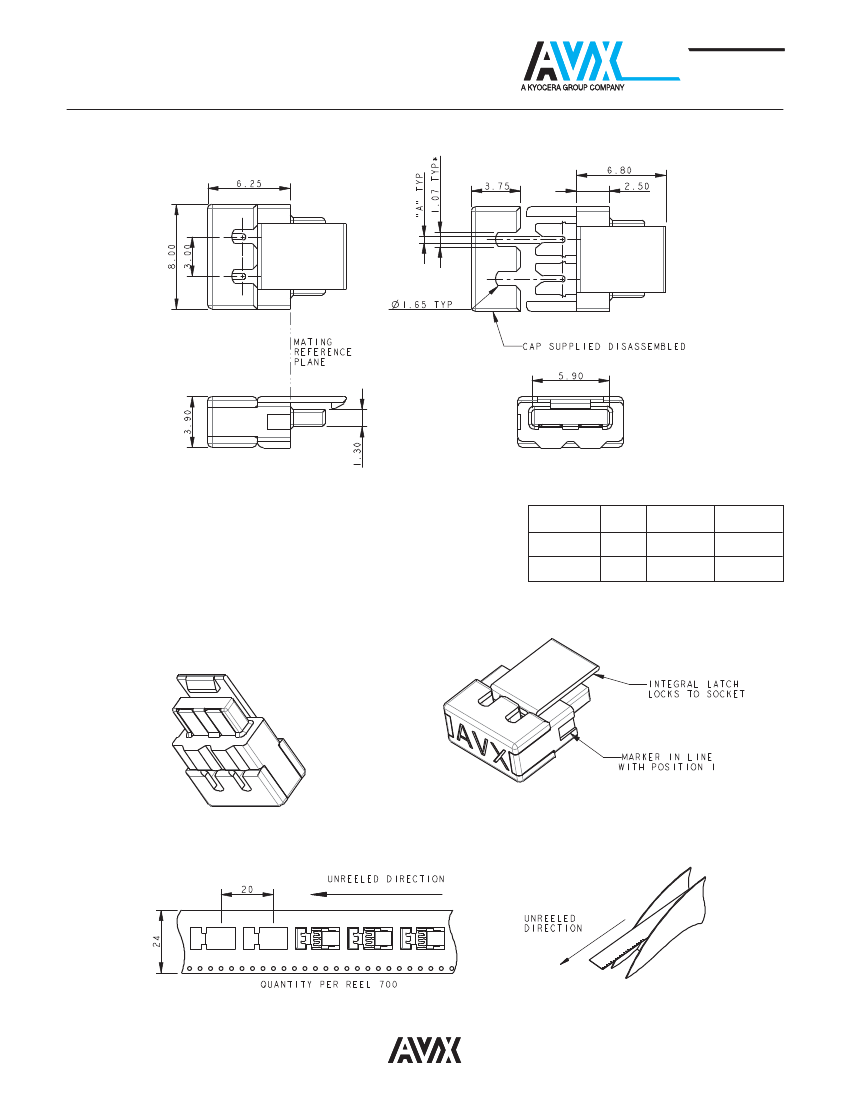

002
2
Page 2

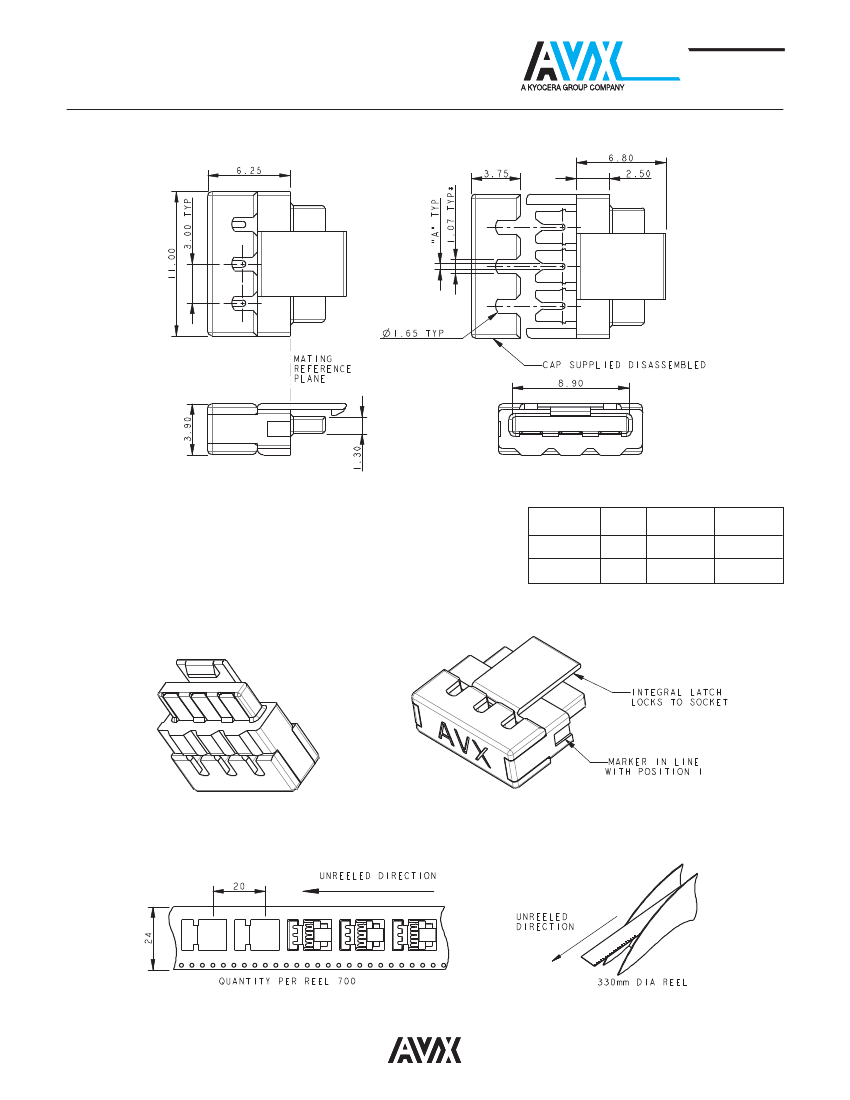

003
3
Page 3

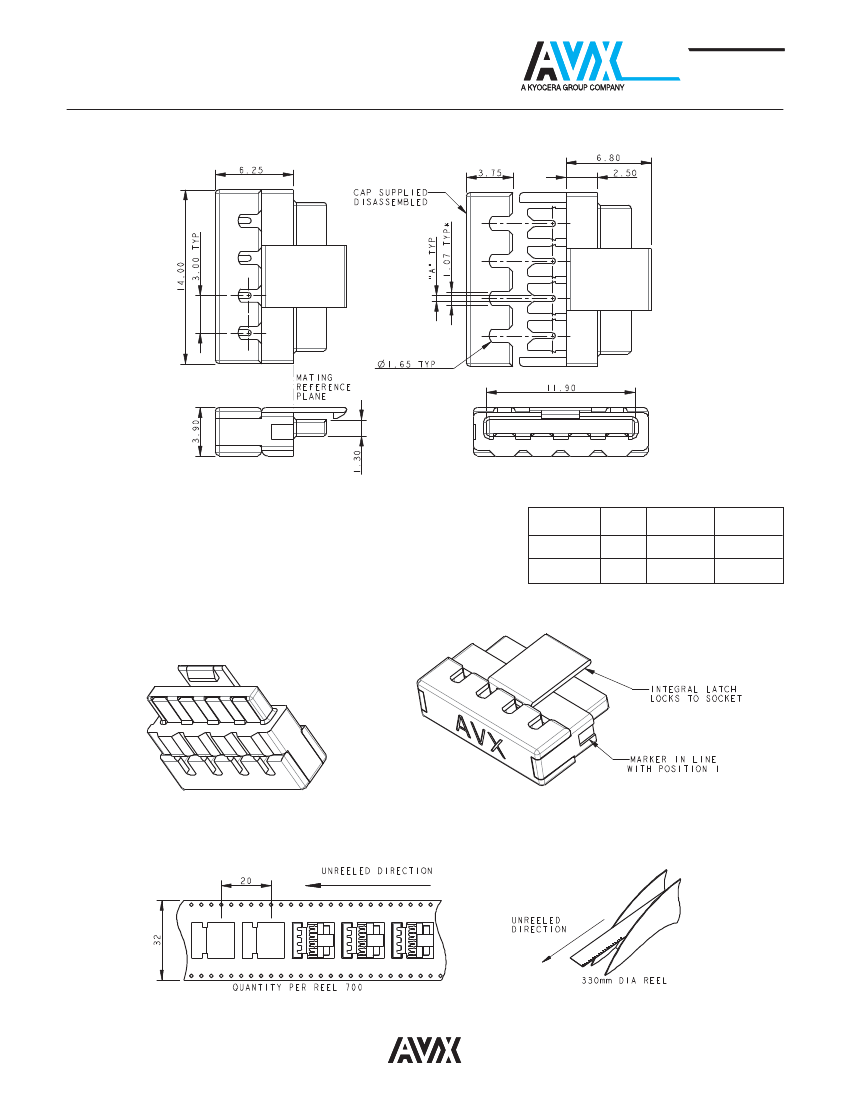

004
4
Page 4

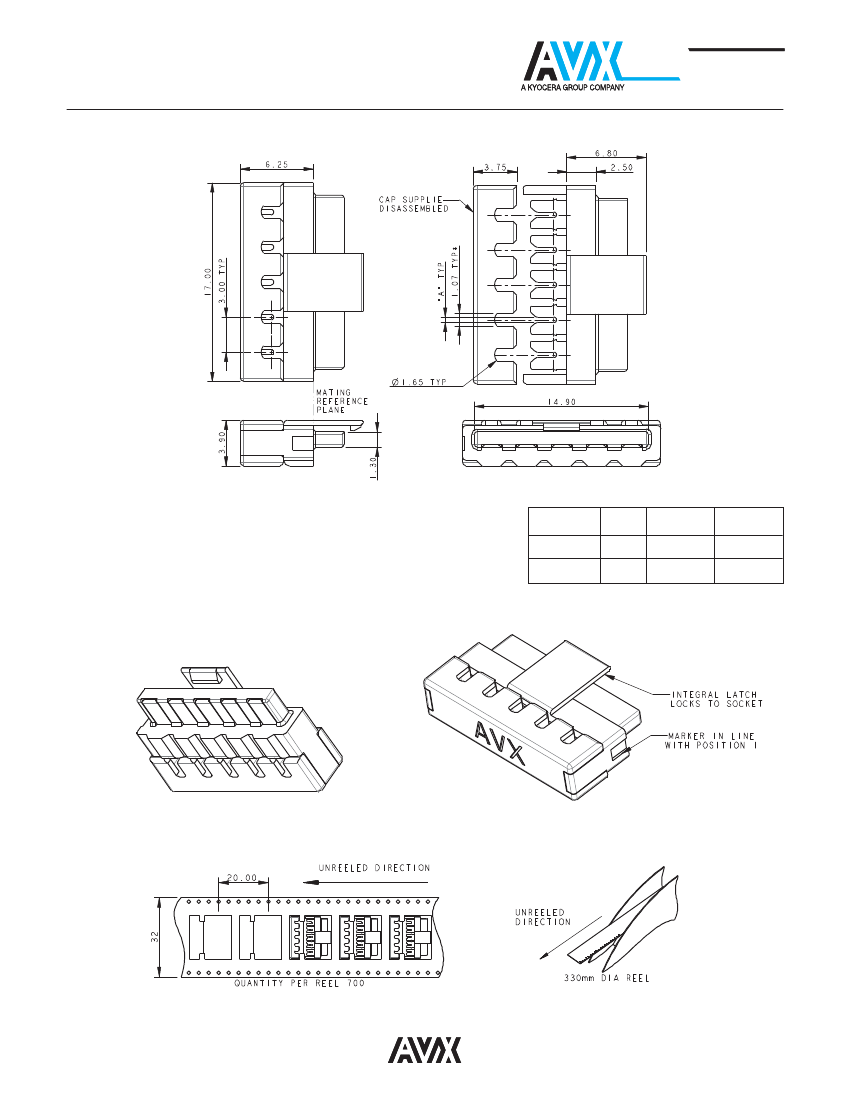

005
5
Page 5
006
6
Page 6
WIRE STOP CAP
002
2
Page 7
003
3
Page 8
004
4
Page 9
005
5 Page 10
006
6 Page 11
1
2 Part
PCB Strip
Connector
2 Part
Wired IDC
Strip
Connector
X
Wire Gauge
2 = 22AWG
3 = 24AWG
2
Wire
Insulation
Diameter
ø1.10mm
to ø1.60mm
9
Color Options
9 = UL
X
Cap Options
Code
Cap
Option
Description
6
Plating Option
Code
Contact
6 Gold on Contact
Tin on IDC
0
9
Allows wires
Through
to be terminated
Wire
at any point
Terminates end
Wire
of wire.
Stop
End protected
with Stop Face
Certification: UL File #E90723
1

149159002132996 Related Products

149159002132996 149159005132996
Description Board Connector, Board Connector
Is it Rohs certified? conform to conform to
Maker AVX AVX
Reach Compliance Code compliant compliant
body width 0.153 inch 0.153 inch
subject depth 0.415 inch 0.415 inch
body length 0.315 inch 0.669 inch
Body/casing type PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact point gender MALE MALE
contact mode RECTANGULAR RECTANGULAR
Contact style CENTRONIC CENTRONIC
Durability 10 Cycles 10 Cycles
Filter function NO NO
insulator material GLASS FILLED NYLON46 GLASS FILLED NYLON46
Match contact row spacing 0.118 inch 0.118 inch
Mixed contacts NO NO
Installation option 1 LATCH LATCH
Installation option 2 LOCKING LOCKING
Installation type CABLE CABLE
Number of connectors ONE ONE
Number of rows loaded 1 1
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -40 °C -40 °C
Options GENERAL PURPOSE GENERAL PURPOSE
polarization key POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 5 A 5 A
Guideline UL UL
Terminal pitch 3 mm 3 mm
Termination type IDC IDC
Total number of contacts 2 5
UL Flammability Code 94V-0 94V-0
Maximum wire diameter 24 AWG 24 AWG
Base Number Matches 1 1
