3210F datasheet, PDF - EEWORLD Datasheet

3210F: DescriptionBridge Rectifier Diode, 3 Phase, 5A, 1000V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size68KB，2 Pages; ManufacturerVOLTAGE MULTIPLIERS INC.; Websitehttp://www.voltagemultipliers.com/

Download Datasheet Parametric Compare View All

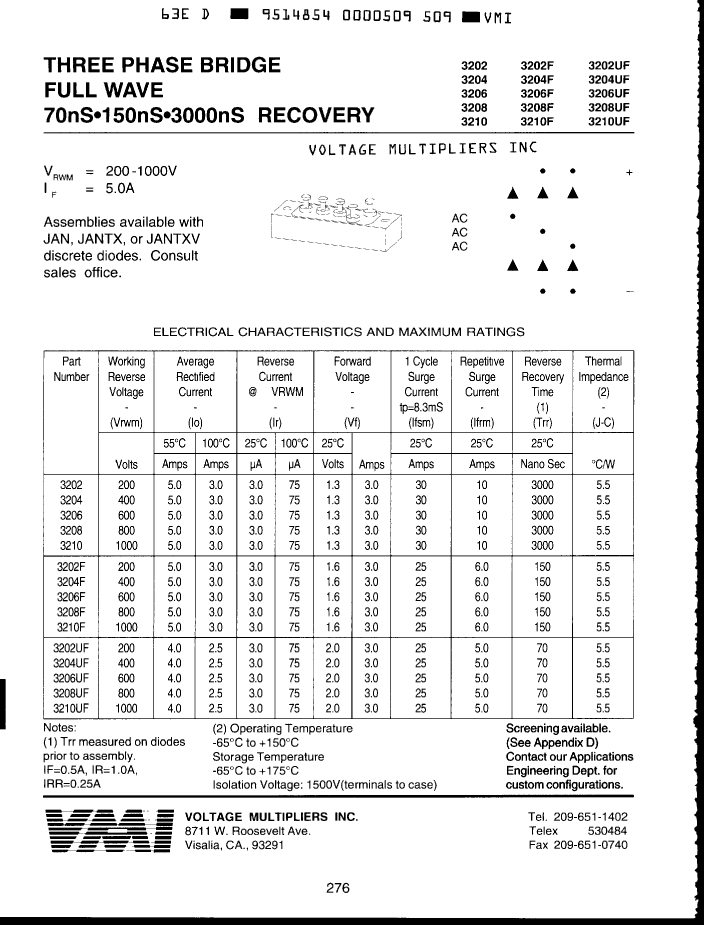

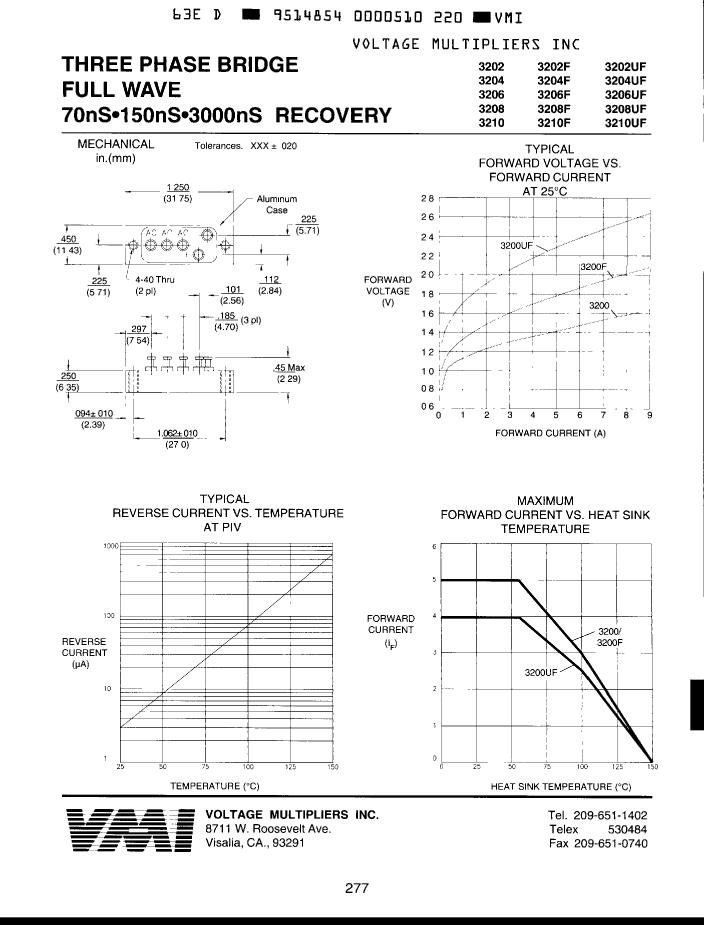

3210F Overview

Bridge Rectifier Diode, 3 Phase, 5A, 1000V V(RRM), Silicon

Parameter Name	Attribute value
Maker	VOLTAGE MULTIPLIERS INC.
package instruction	R-XUFM-X5
Reach Compliance Code	unknown
Configuration	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.6 V
JESD-30 code	R-XUFM-X5
Maximum non-repetitive peak forward current	25 A
Number of components	6
Phase	3
Number of terminals	5
Maximum operating temperature	150 °C
Maximum output current	5 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse recovery time	0.15 µs
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Base Number Matches	1

	3210F	3206UF
Description	Bridge Rectifier Diode, 3 Phase, 5A, 1000V V(RRM), Silicon	Bridge Rectifier Diode, 3 Phase, 4A, 600V V(RRM), Silicon
Maker	VOLTAGE MULTIPLIERS INC.	VOLTAGE MULTIPLIERS INC.
package instruction	R-XUFM-X5	R-XUFM-X5
Reach Compliance Code	unknown	unknown
Configuration	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.6 V	2 V
JESD-30 code	R-XUFM-X5	R-XUFM-X5
Maximum non-repetitive peak forward current	25 A	25 A
Number of components	6	6
Phase	3	3
Number of terminals	5	5
Maximum operating temperature	150 °C	150 °C
Maximum output current	5 A	4 A
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1000 V	600 V
Maximum reverse recovery time	0.15 µs	0.07 µs
surface mount	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER
Base Number Matches	1	1
