K050DSX-036270G-T datasheet, PDF

Datasheet> All Categories > The connector> The connector> K050DSX-036270G-T

K050DSX-036270G-T: DescriptionBoard Stacking Connector, 36 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size1005KB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric View All

K050DSX-036270G-T Overview

Board Stacking Connector, 36 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT

K050DSX-036270G-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Body/casing type	SOCKET
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	K050DSX
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	36
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

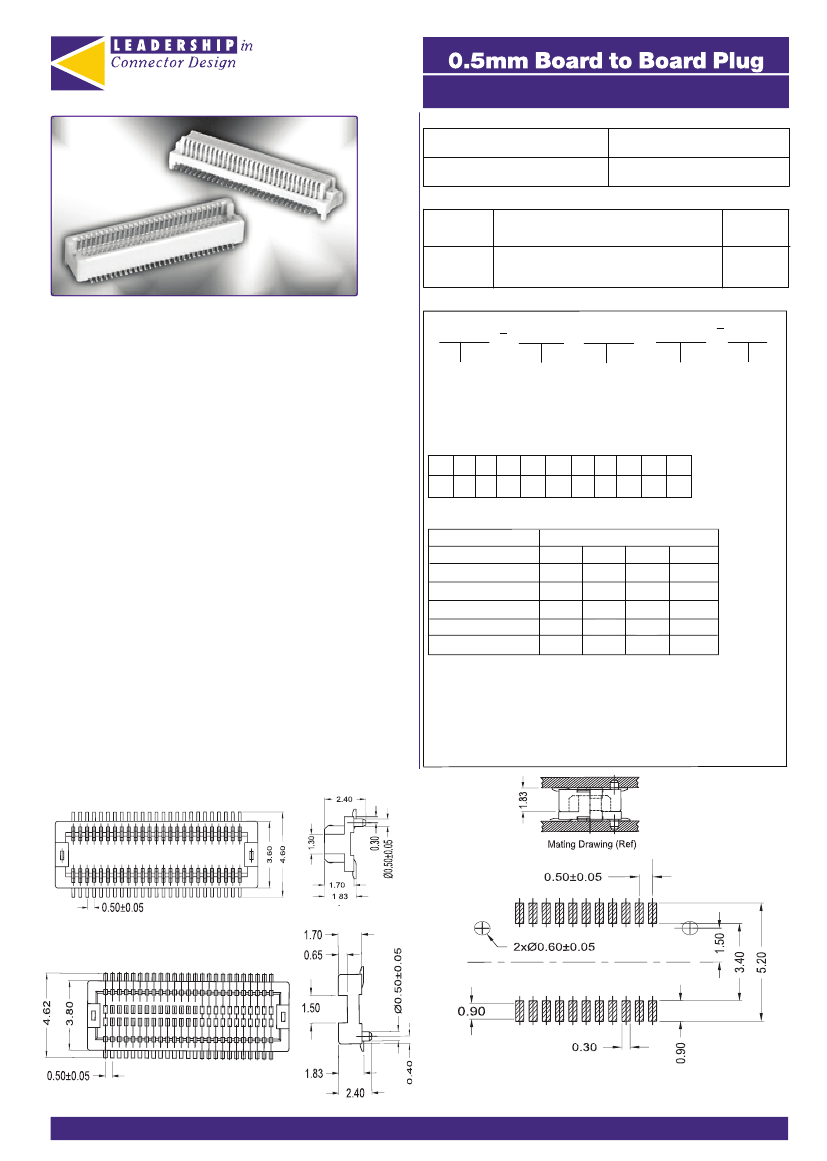

KYCON

K050DPX/DSX Series

Documentation &

Ordering Information

Stock

CofC

RoHS

Sample

RFQ

Mating Kycon Part Number

Plug

Socket

K050DPX-010-170-G

K050DSX-010-170-G

170

Height

Drawing

K050DPX/K050DSX

0.5mm Board to Board

Feature

Part Number Builder

K050DPX

Series

010

No of

Contacts

Plating

Packaging

Option

Series

•

Mating Height as low as 2.5mm - 6.5mm

K050DPX - 0.5mm Plug

•

Allows for more cost-efficient and space-saving solutions

K050DSX - 0.5mm Socket

•

Used in digital cameras,set top boxes,computers,POS Terminals,

Number of Contact

Hand hied Products and more,

•

Surface mount plug and socket

•

Circuit sizes range from 10-60

Performance Specifications

Materials and Finish

Insulator :

High Temp Plastic (UL94V-0)

Contact :

Phosphor Bronze

Plated :

Gold Plated

Mating Height

(mm)

170

K050DPX-XXX-XXX-G

(Plug Height)

K050DSX-XXX-170-G

K050DSX-XXX-220-G

K050DSX-XXX-270-G

K050DSX-XXX-420-G

K050DSX-XXX-470-G

170

2.5

220

3.0

270

3.5

4.0

320

4.5

6.5

Electrical Characteristics

Current Rating :

0.5A

Voltage Rating :

50V AC/DC

Resistance :

30m ohm. max.

Insulation Resistance :

100M ohm.

Withstanding Voltage :

100V AC for one Minute

Operating Temperature Range :

-20ºC to +105ºC

5.0

5.5

6.0

Plating

G - Gold

Blank

- Bulk

Blank

T - Tape and Reel Packaging

Contact Kycon for more options

Packaging Option

K050DSX Series

K050DPX Series

Plug or Socket PCB Layout

2007

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
