Crystal Oscillators (XO’s)
XO-480

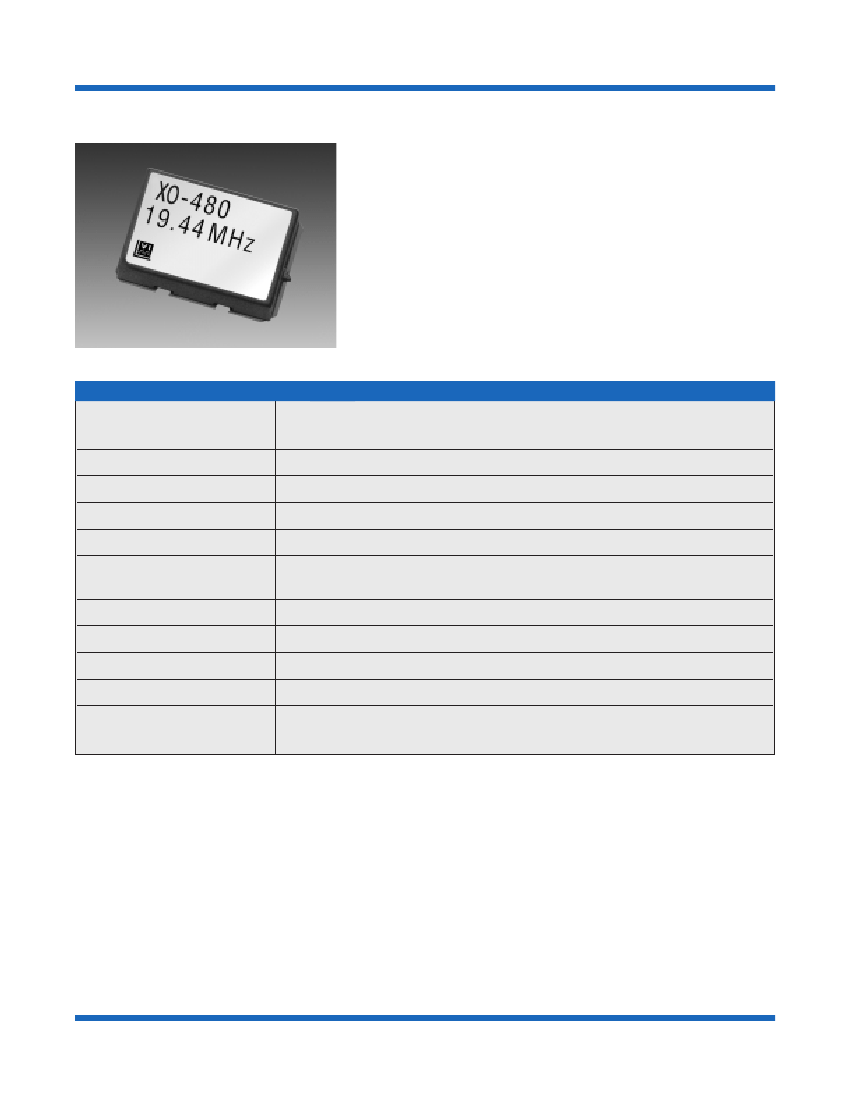

Description:
Stable high frequency XO with HCMOS/LVPECL
output. Packaged crystal provide low aging.
Features:
•
•
•
•
•
14 x 9 mm SMD package
155.52, 166.6286, 167.3316 MHz
3.3 V supply voltage
LVPECL output
HCMOS
Performance Characteristics
Parameter
Frequency:
Package Size:
Supply Voltage:
Supply Current:
Output Type:
Temperature Range/Stability:
Accuracy @ +25°C:
Aging:
Frequency vs. Supply:
Frequency vs. Load:
Storage Temperature:
155.52 MHz, 167.3316 MHz
13.8 x 9.1 x 5.5 mm
3.3 Vdc ±5%
70 mA max.
LVPECL
D - 105
±10 ppm over -20 to +70°C
F - 205
±20 ppm over -40 to +85°C
±5 ppm
2 ppm for the first year 1 ppm per year thereafter
±3 ppm for ±5% change
±1 ppm for ±5% change
-55 to +105°C
Characteristic
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • Web: www.vectron.com
70
Crystal Oscillators (XO’s)
XO-480

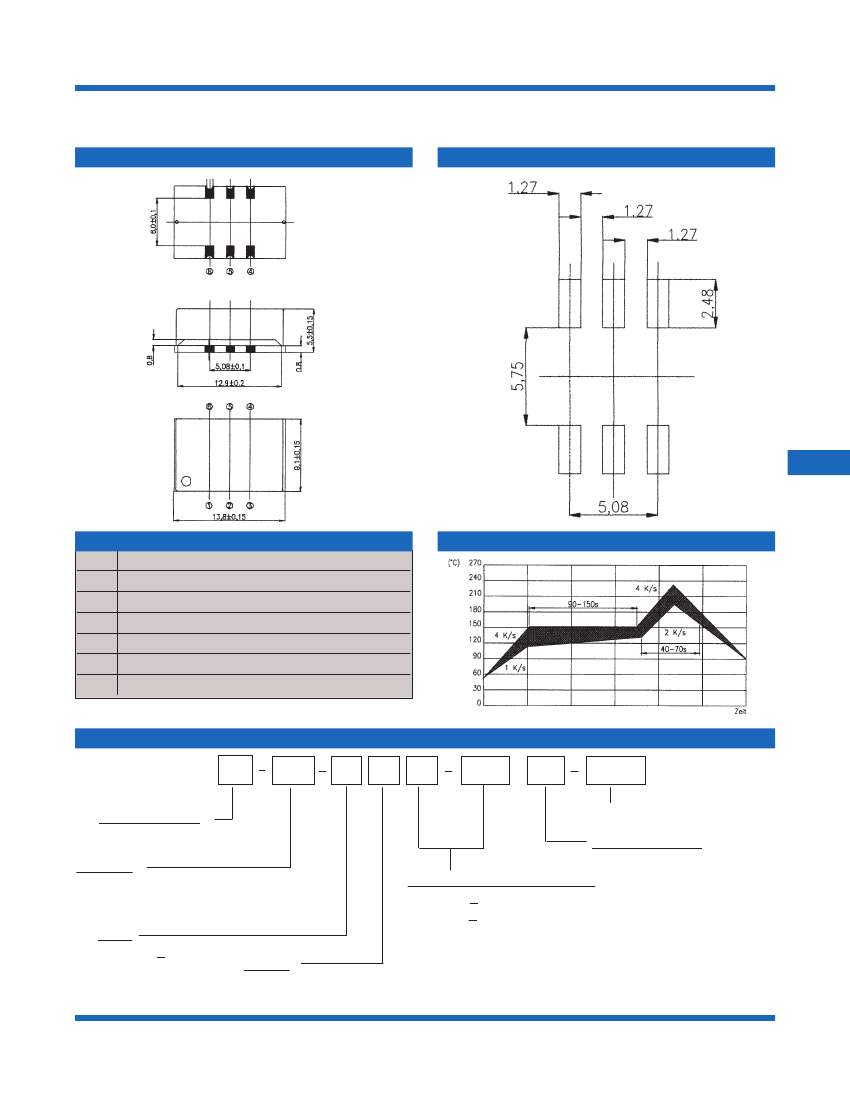

Outline Drawing
Pad Layout
XO
Pin Out Information
Pin
1
2
3
4
5
6
Function
N/C
Enable/Disable
Ground, case
RF Output
Complementary RF output
Supply Voltage UB
Reflow Profile
Ordering Information
XO
Product Family
XO
= XO
Package
480
= 13.8 x 9.1 x 5.5 mm, SMD
480
D
F
D
105
A
155.52
MHz
Frequency
Product Specific
Temperature Range/Stability
D - 105 = +10 ppm over -20 to+70
o
C
F - 205 = +20 ppm over -40 to +85
o
C
Input
D
= 3.3V +5%
Output
F
= Complementary LVPECL
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • Web: www.vectron.com
71
