Preliminary Datasheet
5-CHANNEL MOTOR DRIVER FOR DVD PLAYER
General Description
The AM5669 is a five-channel BTL driver IC, in
which four channels are voltage type BTL drivers for
tracking and focus actuators, sled and spindle motors,
the other one channel is DC motor driver for tray
which supports forward/reverse control. This IC also
contains two independent precise voltage regulators
with adjustable range from 1.5V to 4V and a free com-
parator for spindle channel motor direction detection.
The AM5669 is available in standard HSOP-28 pack-
age.
AM5669
Features
·
·
·
·
·
·
·
·
4-channel DC Motor BTL Driver
1-channel Forward/Reverse Control DC Motor
BTL Driver
Two Built-in Regulator Controllers
One Built-in Comparator for Spindle Channel
Motor Direction Detection
Built-in Level Shift Circuit
Built-in Mute Mode
Built-in Thermal Shutdown Circuit
Operating Voltage: 4.3V to 8V
Applications
·
DVD Player
HSOP-28

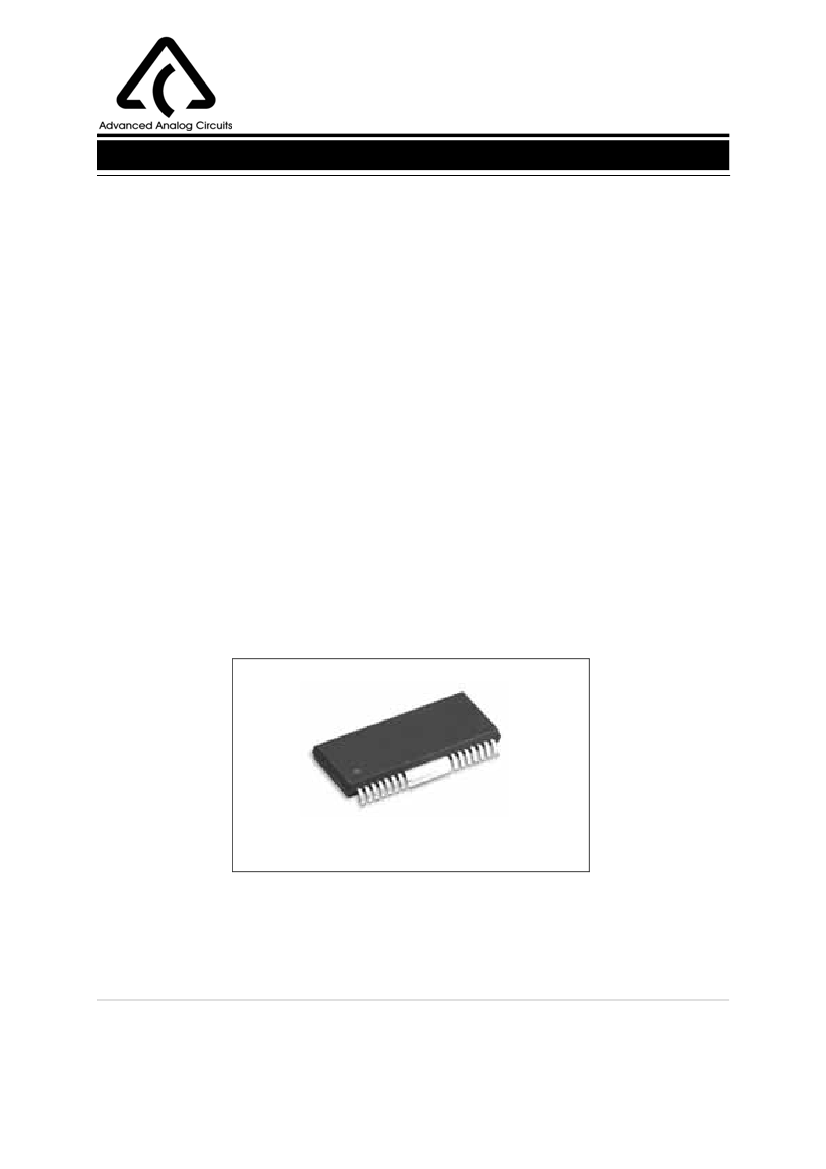

Figure 1. Package Type of AM5669
Mar. 2007 Rev. 1. 2
1
BCD Semiconductor Manufacturing Limited
Preliminary Datasheet
5-CHANNEL MOTOR DRIVER FOR DVD PLAYER
Pin Configuration
M28 Package
(HSOP-28)
AM5669
VINFC
TRB_1
REGO2
VINSL
REGO1
FWD
REV
1
2
3
4
5
6
7
28
27
26
25
24
23
22
MUTE
BIAS
VINTK
TRB_2
OPOUT
VINSP
GND
(PGND)
(PGND)
VCC1
VOTR-
VOTR+
VOSL+
VOSL-
VOFC-
VOFC+
8
9
10
11
12
13
14
21
20
19
18
17
16
15
VCTL
OPIN
VCC2
VOSP-
VOSP+
VOTK-
VOTK+
Figure 2. Pin Configuration of AM5669 (Top View)
Mar. 2007 Rev. 1. 2
2
BCD Semiconductor Manufacturing Limited
Preliminary Datasheet
5-CHANNEL MOTOR DRIVER FOR DVD PLAYER
Pin Description (Note 1)
Pin Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Pin Name
VINFC
TRB_1
REGO2
VINSL
REGO1
FWD
REV
VCC1
VOTR-
VOTR+
VOSL+
VOSL-
VOFC-
VOFC+
VOTK+
VOTK-
VOSP+
VOSP-
VCC2
OPIN
VCTL
GND
VINSP
OPOUT
TRB_2
VINTK
BIAS
MUTE
Input for focus driver
Regulator 1 driver output
Regulator 2 feedback input
Input for the sled driver
Regulator 1 feedback input
Tray driver forward input
Tray driver reverse input
V
CC
for pre-drive block and power block of sled and tray
Tray driver output (-)
Tray driver output (+)
Sled driver output (+)
Sled driver output (-)
Focus driver output (-)
Focus driver output (+)
Tracking driver output (+)
Tracking driver output (-)
Spindle driver output (+)
Spindle driver output (-)
V
CC
for power block of spindle, tracking and focus
Comparator input (+)
Speed control input of tray driver
Ground
Input for spindle driver
Comparator output
Regulator 2 driver output
Input for tracking driver
Input for reference voltage
Input for mute control
Function
AM5669
Note 1: Symbols of + and - (output of drivers) mean polarity with respect to input pin.
(For example, if voltage of pin 1 is high, pin 14 is high and pin 13 is low.)
Mar. 2007 Rev. 1. 2
3
BCD Semiconductor Manufacturing Limited
Preliminary Datasheet
5-CHANNEL MOTOR DRIVER FOR DVD PLAYER
Functional Block Diagram
AM5669
VINFC
1
17k
THERMAL
SHUT DOWN
MUTE
28
MUTE
TRB_1
2
3
42.5k
27
26
42.5k
17k
BIAS
REGO2
VINTK
VINSL
4
5
17k
25
24
23
17k
TRB_2
REGO1
OPOUT
FWD
6
7
42.5k
VINSP
REV
22
GND
PGND
21k
PGND
Pre-DRV
VCC1
VOTR-
8
9
10
21
VCTL
25.5k
V
CC1
20
OPIN
8k
TRAY
DRIVER
VOTR+
19
V
CC2
VCC2
11
VOSL+
18
SLED
DRIVER
(4X)
SPINDLE
DRIVER
(4X)
VOSP-
12
VOSL-
17
VOSP+
13
VOFC-
16
ACTUATOR
DRIVER
(6X)
ACTUATOR
DRIVER
(6X)
VOTK-
14
VOFC+
15
VOTK+
V
CC1
V
CC2
V
CC2

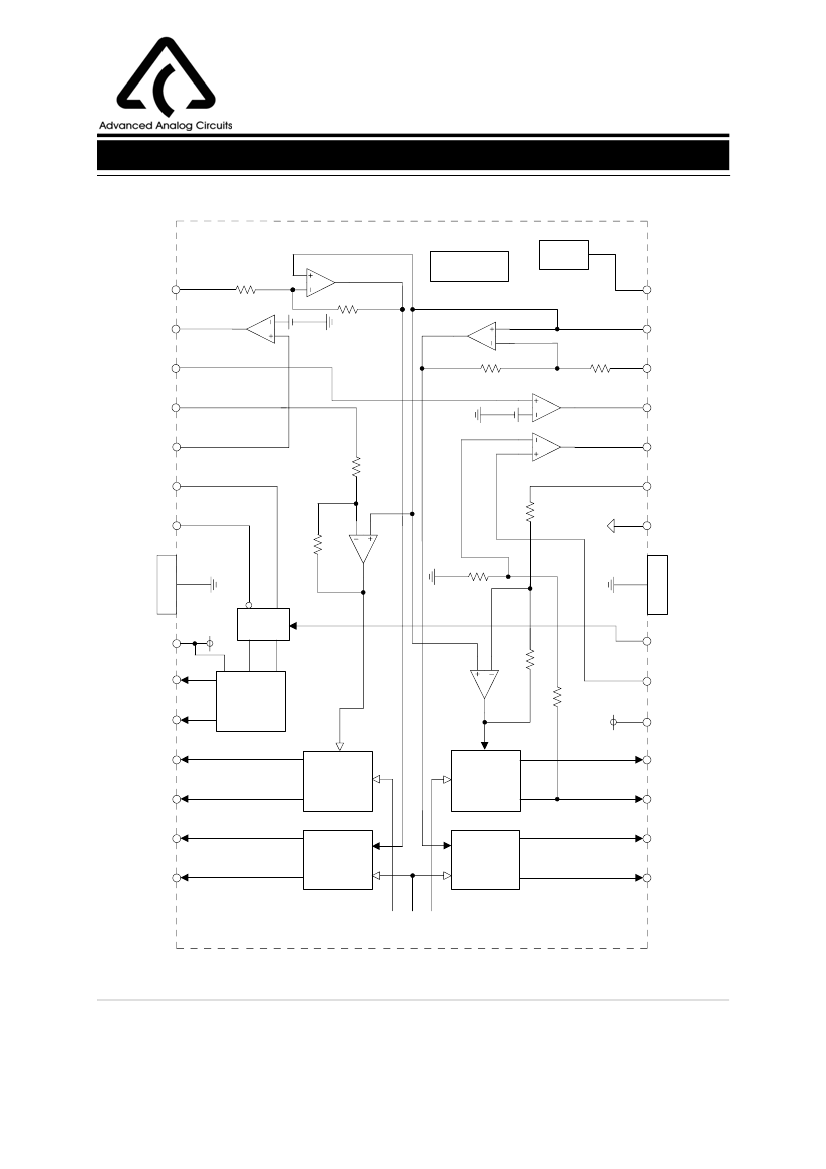

Figure 3. Functional Block Diagram of AM5669
Mar. 2007 Rev. 1. 2
4
BCD Semiconductor Manufacturing Limited
Preliminary Datasheet
5-CHANNEL MOTOR DRIVER FOR DVD PLAYER
Ordering Information
AM5669
Circuit Type
Package
M28: HSOP-28
Package
HSOP-28
Temperature Range
0 to 70
o
C
Part Number
AM5669M28-E1
Marking ID
AM5669M28-E1
Packing Type
Tube
AM5669
-
E1: Lead Free
BCD Semiconductor's Pb-free products, as designated with "E1" suffix in the part number, are RoHS compliant.
Absolute Maximum Ratings (T
A
=25
o
C) (Note 2)
Parameter
Supply Voltage
Power Dissipation
Operating Junction Temperature
Storage Temperature Range
ESD (Human Body Model)
ESD (Machine Model)
Symbol
V
CC1, 2
P
D
T
J
T
STG
ESD
ESD
Value
8.8
1.7 (Note 3)
150
-55 to 150
2000
200
Unit
V
W
o
C
o
C
V
V
Note 2: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to
the device. These are stress ratings only, and functional operation of the device at these or any other conditions
beyond those indicated under "Recommended Operating Conditions" is not implied. Exposure to "Absolute Max-
imum Ratings" for extended periods may affect device reliability.
Note 3:
a. When mounted on a 70mmx70mmx1.6mm glass epoxy board.
b. Reduced by 13.6mW for each increase in
T
A
of 1
o
C
over 25
o
C.
Recommended Operating Conditions (T
A
=25
o
C)
Parameter
Power Supply Voltage
Operating Temperature
Symbol
V
CC1
V
CC2
T
A
0
Min
4.3
Max
8
Unit
V
V
70
o
C
4.3 to
V
CC1
Mar. 2007 Rev. 1. 2
5
