NFP-50A-0314-BS datasheet, PDF

Datasheet> All Categories > The connector> The connector> NFP-50A-0314-BS

NFP-50A-0314-BS: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Receptacle; CategoryThe connector The connector; File Size338KB，6 Pages; ManufacturerYamaichi Electronics Co., Ltd.; Websitehttp://www.yamaichi.com/

Download Datasheet Parametric View All

NFP-50A-0314-BS Overview

Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Receptacle

NFP-50A-0314-BS Parametric

Parameter Name	Attribute value
Maker	Yamaichi Electronics Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.327 inch
subject depth	0.508 inch
body length	1.956 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (12) OVER NICKEL (177)
Contact completed and terminated	TIN LEAD (157) OVER NICKEL (177)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	NFP
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	SHORT LATCH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	12u inch
polarization key	POLARIZED KEY
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.106 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

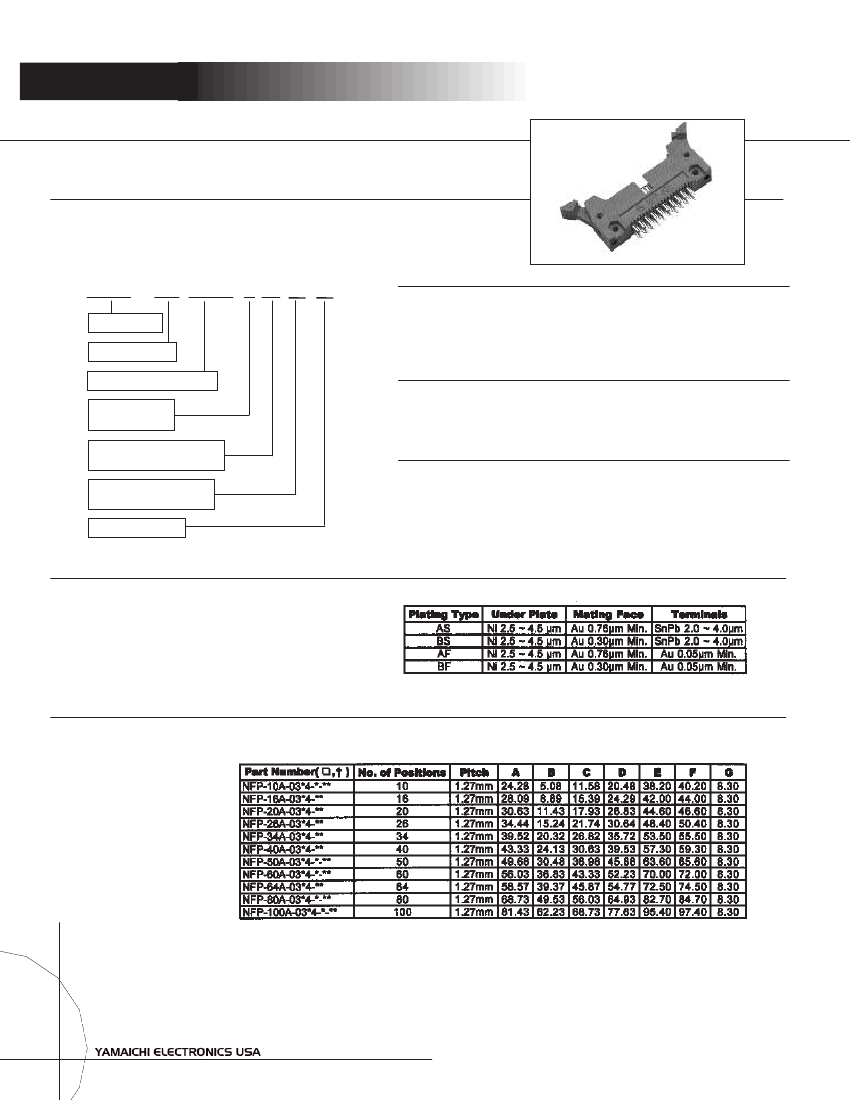

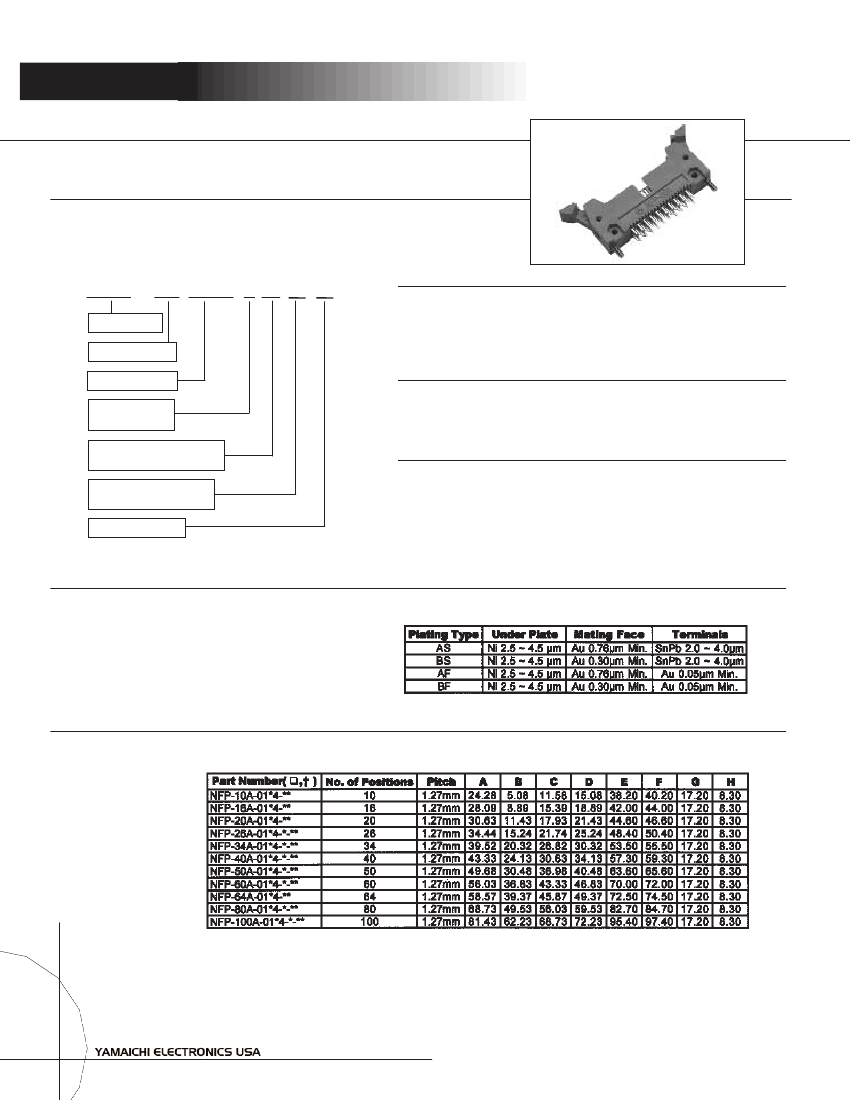

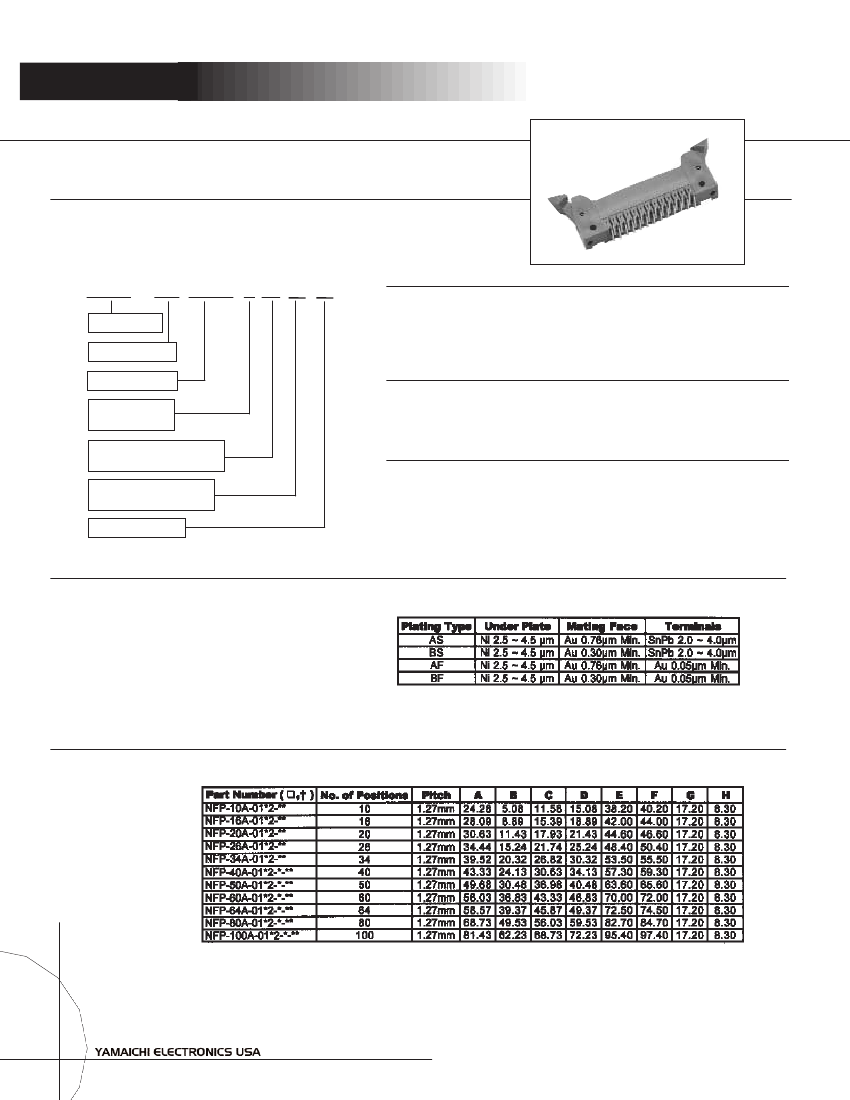

Latch Header

(1.27mm, Right Angle, Solder Dip)

NFP SERIES

ORDERING INFORMATION

NFP- *** A-01 * 2- * -**

Header Series

No. of Positions

Standard Header

1: Short Latch

2: Long Latch

Terminal Type:

2: Right Angle Solder Dip

Blank: 2.7 mm Terminal

1: 4.6 mm Terminal

Plating (see below)

Characteristics

Current Rating:

Insulation Resistance:

Withstanding Voltage:

Contact Resistance:

Operating Temperature:

0.5A

1,000M½ Minimum at 500 VDC

500 VAC for 1 minute

15m½ Max. at 10mA

-20˚C ~ +85˚C

High Temp Thermoplastic-UL94V-0

Copper Alloy

Mating Face Contacts: Au over Ni

Terminals: Au or SnPb over Ni

Right-angle terminals

Short or long latches

Long terminal available

Variety of plating options

Latches eject receptacle

Central polarizing key

Material and Finish

Insulator:

Contact:

Plating:

Features

TYPES OF PLATING

CONNECTOR DIMENSIONS

(reference only)

Short Latch

Positions 50, 60, 64, 80,100 available in long terminals

† Long Latch

Positions 40, 64, 80, 100 available in long terminals
