MADP-007433-1146DT datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> MADP-007433-1146DT

MADP-007433-1146DT: DescriptionPIN DIODE,DUAL,SERIES CONNECTED,75V V(BR),SC-70; CategoryDiscrete semiconductor diode; File Size159KB，10 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

MADP-007433-1146DT Overview

PIN DIODE,DUAL,SERIES CONNECTED,75V V(BR),SC-70

MADP-007433-1146DT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Parts packaging code	SC-70
package instruction	ROHS COMPLIANT, PLASTIC, CASE 1146, SC-70, 3 PIN
Contacts	3
Manufacturer packaging code	CASE 1146
Reach Compliance Code	unknown
Minimum breakdown voltage	75 V

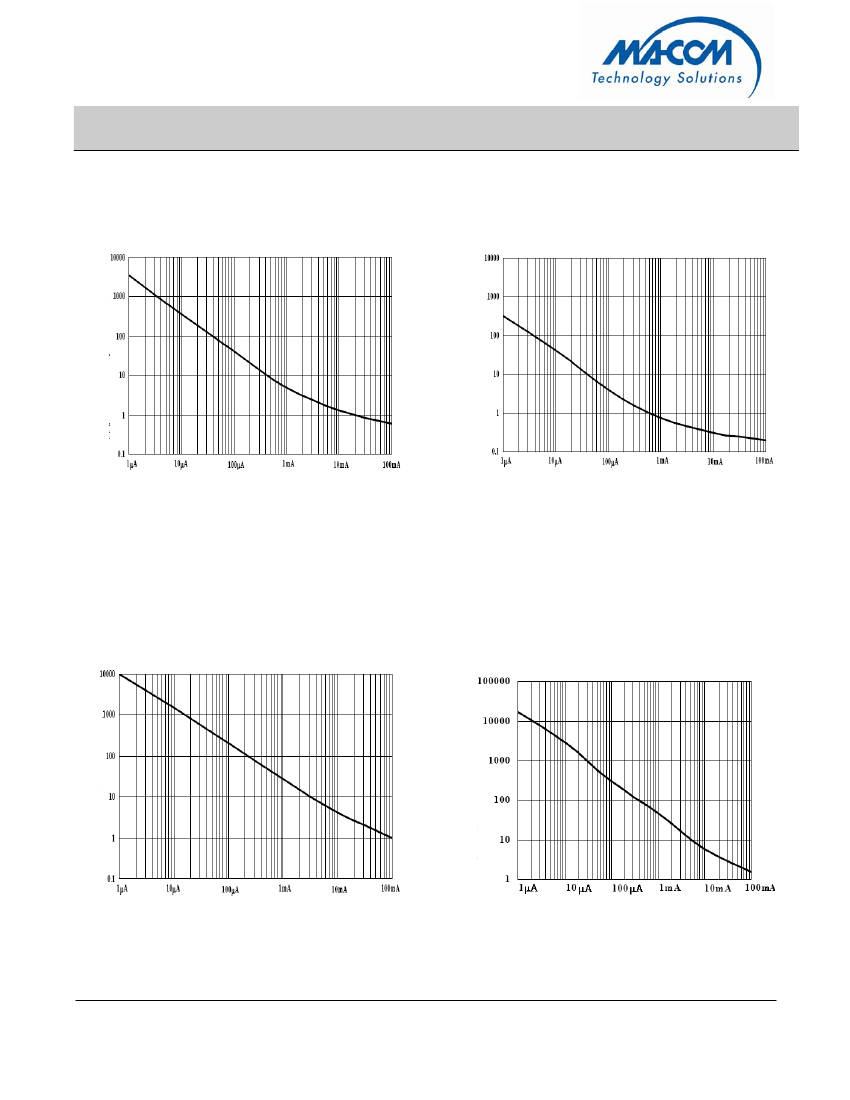

Maximum diode forward resistance	1.5 Ω
Diode resistance test current	10 mA
Diode type	PIN DIODE
Minority carrier nominal lifetime	0.2 µs
Maximum operating temperature	150 °C
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

SMPP Series

Surface Mount Plastic PIN Diodes

Features

•

Industry Standard Surface Mount Packages

•

Lead-Free (RoHS Compliant) Equivalents

Available with 260

°C

Reflow Compatibility

•

Low Loss, High Isolation Switching Diodes

•

Low Distortion Attenuator Diodes

•

Single and Dual Diode Configurations

•

Tape and Reel Packaging

M/A-COM Products

Rev. V20

The MA4P277/MA4P7437/MADP-007437 series and

MA4P278/MA4P7438/MADP-007438 series device

have thicker intrinsic regions to provide lower distor-

tion in attenuator circuits.

The MA4P290/MADP-007167 series devices have

the thickest I-Region, offering the lowest distortion

and highest IP3 for current controlled attenuator cir-

cuits. These devices are ideal for AGC functions for

infrastructure and CATV applications.

These parts are available as single diodes, series

tees (ST), series tee reverse (STR), common

cathode pairs (CK), common anode pairs (CA), and

unconnected pairs in the respective featured

packages.

M/A-COM’s PIN diodes are available in the SOT-23

(case style 287), the SOT-143 (case style 1068), the

SOT-323/SC-70 (3L) (case style 1146), the

SOD-323 (case style 1141), and the

SC-79 (case style 1279) packages. These packages

are supplied on tape and reel for automatic pick and

place assembly. The tape and reel suffix designation

is a “T” at the end of the part number.

Description and Applications

M/A-COM offers silicon PIN diodes in five standard,

low cost, surface mount plastic packages for use as

switches and attenuators. These diodes are offered

with standard Sn/Pb plating, as well as with 100%

matte Sn plating on our RoHS compliant devices.

M/A-COM’s PIN diodes feature a variety of I-region

lengths resulting in lower resistance, and lower

capacitance devices for various microwave control

circuit applications.

The MA4P275/MA4P7436/MADP-007436 series

offer the lowest series resistance for best perform-

ance as low loss series switches and high isolation

shunt switches.

The MA4P789/ MA4P7433/MADP-007433 series

have the lowest capacitance and offers the highest

isolation in series and series-shunt switches through

3GHz.

The MA4P282/ MA4P7447/MADP-007155 series,

the MA4P274/MA4P7455/ MADP-007455 series and

the MADP-007448 series are general purpose PIN

diodes useful as either switches or attenuators.

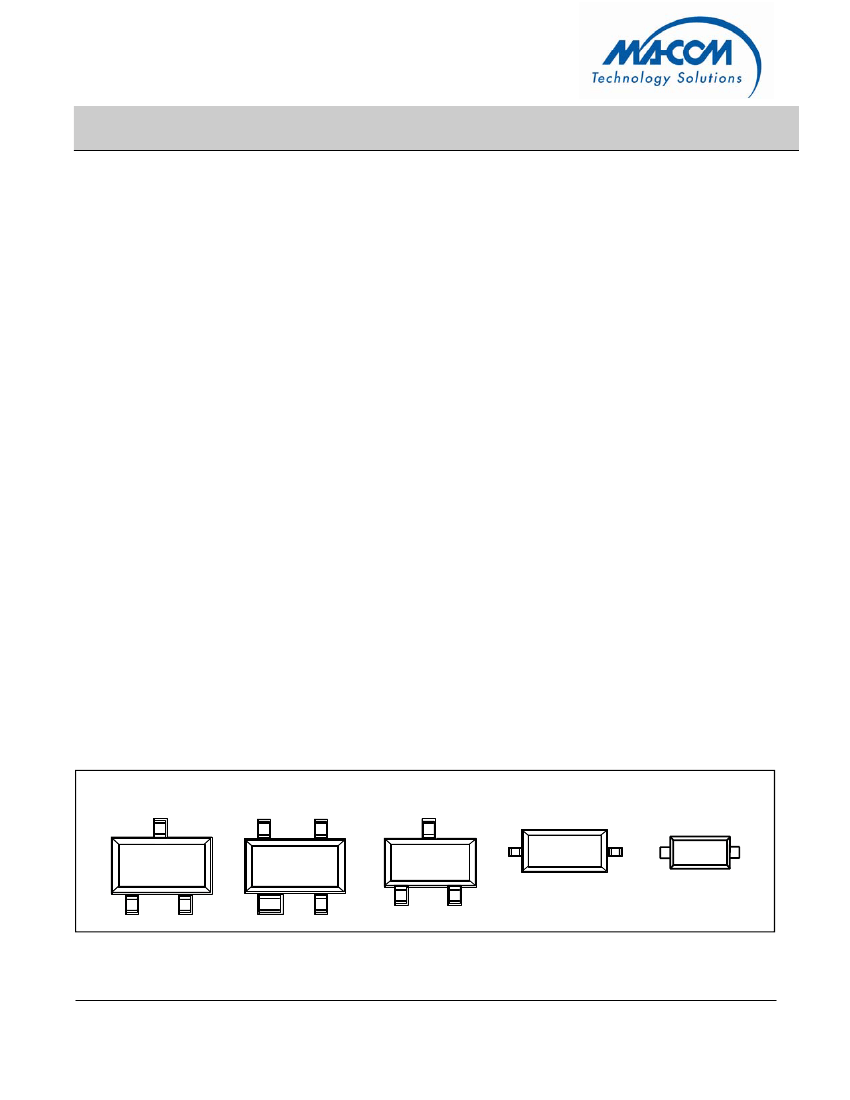

Package Outlines

SOT-23

SOT-143

SOT-323

SOD-323

SC-79

ADVANCED:

Data Sheets contain information regarding a product MA-COM Technical Solutions is

•

North America

Tel: 800.366.2266 / Fax: 978.366.2266

considering for development. Performance is based on target specifications, simulated results, and/

•

Europe

Tel: 44.1908.574.200 / Fax: 44.1908.574.300

or prototype measurements. Commitment to develop is not guaranteed.

•

Asia/Pacific

Tel: 81.44.844.8296 / Fax: 81.44.844.8298

PRELIMINARY:

Data Sheets contain information regarding a product MA-COM Technical Solutions

Visit www.macom.com for additional data sheets and product information.

has under development. Performance is based on engineering tests. Specifications are typical.

Mechanical outline has been fixed. Engineering samples and/or test data may be available. Commit-

MA-COM Technical Solutions and its affiliates reserve the right to make changes to the

ment to produce in volume is not guaranteed.

product(s) or information contained herein without notice.
