LV385M100BP342525 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> LV385M100BP342525

LV385M100BP342525: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 385V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, ROHS COMPLIANT; CategoryPassive components capacitor; File Size70KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric View All

LV385M100BP342525 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 385V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, ROHS COMPLIANT

LV385M100BP342525 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	YAGEO
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	100 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	0.58864 mA
Manufacturer's serial number	LV
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	385 V
ripple current	570 mA
surface mount	NO
Delta tangent	0.25
Terminal shape	SNAP-IN
Base Number Matches	1

Preview

Download Datasheet

View All

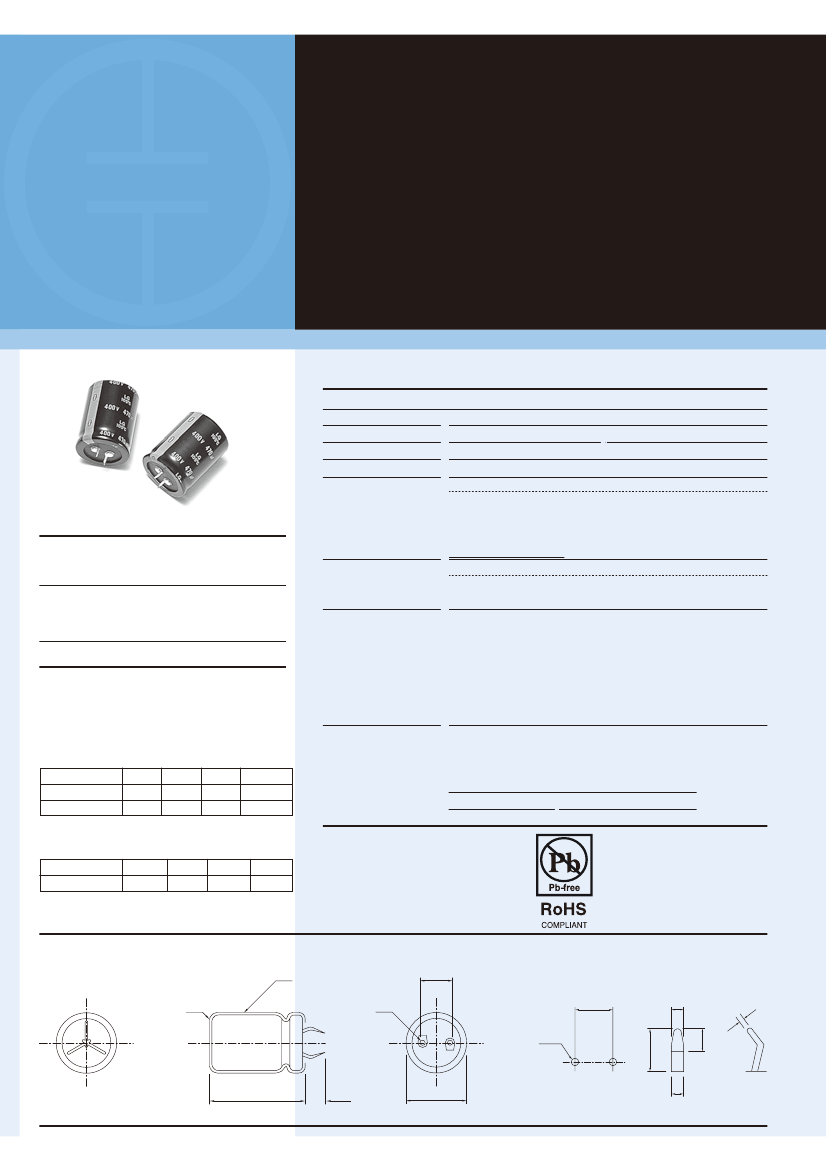

YAGEO CORPORATION

ALUMINUM ELECTROLYTIC CAPACITORS

Miniature Size Aluminum

Electrolytic Capacitors

[ For 105°C, 3000 Hours General ]

For Printed Circuit Board High-Performance Aluminum Electrolytic Power

Supply Input and Output Filter Capacitors

ELECTRICAL CHARACTERISTICS

Operating Temperature Range -40 to +105°C

Rated Voltage Range

Nominal Capacitance Range

Capacitance Tolerance

Leakage Current

10 to 100VDC

47 to 56000µF

±20% (At 25°C,120Hz)

I = 3

C V

(µA) after 5 minutes application of rated working voltage at +20°C

D.F (%)

-25 to+105°C

160 to 450VDC

DESCRIPTION

(LG Series 105°C 2000 Hours Assured)

LV type capacitors are combined with snaplock termi-

nals for easy to mount on P.C. Board.

Highly reiable capacitors that withstand under high

ripple current. Two to Four dimensions with same rat-

ings. Aluminum case designed explosion-proof vent.

Best for switching power supplies.

Low Temperature

Characteristics

(120Hz)

High Temperature Loading

For capacitance value > 33000µF, add following calculated value :

(rated capacitance) - 33000µF X 0.1

10000µF

Rated Voltage (V)

Z(-25°C) / Z(20°C)

Z(-40°C) / Z(20°C)

Test conditions

After 3000 hours application of rated voltage at +105°C

the capacitor shall meet the following limits

Post test requirements at +20°C

Leakage current

Capacitance Change

tan

: within ±20% of the Inital measured value

16~25

63~100

160

450

MULTIPLIER FOR RIPPLE CURRENT

Frequency(Hz)

160~250V

315~450V

0.8

120

1.0

1.15

1.10

10~50K

1.18

1.15

25°C

after exposing them for 1000 hours at 105°C without voltage applied.

Capacitance Change

D.F

Leakage Current

±20% of the Inital Value

200% of the Intial Specitied Value

Temperature(°C)

Factor

20~45

2-10

1.89

1.52

105

1.0

DIAGRAM OF DIMENSIONS

Location of P.C.B. Holes

Vinyl Sleeve

10 0.5

Unit : mm

Botton Plate

Negative

10 0.5

0.9

3.0

2m/m x 2

5.8 1.0

1.5

Safety Device

L+2 Max.

5.8 1

D 1
