5-1623696-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 5-1623696-0

5-1623696-0: DescriptionRESISTOR, METAL GLAZE/THICK FILM, 1W, 1%, 100ppm, 1500ohm, SURFACE MOUNT, 2512, CHIP; CategoryPassive components The resistor; File Size53KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-1623696-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-1623696-0	-	-	View	Buy Now

5-1623696-0 Overview

RESISTOR, METAL GLAZE/THICK FILM, 1W, 1%, 100ppm, 1500ohm, SURFACE MOUNT, 2512, CHIP

5-1623696-0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	, 2512
Reach Compliance Code	compliant
Other features	LASER TRIMMABLE
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Rated power dissipation(P)	1 W
Rated temperature	70 °C
resistance	1500 Ω
Resistor type	FIXED RESISTOR
size code	2512
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	200 V
Base Number Matches	1

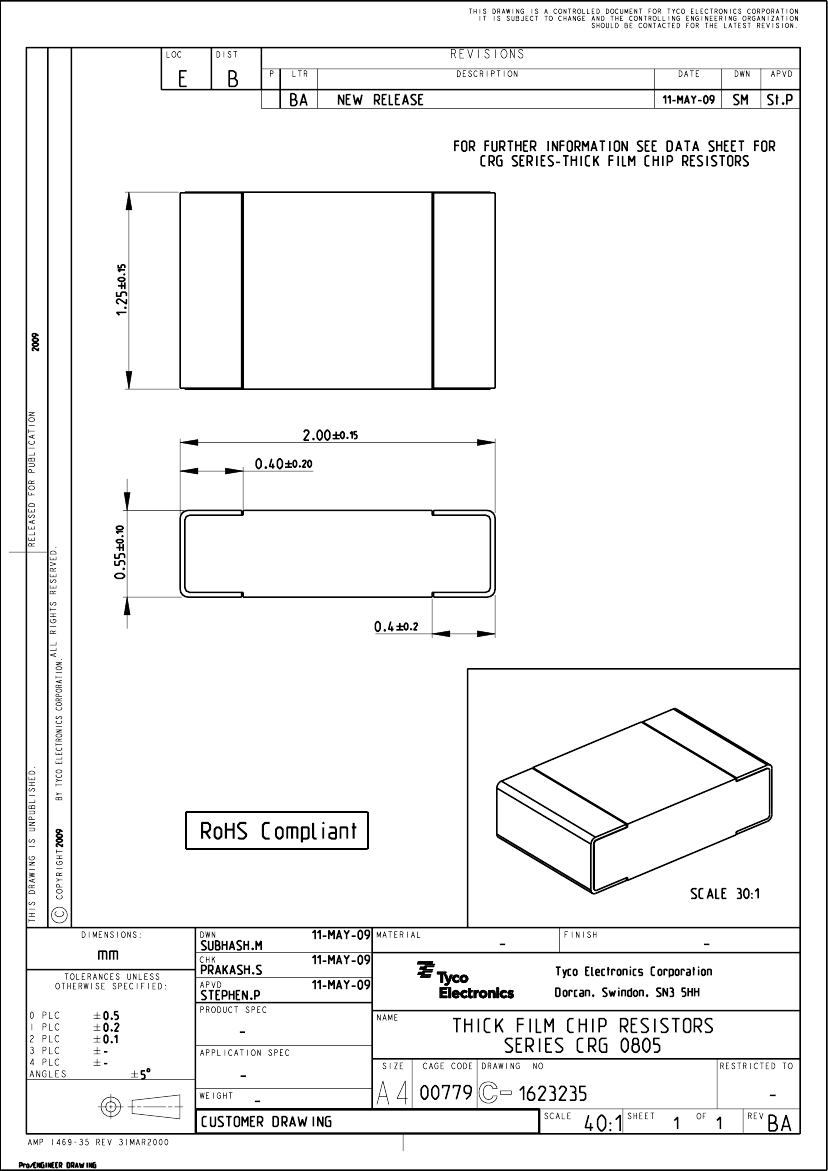

Preview

Download Datasheet

View All

5-1623696-0 Related Products

	5-1623696-0	CRG0603F140K	CRG0603F14K	1-1623695-8	CRG1206J3M0
Description	RESISTOR, METAL GLAZE/THICK FILM, 1W, 1%, 100ppm, 1500ohm, SURFACE MOUNT, 2512, CHIP	RESISTOR, METAL GLAZE/THICK FILM, 0.1W, 1%, 100ppm, 140000ohm, SURFACE MOUNT, 0603, CHIP	RESISTOR, METAL GLAZE/THICK FILM, 0.1W, 1%, 100ppm, 14000ohm, SURFACE MOUNT, 0603, CHIP	RESISTOR, METAL GLAZE/THICK FILM, 0.5W, 1%, 100ppm, 110ohm, SURFACE MOUNT, 2010, CHIP	RESISTOR, METAL GLAZE/THICK FILM, 0.25W, 5%, 200ppm, 3000000ohm, SURFACE MOUNT, 1206, CHIP
package instruction	, 2512	SMT, 0603	SMT, 0603	, 2010	CHIP
Reach Compliance Code	compliant	unknown	unknown	compliant	unknown
Other features	LASER TRIMMABLE	LASER TRIMMABLE	LASER TRIMMABLE	LASER TRIMMABLE	LASER TRIMMABLE
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	2	2	2	2	2
Maximum operating temperature	125 °C	155 °C	155 °C	125 °C	155 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Rated power dissipation(P)	1 W	0.1 W	0.1 W	0.5 W	0.25 W
Rated temperature	70 °C	70 °C	70 °C	70 °C	70 °C
resistance	1500 Ω	140000 Ω	14000 Ω	110 Ω	3000000 Ω
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
size code	2512	0603	0603	2010	1206
surface mount	YES	YES	YES	YES	YES
technology	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C	200 ppm/°C
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Tolerance	1%	1%	1%	1%	5%
Operating Voltage	200 V	75 V	75 V	200 V	200 V
Is it Rohs certified?	conform to	-	-	conform to	conform to
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	-
Package shape	RECTANGULAR PACKAGE	-	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Base Number Matches	1	1	1	1	-
structure	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	Rectangular
JESD-609 code	-	e3	e3	-	e3
Package height	-	0.45 mm	0.45 mm	-	0.55 mm
Package length	-	1.6 mm	1.6 mm	-	3.1 mm
Package form	-	SMT	SMT	-	SMT
Package width	-	0.8 mm	0.8 mm	-	1.55 mm
Terminal surface	-	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	-	Matte Tin (Sn)
