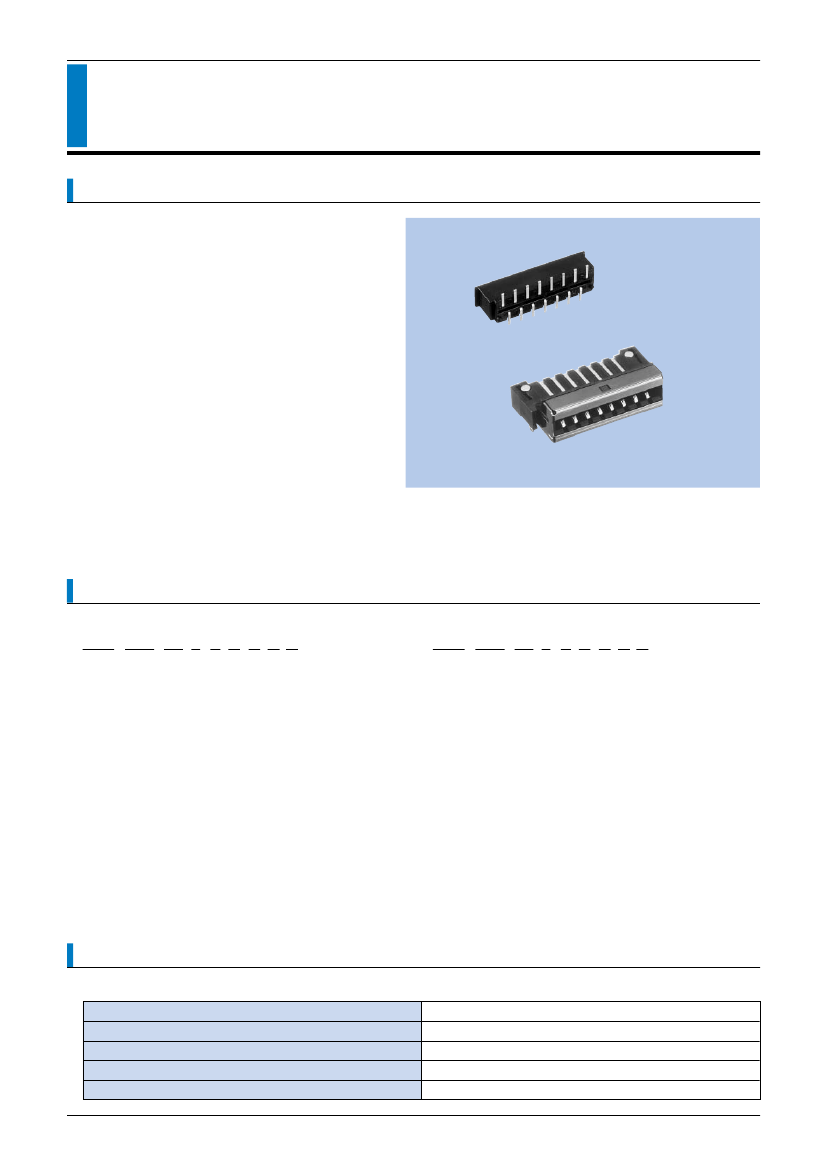

MITSUMI
Detach Connectors
CAM-D36, D37
Connectors
FEATURES
1. Due to these connectors, the front panel can be
removed or mounted for preventing the car audio
from being stolen. They are also suitable for
connecting the circuit between various electronic
units.
2. These connectors can absorb a fitting play by
setting the fitting port size.
3. Since each socket connector can directly be
mounted to the main PCB of the set, VA of the set
is possible.
A metallic cover is mounted for preventing static
electricity.
CAM-D37(Socket)
CAM-D36(Plug)
HOW TO ORDER
1. CAM-D36 (Plug)
2. CAM-D37 (Socket)
D36-015-02 0-A N G A A
1
2
3
4
5
6
7
8 9
1 Series No. (D36)
2 No. of contacts (015 : 15pins)
3 Housing Material (02 : PBT resin)
4 UL grade of housing (0 : UL94V-0)
5 Contact plating (A : Gold)
6 Contact pin plating thickness (N : 0.2µm)
7 Contact pin lead profile (G : Angle SMT)
8 Attachment on connector fitting side (A : None)
9 Attachment on connector PCB side (A : None)
D37-015-02 0-A N B M G
1
2
3
4
5
6
7
8 9
1 Series No. (D37)
2 No. of contacts (015 : 15pins)
3 Housing Material (02 : PBT resin)
4 UL grade of housing (0 : UL94V-0)
5 Contact plating (A : Gold)
6 Contact pin plating thickness (N : 0.2µm)
7 Contact pin lead profile (B : Angle)
8 Attachment on connector fitting side (M : Shielded case)
9 Attachment on connector PCB side (A : Guide pin)
SPECIFICATIONS
ELECTRICAL CHARACTERISTICS
Rated Voltage
Rated Current
Withstanding Voltage
Insulation Resistance
Contact Resistance
14V DC
1A
500V AC (rms) 1minute
100MΩ min. (at 500V DC)
70mΩ max.
