EMRSL-1: DescriptionDouble Balanced Mixer, 0.5MHz Min, 500MHz Max, 8.5dB Conversion Loss-Max, SM-24, 6 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size89KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

EMRSL-1 Overview

Double Balanced Mixer, 0.5MHz Min, 500MHz Max, 8.5dB Conversion Loss-Max, SM-24, 6 PIN

EMRSL-1 Parametric

Parameter Name	Attribute value
Maker	MACOM
Reach Compliance Code	compli

Preview

Download Datasheet

View All

E-Series Surface Mount Mixer

.5 - 500 MHz

EMRS-1, EMRSL-1, EMRSJ-1

V3.00

Features

SM-1

LO Power +7 dBm

Up to +1 dBm RF

Surface Mount

Speciﬁcations

@ 25°C

Frequency Range

Conversion Loss (dB)

1 - 250 MHz

0.5 - 500 MHz

Isolation (dB)

LO to RF

0.5 - 5 MHz

5 - 250 MHz

250 - 500 MHz

LO to IF

0.5 - 5 MHz

5 - 250 MHz

250 - 500 MHz

Typical

5.5

6.2

Typical

0.5 - 500 MHz

DC - 500 MHz

Maximum

7.0

8.5

Minimum

Dimensions in ( ) are in mm.

Unless Otherwise Noted: .x = ±0.04 (1.00)

.xx = ±0.02 (0.50)

.xxx = ±0.010 (0.250)

Operating Characteristics

Impedance

RF input for 1dB Compression

50 Ohms Nominal

+ 1 dBm

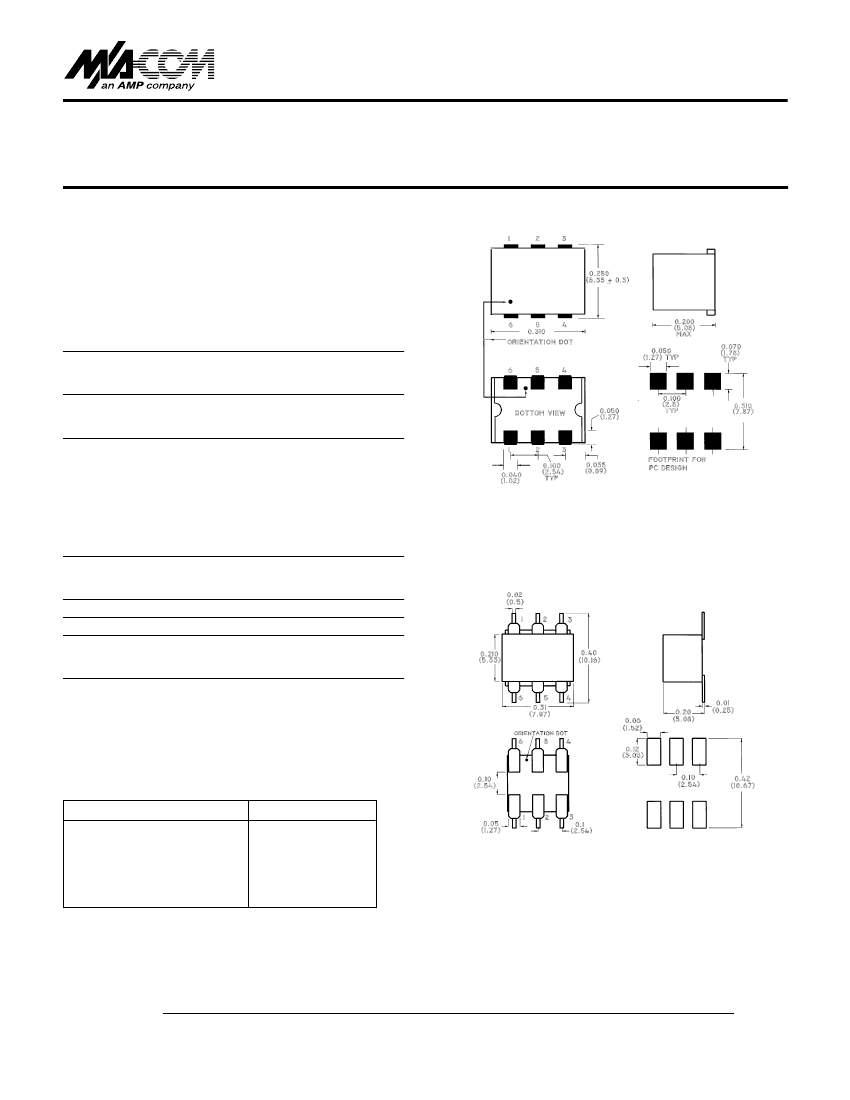

SM-24

Ordering Information

Part No.

EMRS-1

EMRS-1TR

EMRSL-1

EMRSL-1TR

EMRSJ-1

Packaging

SM-1 in Tubes

SM-1 in Forward Tape & Reel

SM-24 in Tubes

SM-24 in Forward Tape & Reel

SM-44 in Tubes

Absolute Maximum Ratings

Parameter

RF Power

Peak IF Current

Storage Temperature

Operating Temperature

Pin Temperature (10 Seconds)

Absolute Maximum

50 mW

40 mA

-55°C to 100°C

260°C

Dimensions in ( ) are in mm.

Unless Otherwise Noted: .x = ±0.04 (1.00)

.xx = ±0.02 (0.50)

.xxx = ±0.010 (0.250)

Speciﬁcations Subject to Change Without Notice.

S 0054 C, S 0815 B, S 01876 D

M/A-COM, Inc.

North America:

Tel. (800) 366-2266

Fax (800) 618-8883

Asia/Paciﬁc: Tel. +81 (03) 3226-1671

Fax +81 (03) 3226-1451

Europe: Tel. +44 (1344) 869 595

Fax +44 (1344) 300 020
