83189-4008: DescriptionCircular Connector, 10 Contact(s), Plastic, Female, Plug; CategoryThe connector The connector; File Size71KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

83189-4008 Overview

Circular Connector, 10 Contact(s), Plastic, Female, Plug

83189-4008 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	83189
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Shell material	PLASTIC
Total number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

\

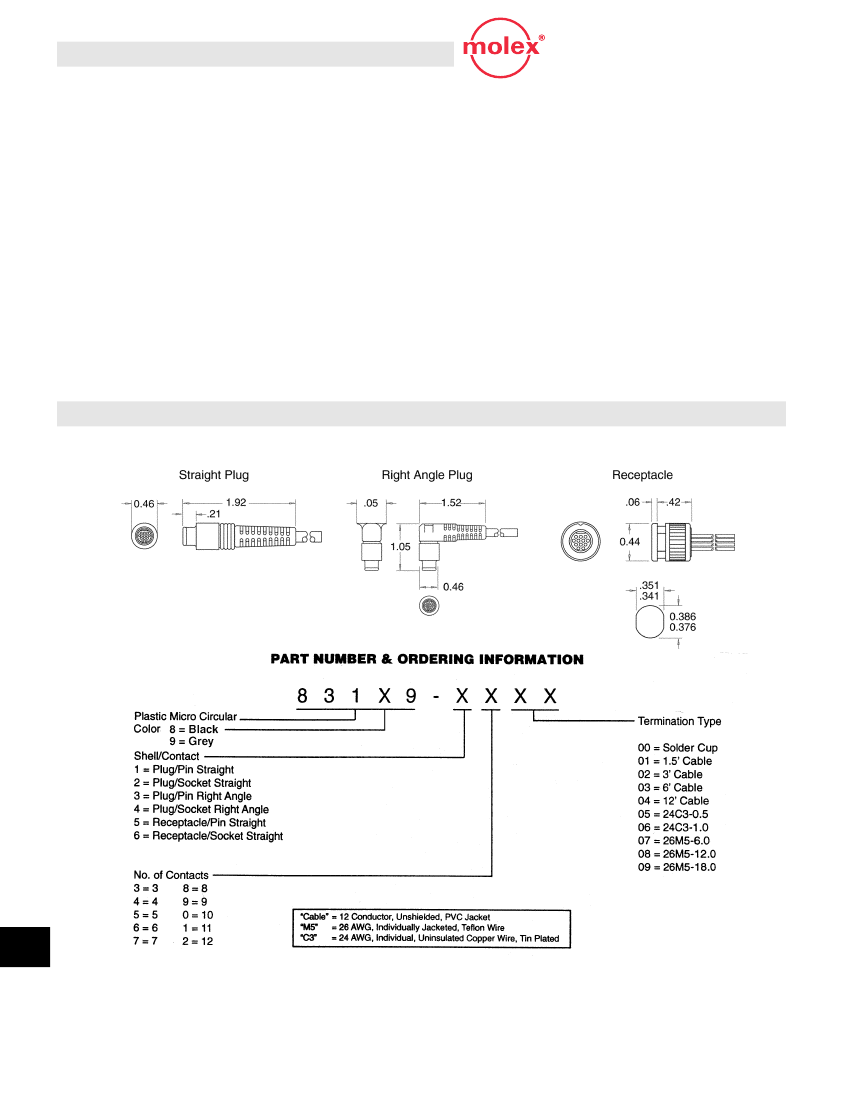

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Quick Disconnect

s

Snap Seal Feature on Plug for Environmental Sealing in

Mated Condition

s

.050 Contact Spacing

s

3-12 Contact Positions Available (standard is 12 contacts)

s

Receptacle/Plug Available with Pin or Socket Contacts*

s

Robust Strain Relief on Plug Connectors

s

Optional Panel Mounting Methods Available (E-Cllip)

s

Dust Cover Option Available for Receptacle Connector

Electrical

Current: 3A

Contact Resistance: 8 Milliohms Max.

Mechanical

Contact Mating Force: 6 oz. Max. Each

Contact Unmating Force: 0.05 oz. Min. Each

Durability: 5000 cycles

Temp Rating: -55° to 80°C

Physical

Insulators: GF Nylon

Contacts: Gold Plated Copper Alloy

Overmold: Polyurethane

Cable: PVC Jacket

Plastic MICRO

Circular Connectors

1.277mm (.050) Pitch

\

ORDERING INFORMATION

* Recommended configuration is socket contacts in the receptacle connector, pin contacts in the plug connector.

U-36

990
