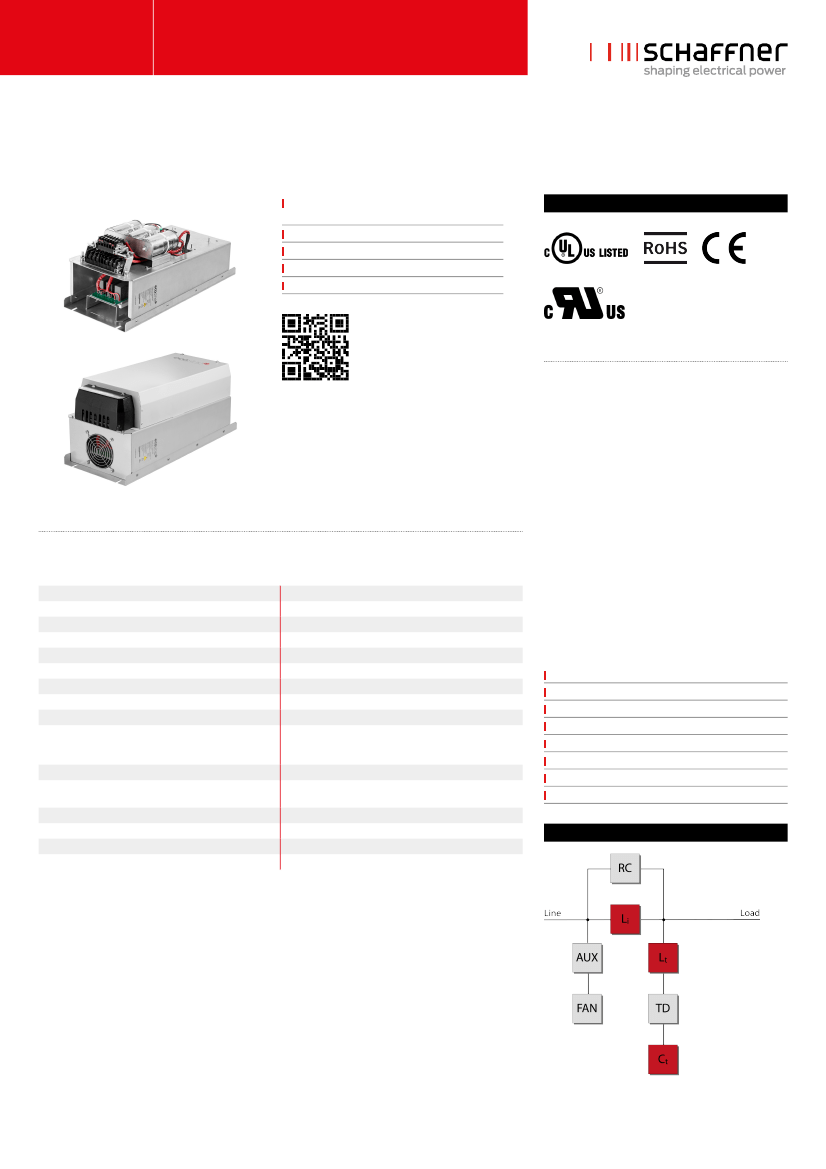

economical solution to the challenge of load-applied
harmonics mitigation in three-phase power systems.
With a plug-and-play approach and more compact
dimensions than comparable products, they can be
quickly installed and easily commissioned. They
increase the reliability and service life of electric
installations, help utilize electric sytem capacity
better, and are the key to meet Power Quality
standards such as IEEE 519. Ecosine filters reshape
your distorted current back to the desired sinusoidal
waveform. Schaffner ecosine filters can be applied to
virtually any kind of power electronics with front-end
six-pulse rectifiers, 3-phase diode or thyristor bridges,
where harmonic current distortion needs to be
reduced to defined limits.
Technical specifications
Nominal operating voltage
Operating frequency
Nominal motor drive input power rating
Total harmonic current distortion THID*
Efficiency
High potential test voltage
Protection category
Cooling
Overload capability
Ambient temperature range
3 x 440 VAC to 500 VAC ±10%
50 Hz ±1 Hz
1.1 to 250 kW
≤5% at rated power
>98% for rated voltage and power
P –> E 2160 VAC (1 s)
IP 00, IP 20
Internal fan cooling or external cooling**
1.6x rated current for 1 minute, once per hour
–25°C to +45°C fully operational
–25°C to +85°C transport and storage
+45°C to +70°C derated operation***
UL 94 V-2
Filter: UL 61800-5-1, EN 61800-5-1
Chokes: EN 61558-2-20 or EN 60076-6
>200,000 hours
100 kA
TN, TT, IT
OV III (IEC 60664-1 / UL 61800-5-1)
Typical applications
Equipment with front-end six-pulse rectifier
Motor drives
Factory automation equipment
Water/wastewater treatment facilities
Fan and pump applications
HVAC installations
Mission-critical processes
DC fast chargers
Flammability corresponding to
Design corresponding to
MTBF @ 45°C/415 V (Mil-HB-217F)
SCCR****
Earthing System
Overvoltage category
Typical electrical schematic
****System requirements: THVD <2%, line voltage unbalance <1%
** *
Note: performance specifications in this brochure refer to six-pulse diode rectifiers with 8% DC-link choke.
THID ~5% at rated power for filter <6 kW
** Please check the inlet air flow required for cooling table on page 6 of this document.
*** I
derated
= I
nominal
*√((T
max-
T
amb
)/(T
max-
T
nominal
)) = I
nom
*√(70°C-T
amb
)/25°C
**** External UL-rated fuses required. Please consult the user manual.
(all configurable optional fuctionalities shown)
2
Ecosine passive
Schaffner Group
Datasheets
25 Jun 2019
Filter selection table – IP 00 enclosure
Filter
Rated load power
@ 480 VAC/50 Hz
[kW]
FN 3451-1-110-E0_ _ _ _ _*
FN 3451-2-110-E0_ _ _ _ _*
FN 3451-4-112-E0_ _ _ _ _*
FN 3451-6-112-E0_ _ _ _ _*
FN 3451-8-112-E0_ _ _ _ _*
FN 3451-11-112-E0_ _ _ _ _*
FN 3451-15-113-E0_ _ _ _ _
FN 3451-19-113-E0_ _ _ _ _
FN 3451-22-113-E0_ _ _ _ _
FN 3451-30-115-E0_ _ _ _ _
FN 3451-37-115-E0_ _ _ _ _
FN 3451-45-115-E0_ _ _ _ _
FN 3451-55-115-E0_ _ _ _ _
FN 3451-75-115-E0_ _ _ _ _
FN 3451-90-116-E0_ _ _ _ _
FN 3451-110-116-E0_ _ _ _ _
FN 3451-132-118-E0_ _ _ _ _
FN 3451-160-118-E0_ _ _ _ _**
FN 3451-200-118-E0_ _ _ _ _**
FN 3451-250-118-E0_ _ _ _ _**
1.1
2.2
4
5.5
7.5
11
15
19
22
30
37
45
55
75
90
110
132
160
200
250
Motor drive
input current
[Arms]***
1.4
2.8
5.1
7.1
9.6
14.1
19.3
24.4
28
38.5
47.5
58
71
97
116
142
170
207
259
324
Rated filter
input current
[Arms]
1.3
2.7
4.9
6.7
9.2
13.4
18.3
23
27
36.6
45
55
67
92
110
135
162
197
246
308
Min. required
L
DC
[mH]*****
53.87
26.94
14.82
10.78
7.90
5.39
3.95
3.12
2.69
1.98
1.60
1.32
1.08
0.79
0.66
0.54
0.45
0.37
0.30
0.24
Min. required
L
AC
[mH]*****
16.70
7.85
4.47
3.48
2.55
1.82
1.26
1.02
0.88
0.64
0.527
0.451
0.357
0.265
0.218
0.176
0.149
0.118
0.094
0.073
[kg]
5
7
10
12
15
17
24
27
31
38
43
49
54
70
100
108
130
149
183
221
Weight
Typical
losses
[W]****
40
61
104
104
143
193
233
292
274
355
426
458
611
781
740
799
1063
1039
1232
1262
110
110
112
112
112
112
113
113
113
115
115
115
115
115
116
116
118
118
118
118
A
A
B
B
C
C
D
D
D
E
E
E
F
F
G
G
H
H
H
H
Terminal
Frame size
*
Filter rating which does not require forced cooling or fan module
** Filter rating which does not require RC damping module for rectifiers with EMI filter
*** Motor drive input current without harmonic filter
**** Typical losses @ 45°C, 480V, 50Hz and rated load power
***** In order to apply FN 3451 filters, motor drives have to be equipped with either DC-link choke or AC line choke. The minimum required inductance
values are given in mH in the filter selection table. If neither DC-link choke nor AC line choke is present, or if the minimum mH rating is not fulfilled,
FN 3451 filter must not be used. In this case, FN 3450 need to be chosen.
Filter power terminals
Terminal designation*
Screw thread
Flex wire AWG
Flex wire
Screw torque value
Max width**
cable lug
[mm
2
]
110
112
113
115
116
118
M3
M4
M6
M8
M8
M10
14-22
10-22
6-18
1/0-8
3/0-8
3/0-500 kcmil
0.4-2.5
0.4-6
0.75-16
10-50
10-95
95-240
[Nm]
0.5
1.2
3
8
8
10
[lbs·in]
4.4
10.6
26.6
70.8
70.8
88.5
[mm]
7
10
15
15
17
35
A
B, C
D
E, F
G
H
Frame size
* Recommended connector type: wire or cable lug for 110 to 113, only cable lug for 115 to 118
** To fulfill creepage/clearance acc. UL 61800-5-1 without additional protection (insulation). Creepage/clearance can vary depending on applicable standard and must
be reviewed by customer. Creepage/clearance may be reduced when additional protection (insulation) is provided.
Filter signal and earth terminals
Terminal type
Screw thread
Screw torque value
[Nm]
Signal
Earth (PE)
Earth (PE)
Earth (PE)
Earth (PE)
Earth (PE)
Earth (PE)
Earth (PE)
Earth (PE)
M3*
M5
M6
M6
M8
M8
M10
M10
M10
0.5
2.2
4
4
9
9
17
17
17
All
A
B
C
D
E
F
G
H
Frame size
* Max width cable lug = 7 mm
3
Ecosine passive
Schaffner Group
Datasheets
25 Jun 2019
Filter selection table – IP 20 enclosure
Filter
Rated load power
@ 480 VAC/50 Hz
[kW]
FN 3451-1-110-E2_ _ _ _ _*
FN 3451-2-110-E2_ _ _ _ _*
FN 3451-4-112-E2_ _ _ _ _*
FN 3451-6-112-E2_ _ _ _ _*
FN 3451-8-112-E2_ _ _ _ _*
FN 3451-11-112-E2_ _ _ _ _*
FN 3451-15-113-E2_ _ _ _ _
FN 3451-19-113-E2_ _ _ _ _
FN 3451-22-113-E2_ _ _ _ _
FN 3451-30-115-E2_ _ _ _ _
FN 3451-37-115-E2_ _ _ _ _
FN 3451-45-115-E2_ _ _ _ _
FN 3451-55-115-E2_ _ _ _ _
FN 3451-75-115-E2_ _ _ _ _
FN 3451-90-116-E2_ _ _ _ _
FN 3451-110-116-E2_ _ _ _ _
FN 3451-132-118-E2_ _ _ _ _
FN 3451-160-118-E2_ _ _ _ _**
FN 3451-200-118-E2_ _ _ _ _**
FN 3451-250-118-E2_ _ _ _ _**
1.1
2.2
4
5.5
7.5
11
15
19
22
30
37
45
55
75
90
110
132
160
200
250
Motor drive
input current
[Arms]***
1.4
2.8
5.1
7.1
9.6
14.1
19.3
24.4
28
38.5
47.5
58
71
97
116
142
170
207
259
324
Rated filter
input current
[Arms]
1.3
2.7
4.9
6.7
9.2
13.4
18.3
23
27
36.6
45
55
67
92
110
135
162
197
246
308
Min. required
L
DC
[mH]*****
53.87
26.94
14.82
10.78
7.90
5.39
3.95
3.12
2.69
1.98
1.60
1.32
1.08
0.79
0.66
0.54
0.45
0.37
0.30
0.24
Min. required
L
AC
[mH]*****
16.70
7.85
4.47
3.48
2.55
1.82
1.26
1.02
0.88
0.64
0.527
0.451
0.357
0.265
0.218
0.176
0.149
0.118
0.094
0.073
[kg]
6
8
11
13
16
19
28
30
34
44
49
55
62
77
109
117
147
166
200
238
Weight
Typical
losses
[W]****
40
61
104
104
143
193
233
292
274
355
426
458
611
781
740
799
1063
1039
1232
1262
110
110
112
112
112
112
113
113
113
115
115
115
115
115
116
116
118
118
118
118
A
A
B
B
C
C
D
D
D
E
E
E
F
F
G
G
H
H
H
H
Terminal
Frame size
*
Filter rating which does not require forced cooling or fan module
** Filter rating which does not require RC damping module for rectifiers with EMI filter
*** Motor drive input current without harmonic filter
**** Typical losses @ 45°C, 480V, 50Hz and rated load power
***** In order to apply FN 3451 filters, motor drives have to be equipped with either DC-link choke or AC line choke. The minimum required inductance
values are given in mH in the filter selection table. If neither DC-link choke nor AC line choke is present, or if the minimum mH rating is not fulfilled,
FN 3451 filter must not be used. In this case, FN 3450 need to be chosen.
Filter power terminals
Terminal designation*
Screw thread
Flex wire AWG
Flex wire
Screw torque value
Max width**
cable lug
[mm
2
]
110
112
113
115
116
118
M3
M4
M6
M8
M8
M10
14-22
10-22
6-18
1/0-8
3/0-8
3/0-500 kcmil
0.4-2.5
0.4-6
0.75-16
10-50
10-95
95-240
[Nm]
0.5
1.2
3
8
8
10
[mm]
7
10
15
15
17
35
A
B, C
D
E, F
G
H
Frame size
* Recommended connector type: wire or cable lug for 110 to 113, only cable lug for 115 to 118
** To fulfill creepage/clearance acc. UL 61800-5-1 without additional protection (insulation). Creepage/clearance can vary depending on applicable standard and must
be reviewed by customer. Creepage/clearance may be reduced when additional protection (insulation) is provided.
Filter signal and earth terminals
Terminal type
Screw thread
Screw torque value
[Nm]
Signal
Earth (PE)
Earth (PE)
Earth (PE)
Earth (PE)
Earth (PE)
Earth (PE)
Earth (PE)
Earth (PE)
M3*
M5
M6
M6
M8
M8
M10
M10
M10
0.5
2.2
4
4
9
9
17
17
17
All
A
B
C
D
E
F
G
H
Frame size
* Max width cable lug = 7 mm
4
Ecosine passive
Schaffner Group
Datasheets
25 Jun 2019
Product selector
Table 1: Filter configurations if external air flow is available for cooling
(Filters do
not contain fan
and do
not contain aux. power supply)
5
Ecosine passive
Schaffner Group
Datasheets
25 Jun 2019

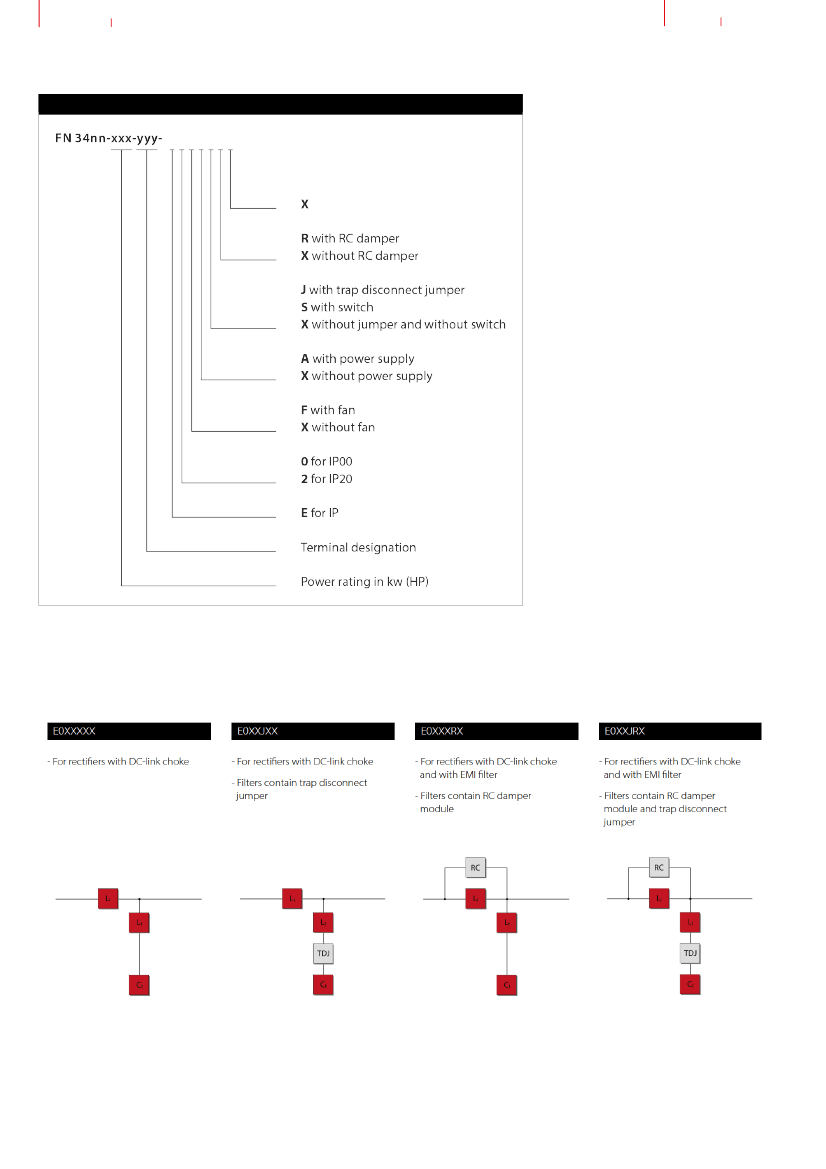

Table 2: Filter configurations with embedded ventilation
(Filters
contain fan
and
aux. power supply)
E0FAXXX and E2FAXXX
- For rectifiers with DC-link choke
- Filters contain fan and aux. power
supply
E0FAJXX and E2FAJXX
- For rectifiers with DC-link choke
- Filters contain fan, aux. power
supply and trap disconnect
jumper
E0FAXRX and E2FAXRX
- For rectifiers with DC-link choke
and with EMI filter
- Filters contain fan, aux. power
supply and RC damper module
E0FAJRX and E2FAJRX
- For rectifiers with DC-link choke
and with EMI filter
- Filters contain fan, aux. power
supply, RC damper module and
trap disconnect jumper
Table 3: Filter configurations if external aux. power supply for the fan is available
72Mhz STM32, PLCK2 = 72Mhz , tested with a logic analyzer, the speed is 0.24us/instruction, theoretically it should be 0.14us/instruction (simulator verification). May I ask why the speed is so slow? ...
I already know the size of the PCB antenna. How do I draw the PCB antenna using PADS? Should I use the traces directly or draw the copper foil? And how do I set the two ends of the traces to not have ...
I bought a smart arm2200 development block last month.,,,I have read it several times, and with the strong technical support of Zhou Ligong (if I don't understand something, I can just call and get an...
[align=center][align=left][font=微软雅黑][size=3]The winner of this issue's USB flash drive: [color=#06699][url=https://home.eeworld.com.cn/space-uid-487244.html]an736007364[/url][/color] Congratulations:...
Solution | Application of Feiling FETMX8MP-C core board in AGV car
In today's society where technology is changing with each passing day, 5G and AI are both very popular concepts. With the commerciali...
Abstract: In order to generate a stable excitation signal, the design of a digital frequency synthesizer is implemented on FPGA using Verilog hardware language. The design includes accumulator, wav...[Details]
A multi-point temperature control heating control system was designed using the SST89E564RC single-chip microcomputer and a new temperature measuring device. The heating system can be controlled in...[Details]
my country is a big country in agriculture, grain production and consumption. Grains are a necessary condition for our nation to survive and develop. The flour processing industry will exist forever w...[Details]
In recent years, with the rapid development of the information industry, dot matrix LED display screens have been widely used in various advertising and information display systems such as the fina...[Details]
This controller uses PIC16C54 single-chip microcomputer as the controller, and it is very easy to use: just connect a telephone line to the loudspeaker through the controller, and you can rem...[Details]
The concept of state machine
State machine is an important concept in software programming. More important than this concept is its flexible application. In a clear and efficient program, ther...[Details]
This paper designs a 16x16LED Chinese character display bar based on single-chip dynamic scanning control, briefly analyzes the principle of Chinese character display, and studies how the LED displ...[Details]
Today, the value of electronic components in cars accounts for 15-20% of the total vehicle. In the future, this proportion may be as high as 30-40% as more safety electronics, fuel consumption and ...[Details]
Introduction
In industrial control, speed measurement is often required. Generally, a contact tachometer is used. This tachometer must be placed against the center of the shaft to measure. It...[Details]
Analysis of the three core aspects of digital TV transmission standards
According to the differences in regionality, transmission method and modulation method, the transmission method needs to...[Details]
With the continuous advancement of various technologies in the field of measurement and control, the baseband subsystem of general measurement and control equipment has entered the fourth generation o...[Details]
Abstract: Based on the ZigBee parking lot SMS car search system, the location of the vehicle in the parking lot is sent to the owner through SMS, which is convenient for the owner to quickly find ...[Details]
Nowadays, more and more people have digital cameras. The convenience and speed of digital cameras have gradually replaced film cameras and become the main tool for people's daily photography. The n...[Details]
introduction
The Steyr diesel engine produced by Weifang Diesel Engine Factory has huge power and is one of the main power models widely used in China's heavy machinery and large trucks. In ...[Details]
1. Introduction
Modern modular machine tools are equipped with a large number of electronic devices to meet the requirements of processing accuracy, processing speed, etc. If the conventional ...[Details]
stm32/stm8
京公网安备 11010802033920号
EEWORLD
