TECHNICAL DATA
C
3
4
RATED VOLTAGE
RATED CURRENT
POLLUTION DEGREE
250V
4A
3
250V
4A
3
250V
4A
3
60V
4A
3
30V
2A
3
OVERVOLTAGE CATEGORY
MATERIAL GROUP
CONTACT RESISTANCE
II
8m ^
II
II
8m ^
IP67
II
II
8m ^
IP67
II
II
8m ^
IP67
II
II
8m ^
II
INSULATION RESISTANCE
DEGREE OF PROTECTION
OPERATION TEMPERATURE
>100M ^
IP67
>100M ^
>100M ^
>100M ^
>100M ^
IP67
-40~85 $ C -40~85 $ C -40~85 $ C -40~85 $ C -40~85 $ C
B
T411101X02X-000
T411101X03X-000
PIN ARRANGEMENT
A-CODE
T411101X04X-000
NOTE:
1. MATERIAL:
ITEM NO.1:NUT
-BRASS
ITEM NO.2:HOUSING
-PA
ITEM NO.3:CONTACT
-BRASS
ITEM NO.4: BODY:
-BRASS
2. CONTACT FINISH:
GOLD OVER NICKEL OR SILVER OVER NICKEL
3. CABLE WIRES:
18AWG/0.75mm² Max. FOR 2-5 PINS
20AWG/0.50mm² Max. FOR 8 PINS
4. ALLDIMENSIONS ARE FOR NOMINAL REFERENCE ONLY UNLESS OTHERWISE STATED
5. PACKAGEING: 1PIECE IN A BAG
6. PN INFORMATION
RPC-M12-MS-8CON-PG9-SHU
RPC-M12-MS-8CON-PG7-SHU
RPC-M12-MS-8CON-PG9-SH
RPC-M12-MS-8CON-PG7-SH
T411101XXXX-000
CONTACT FINISH:
1: GOLD OVER NICKEL
2: SILVER OVER NICKEL
NUMBERS OF PINS:
02: 2 PINS
03: 3PINS
04: 4 PINS
05: 5PINS
08: 8 PINS
...
CABLE OUTLET:
1: PG7(CABLE FEED: 4-6mm)
2: PG9(CABLE FEED: 6-8mm)
DWN
CHK
DIMENSIONS:
B
T4111012081-000
T4111011081-000
T4111012082-000
T4111011082-000
T4111012051-000
T4111011051-000
T4111012052-000
T4111011052-000
T411101X05X-000
T411101208X-000
T4111012041-000
T4111011041-000
T4111012042-000
T4111011042-000
T4111012031-000
RPC-M12-MS-5CON-PG9-SHU
RPC-M12-MS-5CON-PG7-SHU
RPC-M12-MS-5CON-PG9-SH
RPC-M12-MS-5CON-PG7-SH
RPC-M12-MS-4CON-PG9-SHU
RPC-M12-MS-4CON-PG7-SHU
RPC-M12-MS-4CON-PG9-SH
RPC-M12-MS-4CON-PG7-SH
A
T4111011031-000
T4111012032-000
T4111011032-000
T4111012021-000
T4111011021-000
T4111012022-000
T4111011022-000
TE PN
1471-9 (3/13)
RPC-M12-MS-3CON-PG9-SHU
RPC-M12-MS-3CON-PG7-SHU
RPC-M12-MS-3CON-PG9-SH
RPC-M12-MS-3CON-PG7-SH
THIS DRAWING IS A CONTROLLED DOCUMENT.
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
Nick Pan
Kobby Zhao
24AUG2015
24AUG2015
24AUG2015
NAME
TE Connectivity
RPC-M12-MS-2CON-PG9-SHU
RPC-M12-MS-2CON-PG7-SHU
RPC-M12-MS-2CON-PG9-SH
RPC-M12-MS-2CON-PG7-SH
TYPE
MATERIAL
mm
APVD
A
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
PRODUCT SPEC
Xiang Xu
0.25
0.15
-
-
APPLICATION SPEC
108-106140
-
-
-
-
-
114-137144
WEIGHT
-
CUSTOMER DRAWING
A2
SIZE
CAGE CODE

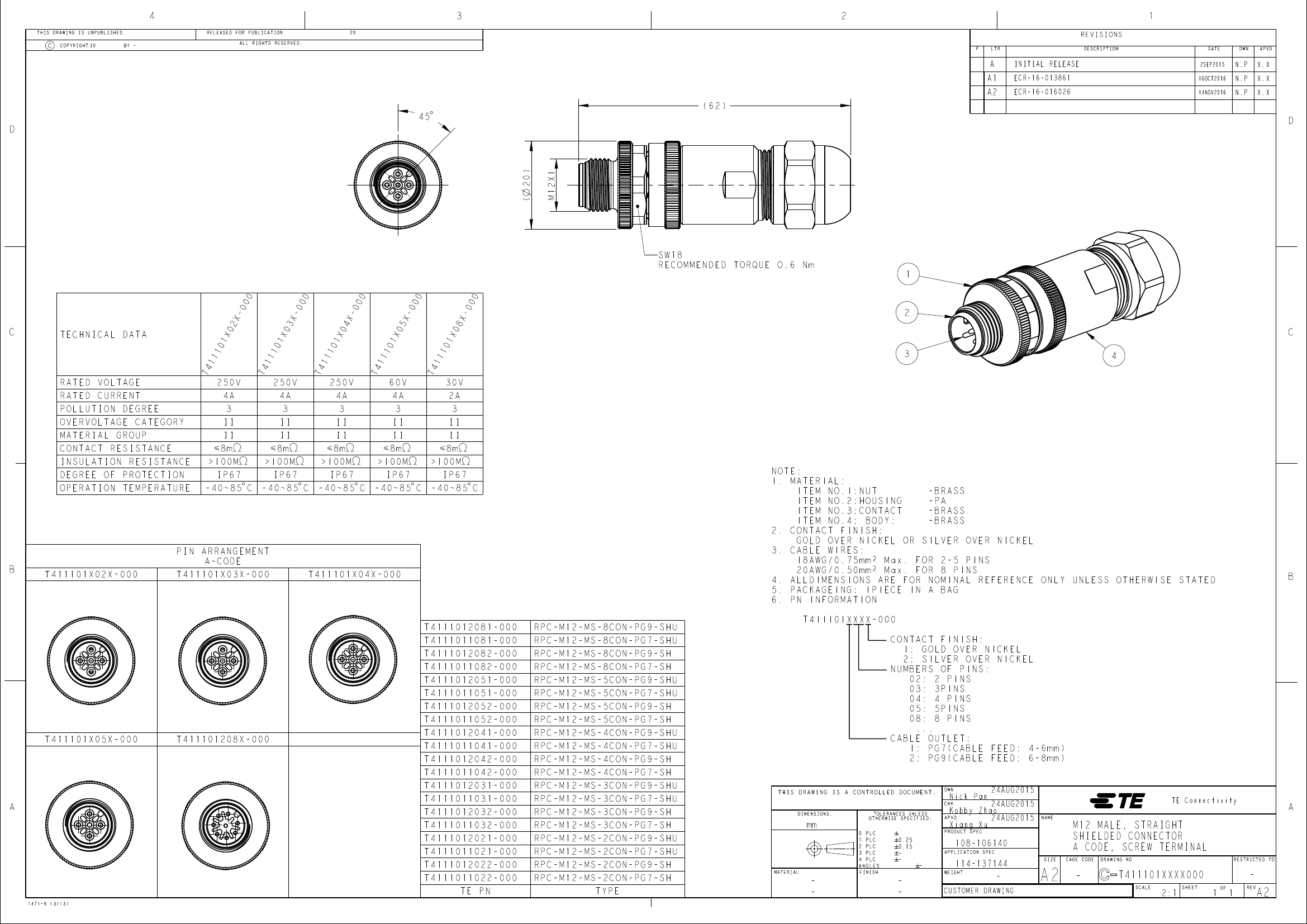

M12 MALE, STRAIGHT
SHIELDED CONNECTOR
A CODE, SCREW TERMINAL
DRAWING NO
RESTRICTED TO
-
T411101XXXX000
SCALE
2:1
SHEET
1
OF
1
REV
-
A2
