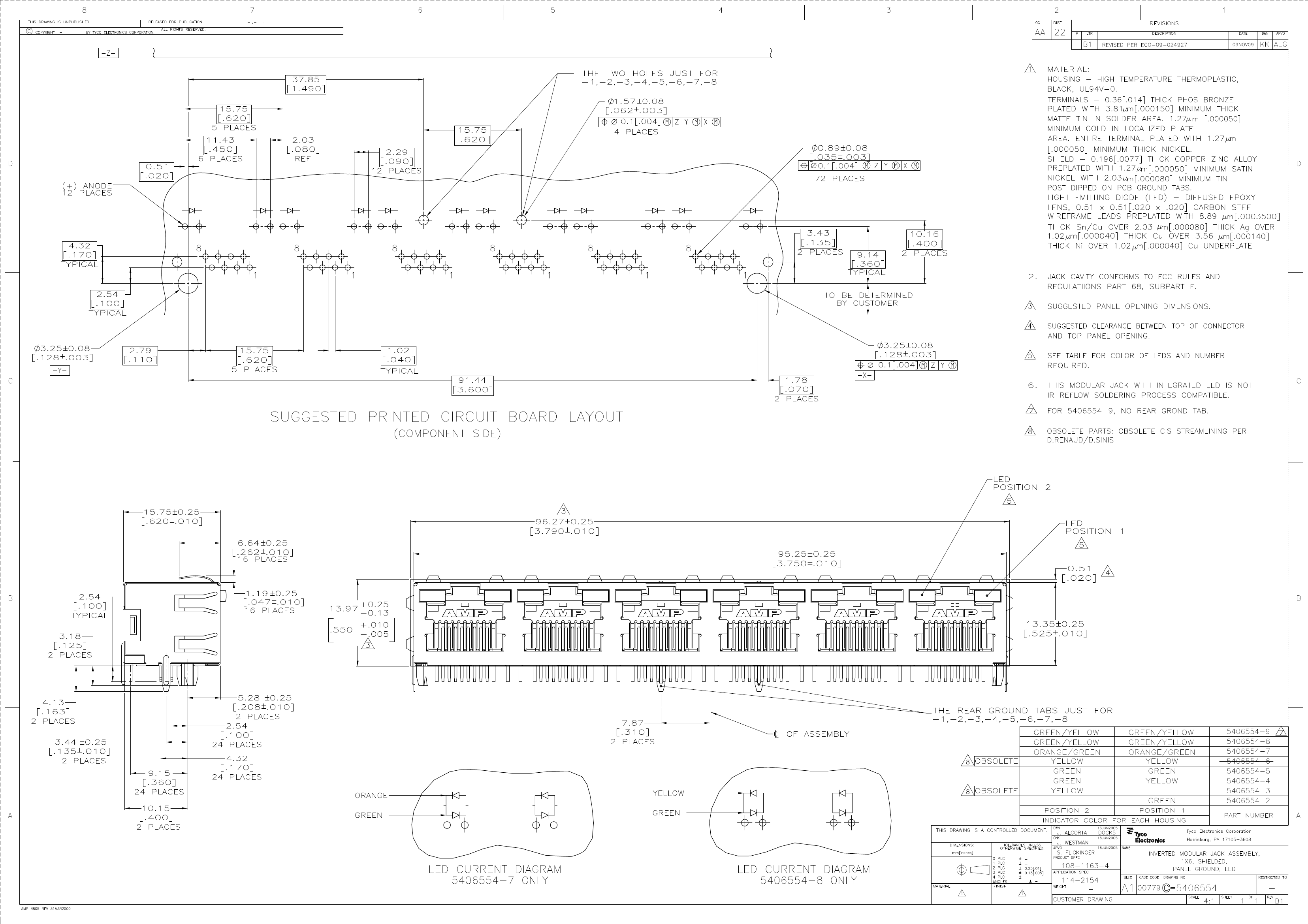

INV MJ,1X6,PNL GRD,LED (G/Y)
| Parameter Name | Attribute value |
| Modular socket and plug interface types | RJ45 |
| Modular socket and plug products | RJ type sockets and plugs |
| Connector type | socket |
| Grounding options | PCB and panel grounding |
| Connectors and terminals terminate to | A printed circuit board |
| Connector and connector component types | Connector |
| keying | no |
| Port configuration | multiple ports |
| Port matrix configuration | 1 x 6 |
| Connector terminal density | standard |
| Multi-port configuration | Linkage |
| Status Indicator | LED |
| Number of Positions | 8 |
| Number of loading locations | 8 |
| PCB mounting direction | right angle |
| Number of panel grounding lugs | 16 |
| PCB ground lug quantity | 4 |
| shielding material | Copper-zinc alloy |
| Shield plating materials | Nickel base tin plating |
| Modular socket pin orientation | Reverse - Latching |
| shape | standard |
| LED color (upper left corner) | green/yellow |
| LED color (upper right corner) | green/yellow |
| PCB ground lug location | -3.43 mm [ -.135 in ] |
| PCB terminal termination area plating materials | tin |
| Terminal base material | nickel |
| Contact Current Rating (Max) (A) | 1.5 |
| Terminal contact plating material | gold |
| Terminal base material | Phosphor bronze |
| Thickness of plating material in terminal bonding area | 1.27 µm [ 50 µin ] |
| Connector product type | Connector components |
| PCB Termination Methods | Through Hole - Solder |
| Panel mount features | with |
| Connector mounting type | Panel |
| access location | side |
| Centerline (Pitch) | 1.02 mm [ .04 in ] |
| Shell color | black |
| Shell material | high temperature thermoplastic |
| PCB tail length | 2.54 mm [ .1 in ] |
| Connector height | 13.35 mm [ .525 in ] |
| Working group temperature range | -40 – 85 °C [ -40 – 185 °F ] |
| shield | yes |
| Circuit Application | Signal |
| UL flame retardant rating | UL 94V-0 |
| performance category | Category 5 |
| Package quantity | 24 |
| Encapsulation method | Tray, boxes and trays |
| Comment | Recommended applications: Fast Ethernet, 10Base-T Ethernet and 10/100 Base-T Ethernet (Cat 5 on two pairs 1/2, 3/6). |
