1532175-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1532175-4

1532175-4: DescriptionCONNECTOR,D-SHELL,CABLE MNT,RECEPT,31 CONTACTS,SKT,0.05 PITCH,WIRE TERMINAL,HOLE .087-.098; CategoryThe connector The connector; File Size375KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1532175-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1532175-4	-	-	View	Buy Now

1532175-4 Overview

CONNECTOR,D-SHELL,CABLE MNT,RECEPT,31 CONTACTS,SKT,0.05 PITCH,WIRE TERMINAL,HOLE .087-.098

1532175-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	311713077
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	24 weeks
body width	0.298 inch
subject depth	0.224 inch
body length	1.325 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Power Connector Ratings	3A
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation option 1	HOLE .087-.098
Installation option 2	LOCKING
Installation type	CABLE
Number of connectors	ONE
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Rated current (signal)	3 A
reliability	COMMERCIAL
Shell surface	NICKEL
Terminal pitch	1.27 mm
Termination type	WIRE
Total number of contacts	31
Maximum wire diameter	25 AWG
Minimum wire diameter	25 AWG

Preview

Download Datasheet

View All

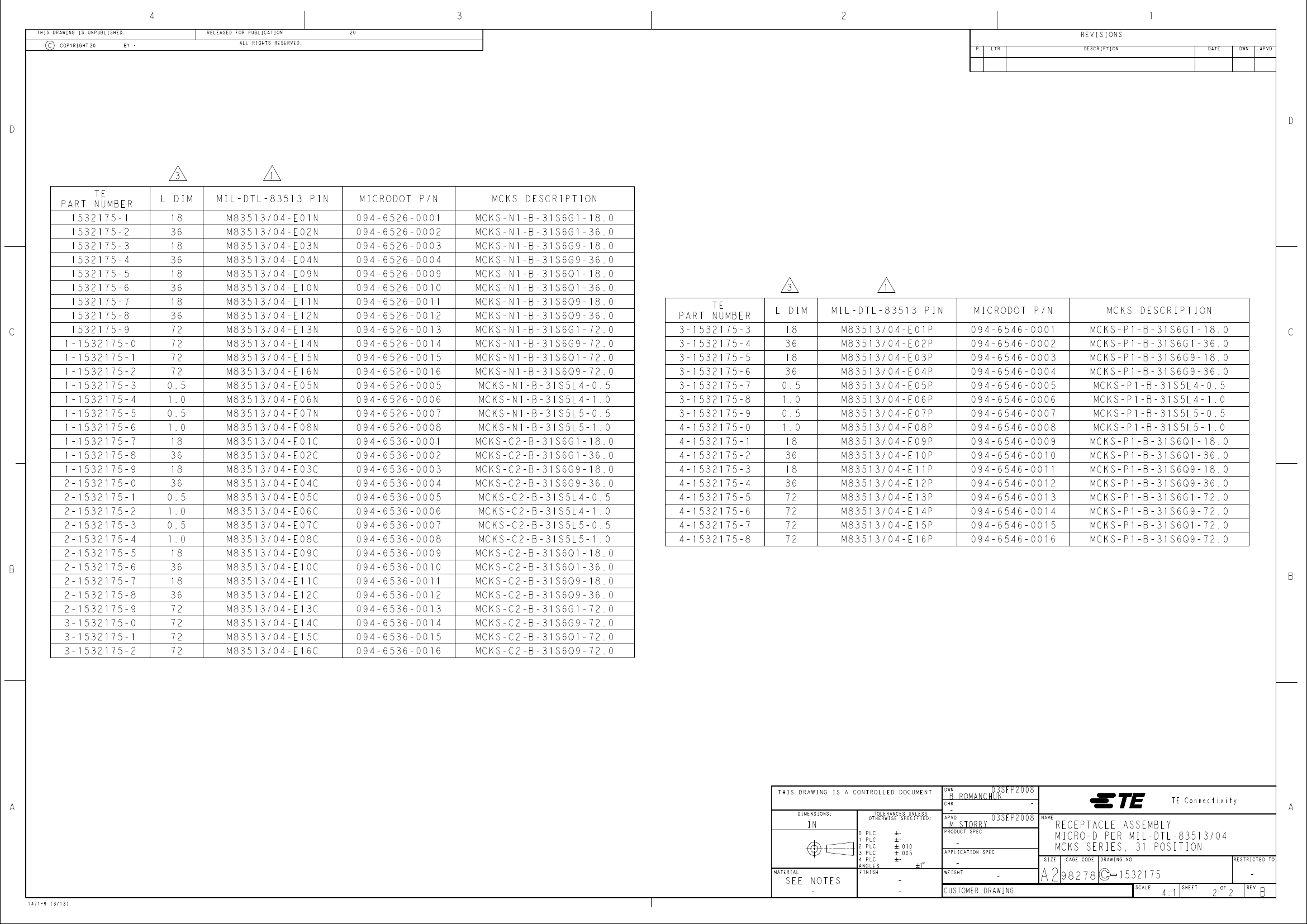

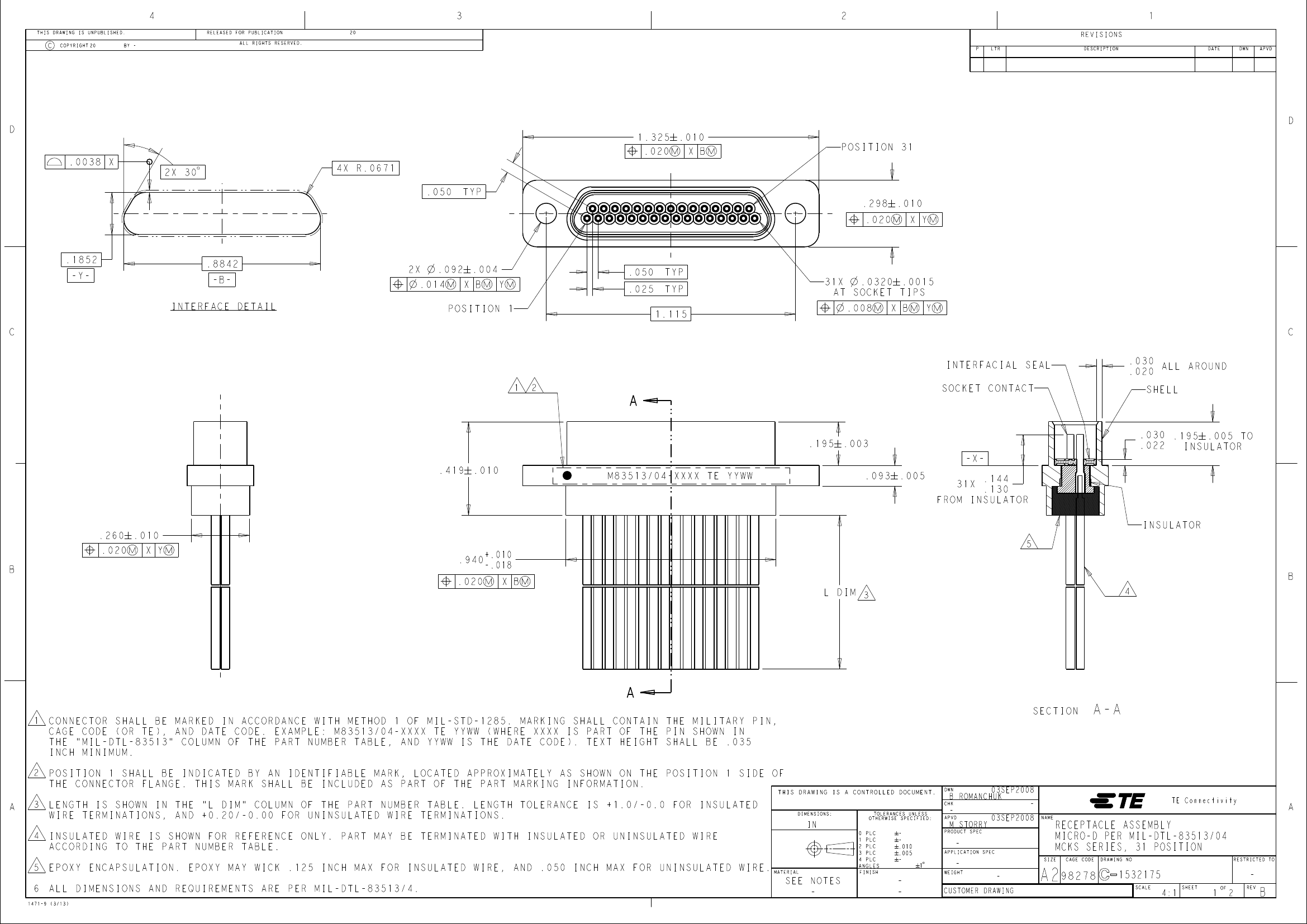

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

.0038

1.325

2X 30 $

4X R.0671

.050

TYP

.298

.010

X Y m

.020 m

.010

X B m

POSITION 31

.020 m

.1852

-Y-

.8842

-B-

INTERFACE DETAIL

n .092

X B m Y m

.004

.050

.025

TYP

1.115

31X

n .0320 # .0015

AT SOCKET TIPS

X B m Y m

INTERFACIAL SEAL

.030

.020

ALL AROUND

POSITION 1

SOCKET CONTACT

SHELL

.195

.419

.010

M83513/04-XXXX TE YYWW

.003

.093

.005

-X-

.144

.130

FROM INSULATOR

31X

.030

.022

.195 .005 TO

INSULATOR

.260

.020 m

.010

INSULATOR

.940

+.010

-.018

X B m

L DIM

X Y m

.020 m

CONNECTOR SHALL BE MARKED IN ACCORDANCE WITH METHOD 1 OF MIL-STD-1285. MARKING

CAGE CODE (OR TE), AND DATE CODE. EXAMPLE: M83513/04-XXXX TE YYWW (WHERE XXXX

THE "MIL-DTL-83513" COLUMN OF THE PART NUMBER TABLE, AND YYWW IS THE DATE

INCH MINIMUM.

POSITION 1 SHALL BE INDICATED BY AN IDENTIFIABLE MARK, LOCATED APPROXIMATELY AS

THE CONNECTOR FLANGE. THIS MARK SHALL BE INCLUDED AS PART OF THE PART MARKING

LENGTH IS SHOWN IN THE "L DIM" COLUMN OF THE PART NUMBER TABLE. LENGTH

WIRE TERMINATIONS, AND +0.20/-0.00 FOR UNINSULATED WIRE TERMINATIONS.

INSULATED WIRE IS SHOWN FOR REFERENCE ONLY. PART MAY BE TERMINATED WITH

ACCORDING TO THE PART NUMBER TABLE.

EPOXY ENCAPSULATION. EPOXY MAY WICK .125 INCH MAX FOR INSULATED WIRE, AND .050

ALL DIMENSIONS AND REQUIREMENTS ARE PER MIL-DTL-83513/4.

SHALL CONTAIN THE MILITARY PIN,

IS PART OF THE PIN SHOWN IN

CODE). TEXT HEIGHT SHALL BE .035

SHOWN ON THE POSITION 1 SIDE OF

INFORMATION.

TOLERANCE IS +1.0/-0.0 FOR INSULATED

INSULATED OR UNINSULATED WIRE

INCH MAX FOR UNINSULATED WIRE.

SECTION

A-A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

03SEP2008

B ROMANCHUK

03SEP2008

NAME

TE Connectivity

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.010

.005

PRODUCT SPEC

M STORRY

APPLICATION SPEC

1 $

SEE NOTES

1471-9 (3/13)

WEIGHT

CUSTOMER DRAWING

98278

SIZE

RECEPTACLE ASSEMBLY

MICRO-D PER MIL-DTL-83513/04

MCKS SERIES, 31 POSITION

CAGE CODE

DRAWING NO

RESTRICTED TO

1532175

SCALE

4:1

SHEET

REV
