2N301 datasheet, PDF - EEWORLD Datasheet

2N301: DescriptionPower Bipolar Transistor, 2A I(C), 1-Element, PNP, Germanium, TO-3, Metal, 2 Pin, TO-3, 2 PIN; CategoryDiscrete semiconductor The transistor; File Size293KB，4 Pages; ManufacturerGPD Optoelectronics Corp

Download Datasheet Parametric Compare View All

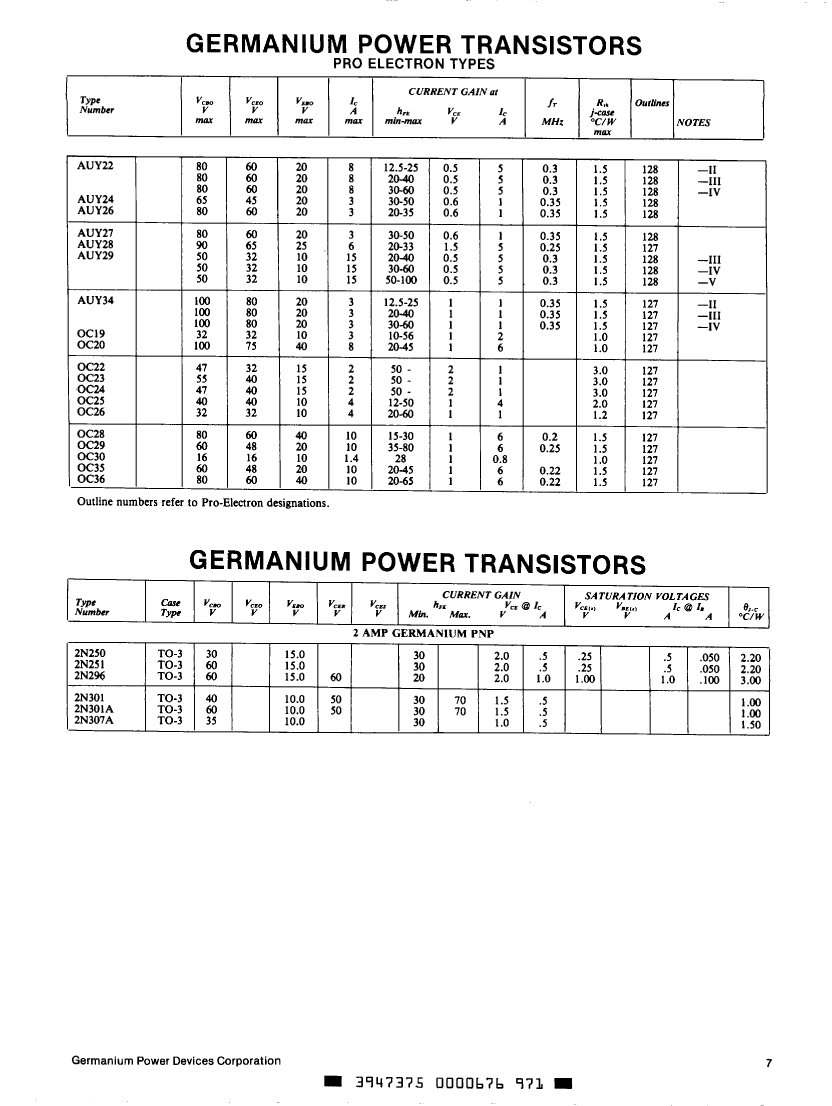

2N301 Overview

Power Bipolar Transistor, 2A I(C), 1-Element, PNP, Germanium, TO-3, Metal, 2 Pin, TO-3, 2 PIN

Parameter Name	Attribute value
Maker	GPD Optoelectronics Corp

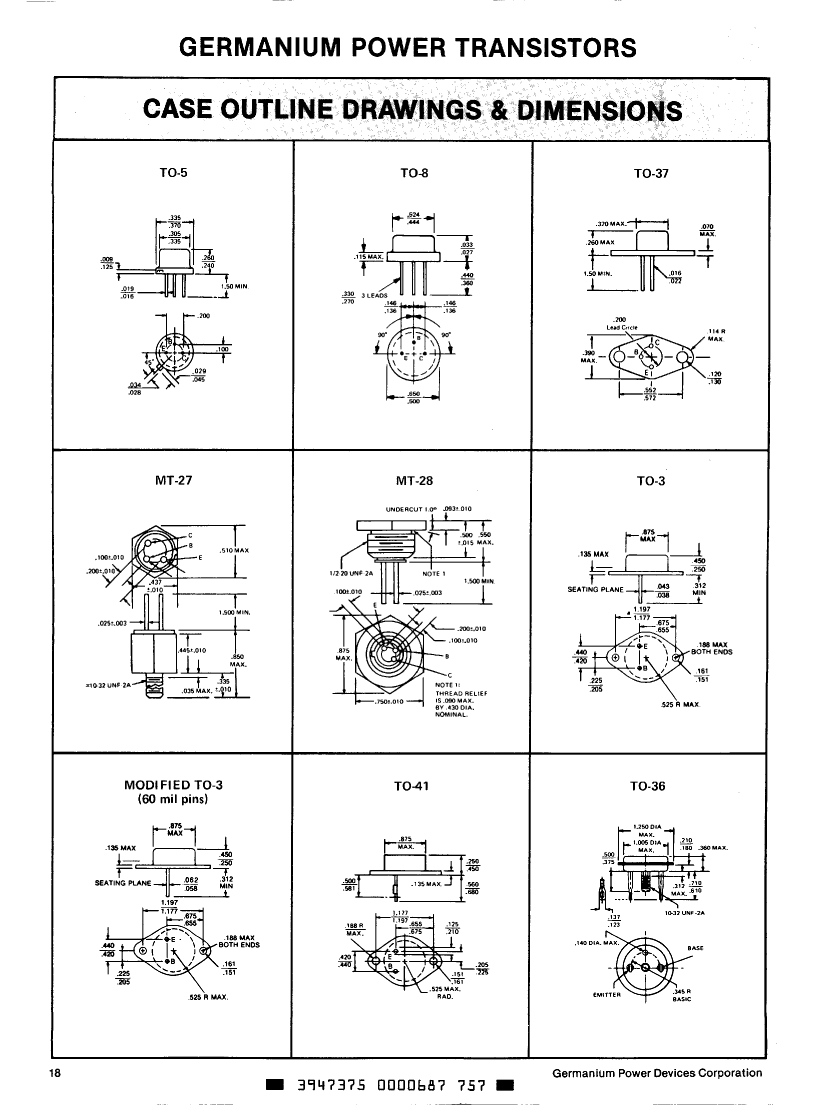

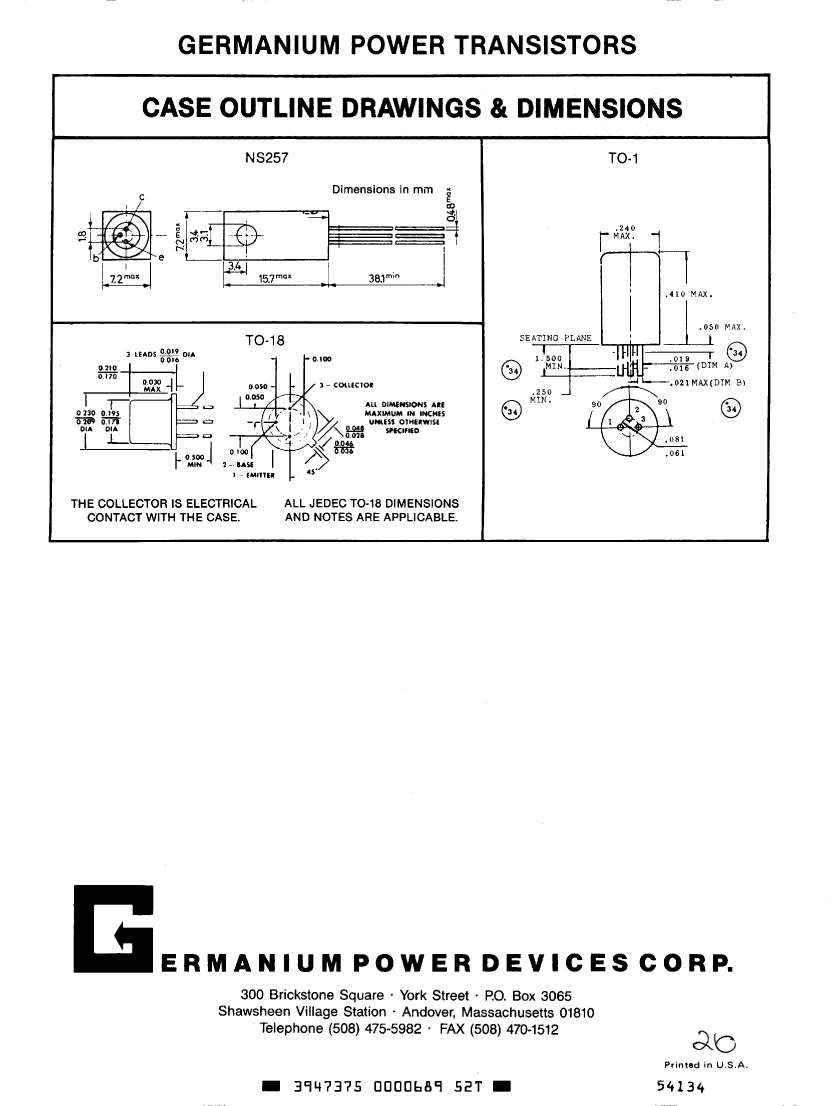

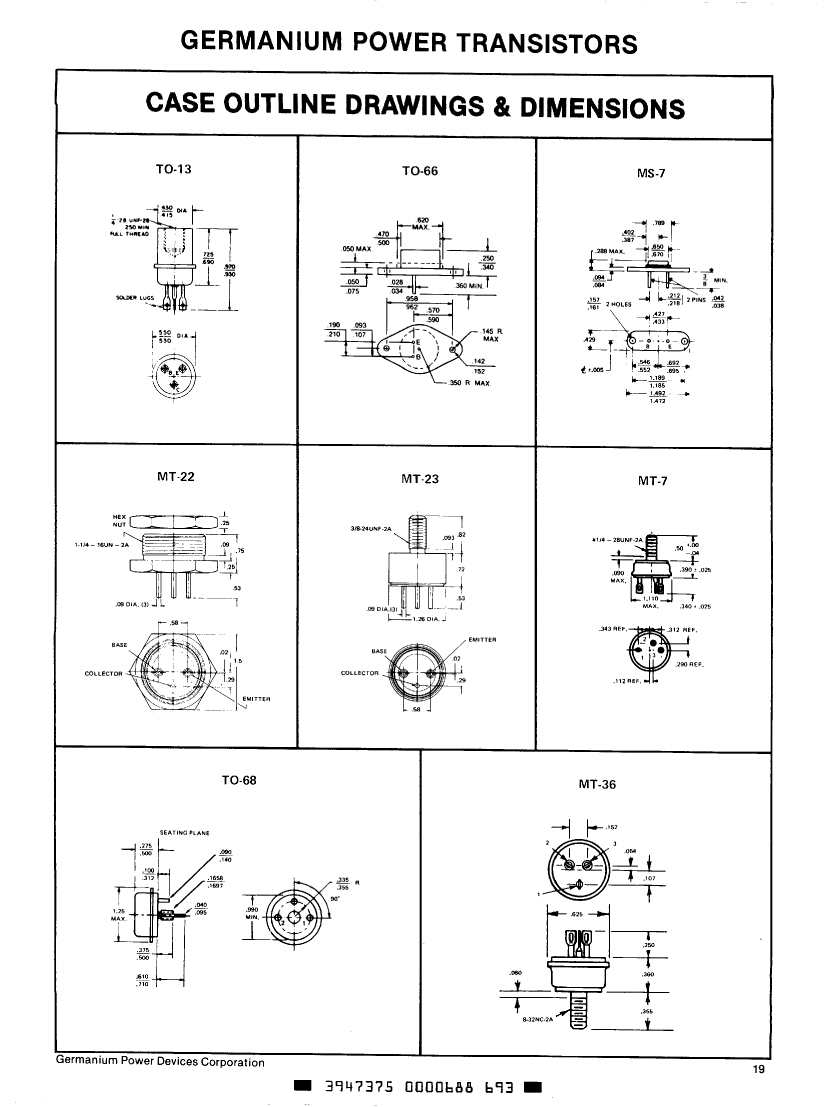

Parts packaging code	TO-204AA
package instruction	FLANGE MOUNT, O-MBFM-P2
Contacts	2
Reach Compliance Code	unknown
Maximum collector current (IC)	2 A
Configuration	SINGLE
Minimum DC current gain (hFE)	30
JEDEC-95 code	TO-3
JESD-30 code	O-MBFM-P2
Number of components	1
Number of terminals	2
Maximum operating temperature	85 °C
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Maximum power dissipation(Abs)	11 W
Certification status	Not Qualified
surface mount	NO
Terminal form	PIN/PEG
Terminal location	BOTTOM
Transistor component materials	GERMANIUM
Base Number Matches	1

	2N301	2N296	AUY26	2N307A	2N251	2N250	AUY27	AUY28	2N301A
Description	Power Bipolar Transistor, 2A I(C), 1-Element, PNP, Germanium, TO-3, Metal, 2 Pin, TO-3, 2 PIN	Transistor	Transistor	Transistor	Transistor	Transistor	Transistor	Transistor	Transistor
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Maximum collector current (IC)	2 A	2 A	3 A	5 A	2 A	2 A	3 A	6 A	1.5 A
Configuration	SINGLE	Single	Single	Single	Single	Single	Single	Single	Single
Maximum operating temperature	85 °C	85 °C	125 °C	110 °C	75 °C	80 °C	125 °C	100 °C	85 °C
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP
Maximum power dissipation(Abs)	11 W	20 W	56 W	106 W	12 W	12 W	56 W	30 W	11 W
Minimum DC current gain (hFE)	30	19	20	30	30	30	30	20	-
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	-
Base Number Matches	1	1	1	1	1	1	1	1	-
Is it Rohs certified?	-	incompatible	-	incompatible	incompatible	incompatible	-	incompatible	-
JESD-609 code	-	e0	-	e0	e0	e0	-	e0	-
Terminal surface	-	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	-
Nominal transition frequency (fT)	-	0.004 MHz	0.35 MHz	0.0035 MHz	0.0066 MHz	0.006 MHz	0.35 MHz	0.25 MHz	-
