8-1971773-2: DescriptionPTL 1X2 PLUG HSG HIGH TEMP KEY D NAT; CategoryThe connector; File Size477KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

8-1971773-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8-1971773-2	-	-	View	Buy Now

8-1971773-2 Overview

PTL 1X2 PLUG HSG HIGH TEMP KEY D NAT

8-1971773-2 Parametric

Parameter Name	Attribute value
Housing type	plug
Connector System	line to line
Sealable	no
Connectors and terminals terminate to	Wires and cables
Terminal type	female end
Number of Positions	2
Number of power supply locations	2
Rows	1
keying	D
Operating voltage (VAC)	600
Operating voltage (VDC)	600
Terminal retention	Without
Terminal layout	Direct plug-in
Cable termination method	crimp
Panel mount features	Without
Connector mounting type	Cable installation
Centerline (Pitch)	6 mm [ .236 in ]
UL fire rating	UL 94V-0
Shell color	Natural
Shell material	nylon
Outgoing angle	Straight
Working group temperature range	-55 – 150 °C [ -67 – 302 °F ]
Circuit Application	Power
Circuit identification characteristics	with
Glow Wire Ratings	High Temperature Components - Non-Glow Wire
Agencies/Standards	UL
Organization/Standard Number	E28476
UL rating	Recognized
Encapsulation method	carton
Applicable to	CPA, receptacle housing, receptacle (socket) terminal, terminal locking tab

Preview

Download Datasheet

View All

8

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

20

6

5

4

3

LOC

2

DIST

1

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

20

-

D

REVISED PER ECO-16-009784

30JUN16

RS

GJ

2.00

11.60

POS.

1*5

1*4

1*3

1*2

DIM.A

33.70

27.70

21.70

15.70

DIM.B

28.00

22.00

16.00

10.00

D

11.30

15.70

10.30

C

15.90

3.00

6.00

B

1.00

(2X)

9.25

1

MATERIAL:

LEVEL 1: PBT,STANDARD TEMPERATURE 105°C

KEY A: NATURAL; KEY B: PURPLE; KEY C: BLUE; KEY D: YELLOW

LEVEL 2: NYLON,HIGH TEMPERATURE 150 $ C

KEY A: LIGHT GREY; KEY B: RED; KEY C: BLACK; KEY D:NATURAL

B

2

MATERIAL MARK:

LEVEL 1: PBT,LEVEL 2:HDT

APPLICABLE CONTACT P/N

RECEPTACLE CONTACT: 1971237/1971779/81/83/85/87-* , 2238066-*

MATING CONN, P/N

CAP HSG: *-1971771/2-* AND HEADER: *-1969688-*

TPA (LOCKING PLATE): *-1971777-*

5

This product has not completed validation testing.

3

4

A

DIM.B

DIM.A

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

TOMMY WU

HAPYE WU

YUHONG MAO

108-106118

114-106118

09JUL2012

NAME

TE Connectivity

mm

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.35

0.25

-

PRODUCT SPEC

APPLICATION SPEC

-

1

4805 (3/11)

-

WEIGHT

-

Customer Drawing

A1

00779

SIZE

CAGE CODE

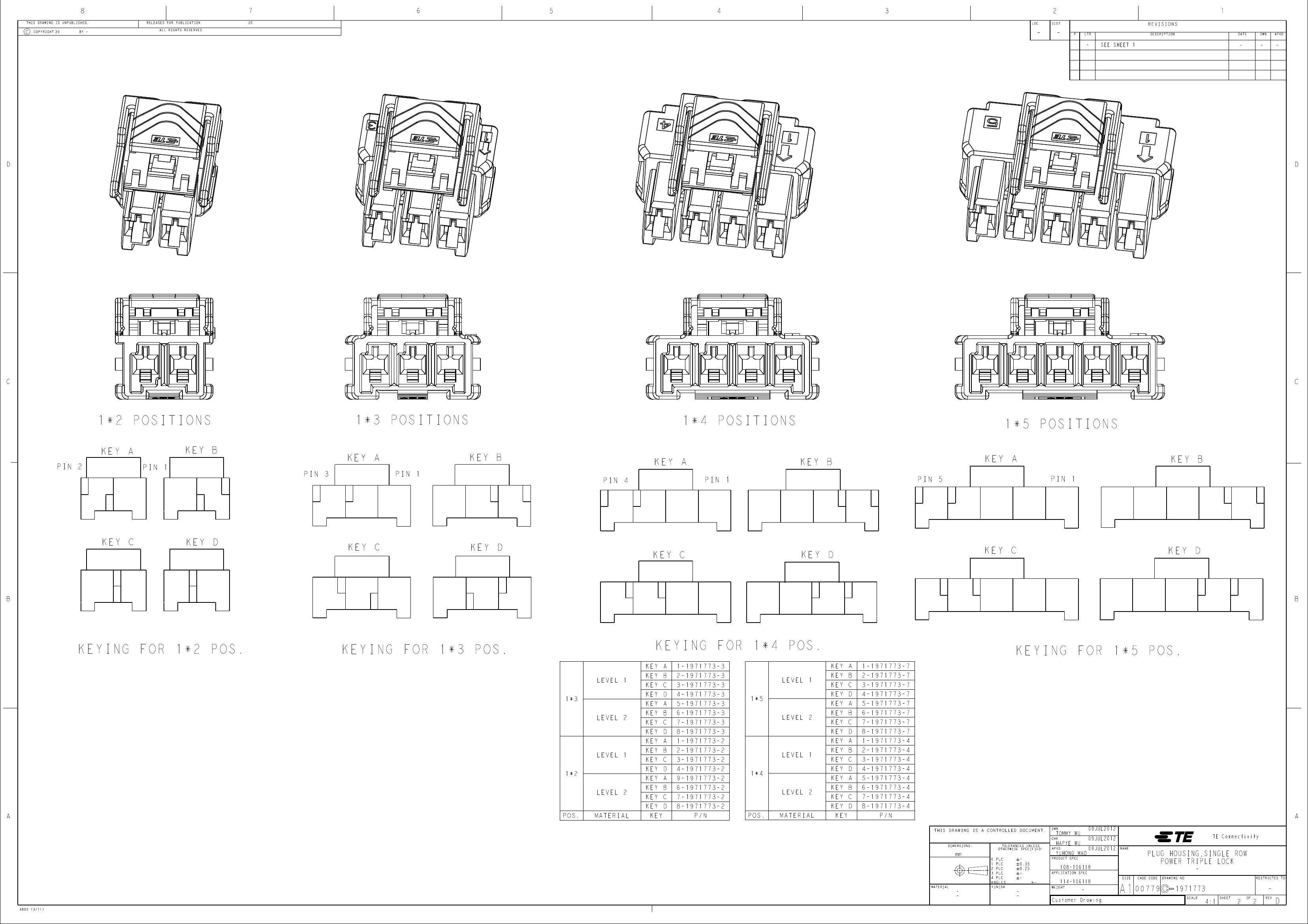

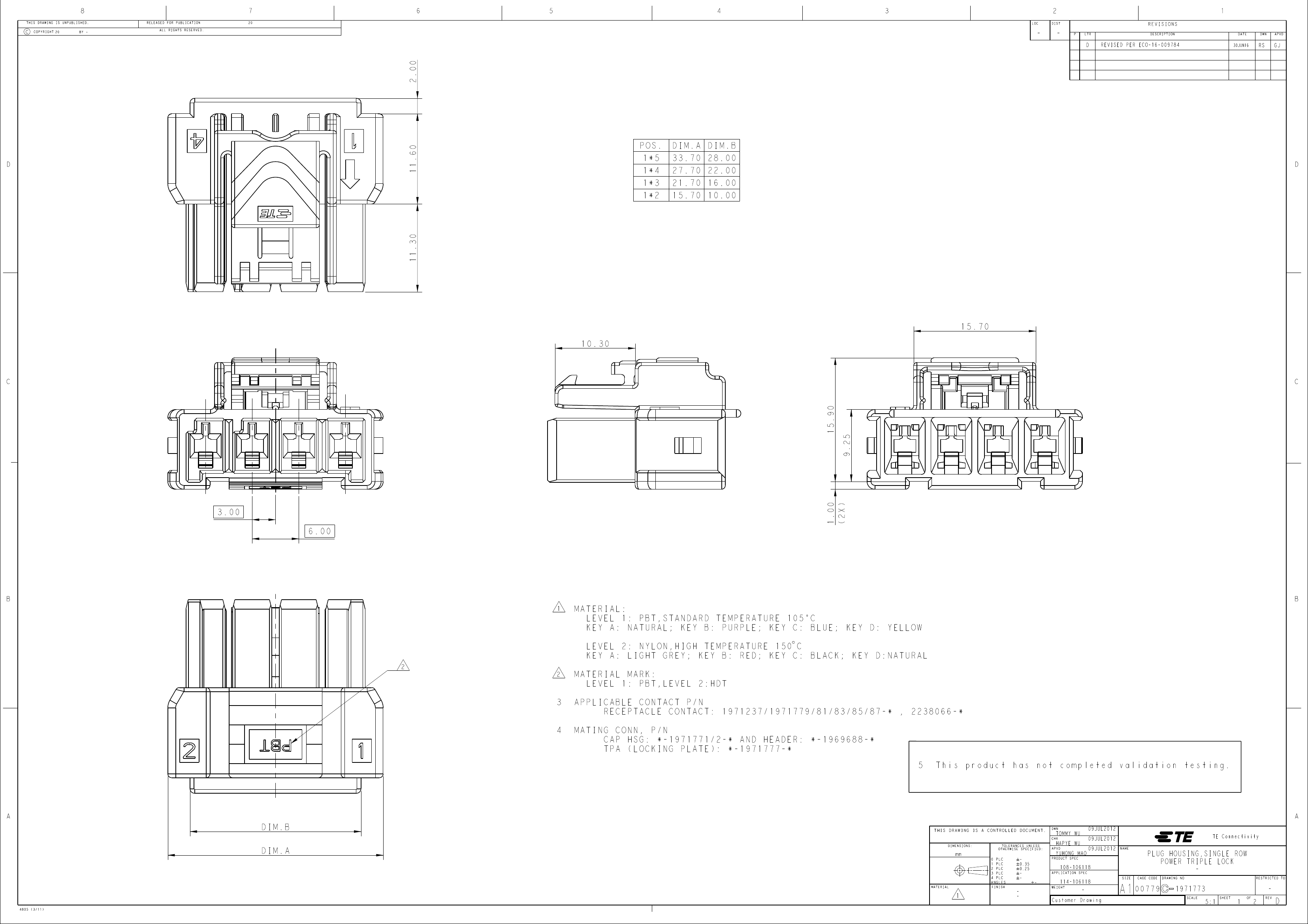

PLUG HOUSING,SINGLE ROW

POWER TRIPLE LOCK

-

DRAWING NO

RESTRICTED TO

1971773

SCALE

5:1

SHEET

1

OF

2

REV

-

D
