BL
Galaxy Electrical
Silicon Epitaxial Planar Transistor
FEATURES
Micro package.
Production specification
2SD596
Pb
Lead-free
Complementary to 2SB624 PNP Transistor.
High DC current gain h
FE
:200TYP.(V
CE
=1.0V,I
C
=100mA)
APPLICATIONS
Audio frequency general purpose amplifier applications.
SOT-23
ORDERING INFORMATION
Type No.
2SD596
Marking
DV1/DV2/DV3/DV4/DV5
Package Code
SOT-23
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
T
j,
T
stg
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current -Continuous
Collector Dissipation
Junction and Storage Temperature
Value
30
25
5
700
200
-55~150
Units
V
V
V
mA
mW
℃
Document number: BL/SSSTC024
Rev.A
www.galaxycn.com
1
BL
Galaxy Electrical
Silicon Epitaxial Planar Transistor
Production specification
2SD596
ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Parameter
Collector-base breakdown voltage
Collector-emitter breakdown
voltage
Emitter-base breakdown voltage
Collector cut-off current
Emitter cut-off current
Symbol
Test conditions
MIN
TYP
MAX
UNIT
V
V
V
0.1
0.1
110
50
0.22
600
170
12
640
0.6
700
V
V
MHz
pF
200
400
μA
μA
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
I
C
=100μA,I
E
=0
I
C
=1mA,I
B
=0
B
30
25
5
I
E
=100μA,I
C
=0
V
CB
=30V,I
E
=0
V
EB
=5V,I
C
=0
V
CE
=1V,I
C
=100mA
V
CE
=1V,I
C
=700mA
I
C
=700mA, I
B
=70mA
B
DC current gain
h
FE
Collector-emitter saturation voltage
Base to Emitter voltage
Transition frequency
Output capacitance
V
CE(sat)
V
BE
f
T
C
ob
V
CE
=6V,I
C
=10mA
V
CE
=6V, I
E
= -10mA
V
CB
=6V, I
E
=0,f=10kHz
CLASSIFICATION
Range
Marking
DV1
OF
h
FE(1)
135-220
DV2
170-270
DV3
200-320
DV4
250-400
DV5
110-180

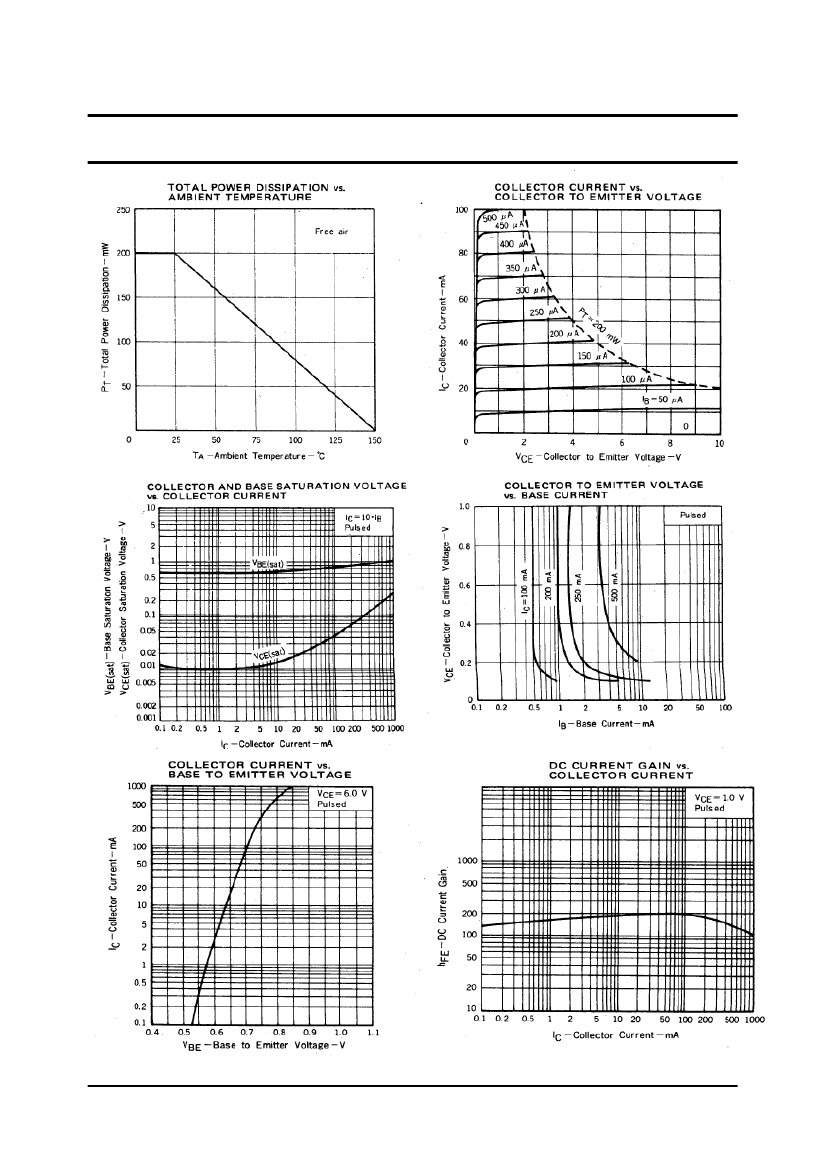

TYPICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Document number: BL/SSSTC024
Rev.A
www.galaxycn.com
2
BL
Galaxy Electrical
Silicon Epitaxial Planar Transistor
Production specification
2SD596
Document number: BL/SSSTC024
Rev.A
www.galaxycn.com
3
BL
Galaxy Electrical
Silicon Epitaxial Planar Transistor
PACKAGE OUTLINE
Plastic surface mounted package
A
E
Production specification
2SD596
SOT-23
SOT-23
Dim
A
B
C
D
Min
2.85
1.25
0.37
0.35
1.85
0.02
2.35
Max
2.95
1.35
0.43
0.48
1.95
0.1
2.45
K
B
1.0Typical
D
G
J
E
G
H
H
C
J
K
0.1Typical
All Dimensions in mm
SOLDERING FOOTPRINT
Unit : mm
PACKAGE
Device
2SD596
INFORMATION
Package
SOT-23
Shipping
3000/Tape&Reel
Document number: BL/SSSTC024
Rev.A
www.galaxycn.com
4
