2SC3734B24 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SC3734B24

2SC3734B24: DescriptionRF Small Signal Bipolar Transistor, 0.2A I(C), 1-Element, Silicon, NPN, MINIMOLD PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size234KB，4 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

2SC3734B24 Overview

RF Small Signal Bipolar Transistor, 0.2A I(C), 1-Element, Silicon, NPN, MINIMOLD PACKAGE-3

2SC3734B24 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NEC Electronics
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum collector current (IC)	0.2 A
Collector-based maximum capacity	4 pF
Collector-emitter maximum voltage	40 V
Configuration	SINGLE
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	510 MHz
Base Number Matches	1

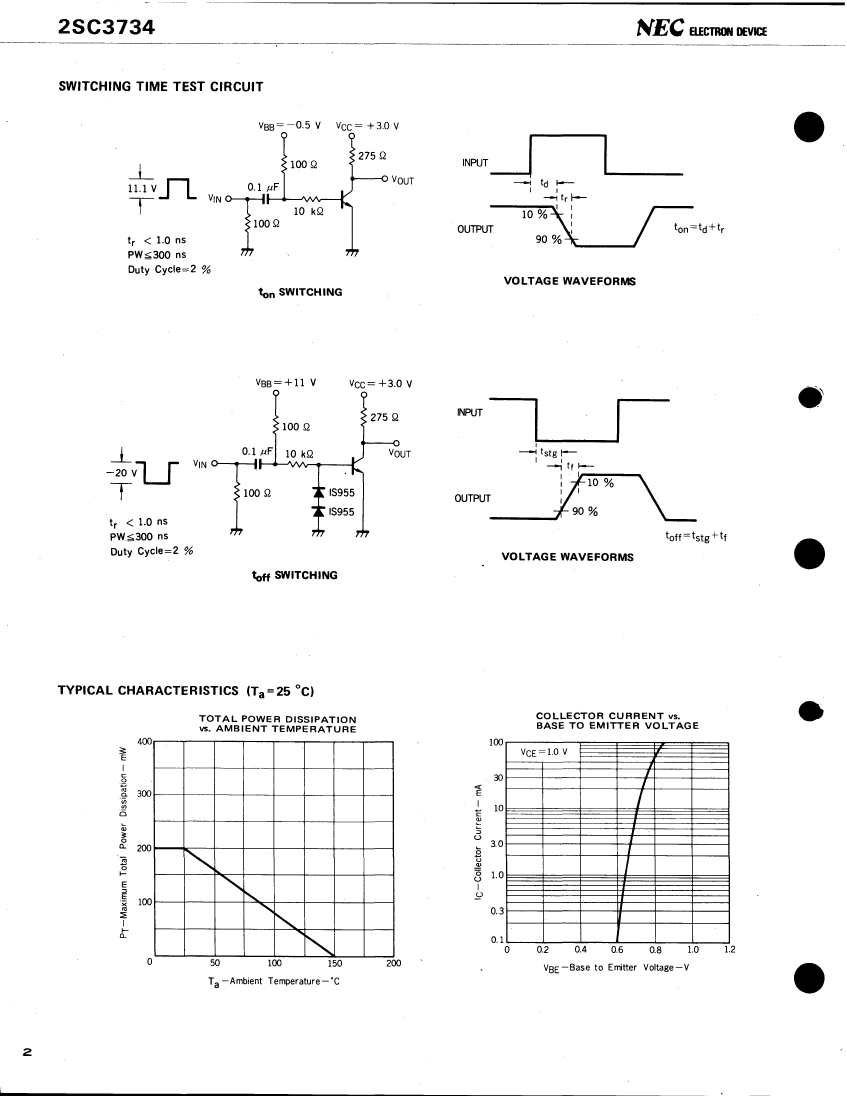

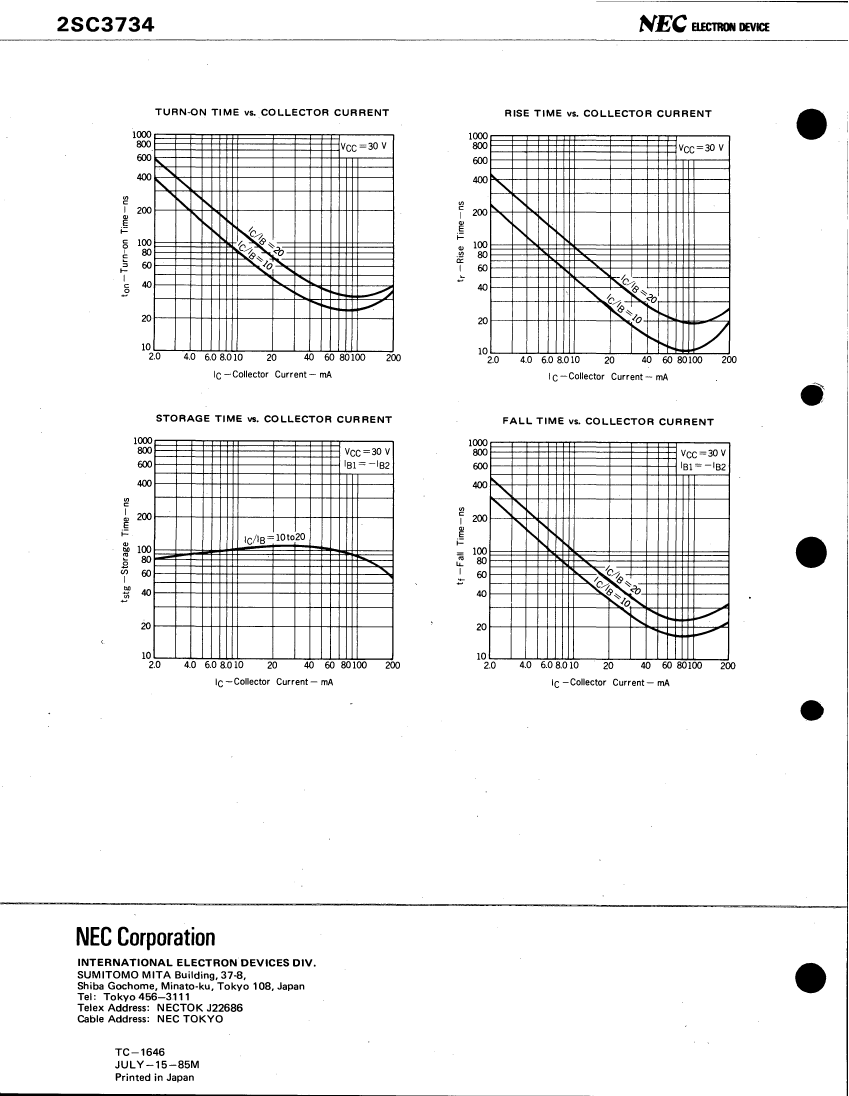

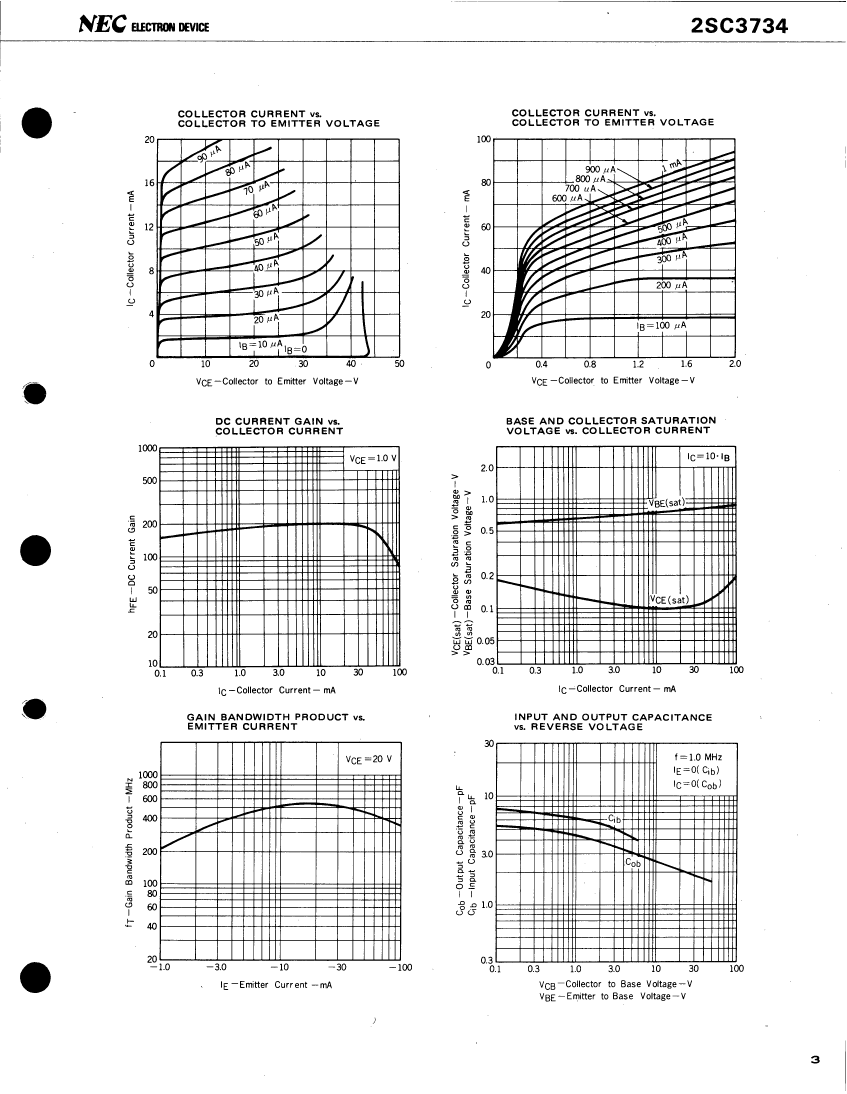

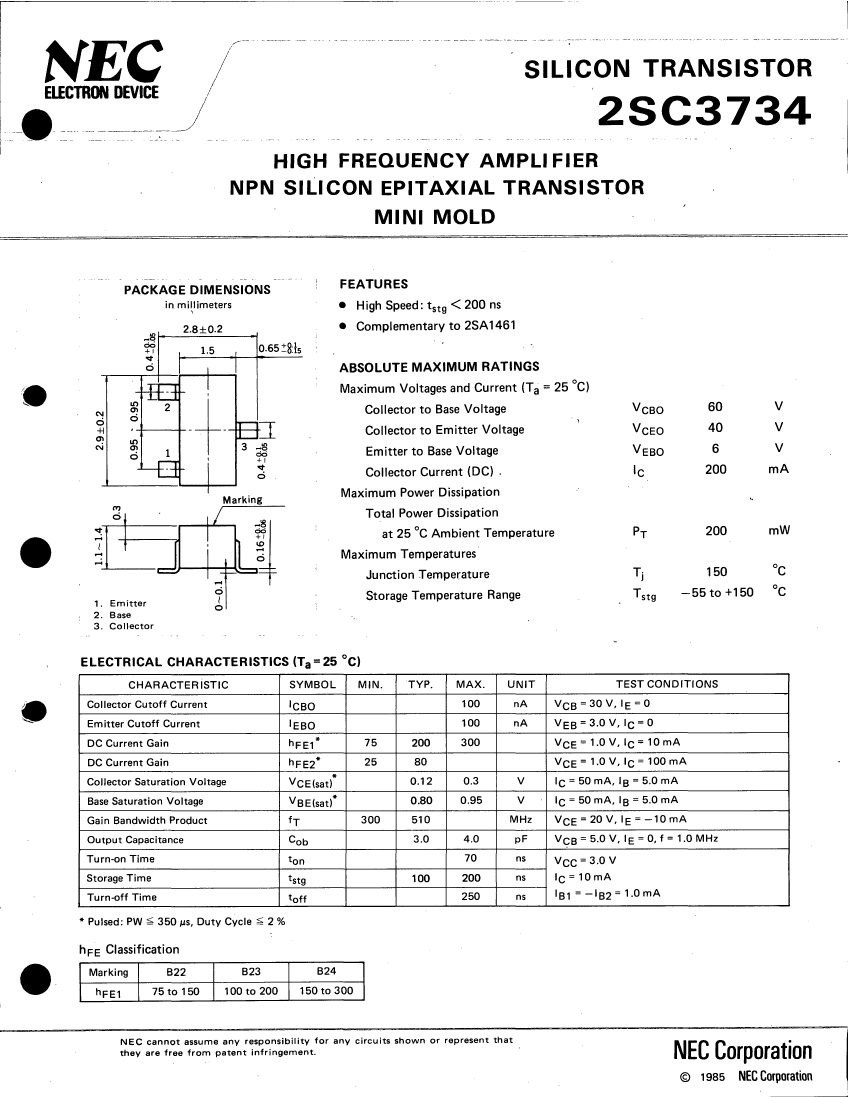

Preview

Download Datasheet

View All

2SC3734B24 Related Products

	2SC3734B24	2SC3734B22-A	2SC3734B23-A	2SC3734B22	2SC3734-A	2SC3734B24-A
Description	RF Small Signal Bipolar Transistor, 0.2A I(C), 1-Element, Silicon, NPN, MINIMOLD PACKAGE-3	RF Small Signal Bipolar Transistor, 0.2A I(C), 1-Element, Silicon, NPN, MINIMOLD PACKAGE-3	RF Small Signal Bipolar Transistor, 0.2A I(C), 1-Element, Silicon, NPN, MINIMOLD PACKAGE-3	RF Small Signal Bipolar Transistor, 0.2A I(C), 1-Element, Silicon, NPN, MINIMOLD PACKAGE-3	RF Small Signal Bipolar Transistor, 0.2A I(C), 1-Element, Silicon, NPN	RF Small Signal Bipolar Transistor, 0.2A I(C), 1-Element, Silicon, NPN, MINIMOLD PACKAGE-3
Maker	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	MINIMOLD PACKAGE-3
Reach Compliance Code	compliant	unknown	unknown	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Collector-based maximum capacity	4 pF	4 pF	4 pF	4 pF	4 pF	4 pF
Collector-emitter maximum voltage	40 V	40 V	40 V	40 V	40 V	40 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	510 MHz	510 MHz	510 MHz	510 MHz	510 MHz	510 MHz
Contacts	3	3	3	3	-	3
JESD-609 code	e0	e6	e6	e0	-	e6
Terminal surface	TIN LEAD	TIN BISMUTH	TIN BISMUTH	TIN LEAD	-	TIN BISMUTH
Base Number Matches	1	1	1	1	-	-
