CIRH SERIES
(MIL-C-5015 STYLE)
HALOGEN FREE BAYONET LOCK CONNECTOR SERIES
The Connectors for Industrial Range (CIR) (H - halogen free) is based on the products
covered by the American MilC-5015 and the German VG95234 specifications. These
connectors are used extensively throughout the mass transportation, entertainment
and general industrial markets.
CIRH connectors are interchangeable with all corresponding types and feature contact arrangements from Mil-
STD-1651. Positive coupling is indicated by an audible ‘snap’ and by the alignment of three coloured dots on the
receptacle and on the coupling nut of the plug connector.
To enhance service life in applications where the connectors are likely to experience severe vibration or repeated
mating, CIRH connectors feature stainless steel anti-wear pins at the critical point of the receptacle coupling ramps.
In response to safety and environmental requirements, CIRH connectors have as standard, low fire hazard/halogen
free rubber insulators which have been independently tested and shown to conform with the requirements of
European specification EN 45545-2 (HL3, R22/R23), French specification NF F 16-101 classification 12 F1 and to British
specification BS 6853 app. A clause A.9 and app. B clause B.5.1. Connector shells can also be supplied with cadmium
free plating finishes.
Protection against water and dust ingress is provided by the use of a dynamic seal ring under the coupling nut and
by an individual wire seal grommet at the rear of the connector. A wavy washer assembly, also under the coupling nut
and a comprehensive range of back shells and accessories, ensure excellent continuity and shielding characteristics
between mated connectors where the effects of EMI and RFI must be eliminated.
RAIL ///
CIRH: MODULAR BAYONET LOCK CONNECTOR
CONTENTS
General Information ...................................................................... 2
Electrical Data ................................................................................. 3
Part Number Explanation ........................................................... 4
F80 Contact Arrangements ..................................................5-19
F80 Contact Arrangement Selection Chart.................20-21
Alternative Insert Orientations ........................................ 22-23
F80 Crimp Contacts - Pin .........................................................24
F80 Crimp Contacts - Socket .................................................25
F80 Crimp Contacts - Low Insertion Force Socket ........26
F80 Crimp Contacts Coaxial - Pin & Socket ...................... 27
F80 Crimp Contacts Twinaxial - Pin & Socket ................. 28
Front Mounting Receptacle - CIRH00 .......................... 29-32
Cable Mounted Receptacle - CIRH01 ............................ 33-35
Rear Mounting Receptacle - CIRH03 ........................... 36-40
Size 49 Front Mounting Receptacle - CIRH04 ..................41
Size 49 Rear Mounting Receptacle - CIRH05 ...................42
Plug - CIRH06/SE06 ............................................................43-45
Plug, Rubber Covered Coupling Nut - CIRHP06 ......... 46-48
Size 49 Plug - CIRHP06 ........................................................... 49
Through Bulkhead Receptacle - CIRH07 .......................... 50
Rear Mounting Single Hole Receptacle - CIRH09......... 51-54
Panel Mounted Plug - CIRH12A.............................................. 55
Conduit Adaptor With Braid Screen Trap
- Type RM (CRA) ........................................................................ 56
Non-Locking Cable Clamp - Type D (OCN)...................... 57
Non-Locking Grommet Nut - Type EV ............................... 58
Locking 90° Outlet With Cable Clamp & Bushing
- Type F........................................................................................... 59
Locking 90° Outlet With Sealed Cable Clamp
- Type FC ....................................................................................... 60
Locking 90° Outlet - Type FT ................................................. 61
Locking 90° Outlet, RFI - Type FM ...................................... 62
Locking Heatshrink Adaptor - Type G (HSA)................... 63
Locking RFI Shielded Adaptor - Type GM (LHSA)........ 64
Non-Locking Heatshrink Adaptor - Type GS (HSAS) ...... 65
Locking Armoured Conduit Adaptor - Type H (ACA) ..... 66
Locking Cable Clamp With Bushing - Type HC ............... 67
Locking Sealed Cable Clamp - Type HD ........................... 68
Non-Locking Cable Clamp With Bushing - Type JE ..... 69
Locking Screened Cable Adaptor - Type M (SCA) ....... 70
Non-Locking Conduit Adaptor - Type R (CCA) ............... 71
Non-Locking Sealed Cable Clamp - Type RC .................. 72
Long Backshell With Cable Clamp & Bushing
- Type XLA ..................................................................................... 73
Long Backshell With Sealed Cable Clamp
- Type XLC ..................................................................................... 74
Long Backshell With Grommet - Type SHE ...................... 75
Step Up Adaptor ......................................................................... 76
Step Down Adaptor ................................................................... 77
Screened Shell Extender .......................................................... 78
PG Threaded Adaptors (DIN 40430).................................. 79
Cable Clamp - Type MS3057A .............................................. 80
Cable Clamp - Type MS3057C ................................................ 81
Telescopic Bushing ..................................................................... 82
Panel Sealing Gaskets ............................................................... 83
Protective Caps........................................................................... 84
Wire Sealing Grommets,
Dummy Pins, Sockets & Grommet Filler Plugs ................ 85
Stowage Receptacles ............................................................... 86
Square Flange Receptacle Nut Plates................................. 87
Square Flange Receptacles, Panel Mounting Details ... 88
Single Hole Mounting Receptacles,
Panel Mounting Details ............................................................ 89
Contact Insertion & Extraction Tools,
Socket Guide Pins ...................................................................... 90
F80 Contacts, Crimp & Tooling Data............................. 91-92
F80 Coax & Twinax Contacts, Crimp & Tooling Data........ 93
RFI Braid Sock, Bandit Strap & Knitmesh Braid........94
RAIL ///
CIRH: MODULAR BAYONET LOCK CONNECTOR
GENERAL INFORMATION
Standard Data
Materials:
Connector metalwork:
Insulator, grommet & bushing:
Contacts:
Accessory hardware:
Aluminium alloy
Low Fire Hazard, rubber
Copper alloy
Aluminium alloy
Standard Plating Finishes:
Aluminium parts:
Contacts:
* Consult TE for alternative finishes.
Olive drab chromate over zinc cobalt or
Olive drab chromate over cadmium plate.*
Silver or Gold.
Environmental Ratings:
Temperature range:
Shock severity:
Vibration:
Acceleration:
-55°C to + 200°C
75g
5-500 Hz long endurance.
30 hour test at 10g.
50g
Mechanical Features:
Coupling:
Number of contacts:
Contact termination:
Sealing:
3 pin bayonet.
2 to 85
Crimp or p.c. tail.
Dynamic sealing ring & individual wire
seal grommet. When mated and used
with appropriate sealed backshell,
IP67 rated.
Matings:
2000.
CIRH Connectors:
CIRH connectors feature stainless steel pins at critical wear points of the cam
tracks of all receptacle shells, to protect from wear inflicted by continuous
mating/de-mating and vibration.
Note:
The company reserves the right and may change or vary specification
without prior written notice.

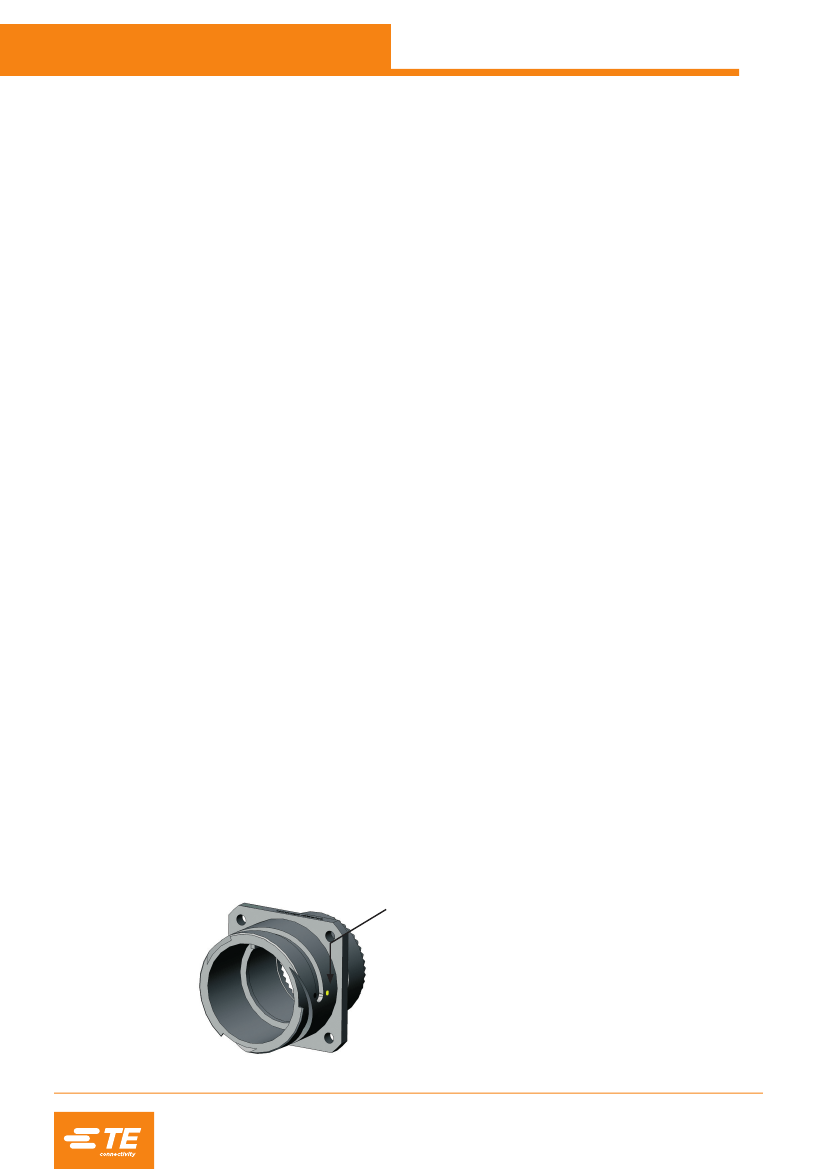

Stainless Steel
Wear Pin
PAGE 2
