5536514-1

Description

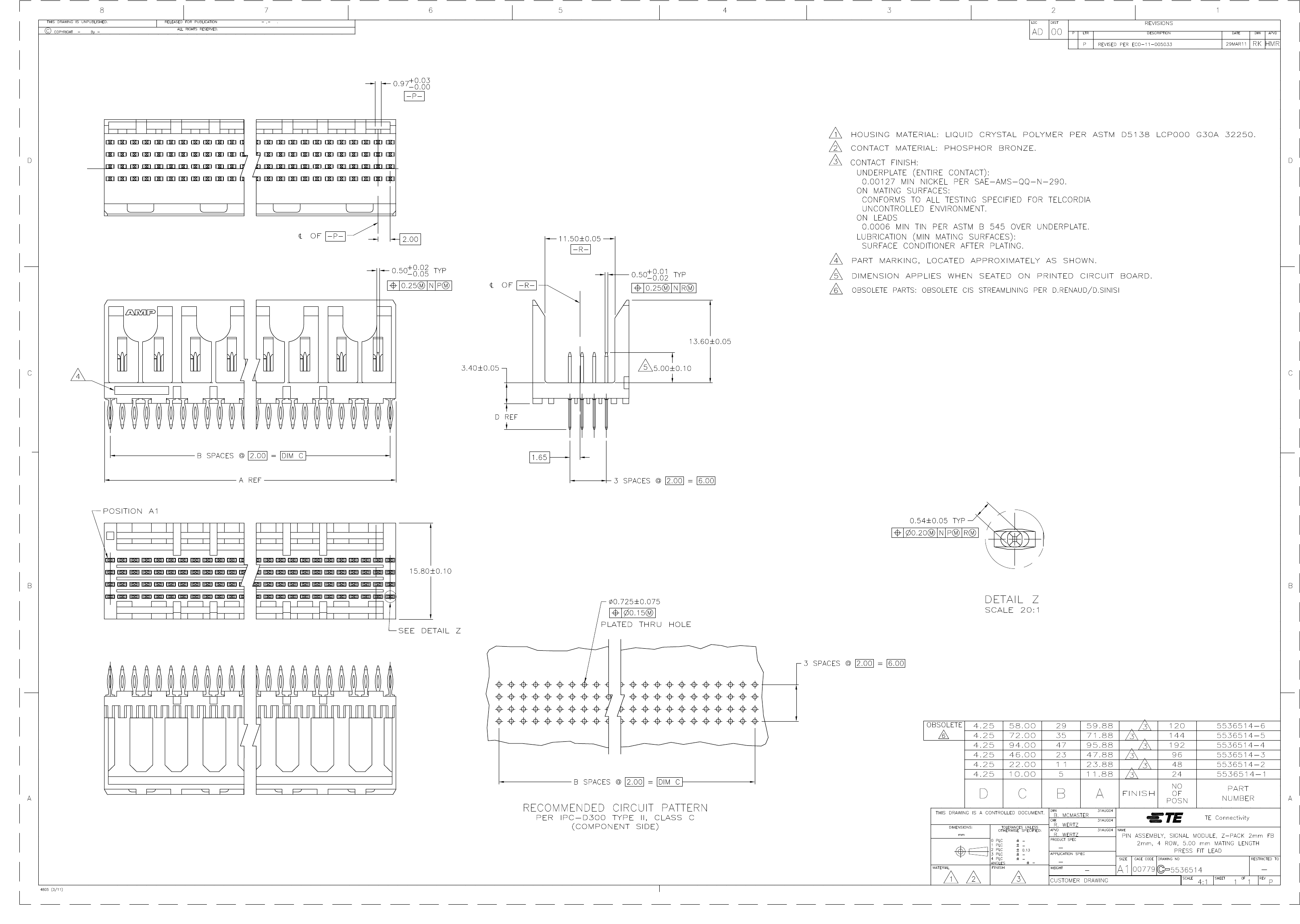

2MMFB,ASY,024,SIG,HDR,EN,4.25
CategoryThe connector    The connector
File Size159KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

5536514-1 Online Shopping

Suppliers Part Number Price MOQ In stock
5536514-1 - - View Buy Now

5536514-1 Overview

2MMFB,ASY,024,SIG,HDR,EN,4.25

5536514-1 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time6 weeks 3 days
Other featuresZ-PACK
body width0.622 inch
subject depth0.669 inch
body length0.47 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VAC V
Durability250 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.695 N
Insulation resistance100000000 Ω
insulator materialLIQUID CRYSTAL POLYMER (LCP)
MIL complianceNO
Manufacturer's serial number5536514
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded4
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
polarization keyPOLARIZED HOUSING
reliabilityCOMMERCIAL
Terminal length0.167 inch
Terminal pitch2 mm
Termination typePRESS FIT
Total number of contacts24
Evacuation force-minimum value.1112 N
Base Number Matches1
