Gas Discharge Tube：GC6 Series
：
3-Electrode
Φ6.0*8.0
mm Type
Features
1. RoHS compliant
2. Rugged ceramic-metal construction
3. Available with or without leads
4. Available with fail-safe clip
5. DC spark-over voltage：90~600V
6. Low capacitance
7. Agency recognition :UL
Recommended Applications
1. Data transmission lines
2. Communication lines
3. CATV system
4. Power distribution system
5. Power supplier
6. Test equipment
7. Instrumentation circuits

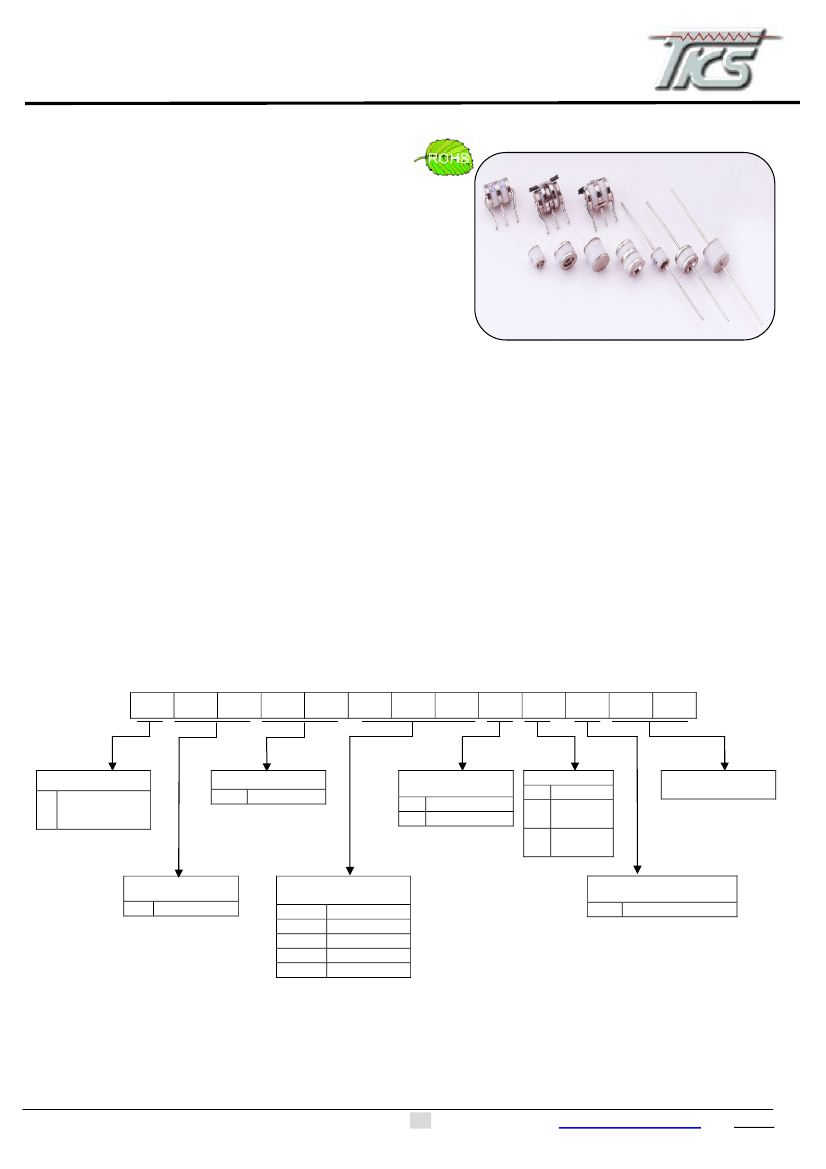

Part Number Code
G
1
C
2
6
3
3
4
R
5
0
6
9
7
0
8
R
9
B
10
11
12
13
Product Code
G
THINKING Gas
Discharge Tube
Electrode Number
3R
3 Electrodes
Lead Wire Style
N
R
No Lead
Radial Lead
Packaging
B
T
R
Bulk
Ammo
Taping
Reel
Taping
Internal Control
Code
Type Series (size)
C6
Φ6.0*T8.0
DC
Spark-over
Voltage
070
230
600
14B
25B
70V
230V
600V
1400V
2500V
F
Product Type
Fail-Safe Clip
THINKING ELECTRONIC INDUSTRIAL Co., LTD.
All specification are subject to change without notice.
1
www.thinking.com.tw
2010.09
Gas Discharge Tube：GC6 Series
：
3-Electrode
Φ6.0*8.0
mm Type
Characteristics
DC
Breakdown
Voltage
Type
(100V/S)
(V)
GC63R090□□(F)
GC63R145□□(F)
GC63R200□□(F)
GC63R230□□(F)
GC63R250□□(F)
GC63R350□□(F)
GC63R400□□(F)
GC63R420□□(F)
GC63R470□□(F)
GC63R600□□(F)
90±20%
145±20%
200±20%
230±20%
250±20%
350±20%
400±20%
420±20%
470±20%
600±20%
100V/µs
(V)
750
750
600
600
600
650
700
700
800
900
1KV/µs
(V)
850
850
700
700
700
750
800
800
900
1000
10 times
(KA)
5
5
10
10
10
100
5
5
5
5
5
5
5
5
5
5
200 A
Times
50Hz,1Sec
Max. Impulse
Breakdown
Voltage
Impulse
Discharge
Current
(8/20µs)
Impulse
Life
(10/1000µs)
Normal
Alternating
Discharge
Current
DC
Holdover
Voltage
<150ms
(V)
52
52
135
135
135
150
150
150
150
150
Minimum
Insulation
Resistance
Maximum
Capacitance
(1MHz)
Safety
Approvals
(A)
5
5
10
10
10
(G )
(pF)
UL
497B
√
√
√
√
√
1
2
√
√
√
√
√
Note1：The first
□
is the style of lead wire, and the second
□
is packaging
Note2：F = with fail-safe clip for optional.
Note 3: UL / 497B→ File No. E245070
Note 4: Insulation resistance test conditions:
DC Breakdown Voltage
90V
145-400V
420-600V
DC Measuring Voltage
50V
100V
250V
THINKING ELECTRONIC INDUSTRIAL Co., LTD.
All specification are subject to change without notice.
2
www.thinking.com.tw
2010.09
Gas Discharge Tube：GC6 Series
：
3-Electrode
Φ6.0*8.0
mm Type

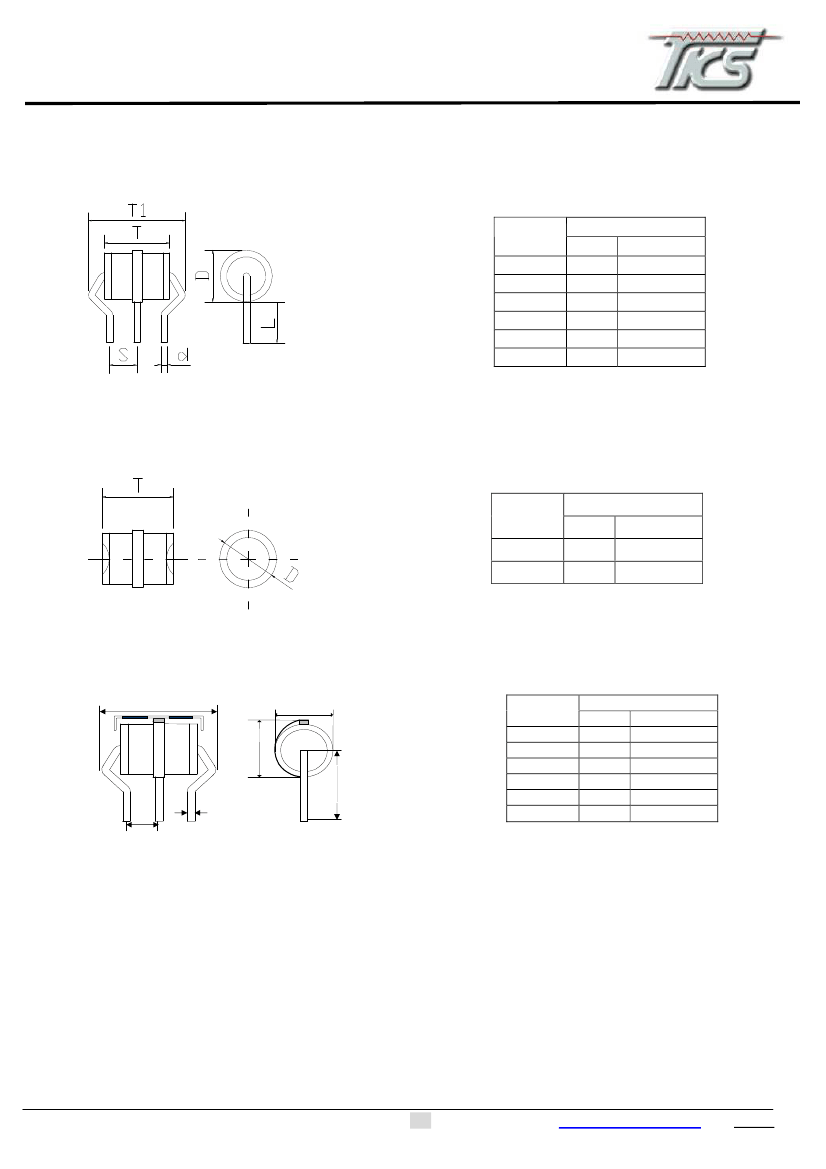

Dimensions
□
= R (Radial lead type)
Unit: mm
Item
D
T
T1
L
S
d
Dimensions
Spec.
6.0
8.5
11.5
7.5
3.8
0.8
Tolerance
+0.2/-0.5
±0.5
+0.8/-0.5
±0.5
±0.3
±0.05
□
= N (No lead type)
Unit: mm
Item
D
T
Dimensions
Spec.
6.0
8.5
Tolerance
+0.2/-0.5
±0.5
□
=F (Fail-Safe Device)
T1
R1
Unit: mm
Item
R1
R2
T1
L
S
d
Dimensions
Spec.
Tolerance
6.3
±0.3
7.6
±0.4
13.4
±0.4
11.0
±0.5
4.4
±0.3
1.0
±0.05
R2
L
d
S
THINKING ELECTRONIC INDUSTRIAL Co., LTD.
All specification are subject to change without notice.
3
www.thinking.com.tw
2010.09
Gas Discharge Tube：GC6 Series
：
3-Electrode
Φ6.0*8.0
mm Type

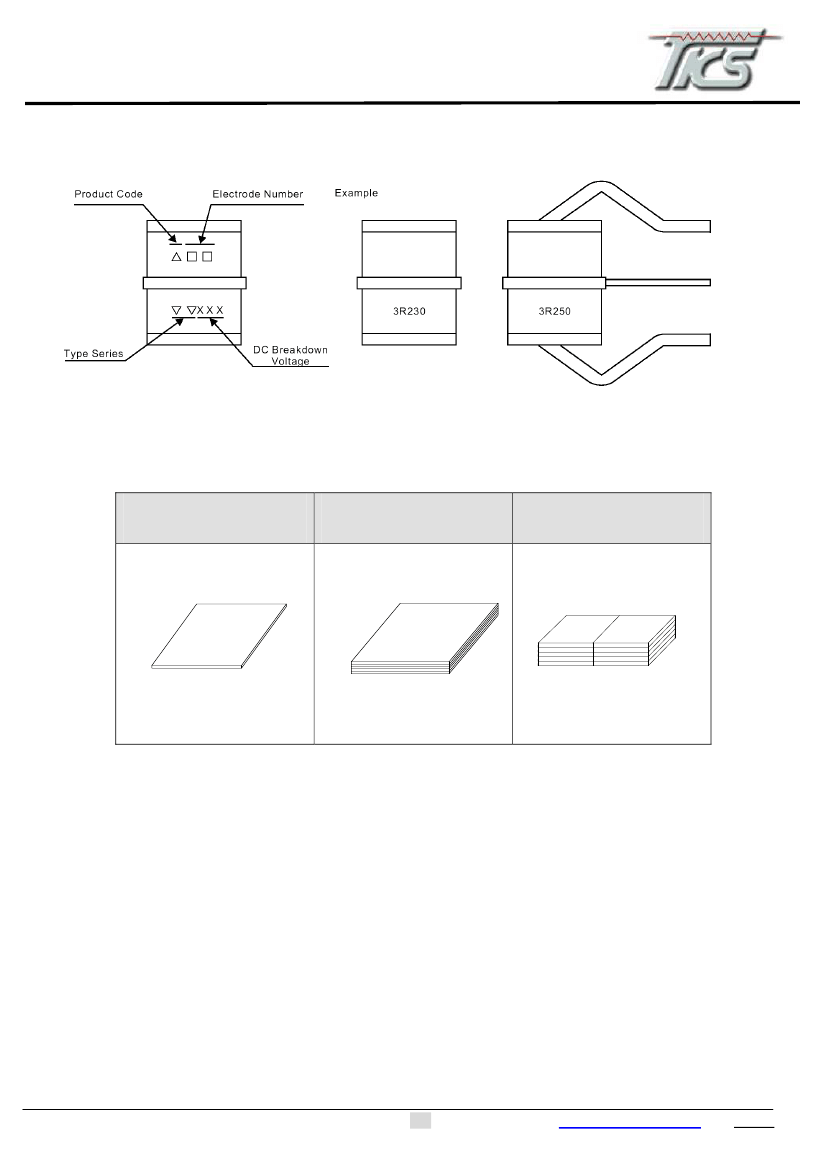

Marking
GC6
GC6
Packaging
Bulk
Plastic Tray
(210x220x12mm)
Inner Box
(210x225x60mm)
Outside Box
(450x245x345mm)
100 PCS/Plastic tray
500 PCS/Box
5000 PCS/Carton
Storage Condition of GDT
(I) Storage conditions:
1. Storage Temperature: -10
℃
~ +40
℃
.
2. Relative humidity:
≦
75%RH.
3. Gas discharge tube must be kept away from sunlight and stored in a non-corrosive atmosphere.
(II) Shelf life: 1 year.
THINKING ELECTRONIC INDUSTRIAL Co., LTD.
All specification are subject to change without notice.
4
www.thinking.com.tw
2010.09
