HD34-18-8PN-072 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> HD34-18-8PN-072

Preview

HD34-18-8PN-072: DescriptionRC HD30 18 SHL 8 WY N SEAL ADP; CategoryThe connector; File Size251KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

HD34-18-8PN-072 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HD34-18-8PN-072	-	-	View	Buy Now

HD34-18-8PN-072 Overview

RC HD30 18 SHL 8 WY N SEAL ADP

HD34-18-8PN-072 Parametric

Parameter Name	Attribute value
Connector type	Male terminal housing
Connector System	line to line
Sealable	yes
Hybrid connector	no
Main locking features	Housing integration
strain relief	Add according to attachment
Number of Positions	8
Nominal Voltage Structure (V)	12, 24, 42, 48, 80, 90, 125, 240
Operating voltage (VAC)	250
Operating voltage (VDC)	250
color	green
Cable exit angle	180°
Main material	PA GF
Engage pin diameter	2.5 mm [ .098 in ]
Installation features	Without
Terminal position guarantee	no
polarization	yes
width	44.45 mm [ 1.75 in ]
high	66.34 mm [ 2.612 in ]
Working group temperature range	-55 – 125 °C [ -67 – 257 °F ]
Circuit Application	Power and Signal
protection level	IP67
Encapsulation method	box
Package quantity	1
Able to ensure connector position	no
Repairable	yes

Preview

Download Datasheet

View All

4

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

3

2014

LOC

2

DIST

1

C

BY - TE CONNECTIVITY

-

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

A1

A

NEW RELEASE PER E.O. P20001

REVISED PER E.O. P21009

REVISED PER ECO-15-001798

15SEP2008

19JUL2011

28AUG2014

-

VNB

DM

RDR

DM

D

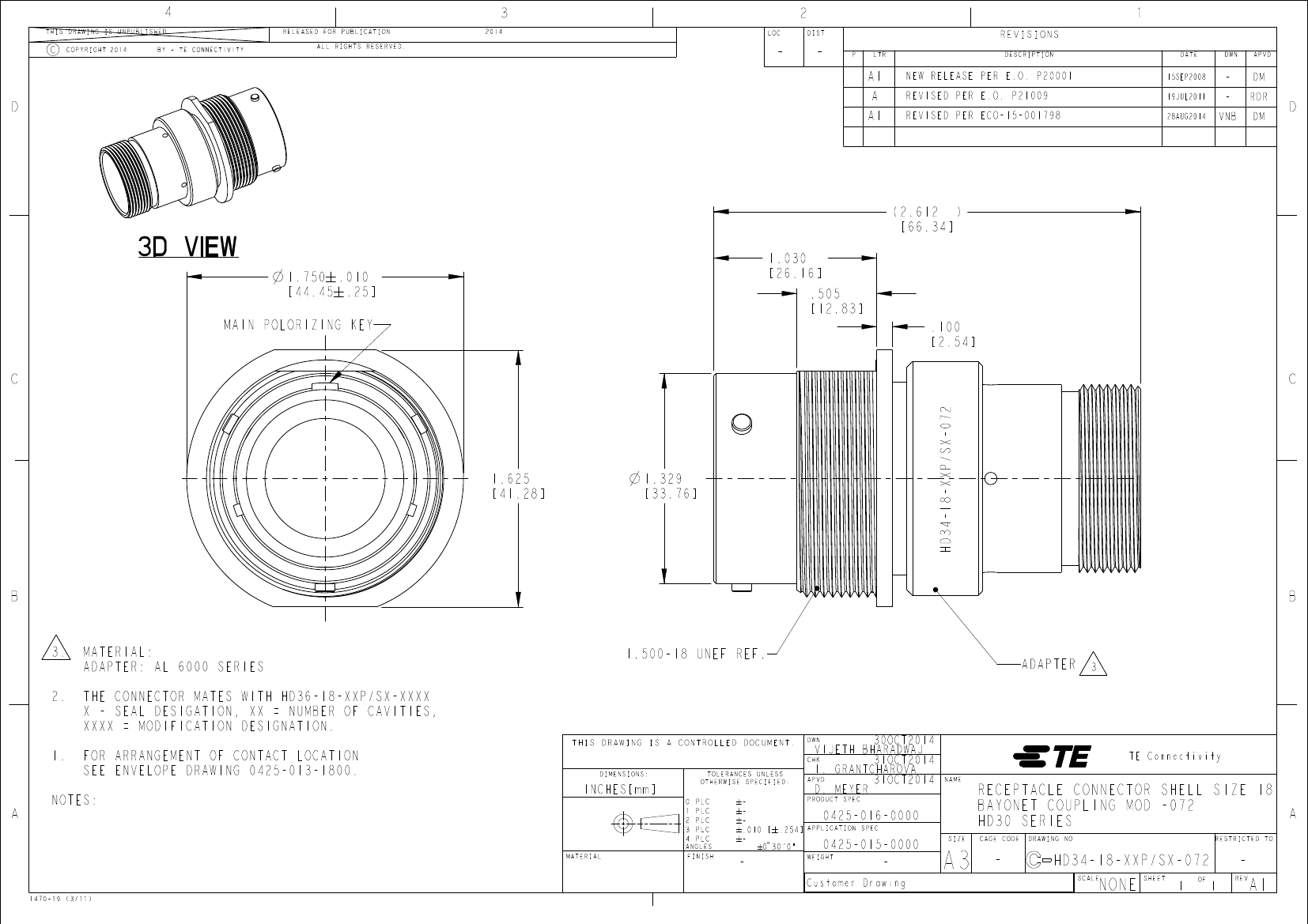

3D VIEW

(2.612 )

[66.34 ]

1.750 .010

[44.45 .25 ]

1.030

[26.16 ]

MAIN POLORIZING KEY

.505

[12.83 ]

.100

[2.54 ]

C

1.625

[41.28 ]

1.329

[33.76 ]

B

HD34-18-XXP/SX-072

B

3.

2.

MATERIAL:

ADAPTER: AL 6000 SERIES

THE CONNECTOR MATES WITH HD36-18-XXP/SX-XXXX

X - SEAL DESIGATION, XX = NUMBER OF CAVITIES,

XXXX = MODIFICATION DESIGNATION.

FOR ARRANGEMENT OF CONTACT LOCATION

SEE ENVELOPE DRAWING 0425-013-1800.

1.500-18 UNEF REF.

ADAPTER

3

1.

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

A

NOTES:

INCHES[mm]

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

0

1

2

3

4

MATERIAL

ANGLES

PLC

FINISH

-

PRODUCT SPEC

-

0425-016-0000

-

APPLICATION SPEC

.010 [ # .254]

-

0425-015-0000

0 $ 30'0"

WEIGHT

30OCT2014

VIJETH BHARADWAJ

CHK

31OCT2014

I. GRANTCHAROVA

APVD

31OCT2014

D. MEYER

DWN

TE Connectivity

NAME

-

Customer Drawing

1470-19 (3/11)

A3

SIZE

RECEPTACLE CONNECTOR SHELL SIZE 18

BAYONET COUPLING MOD -072

HD30 SERIES

CAGE CODE

DRAWING NO

A

RESTRICTED TO

-

HD34-18-XXP/SX-072

SCALE

NONE

SHEET

1

OF

1

REV

-

A1
