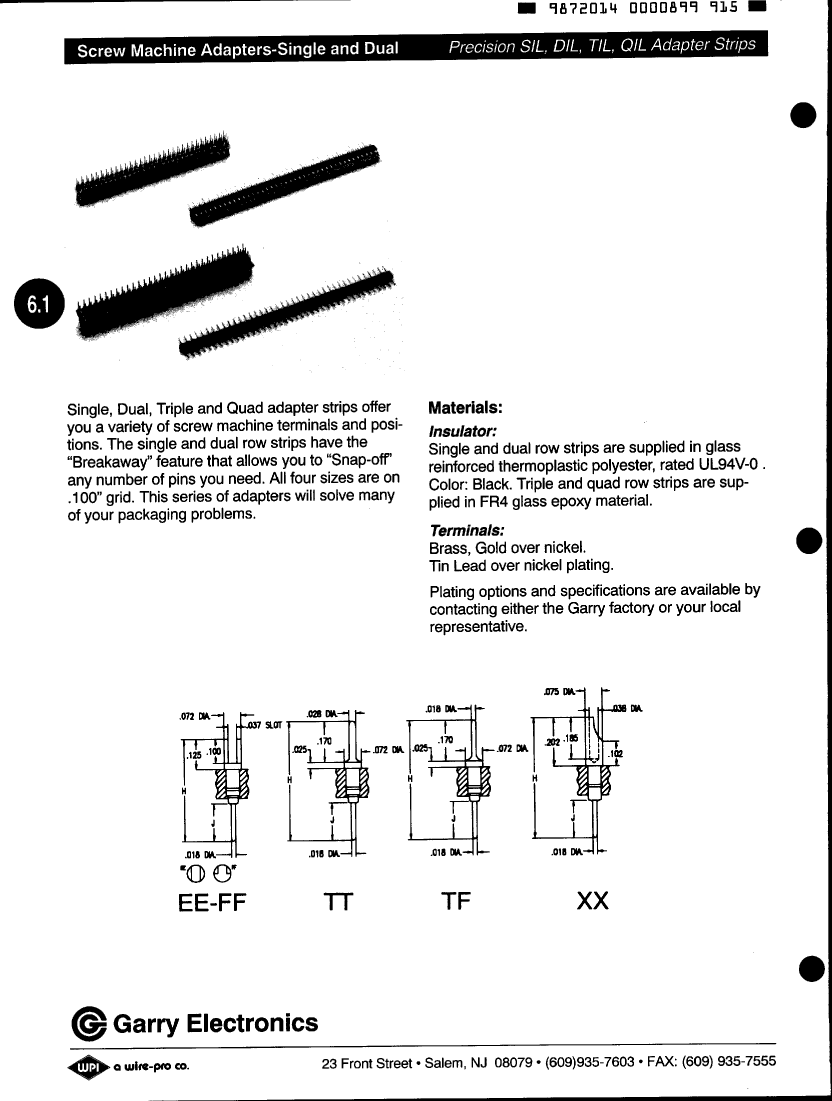

2302-57-TF-D Overview

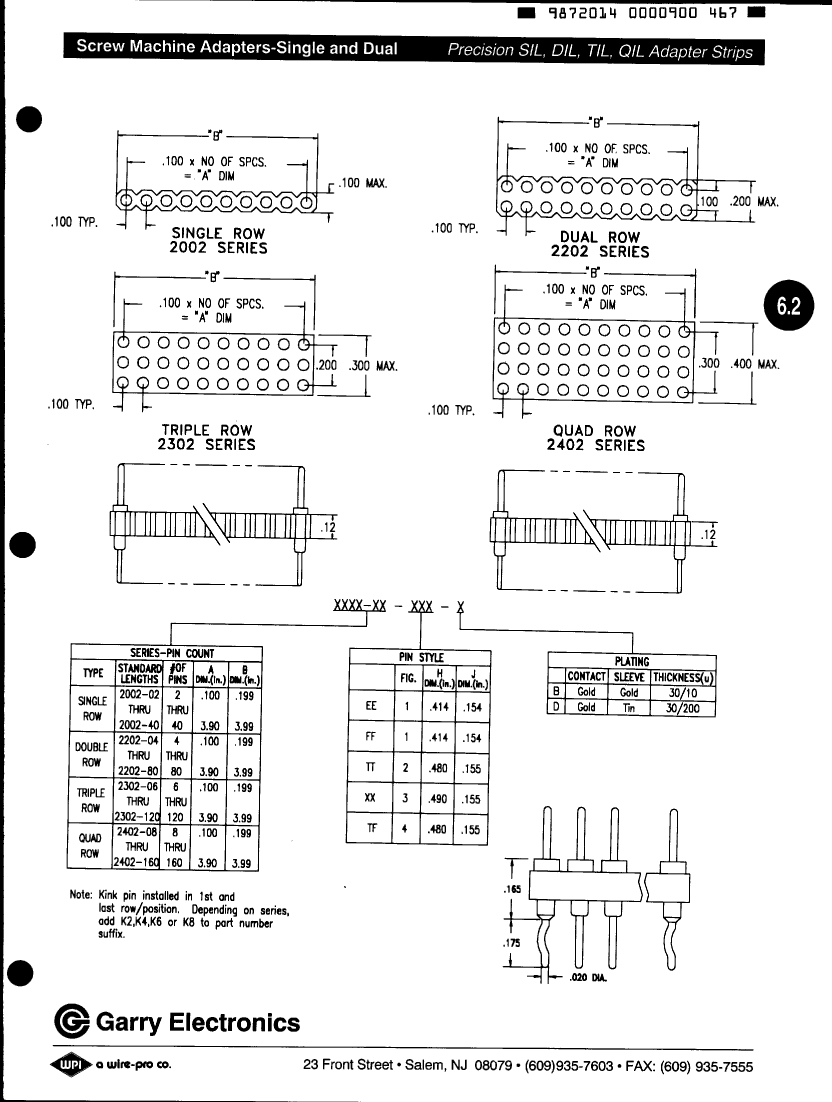

HEADER CONNECTOR,PCB MNT,RECEPT,57 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK

Parameter Name	Attribute value
Maker	Cooper Industries
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.3 inch
subject depth	0.12 inch
body length	1.899 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR

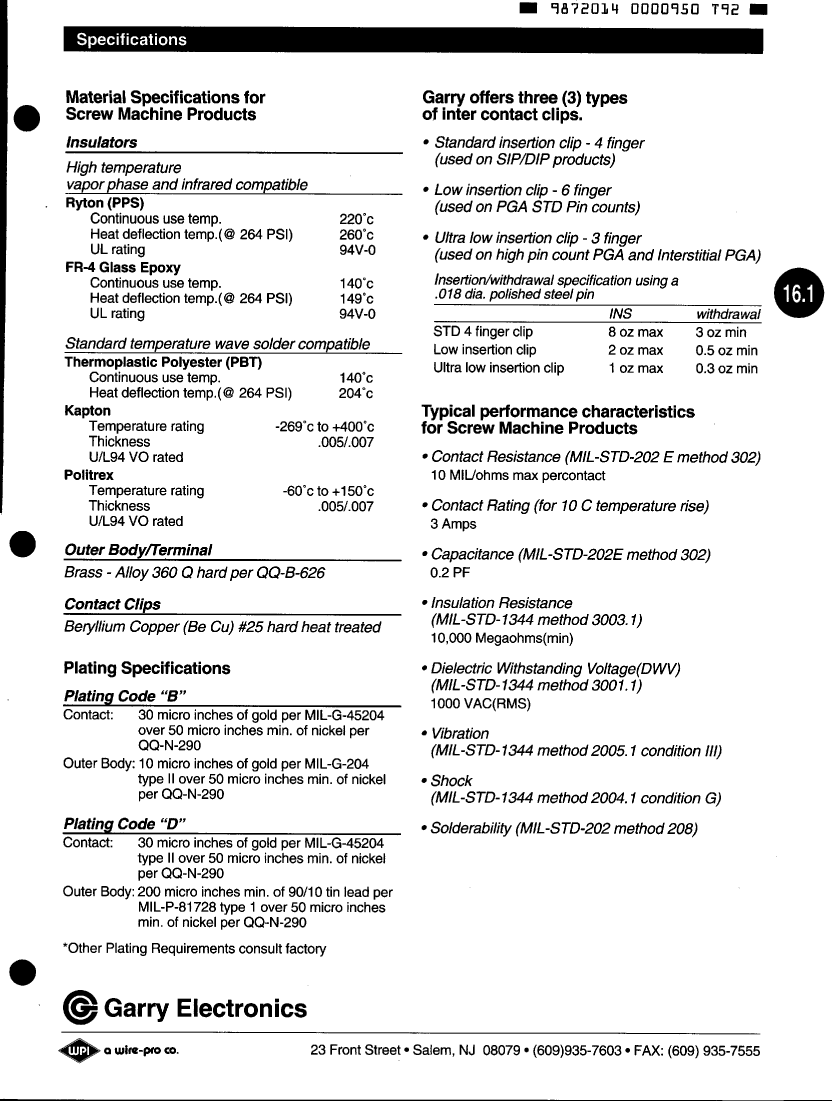

Contact to complete cooperation	SN-PB ON NI
Contact completed and terminated	Tin/Lead (Sn90Pb10) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED EPOXY
JESD-609 code	e0
Manufacturer's serial number	2302
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.155 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	57
Base Number Matches	1
