55K9083-20-2/6/4 datasheet, PDF

Datasheet> All Categories > Wire/cable> 55K9083-20-2/6/4

55K9083-20-2/6/4: Description55K9083-20-2/6/4; CategoryWire/cable; File Size26KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

55K9083-20-2/6/4 Overview

55K9083-20-2/6/4

55K9083-20-2/6/4 Parametric

Parameter Name	Attribute value
Cable type	Spec 55
Product Categories	Cables - High Performance - Sizes 44, 55 and RCW
Number of shares	19
Rated voltage (VAC)	600
Insulation Materials	Irradiation cross-linked modified ETFE
conductor material	Nickel plated high strength copper
Wire color	red, blue, yellow
Wire size (AWG)	20
Wire size (mm²)	.52
Wire diameter (mm)	1.4
Conductor diameter (mm)	.94
Overall outer diameter (mm)	3.02
Wire size (CMA)	1.4
range of working temperature	-65 – 180 °C [ -85 – 356 °F ]

Preview

Download Datasheet

View All

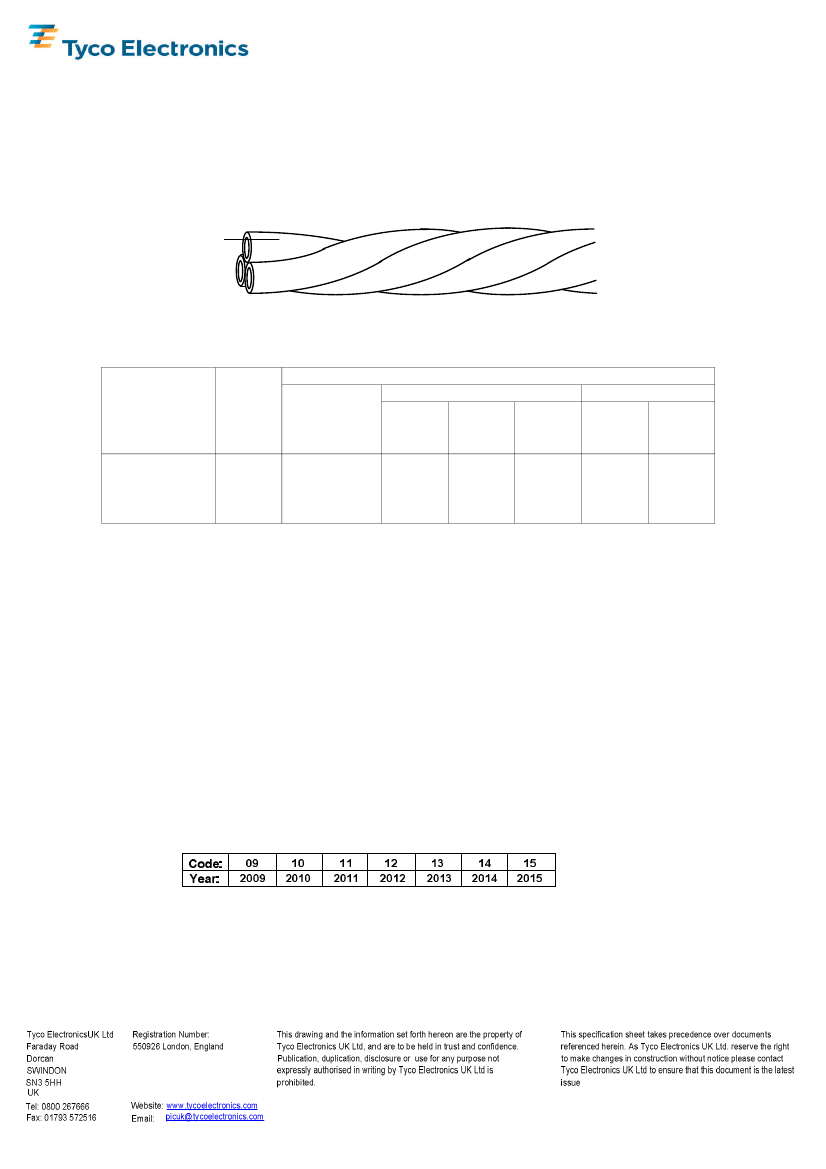

Specification Control Drawing

55K9083

Issue 6

16th December 2009

Page 1 of 1

THREE CONDUCTOR CABLE, MODIFIED FLUOROPOLYMER INSULATED,

600 VOLT, 180°C, CONTROLLED WEIGHT

The complete requirements for procuring the wire described herein shall consist of this document and the

Airbus Industrie Specification ABS0822 Issue 5

Component wire -

55K9081

C19

Part

Description

C20

Wire

Size

55K9083-24-*/*/*

55K9083-22-*/*/*

55K9083-20-*/*/*

55K9083-18-*/*/*

Cable

Resistance

at 20°C

ohms/km max.

117.42

61.80

34.20

21.73

C28

C26

Finished Cable

Outside Diameter - mm

Lower

Upper

Spec

Target

Spec

Limit

2.10

2.20

2.31

2.40

2.51

2.62

2.92

3.02

3.13

3.46

3.56

3.67

C27

C30

C29

Weight - kg/km

Upper

Target

Spec

Limit

8.87

9.64

12.24

13.25

20.18

21.69

30.34

33.22

COLOUR CODE:

Cores - Red/Blue/Yellow

PERFORMANCE

REQUIREMENTS

To be tested to the issue in effect of WSD 840

and meet the requirements of ABS0822 Issue 5.

MARKING:

Each core, every 300 ± 50mm horizontally along axis for sizes 18 and 20 and vertically

along axis for sizes 24 and 22. Marking shall be black.

Each mark shall be connected by a dashed line, each dash at 40-50mm, 5mm long,

0.5mm minimum width.

- - - QHXX U GBSYY - - - Where the XX is replaced by the wire size and the YY is

replaced by a year code designator in accordance with the table below.

e.g. - - - QH24 U GBS09 - - -

APPROVAL:

Electronic sign off - no signatures will appear.
