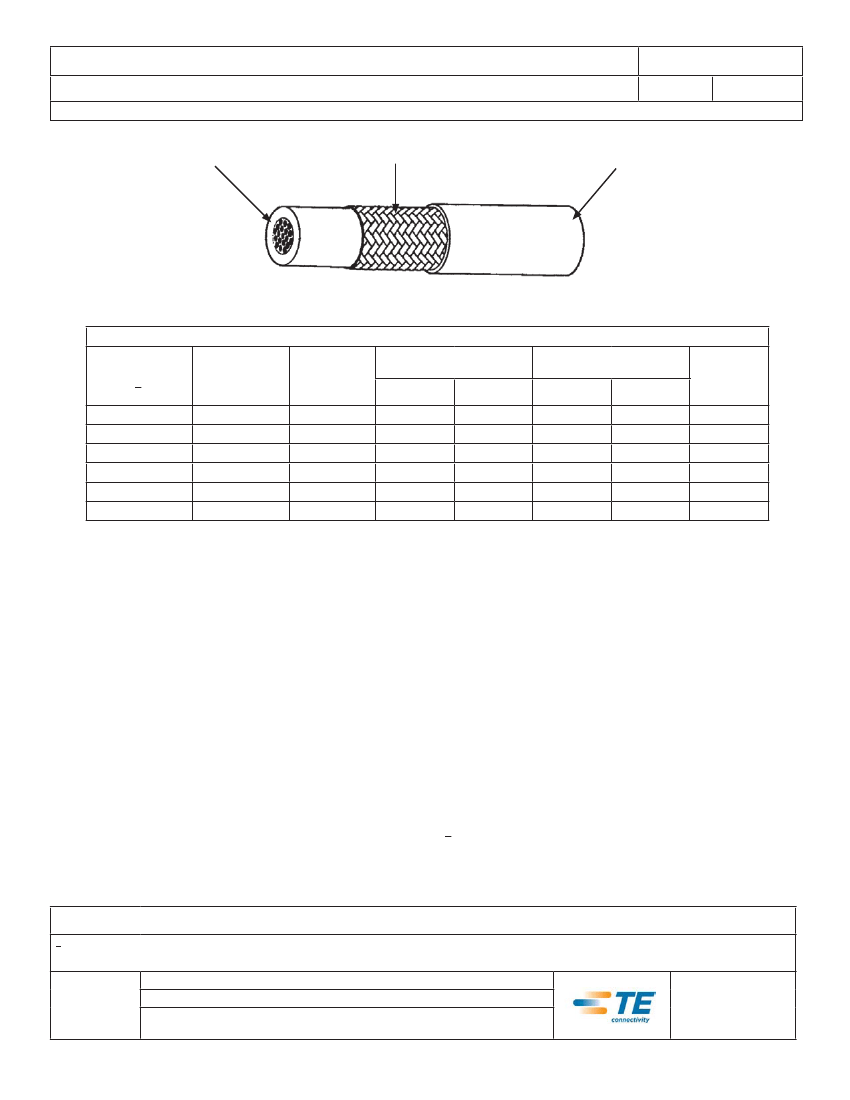

SPECIFICATION CONTROL DRAWING
TITLE
55/2114
Date
ONE CONDUCTOR CABLE, FLAT BRAID SHIELDED, JACKETED, OUTER SPACE, 600 VOLT
This specification sheet forms a part of the latest issue of Raychem Specification 55/.
5-3-11
Revision
E
COMPONENT WIRE - 55/0114
SHIELD - TIN-COATED COPPER
JACKET - LOW OUTGASSING,
RADIATION-CROSSLINKED,
MODIFIED ETFE
CABLE CONSTRUCTION DETAILS
PART NUMBER
1/
55/2114-30-*
55/2114-28-*
55/2114-26-*
55/2114-24-*
55/2114-22-*
55/2114-20-*
CONDUCTOR
SIZE
(AWG)
30
28
26
24
22
20
SHIELD
STRAND
THICKNESS
(± .0004 inch)
.0015
.0015
.0015
.0015
.0015
.0015
JACKET THICKNESS
(in.)
MINIMUM
.006
.006
.006
.006
.006
.006
NOMINAL
.008
.008
.008
.008
.008
.008
OUTSIDE DIAMETER
(in.)
NOMINAL
.047
.050
.055
.060
.066
.073
MAXIMUM
.052
.055
.060
.065
.071
.079
MAXIMUM
WEIGHT
(lbs/1000 ft.)
2.2
2.6
3.3
4.2
5.3
7.2
CABLE RATINGS AND ADDITIONAL REQUIREMENTS
TEMPERATURE RATING: 150°C
Maximum continuous conductor temperature
VOLTAGE RATING: 600 volts (rms) at sea level
CROSSLINKED VERIFICATION: 300 ± 3°C for 1 hour
DIELECTRIC WITHSTAND: 1500 volts (rms), 60 Hz
JACKET COLOR: White preferred
JACKET ELONGATION: 50% (minimum)
JACKET FLAWS:
Spark Test, 1000 volts (rms)
Impulse Dielectric Test, 6.0 kV (peak)
NOTE: Nominal values are for information only.
Nominal values are not requirements.
RADIATION RESISTANCE: 500 megarads
SHIELD COVERAGE: 85% (minimum)
VACUUM STABILITY:
Total Mass Loss (TML), 1.00% (maximum)
Volatile Condensable Material (VCM), 0.10% (maximum)
VOLTAGE WITHSTAND (Post Environmental):
1500 volts (rms), 60 Hz, 1 minute
PART NUMBER:
The “*” in the part numbers above shall be replaced by color code
designators with a dash separating the component wire color from the
jacket color.
1/
Example: AWG 20, white component wire; white jacket:
55/2114-20-9-9
Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.
Tyco Electronics Corporation also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.
1/
COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,
AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: “901/902...” MAY BE REPLACED BY “Axxx”.) OTHER CODES AND
SUFFIXES MAY BE ADDED TO THE PART NUMBER AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.
TE Connectivity, TE connectivity (logo), TE (logo), and Raychem are trademarks.
Raychem Wire & Cable
501 Oakside Avenue
Redwood City, CA 94063-3800
Phone: 1-800-227-8816
Fax: 1-650-361-6297
© 2011 Tyco Electronics Corporation. All rights reserved.
Page 1 of 1
DIMENSIONS ARE IN INCHES, AND UNLESS OTHERWISE DESIGNATED ARE NOMINAL.
THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.
REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.
