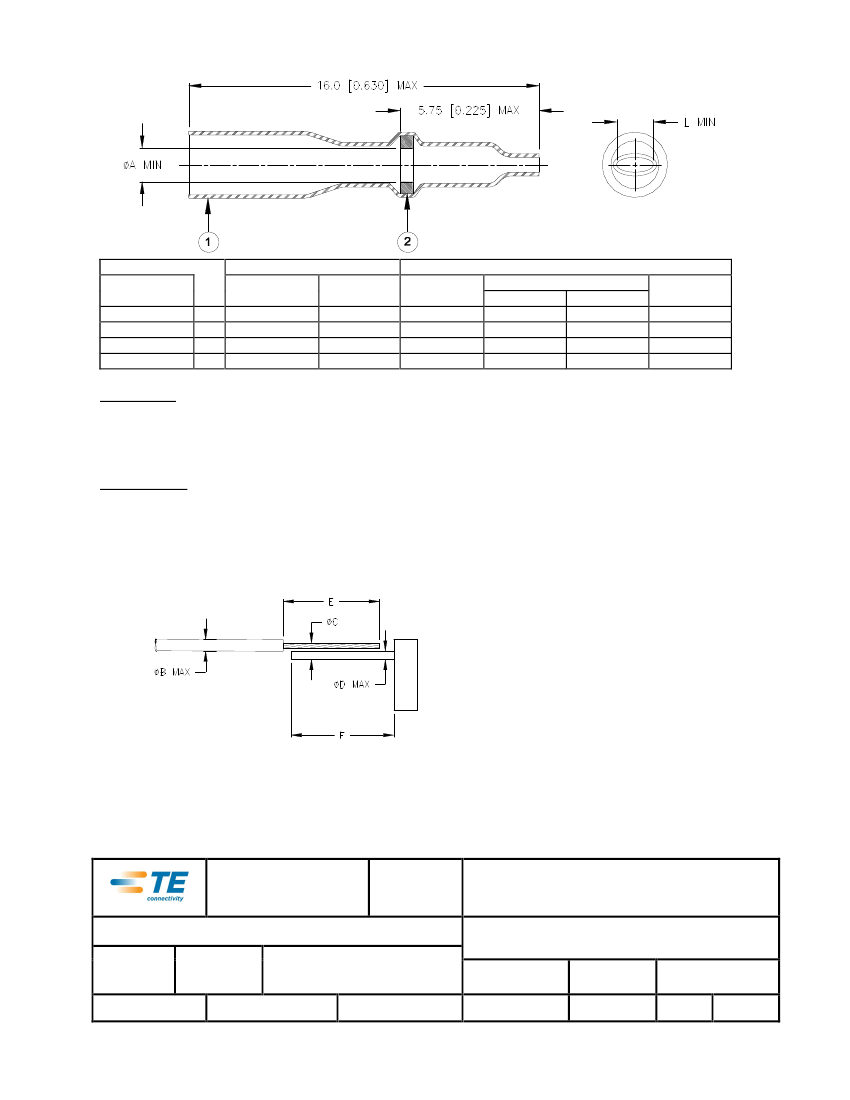

SPECIFICATION CONTROL DRAWING
Product Revision
Product
Name
B-155-1501
A
B-155-1502
A
B-155-1503
A
B-155-1504
A
Product Dimensions
øA
L
min
min
1.5 [0.060]
1.5 [0.060]
2.3 [0.090]
2.3 [0.090]
2.8 [0.110]
2.8 [0.110]
3.8 [0.150]
3.8 [0.150]
øB
max
2.0 [0.080]
2.9 [0.115]
3.2 [0.125]
4.5 [0.180]
Wire and Pin Dimensions
øC
min
max
0.9 [0.035]
1.5 [0.060]
1.1 [0.045]
2.3 [0.090]
1.6 [0.065]
2.8 [0.110]
1.8 [0.070]
3.8 [0.150]
øD
max
0.6 [0.025]
0.9 [0.035]
1.2 [0.045]
1.5 [0.060]
MATERIALS
1. INSULATION SLEEVE: Heat-shrinkable, transparent clear, radiation cross-linked modified polyolefin.
2. SOLDER PREFORM WITH FLUX:
SOLDER:
TYPE Sn42Bi58 per ANSI / J-STD-006.
FLUX:
TYPE ROM1 per ANSI / J-STD-004.
APPLICATION
1. These controlled soldering devices are designed for termination of a wire to the lead of electrical component or to the terminal
of a connector.
2. Temperature range: -55C to +125C.
3. For installation procedure and application equipment, consult RPIP-824-00
For best results, prepare the wire as shown:
Stripping Dimensions:
1) Wires smaller than AWG 18:
E: 6.5±0.5 [0.256±0.020]
F: 8.0±0.5 [0.315±0.020]
2) Wires AWG 18 and larger:
E: 9.5±0.5 [0.374±0.020]
F: 11.0±0.5 [0.433±0.020]
TITLE:
TE Connectivity
300 Constitution Drive,
Menlo Park, CA. 94025, U.S.A.
Unless otherwise specified dimensions are in millimeters.
[Inches dimensions are shown in brackets]
TOLERANCES:
0.00 N/A
0.0 N/A
0 N/A
PREPARED BY:
ANGLES: N/A
Raychem
SOLDERSLEEVE ONE-STEP WIRE
TERMINATOR, LOW TEMPERATURE
DOCUMENT NO.:
B-155-150X
PROD. REV.:
DOC. ISSUE:
DATE:
TE Connectivity reserves the right to amend
this drawing at any time. Users should evaluate
ROUGHNESS IN
the suitability of the product for their
MICRON
application.
DCR NUMBER:
REPLACES:
SEE TABLE
CAGE CODE :
SCALE:
2
SIZE:
16-Apr-11
SHEET:
mforonda
D050256
---
06090
---
A
1 of 1
Print Date: 9-May-11
© 2011 Tyco Electronics Corporation, a TE Connectivity Ltd. Company. All Rights Reserved.
If this document is printed it becomes uncontrolled. Check for the latest revision.
