2SC4106: DescriptionTransistor; CategoryDiscrete semiconductor The transistor; File Size246KB，2 Pages; ManufacturerInchange Semiconductor

Download Datasheet Parametric Compare View All

2SC4106 Overview

Transistor

2SC4106 Parametric

Parameter Name	Attribute value
Maker	Inchange Semiconductor
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
Maximum collector current (IC)	7 A
Collector-based maximum capacity	80 pF
Collector-emitter maximum voltage	400 V
Configuration	SINGLE
Minimum DC current gain (hFE)	10
Maximum landing time (tf)	300 ns
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Maximum power consumption environment	1.75 W
Maximum power dissipation(Abs)	50 W
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	20 MHz
Maximum off time (toff)	3000 ns
Maximum opening time (tons)	500 ns
VCEsat-Max	0.8 V
Base Number Matches	1

Preview

Download Datasheet

View All

INCHANGE Semiconductor

isc

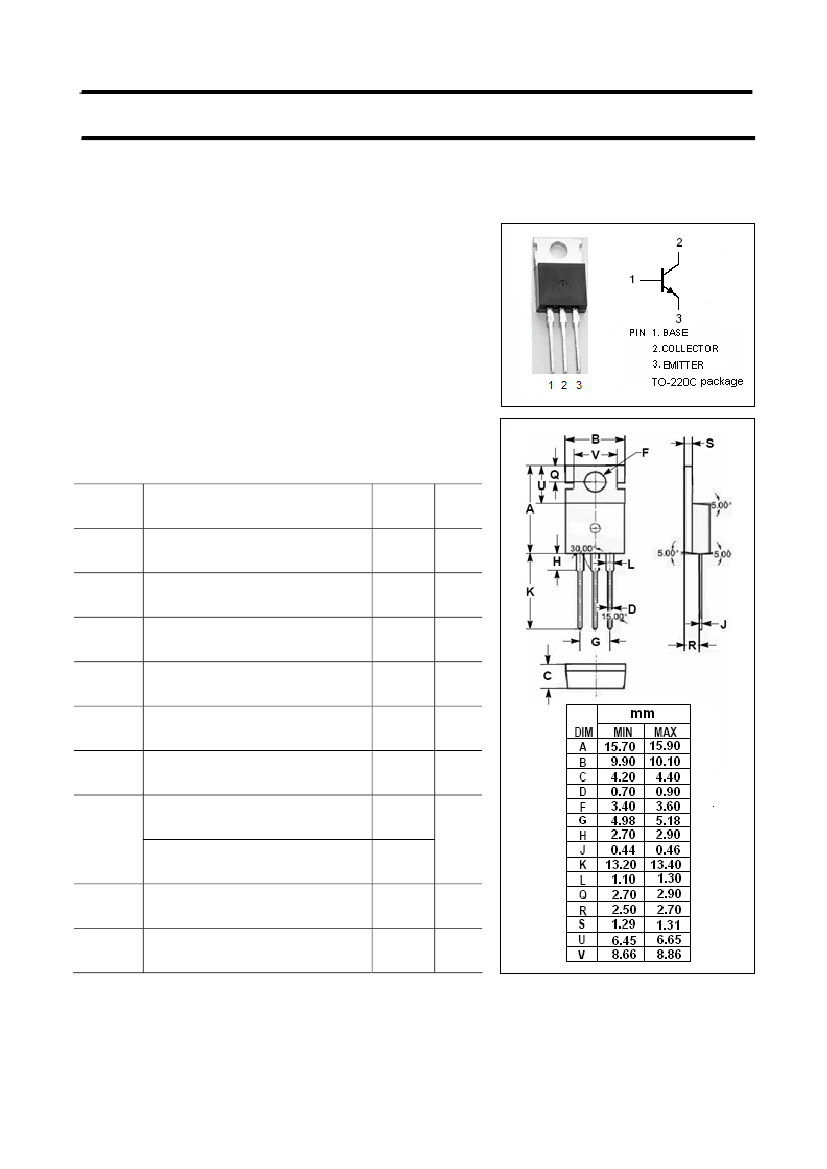

Product Specification

isc

Silicon NPN Power Transistor

2SC4106

DESCRIPTION

·High

Collector-Emitter Breakdown Voltage

: V

(BR)CEO

= 400V(Min.)

·High

Switching Speed

·Wide

Area of Safe Operation

APPLICATIONS

·Designed

for switching regulator applications

ABSOLUTE MAXIMUM RATINGS(Ta=25

℃)

SYMBOL

PARAMETER

V

CBO

Collector-Base Voltage

V

CEO

Collector-Emitter Voltage

V

EBO

Emitter-Base Voltage

I

C

Collector Current-Continuous

w

.cn

i

em

cs

.is

w

VALUE

UNIT

500

V

400

V

7

V

7

A

14

A

3

A

50

W

1.75

℃

I

CM

Collector Current-Peak

I

B

Base Current-Continuous

Collector Power Dissipation@T

C

=25℃

P

C

Collector Power Dissipation@T

a

=25℃

T

J

Junction Temperature

150

T

stg

Storage Temperature Range

-55~150

℃

isc Website：www.iscsemi.cn

2SC4106 Related Products

	2SC4106	2SC4106M	2SC4106L	2SC4106N
Description	Transistor	Transistor	Transistor	Transistor
Reach Compliance Code	unknown	unknow	unknow	unknow
Base Number Matches	1	1	1	1
