232-769/047-000 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 232-769/047-000

232-769/047-000: DescriptionBarrier Strip Terminal Block; CategoryThe connector terminals; File Size136KB，4 Pages; ManufacturerWAGO; Websitehttps://www.wago.com/

Download Datasheet Parametric View All

232-769/047-000 Overview

Barrier Strip Terminal Block

232-769/047-000 Parametric

Parameter Name	Attribute value
Maker	WAGO
Reach Compliance Code	unknown
ECCN code	EAR99
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

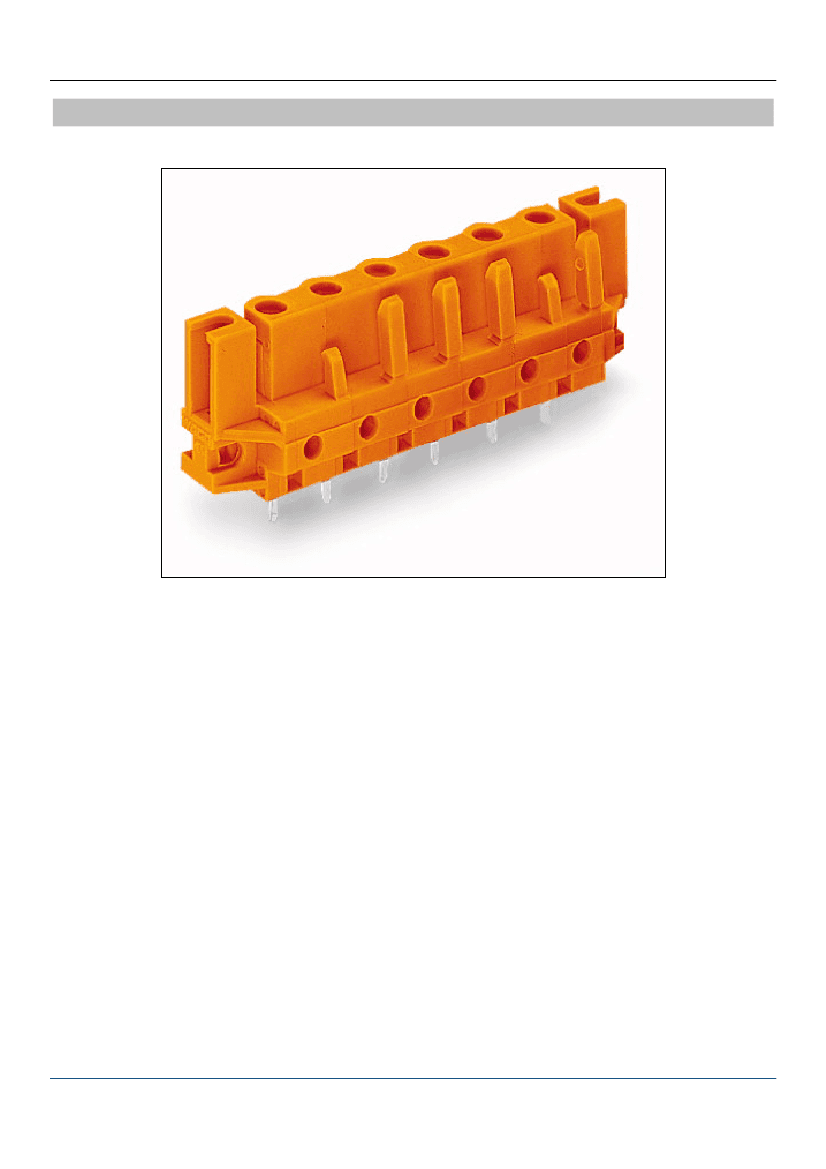

Printview: Female connector; with straight solder pins; 9-pole; with spacers; Pin spacing 7.62 mm / 0.3 in;

Solder pin 0.6x1 mm; codable; Vertical PCB mounting; with 2 locking latches - Item No.: 232-769/047-000

Female connector; with straight solder pins; 9-pole; with spacers;

Pin spacing 7.62 mm / 0.3 in; Solder pin 0.6x1 mm; codable;

Vertical PCB mounting; with 2 locking latches

Item No.: 232-769/047-000

Female connector; with straight solder pins; 9-pole; with spacers; Pin spacing 7.62 mm / 0.3 in; Solder pin 0.6x1 mm;

codable; Vertical PCB mounting; with 2 locking latches

Marking

Business data

Supplier

Item no.

GTIN / EAN

Content

Order amount

Customer item number

Notes

WAGO

232-769/047-000

4017332538145

Item description:Integrated test ports for 2mm Ø test plugsFor “board-to-board” and “board-to-wire”

connectionsTouch-proof PCB outputsEasy-to-identify PCB inputs and outputsCoding option available

Technical data

Miscellaneous

No. of poles

Pin spacing

Color

Ratings according to 1

Rated voltage (III / 3) [V]

Rated surge voltage (III / 3) [kV]

Rated voltage (III / 2) [V]

7.62 mm (0.3 in %)

orange

IEC/EN 60664-1

500 [V]

6 [kV]

630 [V]

WAGO Kontakttechnik GmbH & Co. KG
