3-120521-2: Description84 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE; CategoryThe connector The connector; File Size310KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

3-120521-2 Overview

84 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE

3-120521-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	PEG
body width	0.238 inch
subject depth	0.211 inch
body length	1.807 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN LEAD (150) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	120521
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	110 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.6068 mm
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.8 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	84
Base Number Matches	1

Preview

Download Datasheet

View All

8

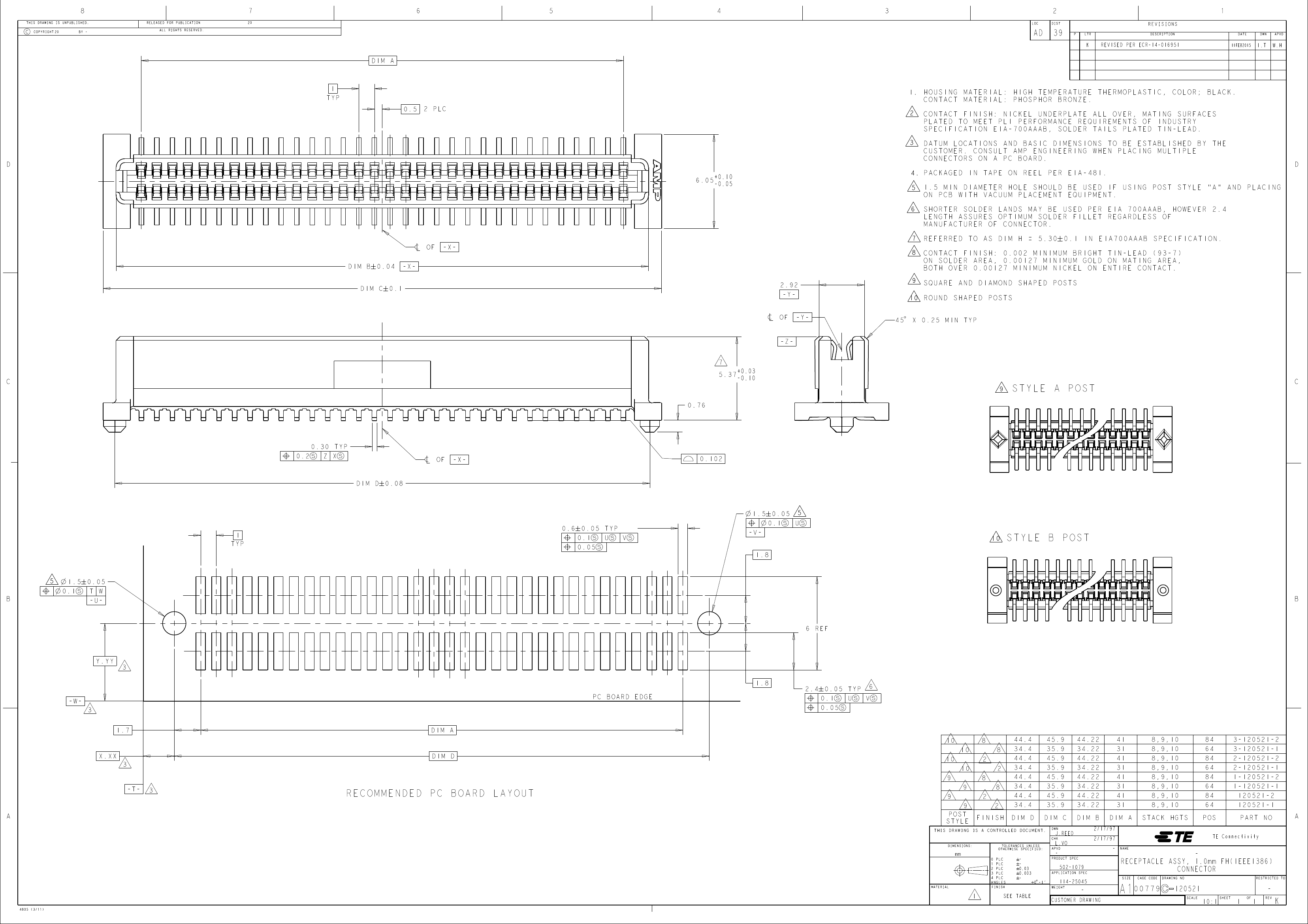

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

20

6

5

4

3

LOC

2

DIST

1

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

20

AD

DIM A

39

K

REVISED PER ECR-14-016951

11FEB2015

I.T

W.H

1

TYP

0.5

2 PLC

1.

2

HOUSING MATERIAL: HIGH TEMPERATURE THERMOPLASTIC, COLOR; BLACK.

CONTACT MATERIAL: PHOSPHOR BRONZE.

CONTACT FINISH: NICKEL UNDERPLATE ALL OVER, MATING SURFACES

PLATED TO MEET PL1 PERFORMANCE REQUIREMENTS OF INDUSTRY

SPECIFICATION EIA-700AAAB, SOLDER TAILS PLATED TIN-LEAD.

DATUM LOCATIONS AND BASIC DIMENSIONS TO BE ESTABLISHED BY THE

CUSTOMER. CONSULT AMP ENGINEERING WHEN PLACING MULTIPLE

CONNECTORS ON A PC BOARD.

3

D

+0.10

6.05

-0.05

4.

PACKAGED IN TAPE ON REEL PER EIA-481.

5

6

D

1.5 MIN DIAMETER HOLE SHOULD BE USED IF USING POST STYLE "A" AND PLACING

ON PCB WITH VACUUM PLACEMENT EQUIPMENT.

SHORTER SOLDER LANDS MAY BE USED PER EIA 700AAAB, HOWEVER 2.4

LENGTH ASSURES OPTIMUM SOLDER FILLET REGARDLESS OF

MANUFACTURER OF CONNECTOR.

REFERRED TO AS DIM H = 5.30 # 0.1 IN EIA700AAAB SPECIFICATION.

CONTACT FINISH: 0.002 MINIMUM BRIGHT TIN-LEAD (93-7)

ON SOLDER AREA, 0.00127 MINIMUM GOLD ON MATING AREA,

BOTH OVER 0.00127 MINIMUM NICKEL ON ENTIRE CONTACT.

SQUARE AND DIAMOND SHAPED POSTS

ROUND SHAPED POSTS

X 0.25 MIN TYP

-X-

DIM B # 0.04

DIM C # 0.1

-X-

2.92

-Y-

7

8

9

10

-Y-

45 $

-Z-

7

C

0.76

5.37

+0.03

-0.10

9

STYLE A POST

C

0.2 s

0.3 0 TYP

Z X s

-X-

DIM D # 0.08

0.102

1.5

1

TYP

0.6

0.1 s

TYP

U s

V s

-V-

1.8

0.05

5

U s

10

0.05 s

STYLE B POST

5

1.5

0.05

-U-

B

T W

B

6 REF

Y.YY

3

1.8

2.4

TYP

6

V s

-W-

PC BOARD EDGE

3

1.7

DIM A

0.1 s

0.05 s

U s

10

X.XX

3

-T-

DIM D

10

9

3

10

9

8

2

8

2

44.4

8

2

8

2

34.4

44.4

34.4

44.4

34.4

44.4

45.9

35.9

45.9

35.9

45.9

35.9

45.9

44.22

34.22

44.22

34.22

44.22

34.22

44.22

34.22

DIM B

2/17/97

-

41

31

41

31

41

31

41

8,9,10

STACK HGTS

84

64

84

64

84

64

84

3-120521-2

3-120521-1

2-120521-2

2-120521-1

1-120521-2

1-120521-1

120521-2

120521-1

PART NO

RECOMMENDED PC BOARD LAYOUT

9

A

9

POST

STYLE

34.4

DIM D

35.9

DIM C

DWN

CHK

31

64

FINISH

DIM A

POS

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

J.REED

L.VO

-

TE Connectivity

NAME

mm

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.03

0.003

-

PRODUCT SPEC

APPLICATION SPEC

502-1079

-

RECEPTACLE ASSY, 1.0mm FH(IEEE1386)

CONNECTOR

SIZE

CAGE CODE

DRAWING NO

0 $ -1'

WEIGHT

114-25045

1

4805 (3/11)

SEE TABLE

-

CUSTOMER DRAWING

A1

00779

RESTRICTED TO

120521

SCALE

10:1

SHEET

1

OF

1

REV

-

K
