Datasheet> All Categories > The connector> Connector bracket> 2-2205131-5

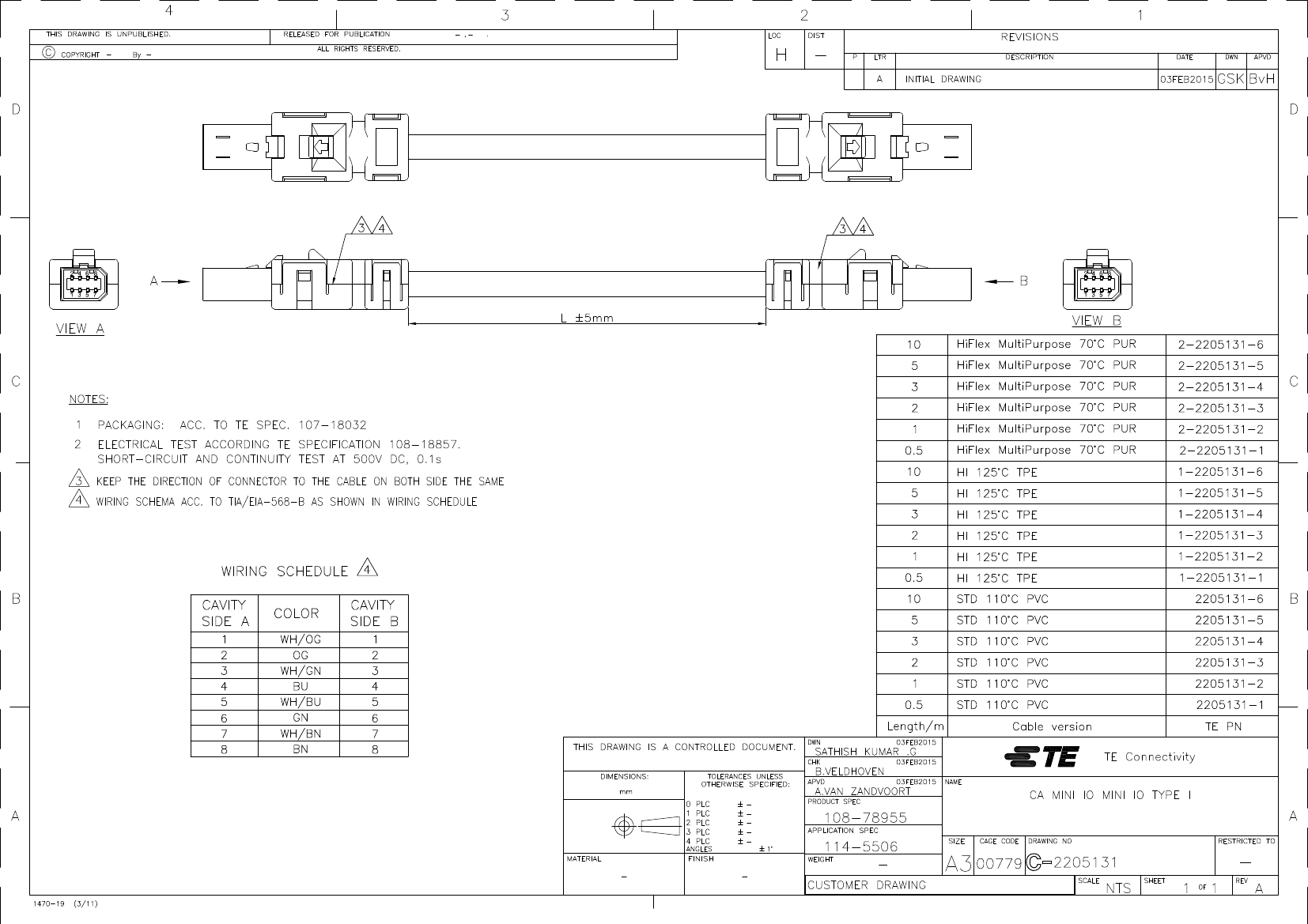

Preview

2-2205131-5: DescriptionCA MINI IO MINI IO TYPE I; CategoryThe connector Connector bracket; File Size71KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2-2205131-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-2205131-5	-	-	View	Buy Now

2-2205131-5 Overview

CA MINI IO MINI IO TYPE I

2-2205131-5 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Factory Lead Time	26 weeks 6 days
Connector bracket type	CABLE ASSEMBLY
Base Number Matches	1

Preview

Download Datasheet

View All

2-2205131-5 Related Products

	2-2205131-5	2-2205131-3	2-2205131-6	2-2205131-4	2-2205131-2	2-2205131-1
Description	CA MINI IO MINI IO TYPE I	CA MINI IO MINI IO TYPE I	CA MINI IO MINI IO TYPE I	CA MINI IO MINI IO TYPE I	CA MINI IO MINI IO TYPE I	CA MINI IO MINI IO TYPE I
Harness category	-	Industry standard	Industry standard	Industry standard	Industry standard	Industry standard
Cable assembly type	-	Small I/O	Small I/O	Small I/O	Small I/O	Small I/O
shield	-	yes	yes	yes	yes	yes
Connector type (A-side)	-	RJ45 plug	RJ45 plug	RJ45 plug	RJ45 plug	RJ45 plug
Connector type (B side)	-	RJ45 plug	RJ45 plug	RJ45 plug	RJ45 plug	RJ45 plug
product name	-	Jumper	Jumper	Jumper	Jumper	Jumper
performance category	-	Category 5E performance for 10/100/1000BASE-T	Category 5E performance for 10/100/1000BASE-T	Category 5E performance for 10/100/1000BASE-T	Category 5E performance for 10/100/1000BASE-T	Category 5E performance for 10/100/1000BASE-T
twisted pair	-	yes	yes	yes	yes	yes
Type of pin	-	sliding pin	sliding pin	sliding pin	sliding pin	sliding pin
Contacts	-	8	8	8	8	8
Number of signal positions	-	8	8	8	8	8
Configuration	-	Double ended	Double ended	Double ended	Double ended	Double ended
Impedance (Ω)	-	100	100	100	100	100
Data rate (Gb/s)	-	1	1	1	1	1
Insulating sleeve material	-	PUR	PUR	PUR	PUR	PUR
balanced	-	no	no	no	no	no
color	-	black	black	black	black	black
shielding material	-	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy
Terminal contact plating material	-	gold	gold	gold	gold	gold
Terminal contact plating thickness	-	.5 µm, 19.68 µin	.5 µm, 19.68 µin	.5 µm, 19.68 µin	.5 µm, 19.68 µin	.5 µm, 19.68 µin
locking screw	-	Without	Without	Without	Without	Without
Shell material	-	thermoplastic	thermoplastic	thermoplastic	thermoplastic	thermoplastic
Wire size (AWG)	-	26	26	26	26	26
Wire size (mm²)	-	.129	.129	.129	.129	.129
Overall cable outer diameter	-	.244 in, 6.2 mm	.244 in, 6.2 mm	.244 in, 6.2 mm	.244 in, 6.2 mm	.244 in, 6.2 mm
Halogen-free	-	yes	yes	yes	yes	yes
Flammability level	-	UL 444	UL 444	UL 444	UL 444	UL 444
IEEE 1394	-	no	no	no	no	no
Cable assembly length	-	2 m [ 6.56 ft ]	10 m [ 32.8 ft ]	3 m [ 9.84 ft ]	1 m [ 3.28 ft ]	.5 m [ 1.64 ft ]
CLOUDSPLITTER	-	no	no	no	no	no
