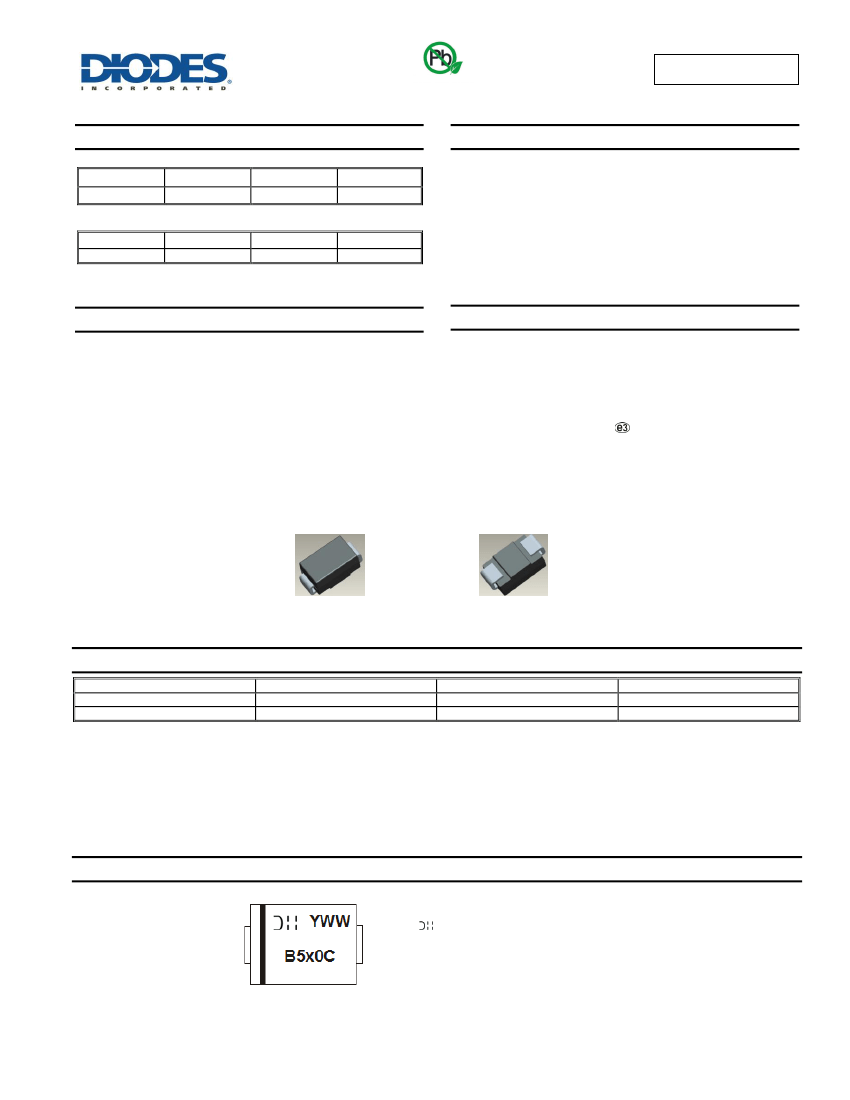

B520C - B560C
5.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Product Summary
B520C/B530C/B540C
V
RRM
(V)
20/30/40
B550C/B560C
V
RRM
(V)
50/60
I
O
(A)
5.0
V
F max
(V)
0.55
I
R max
(mA)
0.5
Features and Benefits
Guard Ring Die Construction for Transient Protection
Ideally Suited for Automated Assembly
Low Power Loss, High Efficiency
For Use in Low-Voltage, High-Frequency Inverters, Free
Wheeling, and Polarity Protection Application
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Notes 3)
Qualified to AEC-Q101 Standards for High Reliability
I
O
(A)
5.0
V
F max
(V)
0.70
I
R max
(mA)
0.5
Description and Applications
This Schottky Barrier Rectifier is designed to meet the general
requirements of commercial applications. It is ideally suited for use as
a:
Polarity Protection Diode
Re-Circulating Diode
Switching Diode
Mechanical Data
Case: SMC
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band or Cathode Notch
Weight: 0.21 grams (Approximate)
SMC
Top View
Bottom View
Ordering Information
(Note 4)
Part Number
B5xxC-13-F
B540CQ-13-F
* xx = Device type, e.g. B520C-13-F (SMC package).
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Compliance
Standard
Automotive
Case
SMC
SMC
Packaging
3,000/Tape & Reel
3,000/Tape & Reel
Marking Information
B5x0C = Product Type Marking Code, ex: B540C (SMC package)
= Manufacturers’ Code Marking
YWW = Date Code Marking
Y = Last Digit of Year (ex: 4 for 2014)
WW = Week Code (01 to 53)
x = 2,3,4,5 or 6 - i.e., x = 4 for B540C
B520C - B560C
Document number: DS13012 Rev. 17 - 2
1 of 5
www.diodes.com
July 2015
© Diodes Incorporated

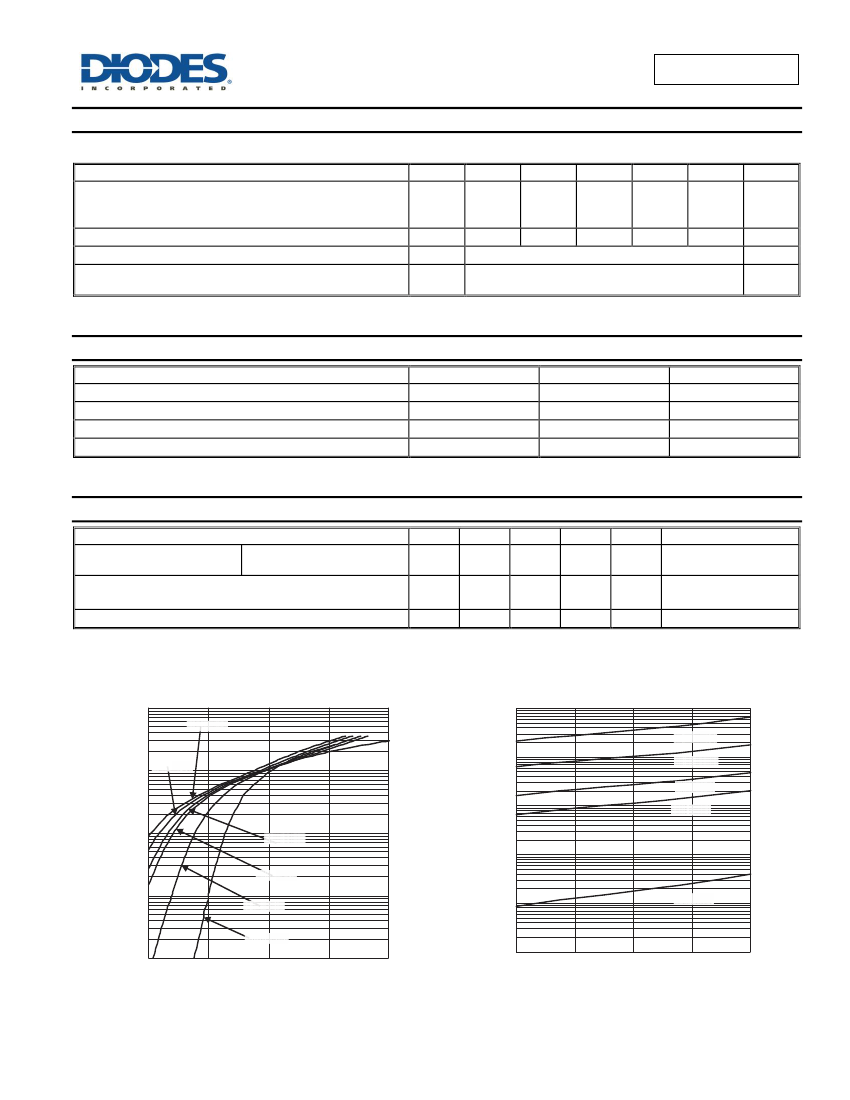

B520C - B560C
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current, 8.3 ms
Single Half-Sine-Wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
B520C
20
14
B530C
30
21
B540C
40
28
5.0
100
B550C
50
35
B560C
60
42
Unit
V
V
A
A
Thermal Characteristics
Characteristic
Thermal Resistance, Junction to Terminal
Thermal Resistance, Junction to Ambient (Note 5)
Operating Temperature Range
Storage Temperature Range
Symbol
R
θJT
R
θJA
T
J
T
STG
Value
10
50
-55 to +150
-55 to +150
Unit
°C/W
°C/W
°C
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Forward Voltage Drop
Leakage Current (Note 6)
Total Capacitance
Notes:
Symbol
B520C, B530C, B540C
B550C, B560C
V
F
I
R
C
T
Min
—
—
—
—
Typ
0.475
0.575
—
—
Max
0.55
0.70
0.5
20
300
Unit
V
mA
pF
Test Condition
I
F
= 5.0A, T
A
= +25°C
@ Rated V
R
, T
A
= +25°C
@ Rated V
R
, T
A
= +100°C
V
R
= 4V, f = 1MHz
—
—
5. Thermal Resistance: Junction to ambient, unit mounted on PC board with 8.0 mm
2
(0.033 mm thick) copper pads as heat sink.
6. Short duration pulse test used to minimize self-heating effect.
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
T
A
= 150°C
I
R
, INSTANTANEOUS REVERSE CURRENT (mA)
100
100
T
A
= 150°C
10
10
T
A
= 125°C
T
A
= 125°C
T
A
= 100°C
1
T
A
= 85°C
1
T
A
= 100°C
0.1
T
A
= 85°C
0.1
T
A
= 25°C
0.01
T
A
= 25°C
T
A
= -55°C
0.01
0.2
0.4
0.6
0.8
1.0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Figure 1 Typical Forward Characteristics (B520C - B540C)
0.001
20
40
60
80
100
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Figure 2 Typical Reverse Characteristics (B520C - B540C)
B520C - B560C
Document number: DS13012 Rev. 17 - 2
2 of 5
www.diodes.com
July 2015
© Diodes Incorporated
B520C - B560C
f = 1MHz
C
T
, TOTAL CAPACITANCE (pF)
800
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
1,000
100
T
A
= 150°C
10
T
A
= 125°C
600
1
T
A
= 100°C
400
200
0.1
T
A
= 75°C
T
A
= 25°C
0
0
1
10
V
R
, DC REVERSE VOLTAGE (V)

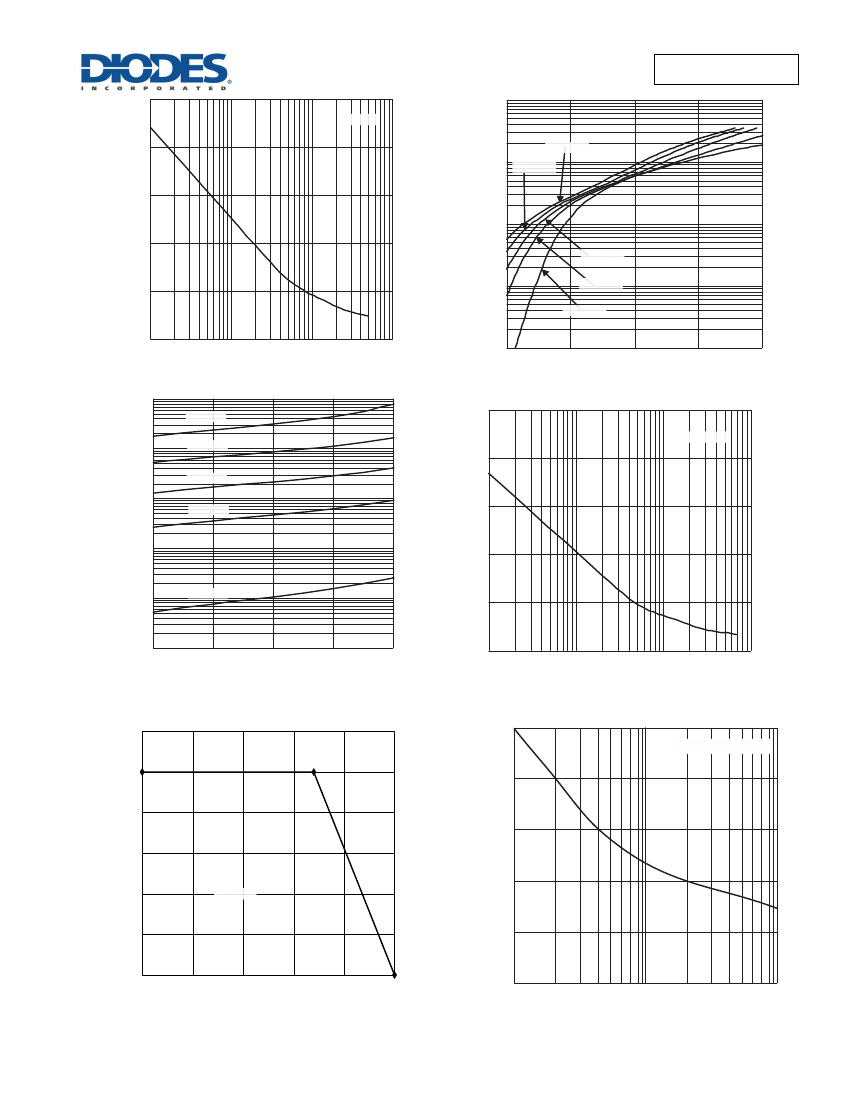

Figure 3 Total Capacitance vs.
Reverse Voltage (B520C - B540C)
T
A
= 150°C
T
A
= 125°C
100
0.01
0.2
0.4
0.6
0.8
1.0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Figure 4 Typical Forward Characteristics (B550C-B560C)
1000
f = 1MHz
I
R
, INSTANTANEOUS REVERSE CURRENT (mA)
100
10
T
A
= 100°C
1
T
A
= 75°C
C
T
, TOTAL CAPACITANCE (pF)
800
600
0.1
400
0.01
T
A
= 25°C
200
0.001
20
40
60
80
100
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Figure 5 Typical Reverse Characteristics (B550C-B560C)
0
0
1
10
V
R
, DC REVERSE VOLTAGE (V)
Figure 6 Total Capacitance vs.
Reverse Voltage (B550C-B560C)
100
6
175
I
F
, DC FORWARD CURRENT (A)
5
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
Single Half-Sine-Wave
140
4
105
3
2
70
Note 7
1
35
0
25
50
75
100
125
150
T
T
, TERMINAL TEMPERATURE (
°
C)
Figure 7 DC Forward Current Derating
Note:
10
100
NUMBER OF CYCLES AT 60 Hz
Fig. 8 Max Non-Repetitive Peak Forward Surge Current
0
1
7. Device mounted on FR-4 substrate, 1" x 1", 2oz, single-sided, PC boards with 0.56" x 0.73" copper pad.
B520C - B560C
Document number: DS13012 Rev. 17 - 2
3 of 5
www.diodes.com
July 2015
© Diodes Incorporated
B520C - B560C
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
B
SMC
Dim
Min
Max
A
5.59
6.22
B
6.60
7.11
C
2.75
3.18
D
0.15
0.31
E
7.75
8.13
G
0.10
0.20
H
0.76
1.52
J
2.00
2.50
All Dimensions in mm
A
C
D
J
H
G
E
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
X1
X
Dimensions
C
G
X
X1
Y
G
C
Y
Value
(in mm)
6.90
4.40
2.50
9.40
3.30
B520C - B560C
Document number: DS13012 Rev. 17 - 2
4 of 5
www.diodes.com
July 2015
© Diodes Incorporated
B520C - B560C
