22759/33-28-0: Description22759/33-28-0; CategoryWire/cable; File Size54KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

22759/33-28-0 Overview

22759/33-28-0

22759/33-28-0 Parametric

Parameter Name	Attribute value
Cable type	Spec 55A
Cable type	primary
Product Categories	Cables - High Performance - Spec 44, 55 and RCW
Number of shares	7
Number of conductors	1
Rated voltage (V)	600
Wire color	black
Stock size (AWG)	36
Wire size (AWG)	28
Wire size (mm²)	.08
Conductor diameter	.38 mm [ .015 in ]
Overall outer diameter	.69 mm [ .027 in ]
Insulation thickness (in)	.005
Wire diameter	.69 mm [ .027 in ]
Operating temperature range (°C)	-65 – 200
Wire source	USA

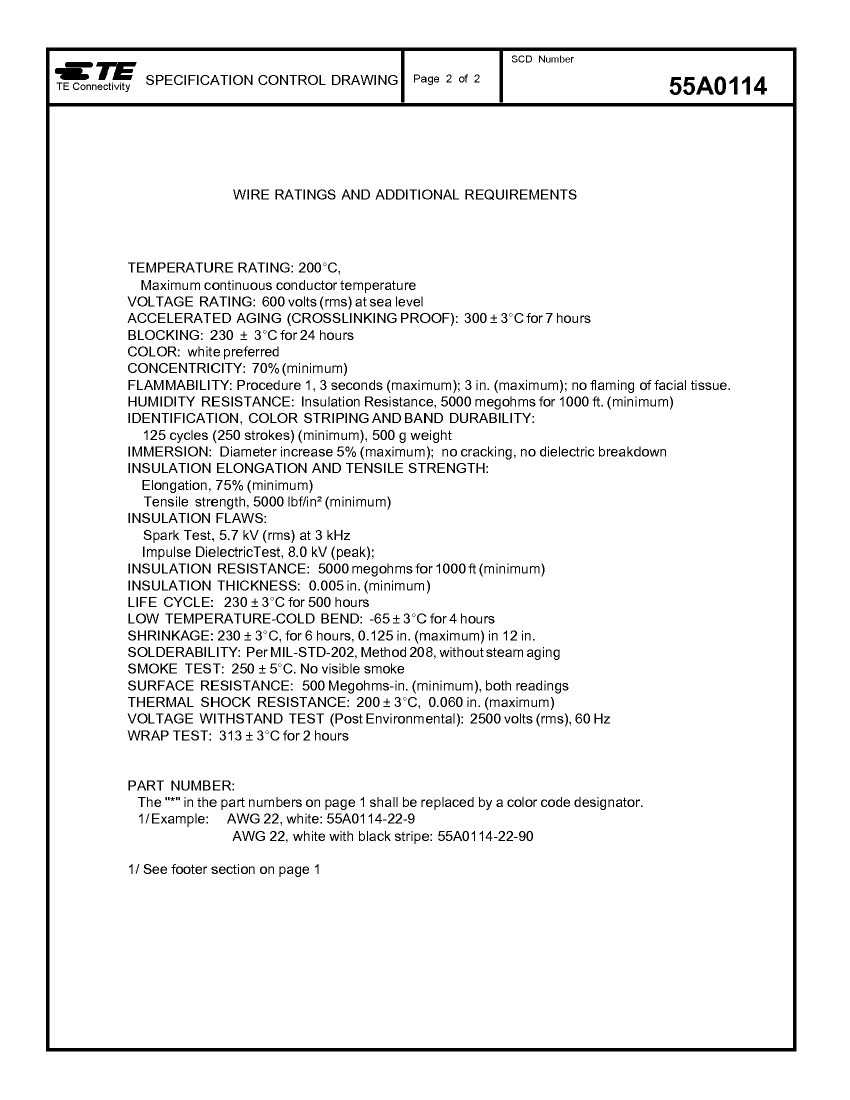

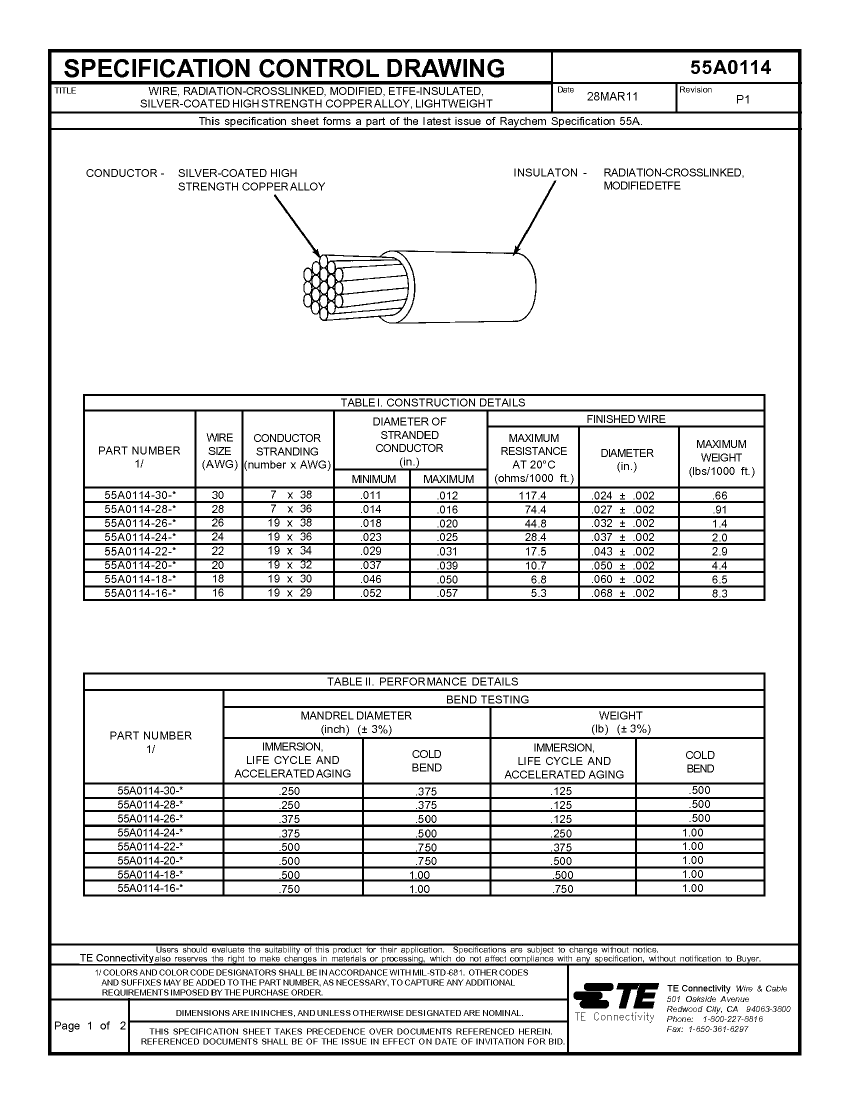

Preview

Download Datasheet

View All

22759/33-28-0 Related Products

	22759/33-28-0	22759/33-28-9	22759/33-26-3	55A0114-26-9	22759/33-26-6	55A0114-26-0	22759/33-26-2	22759/33-26-5	55A0114-26-6	55A0114-28-9
Description	22759/33-28-0	22759/33-28-9	22759/33-26-3	55A0114-26-9	22759/33-26-6	55A0114-26-0	22759/33-26-2	22759/33-26-5	55A0114-26-6	55A0114-28-9
Product Categories	Cables - High Performance - Spec 44, 55 and RCW	Cables - High Performance - Spec 44, 55 and RCW	Cables - High Performance - Spec 44, 55 and RCW	High performance - Spec 44, 55 and RCW	Cables - High Performance - Spec 44, 55 and RCW	High performance - Spec 44, 55 and RCW	Cables - High Performance - Spec 44, 55 and RCW	Cables - High Performance - Spec 44, 55 and RCW	High performance - Spec 44, 55 and RCW	High performance - Spec 44, 55 and RCW
Number of shares	7	7	19	19	19	19	19	19	19	7
Number of conductors	1	1	1	1	1	1	1	1	1	1
Rated voltage (V)	600	600	600	600	600	600	600	600	600	600
Wire color	black	White	orange color	White	blue	black	red	green	blue	White
Stock size (AWG)	36	36	38	38	38	38	38	38	38	36
Wire size (AWG)	28	28	26	26	26	26	26	26	26	28
Wire size (mm²)	.08	.08	.13	.13	.13	.13	.13	.13	.13	.08
Conductor diameter	.38 mm [ .015 in ]	.38 mm [ .015 in ]	.5 mm [ .02 in ]	.5 mm [ .02 in ]	.482 mm [ .019 in ]	.5 mm [ .02 in ]	.5 mm [ .02 in ]	.5 mm [ .02 in ]	.5 mm [ .02 in ]	.38 mm [ .015 in ]
Wire diameter	.69 mm [ .027 in ]	.69 mm [ .027 in ]	.81 mm [ .032 in ]	.81 mm [ .032 in ]	.81 mm [ .032 in ]	.81 mm [ .032 in ]	.81 mm [ .032 in ]	.81 mm [ .032 in ]	.81 mm [ .032 in ]	.69 mm [ .027 in ]
Operating temperature range (°C)	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-65 – 200
Wire source	USA	USA	USA	USA	USA	USA	USA	USA	USA	USA
Cable type	primary	primary	primary	primary	primary	primary	primary	primary	primary	primary
Overall outer diameter	.69 mm [ .027 in ]	.69 mm [ .027 in ]	.81 mm [ .032 in ]	-	.81 mm [ .032 in ]	.81 mm [ .032 in ]	.81 mm [ .032 in ]	.81 mm [ .032 in ]	.81 mm [ .032 in ]	.69 mm [ .027 in ]
Insulation thickness (in)	.005	.005	.005	.005	-	.005	.005	-	.005	.005
