2102086-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2102086-1

2102086-1: DescriptionFortis Zd 2Pr 10Col R/A Left Module Assy; CategoryThe connector The connector; File Size215KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2102086-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2102086-1	-	-	View	Buy Now

2102086-1 Overview

Fortis Zd 2Pr 10Col R/A Left Module Assy

2102086-1 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Objectid	1643404610
Reach Compliance Code	compliant
Factory Lead Time	7 weeks 2 days
Samacsys Description	Fortis Zd 2Pr 10Col R/A Left Module Assy
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-10 06:33:16
YTEOL	8.7
Other features	SHROUDED
body width	0.591 inch
subject depth	0.87 inch
body length	0.844 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT APPLICABLE
contact mode	RECTANGULAR
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	NO
Power Connector Ratings	1.5A
Plug contact pitch	0.075 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	PANEL
Number of connectors	ONE
PCB row number	6
Number of ports	1
Number of rows loaded	6
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.4 mm
Panel mounting	NO
Plating thickness	50u inch
Rated current (signal)	1.5 A
Terminal length	0.087 inch
Terminal pitch	0.08 mm
Termination type	SOLDER
Total number of contacts	60

Preview

Download Datasheet

View All

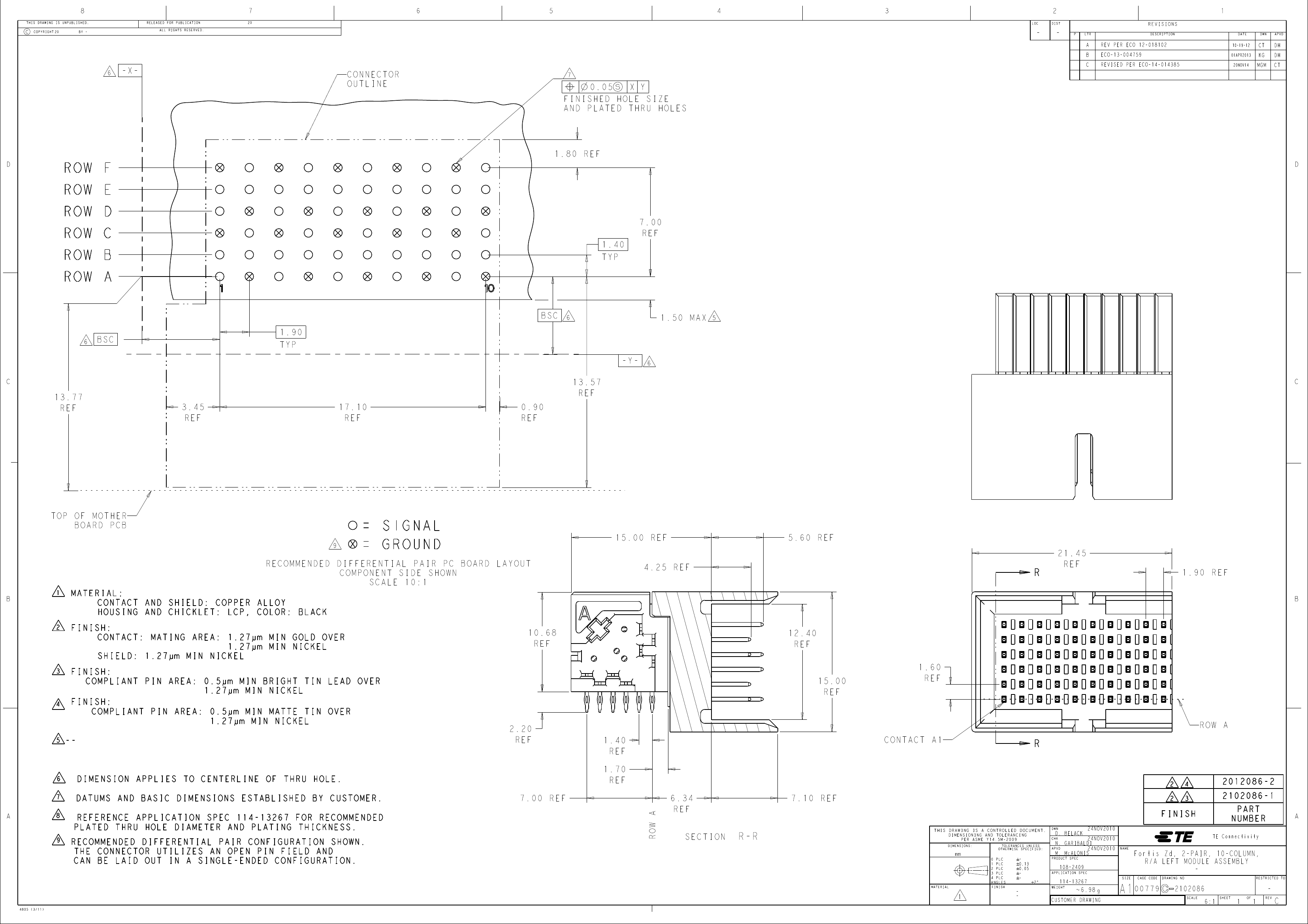

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REV PER ECO 12-018102

ECO-13-004759

REVISED PER ECO-14-014385

10-19-12

01APR2013

20NOV14

MGM

-X-

CONNECTOR

OUTLINE

FINISHED HOLE SIZE

AND PLATED THRU HOLES

1.80

REF

1.40

TYP

7.00

REF

BSC

1.50

MAX

BSC

1.90

TYP

-Y-

13.77

REF

13.57

REF

3.45

REF

17.10

REF

0.90

REF

TOP OF MOTHER

BOARD PCB

15.00

REF

4.25

REF

5.60

REF

21.45

REF

MATERIAL:

CONTACT AND SHIELD: COPPER A

HOUSING AND CHICKLET: LCP, C

FINISH:

CONTACT: MATING AREA: 1.27µm

1.27µm

SHIELD: 1.27µm MIN NICKEL

FINISH:

COMPLIANT PIN AREA: 0.5µm MIN

1.27µm MIN

FINISH:

COMPLIANT PIN AREA: 0.5µm MIN

1.27µm MI

RECOMMENDED DIFFERENTIAL PAIR PC BOARD LAYOUT

COMPONENT SIDE SHOWN

SCALE 10:1

LLOY

OLOR: BLACK

MIN GOLD OVER

MIN NICKEL

10.68

REF

1.90

REF

12.40

REF

1.60

REF

BRIGHT TIN LEAD OVER

NICKEL

MATTE TIN OVER

N NICKEL

15.00

REF

2.20

REF

ROW A

1.40

REF

1.70

REF

CONTACT A1

DIMENSION APPLIES TO CENTERLINE OF

DATUMS AND BASIC DIMENSIONS ESTABL

REFERENCE APPLICATION SPEC 114-132

PLATED THRU HOLE DIAMETER AND PL

RECOMMENDED DIFFERENTIAL PAIR CONFI

THE CONNECTOR UTILIZES AN OPEN P

CAN BE LAID OUT IN A SINGLE-ENDE

THRU HOLE.

ISHED BY CUSTOMER.

67 FOR RECOMMENDED

ATING THICKNESS.

GURATION SHOWN.

IN FIELD AND

D CONFIGURATION.

7.00

REF

2012086-2

2102086-1

PART

NUMBER

ROW A

6.34

REF

SECTION

7.10

REF

DWN

CHK

FINISH

R-R

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONING AND TOLERANCING

PER ASME Y14.5M-2009

DIMENSIONS:

D. BELACK

N. GARIBALDI

M. McALONIS

108-2409

24NOV2010

NAME

TE Connectivity

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.13

0.05

PRODUCT SPEC

APPLICATION SPEC

2°

4805 (3/11)

WEIGHT

114-13267

CUSTOMER DRAWING

6.98

00779

SIZE

Fortis Zd, 2-PAIR, 10-COLUMN,

R/A LEFT MODULE ASSEMBLY

CAGE CODE

DRAWING NO

RESTRICTED TO

2102086

SCALE

6:1

SHEET

REV
