Datasheet> All Categories > Discrete semiconductor> The transistor> 2N7222DPBF

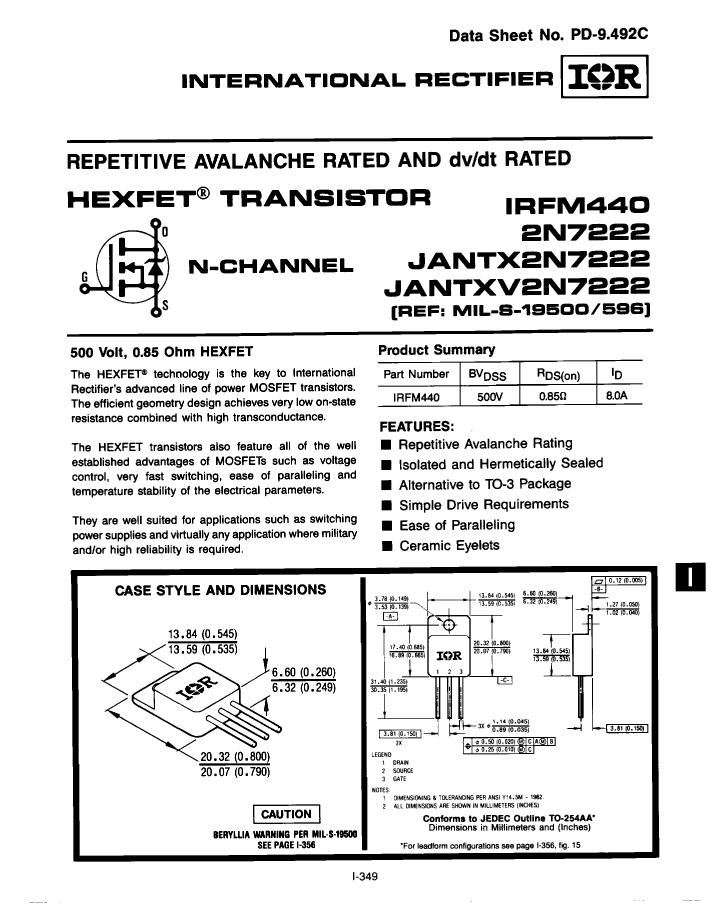

Preview

2N7222DPBF: DescriptionPower Field-Effect Transistor, 8A I(D), 500V, 0.95ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA; CategoryDiscrete semiconductor The transistor; File Size226KB，8 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

2N7222DPBF Overview

Power Field-Effect Transistor, 8A I(D), 500V, 0.95ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA

2N7222DPBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
package instruction	FLANGE MOUNT, R-MSFM-P3
Reach Compliance Code	compliant
Avalanche Energy Efficiency Rating (Eas)	700 mJ
Shell connection	ISOLATED
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	500 V
Maximum drain current (ID)	8 A
Maximum drain-source on-resistance	0.95 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-254AA
JESD-30 code	R-MSFM-P3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	METAL
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	125 W
Maximum pulsed drain current (IDM)	32 A
Certification status	Not Qualified
surface mount	NO
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum time at peak reflow temperature	40
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	123 ns
Maximum opening time (tons)	94 ns
Base Number Matches	1

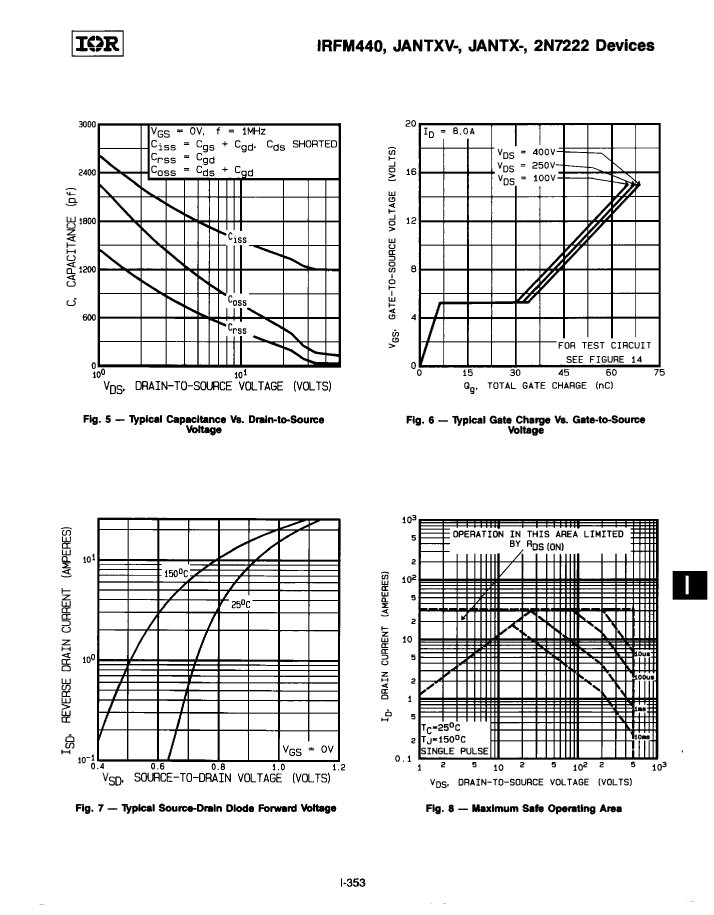

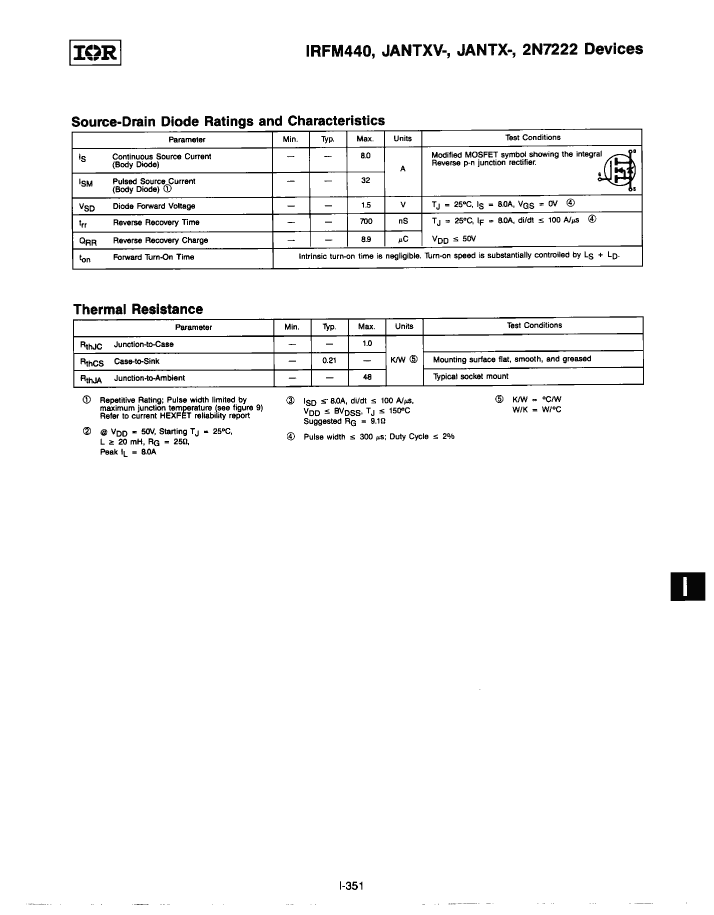

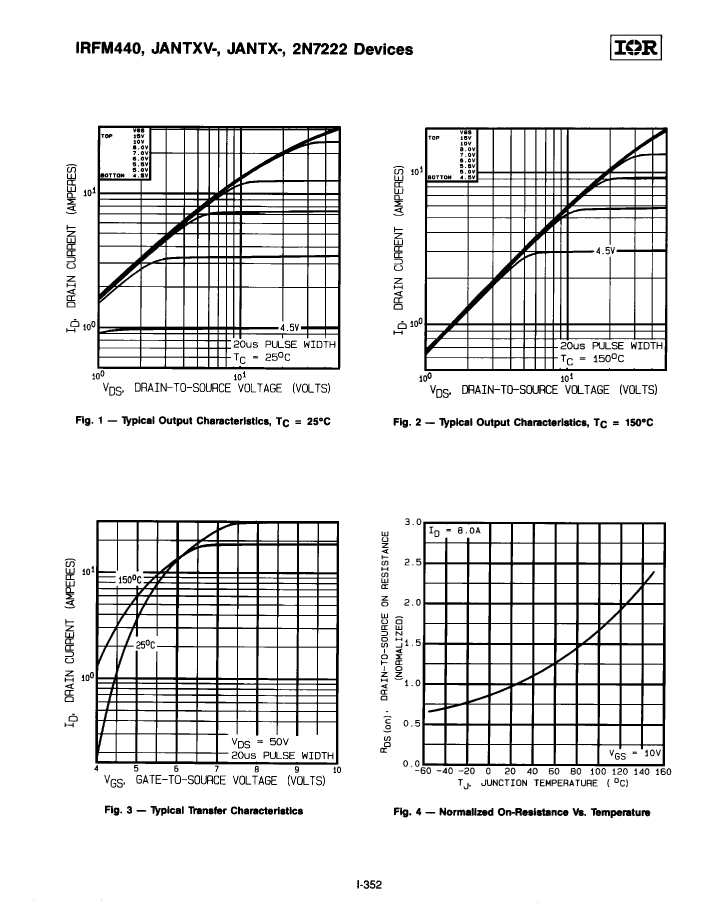

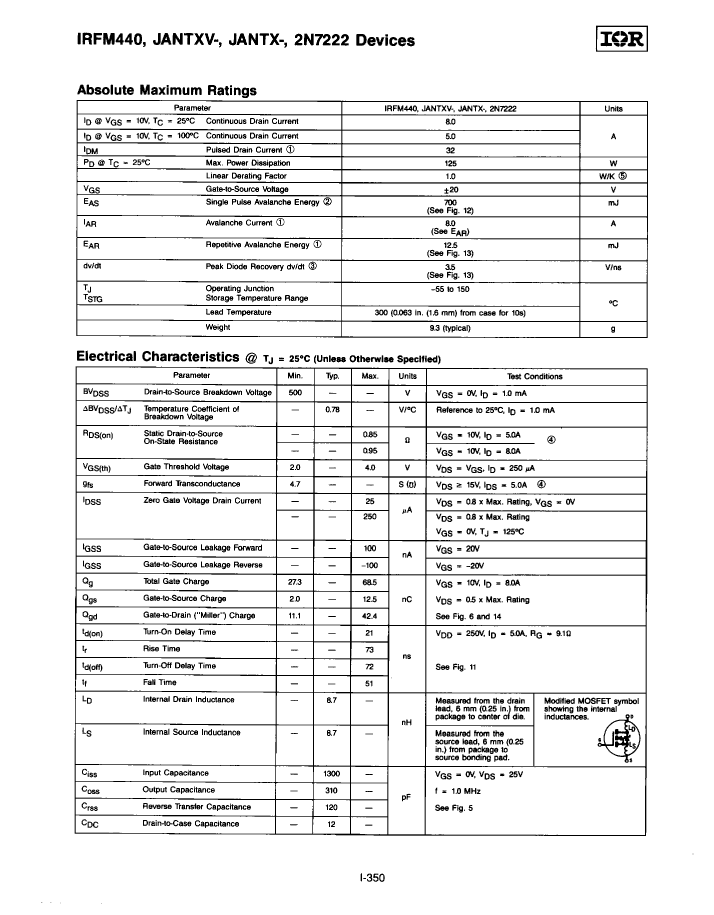

Preview

Download Datasheet

View All

2N7222DPBF Related Products

	2N7222DPBF	2N7222D	2N7222U	JANTX2N7222D	JANTXV2N7222D
Description	Power Field-Effect Transistor, 8A I(D), 500V, 0.95ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA	Power Field-Effect Transistor, 8A I(D), 500V, 0.95ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA	Power Field-Effect Transistor, 8A I(D), 500V, 0.95ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA	Power Field-Effect Transistor, 8A I(D), 500V, 0.95ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA	Power Field-Effect Transistor, 8A I(D), 500V, 0.95ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA
Is it Rohs certified?	conform to	incompatible	incompatible	incompatible	incompatible
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	FLANGE MOUNT, R-MSFM-P3	FLANGE MOUNT, R-MSFM-P3	FLANGE MOUNT, R-MSFM-P3	FLANGE MOUNT, R-MSFM-P3	FLANGE MOUNT, R-MSFM-P3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Avalanche Energy Efficiency Rating (Eas)	700 mJ	700 mJ	700 mJ	700 mJ	700 mJ
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	500 V	500 V	500 V	500 V	500 V
Maximum drain current (ID)	8 A	8 A	8 A	8 A	8 A
Maximum drain-source on-resistance	0.95 Ω	0.95 Ω	0.95 Ω	0.95 Ω	0.95 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-254AA	TO-254AA	TO-254AA	TO-254AA	TO-254AA
JESD-30 code	R-MSFM-P3	R-MSFM-P3	R-MSFM-P3	R-MSFM-P3	R-MSFM-P3
Number of components	1	1	1	1	1
Number of terminals	3	3	3	3	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	METAL	METAL	METAL	METAL	METAL
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Maximum power consumption environment	125 W	125 W	125 W	125 W	125 W
Maximum pulsed drain current (IDM)	32 A	32 A	32 A	32 A	32 A
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	40	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Maximum off time (toff)	123 ns	123 ns	123 ns	123 ns	123 ns
Maximum opening time (tons)	94 ns	94 ns	94 ns	94 ns	94 ns
Base Number Matches	1	1	1	1	1
Is it lead-free?	Lead free	Contains lead	-	Contains lead	Contains lead
JESD-609 code	-	e0	e0	e0	e0
Terminal surface	-	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD
