ZHD-SCE
LOW FIRE HAZARD
DIESEL RESISTANT
H E AT S H R I N K I D E N T I F I C AT I O N S Y S T E M
Technical Datasheet
TTDS-263 Revision 7 April 2017
ZHD-SCE Zero Halogen, Diesel Resistant, Heat Shrink Identification Marker Sleeves for the
identification of wires and cables.

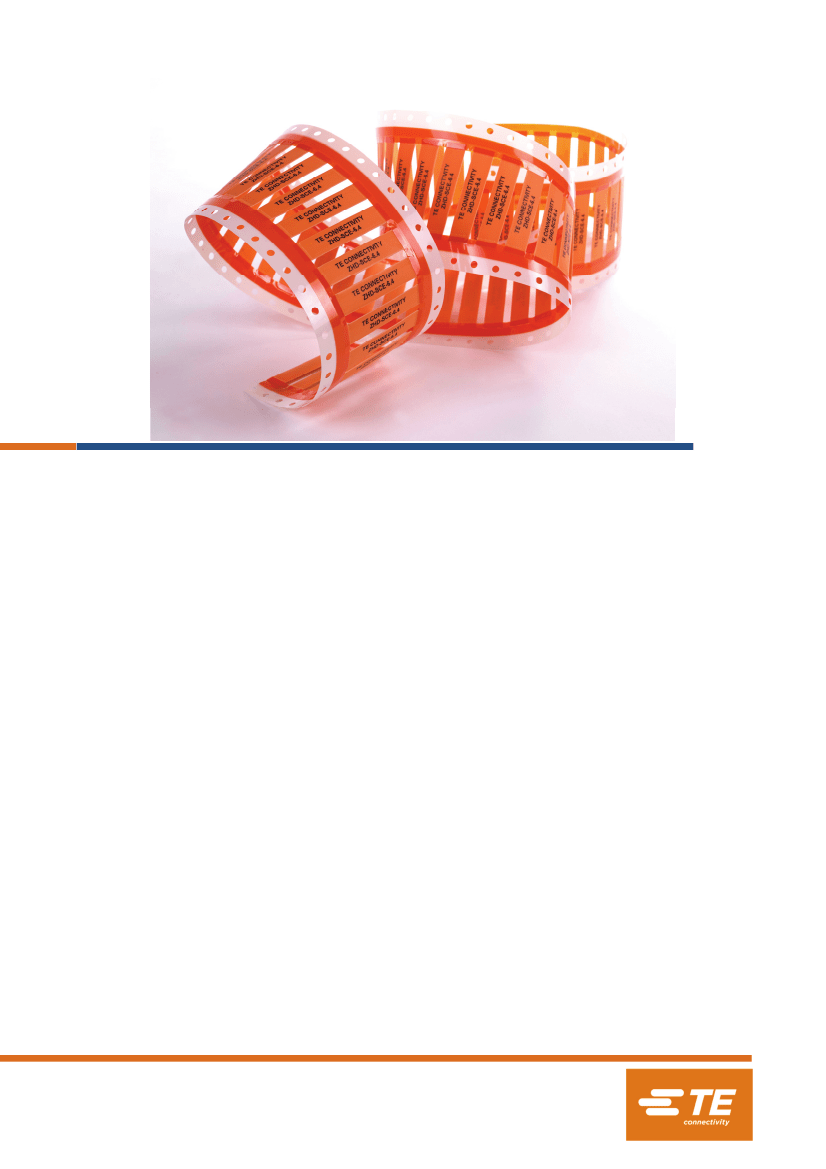

ZHD-SCE is presented as cut sleeves organised in ladder format.
Manufactured using a specially developed radiation cross-linked, zero halogen material.
ZHD-SCE is designed specifically to bridge the gap for installations where the highest
performance is demanded from an identification sleeve, without compromising on safety or
capability.
ZHD-SCE Heat Shrink Identification Marker Sleeves are available as part of a complete
identification system. The system comprises specific printers, thermal transfer ribbons and
WINTOTAL software.
PAGE 1
CLASS 1 DATA CLASSIFICATION - SEE POLICY TEC-02-04
TTDS-263 ZHD-SCE HEAT SHRINK IDENTIFICATION MARKER SLEEVES
ZHD-SCE, LOW FIRE HAZARD, DIESEL RESISTANT
Features
•
Zero Halogen
•
Low Toxic Fumes
•
Non-flame propagating
•
Resistant to key rail and industrial fluids including
diesel (defined by RW-2536)
Environmental Compliance
•
No Halogens, Sulphur, Nitrogen, Phosphorus and
Cadmium sources above trace level. The flame re-
tardant used in this product does not contain mela-
mine cyanurate
•
Further information and a downloadable declaration
covering RoHS and REACH compliance can be found
at the ‘TE Product Compliance Support Centre’:
http://www.te.com/usa-en/utilities/product-
compliance.html
•
Sleeve diameters from 2.4mm to 38.1mm
•
Shrink ratio 2:1
•
Pre-termination Cable Identification
Temperature Rating
•
-55°C to 125°C (-67°F to 257°F)
Applications
Shelf Life
•
Refer to TE document 408-121006 Cable Identification
Shelf Life
Specifications / Approvals
TE Connectivity Standard
Rail Standards
RW-2536
EN45545-2,
Hazard Classifications 1 and 2, In accordance with
requirement set R22/R23
BS 6853
Code of practice for fire precautions in the design and construction of
passenger carrying trains.
Interior minor use of materials of mass 100g to 500g vehicle category II
EN 50343
Rolling stock applications - Rolling stock - Rules for installation of cabling
- Appendix H
NFPA 130
Standard for Fixed Guideway Transit and Passenger Rail Systems,
Fire protection requirements, Interior Fire Propagation Resistance
Federal Railroad Administration,
DOT, Appendix B to Part 238, Test Methods
and Performance Criteria for the Flammability and Smoke Emission Characteristics of
Materials used in Passenger Cars and Locomotive Cabs
SHAZAINENNSHI,
Japan Railway Rolling Stock & Machinery Association 2003
Classification ‘Flame Retardant’ Serial number 2015-166K
Where possible, TE has tested product as a finished item, including the print. Operational tests are followed by an
assessment of mark adherence to validate fit form and function. Further details can be found in TE standard RW-2536.
PAGE 2
CLASS 1 DATA CLASSIFICATION - SEE POLICY TEC-02-04
TTDS-263 ZHD-SCE HEAT SHRINK IDENTIFICATION MARKER SLEEVES
ZHD-SCE
LOW FIRE HAZARD, DIESEL RESISTANT

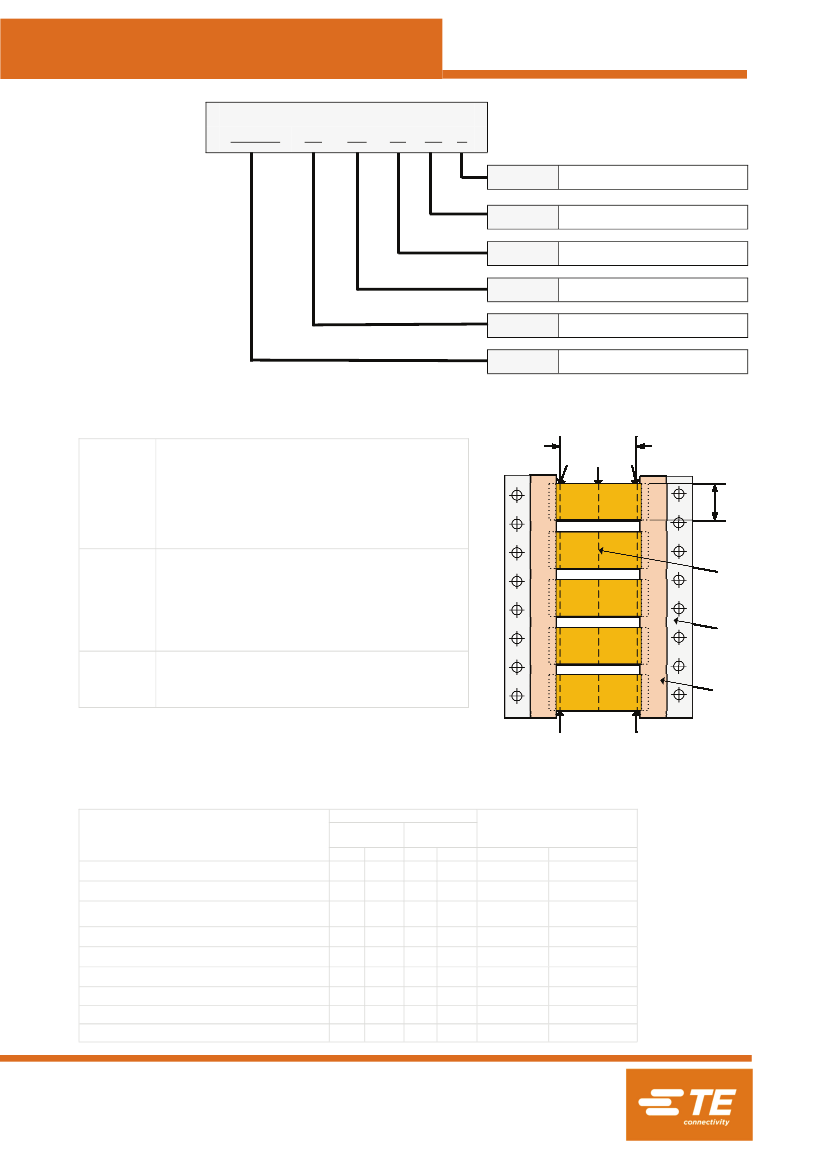

Part Description
ZHD-SCE
-1K
-4.8
-50
-S1
-9
9
Colour
S1
50
4.8
1K
ZHD-SCE
Scoring (Optional)
Sleeve Length (mm)
Expanded Inside Diameter (mm)
Pack size
Product family
Options
Pre-scoring
Perforated score to produce multiple marker sleeves from each
ZHD-SCE sleeve.
Not scored
Code
Blank
Side scored
Code
SS
Sided scored with one
pre-score
1 Pre-score
2 Pre-scores
Packaging sizes
<blank>
1K
2.5K
5K
Colours
Code
Code
Yellow
4
Red
2
Code
Code
Code
SS1
S1
S2
PRE-SCORE
(S1)
49 (0.92 NOMINAL)
PERFORATIONS
SLEEVE
PRINT
WIDTH
250 piece packs available for all sizes
1000 piece reels available for all sizes up
to 25.4
2500 piece reels available for sizes
4.8 up to 25.4
5000 piece reels available for sizes
2.4 and 3.2
White
9
Green
Blue
Orange
5
6
3
SIDE SCORE
(SS)
CARRIER
FIXING TAPE
Specify product name, pack size (leave blank for 250), sleeve size (in mm),
sleeve length (always 50), pre-score (leave blank if not required) and colour
Dimensions in mm (inches)
Ordering Information
Ordering description
Inside diameter
As supplied
After recovery
(minimum)
(Maximum)
mm
ZHD-SCE - <pack size> - 2.4 - 50 - <score> - <colour>
ZHD-SCE - <pack size> - 3.2 - 50 - <score> - <colour>
ZHD-SCE - <pack size> - 4.8 - 50 - <score> - <colour>
ZHD-SCE - <pack size> - 6.4 - 50 - <score> - <colour>
ZHD-SCE - <pack size> - 9.5 - 50 - <score> - <colour>
ZHD-SCE - <pack size> - 12.7 - 50 - <score> - <colour>
ZHD-SCE - <pack size> - 19.0 - 50 - <score> - <colour>
ZHD-SCE - <pack size> - 25.4 - 50 - <score> - <colour>
ZHD-SCE - 38.1 - 50 - <score> - <colour>
2.4
3.2
4.8
6.4
9.5
12.7
19.0
25.4
38.1
inches
0.094
0.126
0.189
0.250
0.375
0.500
0.730
1.000
1.500
mm
1.19
1.58
2.36
3.18
4.75
6.35
9.53
12.70
19.05
inches
0.047
0.060
0.090
0.125
0.187
0.250
Recommended cable diameter use
range
mm
1.27 to 1.90
1.77 to 2.66
2.54 to 4.06
3.81 to 5.46
5.59 to 8.12
6.99 to 10.79
inches
0.050 to 0.075
0.069 to 0.105
0.100 to 0.160
0.150 to 0.215
0.220 to 0.320
0.275 to 0.425
0.400 to 0.640
0.563 to 0.850
0.825 to 1.300
0.375 10.16 to 16.25
0.500 14.29 to 21.59
0.750 20.95 to 33.02
PAGE 3
CLASS 1 DATA CLASSIFICATION - SEE POLICY TEC-02-04
TTDS-263 ZHD-SCE HEAT SHRINK IDENTIFICATION MARKER SLEEVES
ZHD-SCE
LOW FIRE HAZARD, DIESEL RESISTANT

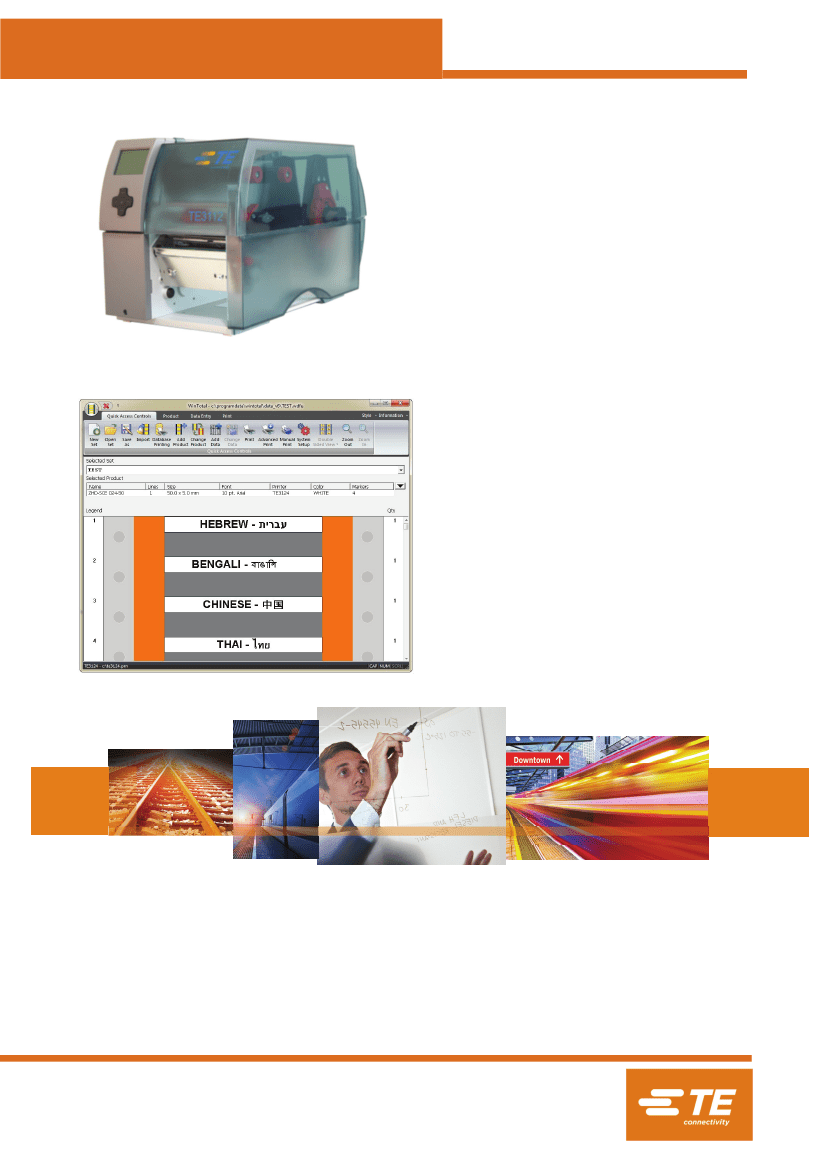

Printer Information
Print quality and print performance can only be
guaranteed when specific TE printer and ribbons are
used.
The current list of printers and ribbons can be found in
TE document 411-121005 ‘Identification Printer Product
Ribbon Matrix’. This document can be found in ‘Access
Our Tools’:
http://www.te.com/usa-en/utilities/access-product-tools-
and-resources.html
Software
WINTOTAL software, available to download for a 14 day
evaluation period from the Identification Printer Software
page:
http://www.te.com/usa-en/products/identification-labeling/
printers-software.html
Contact a TE representative for further information
www.te.com/rail
TE Connectivity, TE Connectivity (logo) and Every Connection Counts are trademarks. All other logos, products and/or company names referred to herein might be trademarks
of their respective owners.
The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, TE Connec-
tivity makes no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only be as set forth in TE
Connectivity‘s Standard Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising
out of the sale, resale, use or misuse of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for
the specific application.
© 2017 TE Connectivity Ltd. family of companies All Rights Reserved.
