536625-1

Description
HEADER CONNECTOR,PCB MNT,RECEPT,8 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL
CategoryThe connector    The connector
File Size50KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

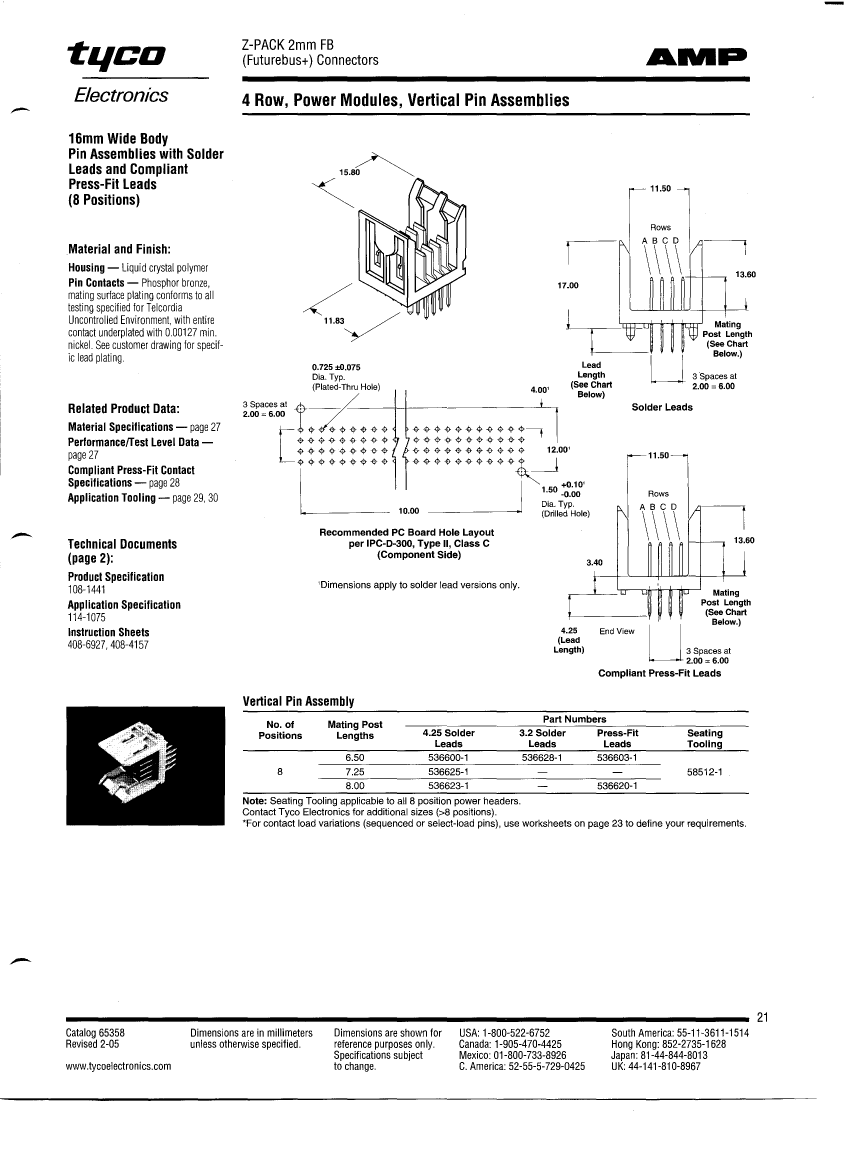

536625-1 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,8 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL

536625-1 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codecompliant
Other featuresMATING PIN LENGTH=0.285 INCH
Board mount optionsPEG
body width0.622 inch
subject depth0.669 inch
body length0.466 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU-PD-NI ON NI
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleBLADE PIN-SKT
Durability250 Cycles
maximum insertion force2.3352 N
insulator materialLIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number536625
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded4
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thicknessFLASH inch
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.167 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts8
Evacuation force-minimum value.278 N
Base Number Matches1

536625-1 Related Products

536625-1 536628-1
Description HEADER CONNECTOR,PCB MNT,RECEPT,8 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL 8 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Maker TE Connectivity TE Connectivity
Reach Compliance Code compliant unknown
Other features MATING PIN LENGTH=0.285 INCH Z-PACK
Board mount options PEG PEG
body width 0.622 inch 0.622 inch
subject depth 0.669 inch 0.669 inch
body length 0.466 inch 0.466 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation AU-PD-NI ON NI AU-PD-NI ON NI
Contact point gender MALE MALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR
Contact style BLADE PIN-SKT BLADE PIN-SKT
Durability 250 Cycles 250 Cycles
maximum insertion force 2.3352 N 2.3352 N
insulator material LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number 536625 536628
Plug contact pitch 0.079 inch 0.079 inch
Match contact row spacing 0.079 inch 0.079 inch
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 4 4
Number of rows loaded 4 5
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
PCB contact pattern RECTANGULAR RECTANGULAR
PCB contact row spacing 2.0066 mm 2.0066 mm
Plating thickness FLASH inch FLASH inch
polarization key POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 3 A 3 A
Guideline UL, CSA UL, CSA
reliability COMMERCIAL COMMERCIAL
Terminal length 0.167 inch 0.126 inch
Terminal pitch 2.0066 mm 2 mm
Termination type SOLDER SOLDER
Total number of contacts 8 8
Evacuation force-minimum value .278 N .278 N
Base Number Matches 1 1
