BAT42WS / BAT43WS
Lead-free
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Features
·
·
·
·
Low Forward Voltage Drop
Fast Switching
Ultra-Small Surface Mount Package
Lead Free/RoHS Compliant (Note 3)
H
D
G
A
B
SOD-323
Dim
A
J
Min
2.30
1.60
1.20
0.25
0.20
0.10
Max
2.70
1.80
1.40
0.35
0.40
0.15
Mechanical Data
·
·
·
·
·
·
·
·
·
Case: SOD-323
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Leads: Solderable per MIL-STD-202,
Method 208
Lead Free Plating (Matte Tin Finish annealed over
Alloy 42 leadframe).
BAT42WS Marking: S7
BAT43WS Marking: S8
Polarity: Cathode Band
Weight: 0.004 grams (approx.)
C
B
C
D
E
G
H
J
a
1.05 Typical
E
0.05 Typical
All Dimensions in mm
Maximum Ratings
@ T
A
= 25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 1)
Repetitive Peak Forward Current (Note 1)
Power Dissipation (Note 1)
Thermal Resistance Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
@ t < 1.0s
Non-Repetitive Peak Forward Surge Current @ t < 10ms
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
FRM
I
FSM
P
d
R
qJA
T
j
, T
STG
BAT42WS / BAT43WS
30
21
200
500
4.0
200
625
-55 to +125
Unit
V
V
mA
mA
A
mW
°C/W
°C
Electrical Characteristics
@ T
A
= 25°C unless otherwise specified
Characteristic
Reverse Breakdown Voltage (Note 2)
Forward Voltage Drop
Both Types
BAT42WS
BAT42WS
BAT43WS
BAT43WS
Symbol
V
(BR)R
Min
30
¾
¾
¾
0.26
¾
¾
¾
¾
Max
¾
1.0
0.40
0.65
0.33
0.45
500
100
10
5.0
Unit
V
Test Condition
I
R
= 100mA
I
F
= 200mA
I
F
= 10mA
I
F
= 50mA
I
F
= 2.0mA
I
F
= 15mA
V
R
= 25V
V
R
= 25V, T
j
= 100°C
V
R
= 1.0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100W
V
F
V
Reverse Current (Note 2)
Total Capacitance
Reverse Recovery Time
Notes:
I
R
C
T
t
rr
nA
mA
pF
ns
1. Part mounted on FR4 PC Board with recommended pad layout, which can be found on our website
at http://www.diodes.com/datasheets/ap02001.pdf.
2. Short duration test pulse used to minimize self-heating effect.
3. No purposefully added lead.
DS30100 Rev. 11 - 2
1 of 3
www.diodes.com

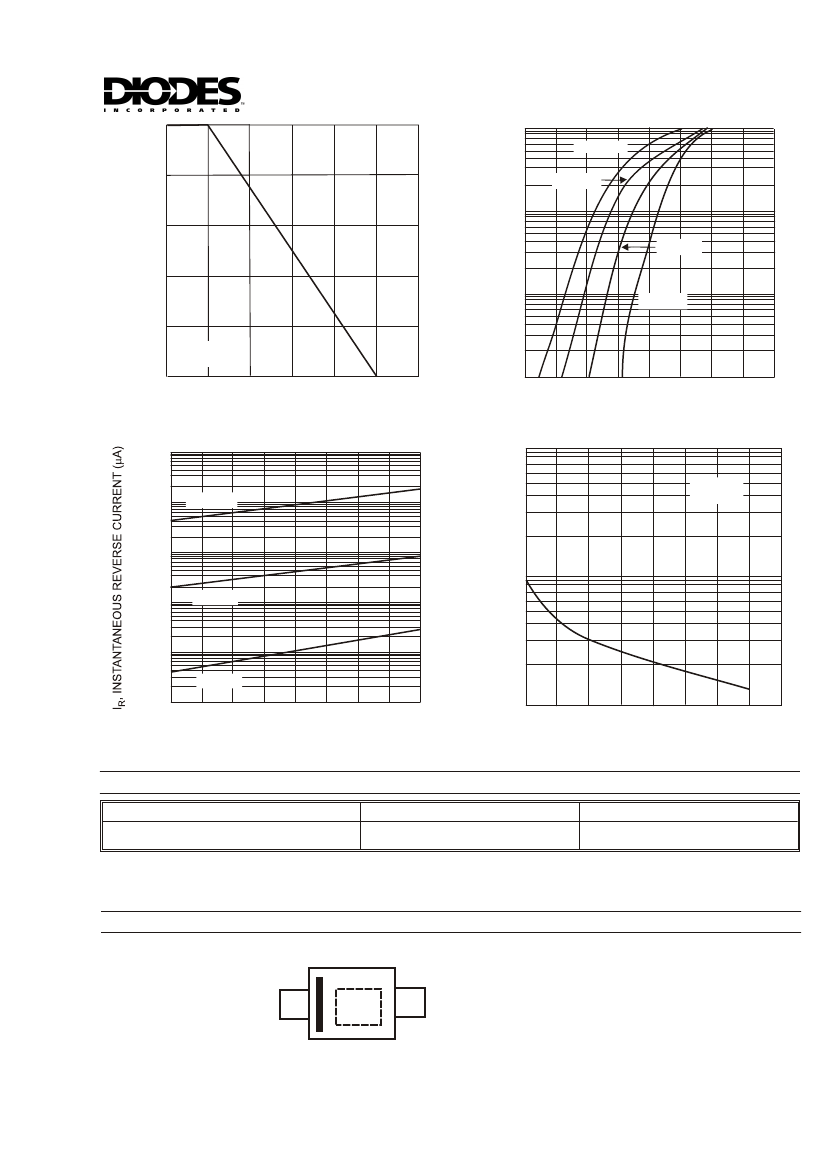

BAT42WS / BAT43WS
ã
Diodes Incorporated
