DCX124EH_1

Description
30 mA, 50 V, 2 CHANNEL, NPN AND PNP, Si, SMALL SIGNAL TRANSISTOR
Categorysemiconductor    Discrete semiconductor
File Size275KB,8 Pages
ManufacturerDiodes
Websitehttp://www.diodes.com/
Download Datasheet Parametric Compare View All

DCX124EH_1 Overview

30 mA, 50 V, 2 CHANNEL, NPN AND PNP, Si, SMALL SIGNAL TRANSISTOR

DCX124EH_1 Parametric

Parameter NameAttribute value
Number of terminals6
Transistor polarityNPN AND PNP
Maximum collector current0.0300 A
Maximum Collector-Emitter Voltage50 V
Processing package descriptionGREEN, PLASTIC PACKAGE-6
Lead-freeYes
EU RoHS regulationsYes
China RoHS regulationsYes
stateACTIVE
packaging shapeRectangle
Package SizeSMALL OUTLINE
surface mountYes
Terminal formFLAT
terminal coatingMATTE Tin
Terminal locationpair
Packaging MaterialsPlastic/Epoxy
structureSEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTANCE
Number of components2
Transistor component materialssilicon
Maximum ambient power consumption0.1500 W
Transistor typeUniversal small signal
Minimum DC amplification factor68
Rated crossover frequency250 MHz

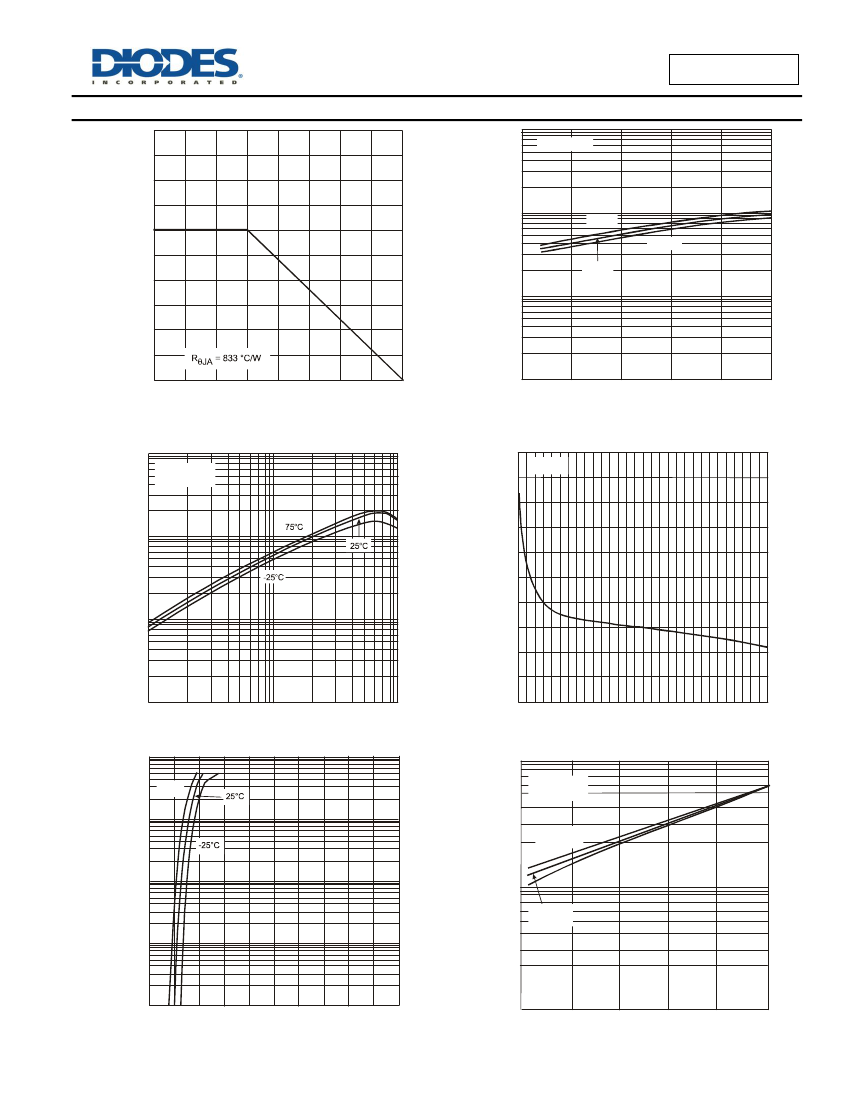

DCX (xxxx) H
COMPLEMENTARY NPN/PNP PRE-BIASED
SMALL SIGNAL TRANSISTORS in SOT563
Features
Epitaxial Planar Die Construction
Built-In Biasing Resistors
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Part Number
DCX124EH
DCX144EH
DCX143EH
DCX114YH
DCX123JH
DCX114EH
DCX143TH
DCX114TH
R1
22kΩ
47kΩ
4.7kΩ
10kΩ
2.2kΩ
10kΩ
4.7kΩ
10kΩ
R2
22kΩ
47kΩ
4.7kΩ
47kΩ
47kΩ
10kΩ
Marking
C17
C20
C08
C14
C06
C13
C07
C12
Mechanical Data
Case: SOT563
Case Material: Molded Plastic “Green” Molding Compound; UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Annealed over Copper
Leadframe. Solderable per MIL-STD-202, Method 208
e3
Terminal Connections: See Diagram
Weight: 0.005 grams (Approximate)
R
1
R
2
R
2
R
1
R
1
R
1
R
1
, R
2

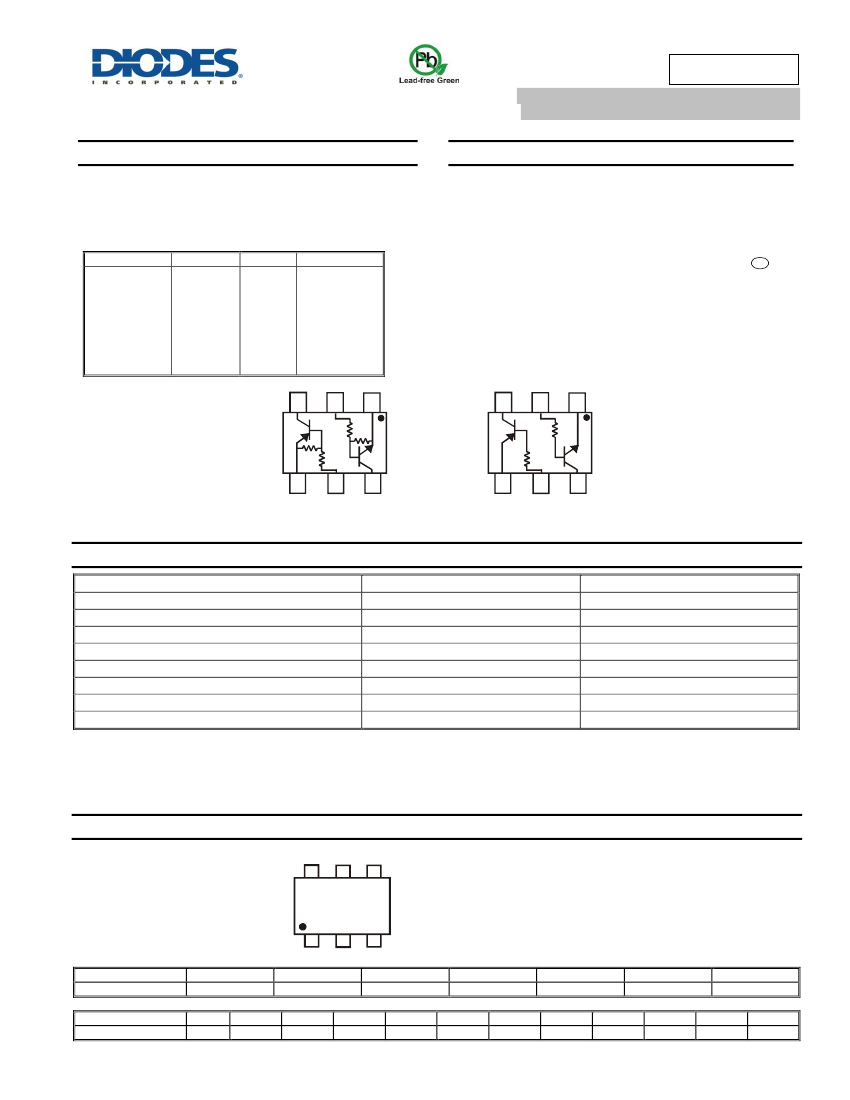

Device Schematic
Top View
R
1
Only Device Schematic
Top View
Ordering Information
(Note 4)
Part Number
DCX124EH-7
DCX144EH-7
DCX143EH-7
DCX114YH-7
DCX123JH-7
DCX114EH-7
DCX143TH-7
DCX114TH-7
Notes:
Packaging
SOT563
SOT563
SOT563
SOT563
SOT563
SOT563
SOT563
SOT563
Shipping
3,000/Tape & Reel
3,000/Tape & Reel
3,000/Tape & Reel
3,000/Tape & Reel
3,000/Tape & Reel
3,000/Tape & Reel
3,000/Tape & Reel
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
SOT563
CXX = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: F = 2018
M = Month ex: 9 = September
CXXYM
Date Code Key
Year
Code
Month
Code
Jan
1
2018
F
Feb
2
2019
G
Mar
3
Apr
4
2020
H
May
5
Jun
6
2021
I
Jul
7
2022
J
Aug
8
Sep
9
2023
K
Oct
O
Nov
N
2024
L
Dec
D
August 2018
© Diodes Incorporated
DCX (xxxx) H
Document number: DS30422 Rev. 5 - 2
1 of 8
www.diodes.com
