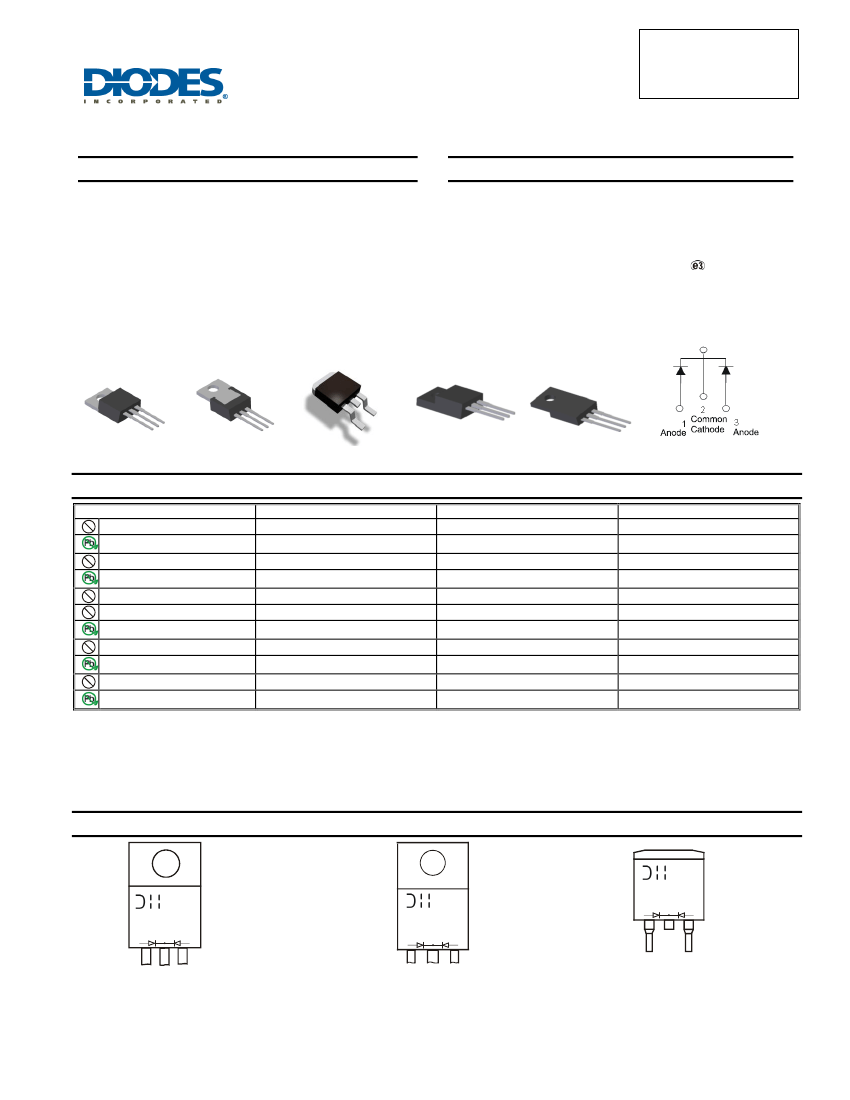

SBR20A60CT
SBR20A60CTB
SBR20A60CTFP
20A SBR
SUPER BARRIER RECTIFIER
®
Features
Low Forward Voltage Drop
Excellent High Temperature Stability
Patented Super Barrier Rectifier Technology
Soft, Fast Switching Capability
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
(D2PAK / TO263 Only)
PPAP Capable (Note 4)
Also Available in Green Molding Compound (Note 5)
Mechanical Data
Case: TO-220AB, ITO-220AB, TO263 (D
2
PAK)
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
Terminals: Matte Tin Finish Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: TO-220AB – 1.85 grams (Approximate)
TO263 (D
2
PAK) – 1.6 grams (Approximate)
ITO-220AB – 1.65 grams (Approximate)
TO-220AB
Top View
TO-220AB
Bottom View
TO263
Top View
ITO-220AB
Top View
ITO-220AB
Bottom View
Package Pin Out
Configuration
Ordering Information
(Notes 5 & 6)
Pb
Green
Part Number
SBR20A60CT
SBR20A60CT-G
SBR20A60CTB
SBR20A60CTB-G
SBR20A60CTB-13
SBR20A60CTBQ-13
SBR20A60CTB-13-G
SBR20A60CTFP
SBR20A60CTFP-G
SBR20A60CTFP-JT
SBR20A60CTFP-JT-G
Qualification
Commercial
Commercial
Commercial
Commercial
Commercial
Automotive
Commercial
Commercial
Commercial
Commercial
Commercial
Case
TO-220AB
TO-220AB
TO263
TO263
TO263
TO263
TO263
ITO-220AB
ITO-220AB
ITO-220AB (Alternate)
ITO-220AB (Alternate)
Packaging
50 pieces/tube
50 pieces/tube
50 pieces/tube
50 pieces/tube
800/Tape & Reel
800/Tape & Reel, 13-inch
800/Tape & Reel
50 pieces/tube
50 pieces/tube
50 pieces/tube
50 pieces/tube
Pb
Green
Pb
Pb
Green
Pb
Green
Pb
Green
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR20A60CT-G.
6. For packaging details, go to our website at http://www.diodes.com.
Marking Information
SBR
SBR
20A60C T
YYW W
AB
SBR
20A60C TFP
YYW W
AB
20A60C TB
YYW W
AB
SBR20A60CT = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 06 = 2006)
WW = Week (01 - 53)
SBR is a registered trademark of Diodes Incorporated
SBR20A60CTFP = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 06 = 2006)
WW = Week (01 - 53)
1 of 7
www.diodes.com
SBR20A60CTB = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 06 = 2006)
WW = Week (01 - 53)
October 2015
© Diodes Incorporated
SBR20A60
Document number: DS30965 Rev. 12 - 2
SBR20A60CT
SBR20A60CTB
SBR20A60CTFP
Maximum Ratings (Per Leg)
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current Per Device
(Per Leg)
(Total)
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Peak Repetitive Reverse Surge Current (2μS - 1Khz)
Isolation Voltage (ITO-220AB Only)
From terminal to heatsink t = 3 sec.
Repetitive Peak Avalanche Power (1μs, +25°C)
Symbol
V
RRM
V
RWM
V
RM
I
O
I
FSM
I
RRM
V
AC
P
ARM
Value
60
10
20
180
3
2,000
7,000
Unit
V
A
A
A
V
W
Thermal Characteristics (Per Leg)
Characteristic
Typical Thermal Resistance
Package = TO-220AB
Package = TO263
Package = ITO-220AB
Operating and Storage Temperature Range
Symbol
R
JC
T
J
, T
STG
Value
2
2
4
-65 to +150
Unit
°C/W
°C
Electrical Characteristics (Per Leg)
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Forward Voltage Drop
Leakage Current (Note 7)
Note:
Symbol
V
F
I
R
Min
-
-
Typ
-
0.47
-
-
Max
0.65
0.56
0.79
0.5
100
Unit
V
mA
Test Condition
I
F
= 10A, T
J
= +25°C
I
F
= 10A, T
J
= +125°C
I
F
= 20A, T
J
= +25°C
V
R
= 60V, T
J
= +25°C
V
R
= 60V, T
J
= +125°C
7. Short duration pulse test used to minimize self-heating effect.
SBR20A60
Document number: DS30965 Rev. 12 - 2
2 of 7
www.diodes.com
October 2015
© Diodes Incorporated
SBR20A60CT
SBR20A60CTB
SBR20A60CTFP
R
JA
= R
JC
Total Device
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
30
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
20
10
T
A
= +150°C
T
A
= +125°C
25
20
1
15
R
JA
= R
JC
Per Element
T
A
= +85°C
0.1
T
A
= +25°C
10
0.01
5
R
JA
= 16°C/W
Per Element
0
25
50
75
100
125
T
A
, AMBIENT TEMPERATURE (°C)

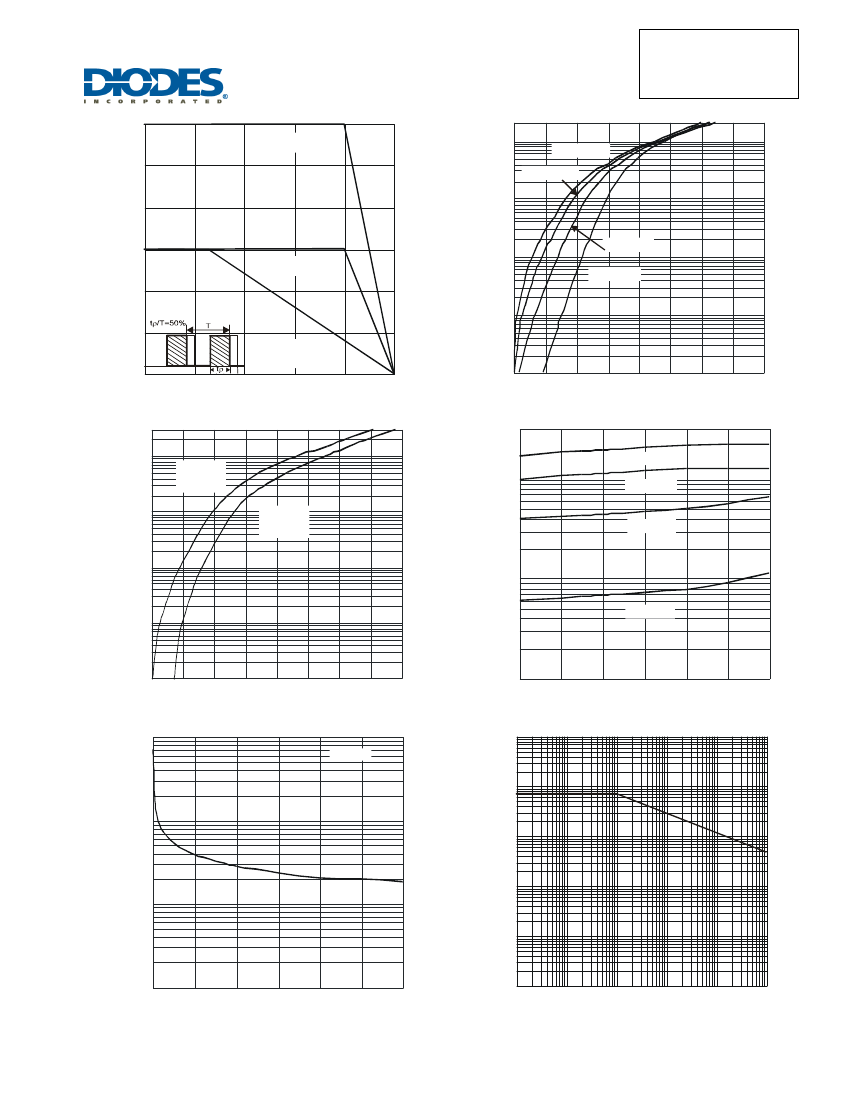

Figure 1 Forward Current Derating Curve
150
0.001
0
100 200 300 400 500 600 700 800
V
F
, INSTANTANEOUS FORWARD VOLTAGE (mV)
Figure 2 Typical Forward Characteristics
10
T
A
= +125°C
Typical
Values
I
F
, INSTANTANEOUS REVERSE CURRENT (µA)
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
30
T
A
= +150°C
10,000
T
A
= +125°C
1
T
A
= +125°C
Maximum
Values
T
A
= +85°C
0.1
100
T
A
= +25°C
0.01
0.001
0
100 200 300 400 500 600 700 800
V
F
, INSTANTANEOUS FORWARD VOLTAGE (mV)
Figure 3 Forward Characteristics @T
A
= +125°C
1
0
10
20
30
40
50
60
V
F
, INSTANTANEOUS REVERSE VOLTAGE (V)
Figure 4 Typical Reverse Characteristics
10,000
f = 1MHz
100,000
P
ARM
, MAXIMUM AVALANCHE POWER (W)
C
T
, TOTAL CAPACITANCE (pF)
10,000
1,000
1,000
100
100
10
10
0
10
20
30
40
50
60
V
R
, DC REVERSE VOLTAGE (V)
Figure 5 Total Capacitance vs. Reverse Voltage
1
0.01
0.1
1
10
100
1,000
T
P
, PULSE DURATION (µS)
Figure 6 Maximum Avalanche Power Curve
SBR20A60
Document number: DS30965 Rev. 12 - 2
3 of 7
www.diodes.com
October 2015
© Diodes Incorporated
SBR20A60CT
SBR20A60CTB
SBR20A60CTFP

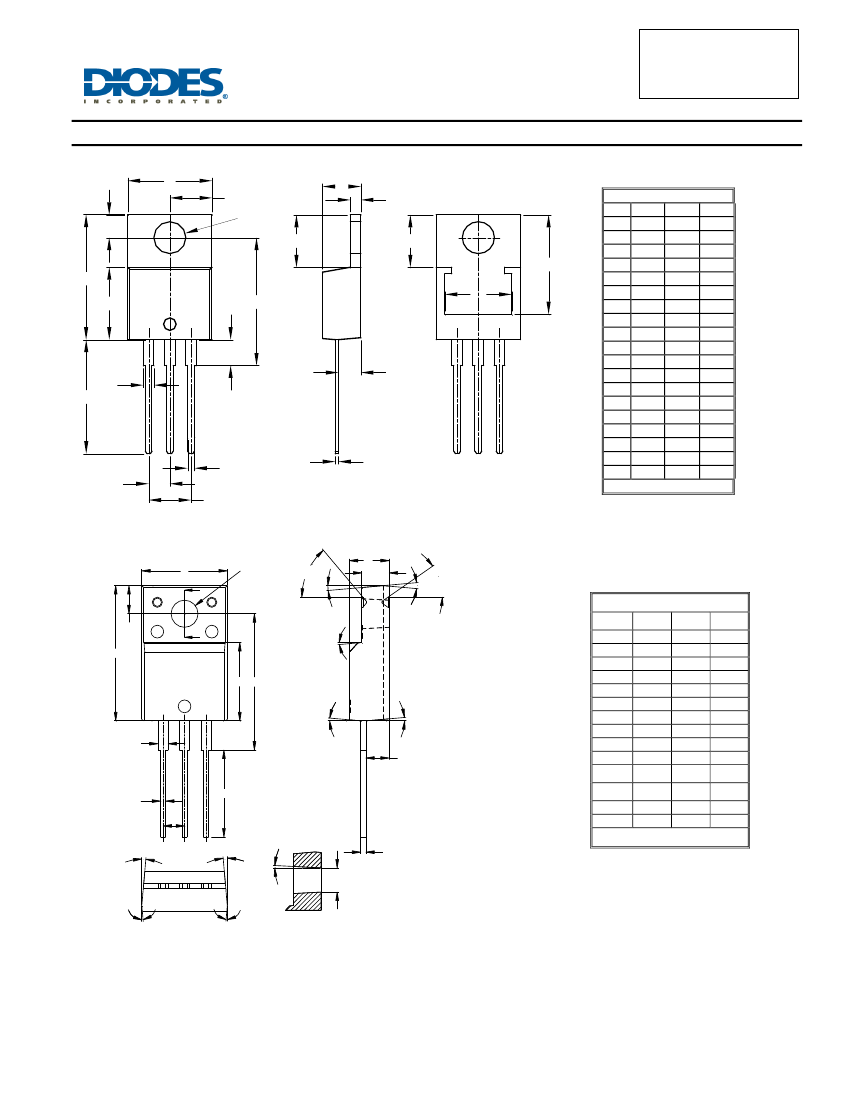

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
E
E/2
Q
A
A1
ØP
H1
H1
D2
D
D1
L2
E1
L1
A2
L
b2
b
e
e1
c
TO220AB
Dim Min Max Typ
A
3.56 4.82
-
A1
0.51 1.39
-
A2
2.04 2.92
-
b
0.39 1.01 0.81
b2
1.15 1.77 1.24
c
0.356 0.61
-
D
14.22 16.51
-
D1
8.39 9.01
-
D2
11.45 12.87
-
e
-
-
2.54
e1
-
-
5.08
E
9.66 10.66
-
E1
6.86 8.89
-
H1
5.85 6.85
-
L
12.70 14.73
-
L1
-
6.35
-
L2
15.80 16.20 16.00
P
3.54 4.08
-
Q
2.54 3.42
-
All Dimensions in mm
50°
E
B
ØP
A
A1
35°
5°
Q
B
5°
ITO220AB
Dim
A
A1
A2
b
b1
c
D
D1
E
e
L
Min
Max
Typ
4.50
4.90
4.70
3.04
3.44
3.24
2.56
2.96
2.76
0.50
0.75
0.60
1.10
1.35
1.20
0.50
0.70
0.60
15.67 16.07 15.87
8.99
9.39
9.19
9.91 10.31 10.11
--
--
2.54
9.45 10.05 9.75
D
D1 L1
5°
5°
5°
b1
A2
b
e
L
5°
3°
L1
15.80 16.20 16.00
P
2.98
3.38
3.18
Q
3.10
3.50
3.30
All Dimensions in mm
c
ØP
5°
5°
SBR20A60
Document number: DS30965 Rev. 12 - 2
5°
SECTION B-B
4 of 7
www.diodes.com
October 2015
© Diodes Incorporated
SBR20A60CT
SBR20A60CTB
SBR20A60CTFP
Package Outline Dimensions
(continued)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
Q
E
Ø
P
A
A1
D
L1
D1
A2
b1
L
ITO220AB
(Type E)
Dim
Min
Max
A
4.36
4.77
A1
2.54
3.10
A2
2.54
2.80
b
0.55
0.75
b1
1.20
1.50
c
0.38
0.68
D
14.50 15.50
D1
8.38
8.89
e
2.41
2.67
E
9.72
10.27
L
9.87
10.67
L1
15.8
17.00
P
3.08
3.39
Q
2.60
3.00
All Dimensions in mm
e
b
c
E
A
c2
L1
7°±1°
D
H
L2
e
b
b2
See Detail B
c
L3
Gauge Plane
Seating
Plane
E1
D1
a
L
Detail B
A1
TO263AB (D2PAK)
Dim Min Max Typ
A
4.07 4.82
-
A1
0.00 0.25
-
b
0.51 0.99
-
b2
1.15 1.77
-
c
0.356 0.73
-
c2
1.143 1.65
-
D
8.39 9.65
-
D1
6.55 6.95
-
e
2.54 TYP
E
9.66 10.66
-
E1
6.23 8.23
-
H
14.61 15.87
-
L
1.78 2.79
-
L1
-
1.67
-
L2
-
1.77
-
L3
-
-
0.254
a
0°
8°
-
All Dimensions in mm
SBR20A60
Document number: DS30965 Rev. 12 - 2
5 of 7
www.diodes.com
October 2015
© Diodes Incorporated
