SBR40100CT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> SBR40100CT

SBR40100CT: Description20 A, 100 V, SILICON, RECTIFIER DIODE, TO-220AB; Categorysemiconductor Discrete semiconductor; File Size149KB，5 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric View All

SBR40100CT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SBR40100CT	-	-	View	Buy Now

SBR40100CT Overview

20 A, 100 V, SILICON, RECTIFIER DIODE, TO-220AB

SBR40100CT Parametric

Parameter Name	Attribute value
Number of components	2
Number of terminals	3
Processing package description	ROHS COMPLIANT, PLASTIC PACKAGE-3
each_compli	Yes
EU RoHS regulations	Yes
state	Active
Diode type	RECTIFIER DIODE
application	SUPER FAST SOFT RECOVERY
Shell connection	CATHODE
structure	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Maximum forward voltage	0.7300 V
jedec_95_code	TO-220AB
jesd_30_code	R-PSFM-T3
jesd_609_code	e3
moisture_sensitivity_level	NOT APPLICABLE
Maximum non-repetitive peak forward current	280 A
Phase	1
Minimum operating temperature	-65 Cel
Maximum operating temperature	175 Cel
Maximum output current	20 A
Packaging Materials	PLASTIC/EPOXY
packaging shape	RECTANGULAR
Package Size	FLANGE MOUNT
eak_reflow_temperature__cel_	260
qualification_status	COMMERCIAL
Maximum repetitive peak reverse voltage	100 V
sub_category	Rectifier Diodes
surface mount	NO
terminal coating	MATTE TIN
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
ime_peak_reflow_temperature_max__s_	40

Preview

Download Datasheet

View All

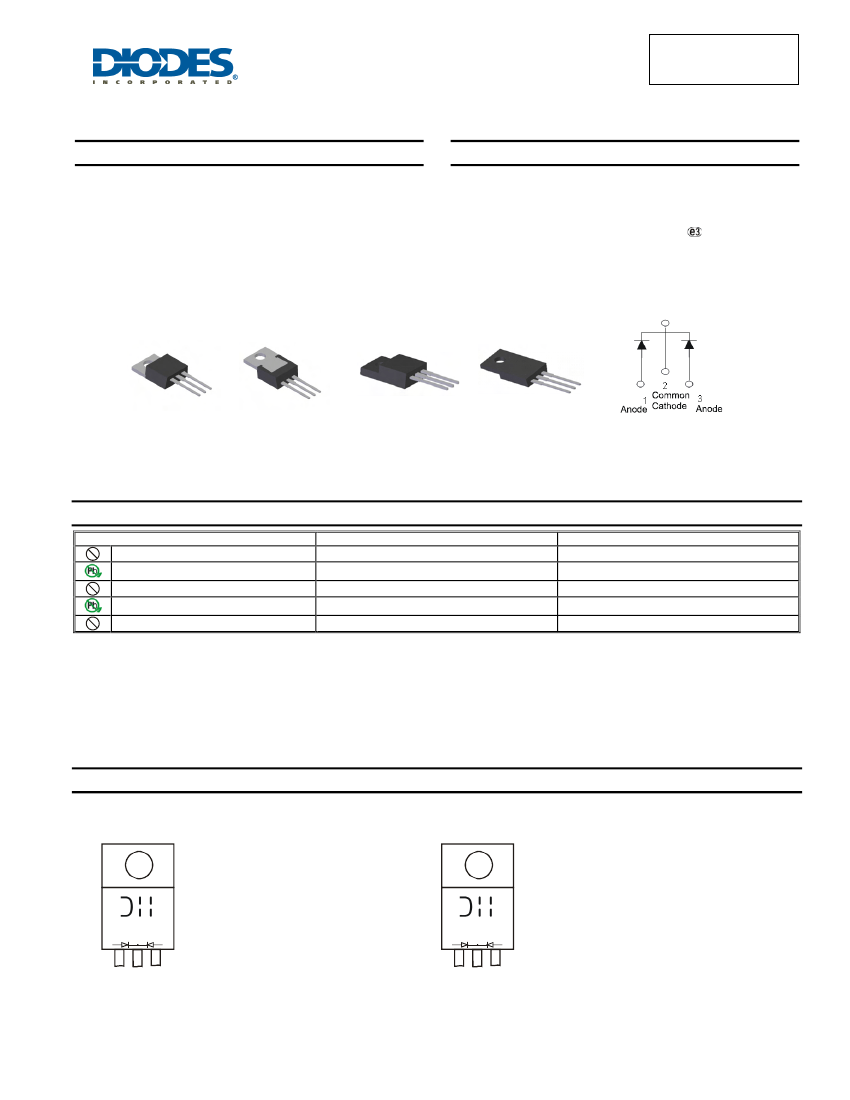

SBR40100CT

SBR40100CTFP

40A SBR

SUPER BARRIER RECTIFIER

Features

•

Low Forward Voltage Drop

Excellent High Temperature Stability

Patented Super Barrier Rectifier Technology

Soft, Fast Switching Capability

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Also Available in Green Molding Compound

•

Halogen and Antimony Free. “Green” Device (Note 3)

Mechanical Data

•

Case: TO-220AB, ITO-220AB

Case Material: Molded Plastic, UL Flammability Classification

Rating 94V-0

Terminals: Matte Tin Finish annealed over Copper leadframe.

Solderable per MIL-STD-202, Method 208

Weight: TO-220AB – 1.85 grams (approximate)

ITO-220AB – 1.65 grams (approximate)

TO-220AB

Top View

TO-220AB

Bottom View

ITO-220AB

Top View

ITO-220AB

Bottom View

Package Pin Out

Configuration

Ordering Information

(Notes 4 and 5)

Green

Part Number

SBR40100CT

SBR40100CT-G

SBR40100CTFP

SBR40100CTFP-G

SBR40100CTFP-JT

Case

TO-220AB

ITO-220AB

ITO-220AB(Alternate)

Packaging

50 pieces/tube

Green

Notes:

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR40100CT-G.

5. For packaging details, go to our website at http://www.diodes.com.

Marking Information

SBR40100CT = Product Type Marking Code

AB = Foundry and Assembly Code

YYWW = Date Code Marking

YY = Last two digits of year (ex: 06 = 2006)

WW = Week (01 - 53)

SBR40100CT

YYWW AB

SBR40100CTFP

YYWW AB

SBR40100CTFP = Product Type Marking Code

AB = Foundry and Assembly Code

YYWW = Date Code Marking

YY = Last two digits of year (ex: 06 = 2006)

WW = Week (01 - 53)

SBR is a registered trademark of Diodes Incorporated.

SBR40100CT

Document number: DS30988 Rev. 6 - 2

1 of 5

www.diodes.com

May 2012

SBR40100CT

SBR40100CTFP

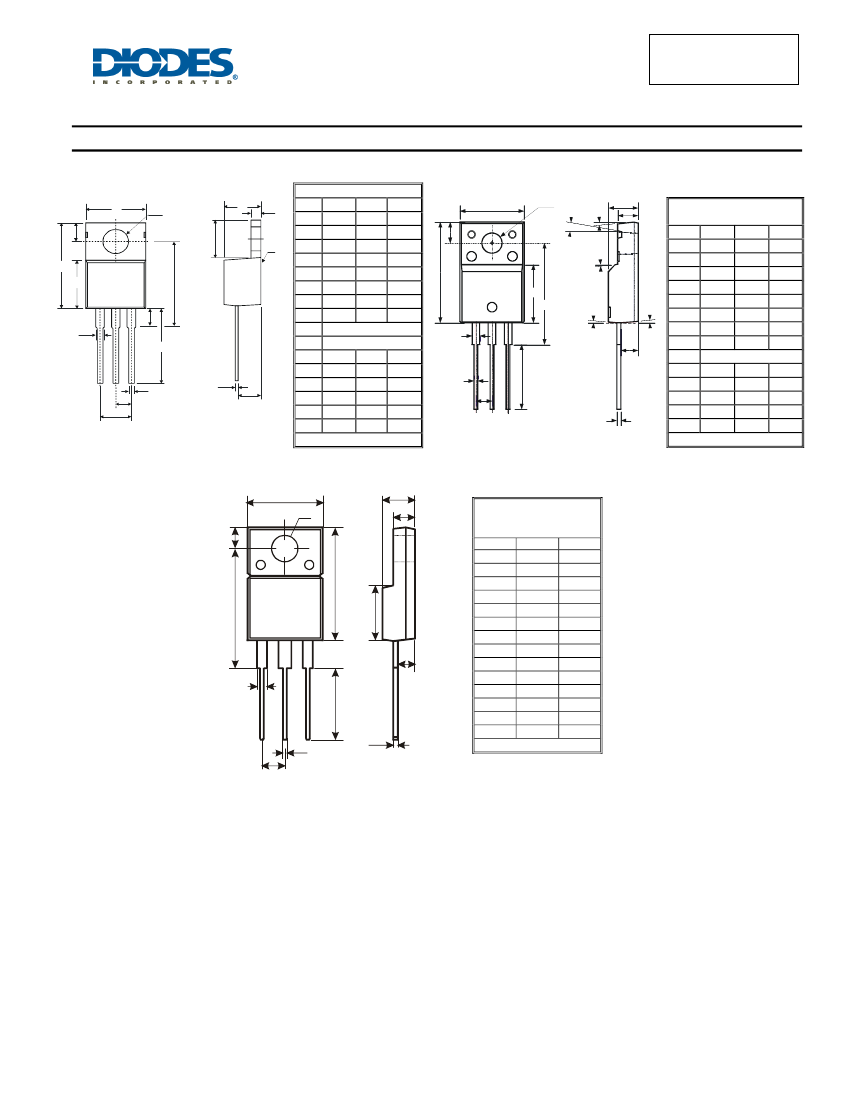

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

SBR is a registered trademark of Diodes Incorporated.

SBR40100CT

Document number: DS30988 Rev. 6 - 2

5 of 5

www.diodes.com

May 2012
