1NR3294A datasheet, PDF - EEWORLD Datasheet

1NR3294A: DescriptionRectifier Diode, 1 Phase, 1 Element, 100A, 800V V(RRM), Silicon, DO-205AA,; CategoryDiscrete semiconductor diode; File Size39KB，1 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

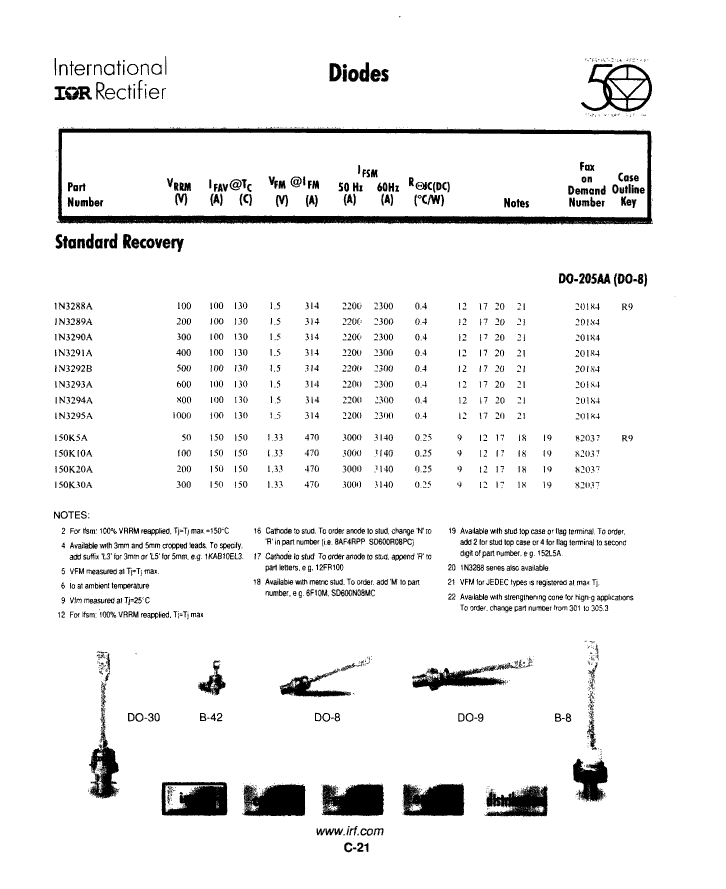

Download Datasheet Parametric View All

1NR3294A Overview

Rectifier Diode, 1 Phase, 1 Element, 100A, 800V V(RRM), Silicon, DO-205AA,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	O-MUPM-H1
Reach Compliance Code	compli
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-205AA
JESD-30 code	O-MUPM-H1
Maximum non-repetitive peak forward current	2300 A
Number of components	1
Phase	1
Number of terminals	1
Maximum output current	100 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Maximum time at peak reflow temperature	40
Base Number Matches	1
