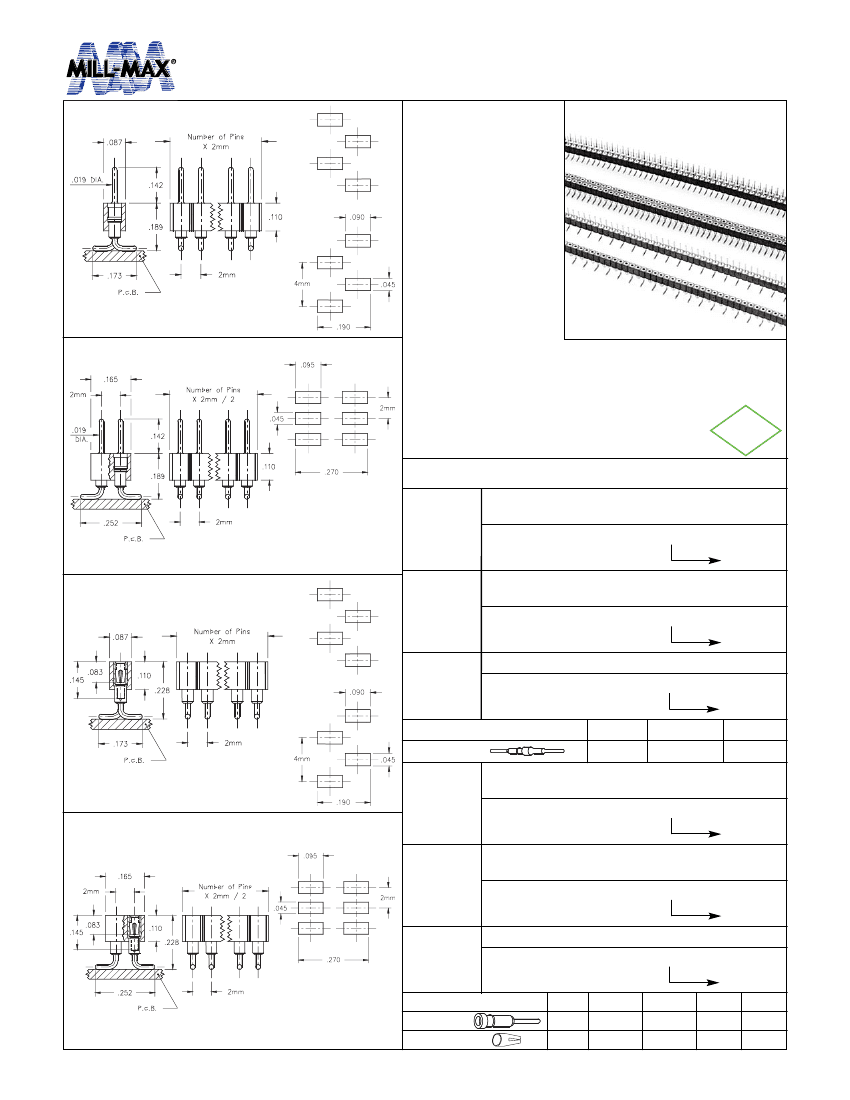

INTERCONNECTS
2 mm Grid
Surface Mount Headers And Sockets
Left Hand
Footprint
Series 830, 831
832, 833
•
Headers (830 &
832) use MM# 6218
pins. (See page 166
for details)
Right Hand
Footprint
Coplanarity .005”. For Pin Counts
> 12 Consult Tech Support
Fig. 1
Footprint
•
Sockets (831 & 833)
use MM# 1802
receptacles and
accept pin diameters
from .015-.025. (See
page 138 for details)
•
Coplanarity .005” (Single Row max 12 pins; Double
Row max 24 pins) for higher pin counts
contact tech support.
•
Insulators are high temp. thermoplastic.
Ordering Information
Single Row Header, Left Hand Footprint
Odd or Even # of pins
Fig. 1L
Coplanarity .005”. For Pin Counts
> 24 Consult Tech Support
830-XX-0_ _-30-001000
Specify # of pins
01-50
Single Row Header, Right Hand Footprint
Even # of pins
Fig. 2
Left Hand
Footprint
Fig. 1R
830-XX-0_ _-30-002000
Specify even # of pins
02-50
Double Row Header, Even # of pins
Fig. 2
Right Hand
Footprint
832-XX-_ _ _-30-001000
Specify even # of pins
004-100
90
40
10
SPECIFY PLATING CODE XX=
Pin Plating
Coplanarity .005”. For Pin Counts
> 12 Consult Tech Support
10μ” Au 200μ” Sn/Pb 200μ” Sn
Fig. 3
Footprint
Single Row Socket, Left Hand Footprint
Odd or Even # of pins
Fig. 3L
831-XX-0_ _-30-001000
Specify # of pins
01-50
Single Row Socket, Right Hand Footprint
Even # of pins
Fig. 3R
831-XX-0_ _-30-002000
Specify even # of pins
02-50
Double Row Socket, Even # of pins
Fig. 4
SPECIFY PLATING CODE XX=
Coplanarity .005”. For Pin Counts
> 24 Consult Tech Support
833-XX-_ _ _-30-001000
Specify even # of pins
13
30µ” Au
004-100
99
43
44
93
30µ” Au
Sleeve (Pin)
Contact (Clip)
10µ” Au 200µ” Sn/Pb 200µ”Sn/Pb 200µ”Sn 200µ”Sn
200µ”Sn/Pb
30µ” Au 200µ”Sn
Fig. 4
w w w. m i l l - m a x . c o m
74
516-922-6000
